Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Certification: | IOS9001,CE |
| Model Number: | 40PV-SP |
| Minimum Order Quantity: | 1 set |
| Price: | USD 1000/Set |
| Packaging Details: | Ply wooden case |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per month |
| Material: | High Chrome Alloy | Theory: | Centrifugal Pump |
|---|---|---|---|
| High Light: | 40PV-SP vertical sump pump,High Chrome Alloy Chemical Sump Pump,40PV-SP Chemical Sump Pump |
||

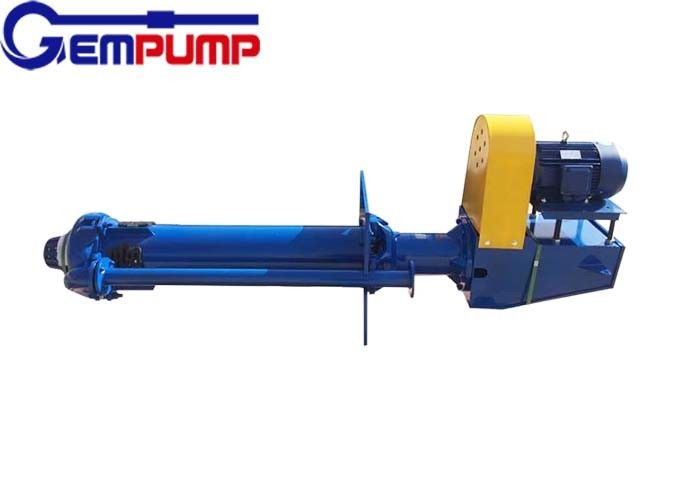

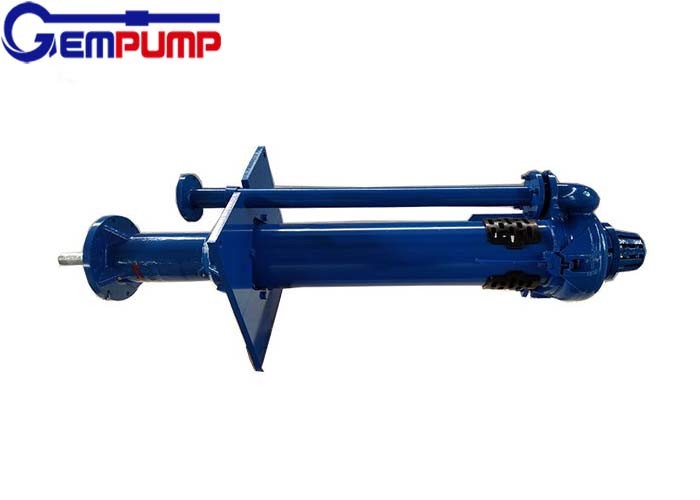

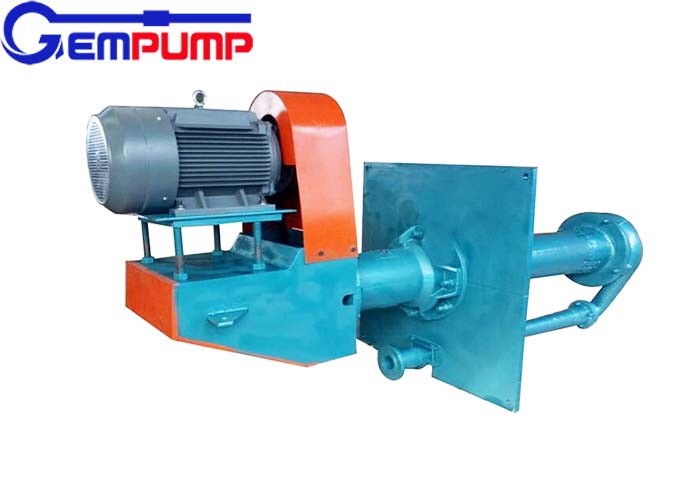

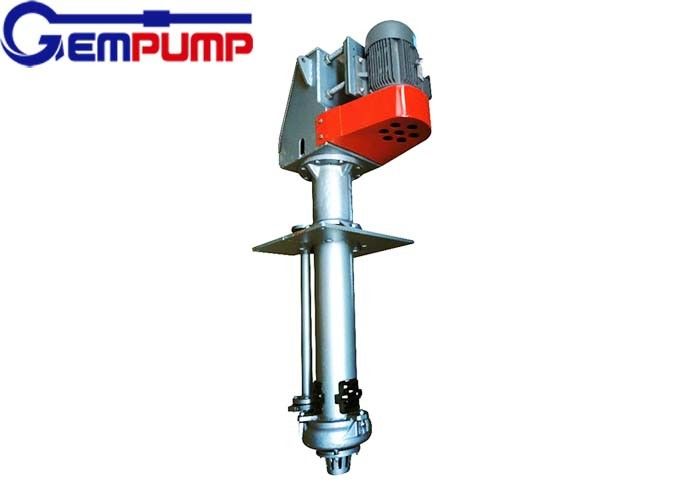

40PV-SP corrosion wear resistant mining feeding vertical sump pump
| Pump model | 40PV-SP |
| Flow rate: | 5-12 L/S |
| Pump Head: | 4-28 m |
| Speed: | 1000-2200 rpm |
| Max.Eff. | 40% |
| No. of Vanes | 5 |
| Impeller dismeter | 188 mm |
| Pump weight | 285 kg |
| Pump material | High chrome alloy Cr27 |
40PV-SP Vertical sump slurry pump features:
1. Cantilevered shaft design,long shaft
2. Double suction semi-open impeller,non clog
3. Agitator option keeps solids in suspension
4. Different length of the pump drive shaft or inhaled could be selected,D=900mm,D=1200mm,D=1500mm
5. Material of Impeller could be wear-resistant metal or rubber,designed for wear resistance
6. SPR models feature full rubber covering for corrosion resistance,wear resistance,long service life
7. V-belt drive, DC direct drive, and flexible coupling. Bearing to lubricate oils.
8. No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available
Product Introduction:
The 40PV-SP pump is a kind of vertical centrifugal slurry pump. Suitable for conveying corrosive, coarse particles and high concentration slurries. The pump is typically immersed in the tank or in the pit. It does not require any shaft seals and sealing water, it can works well under conditions of insufficient suction.
Application Field:
The 40PV-SP pump is widely used in metallurgy, mining, coal, electric power, building materials and other departments.
Meaning of pump Model:
40PV-SP (Or SPR)
40-Diameter of pump outlet (mm)
PV- Tray
SP-Submerged slurry pump
SPR-Submerged slurry pump lined with Rubber
