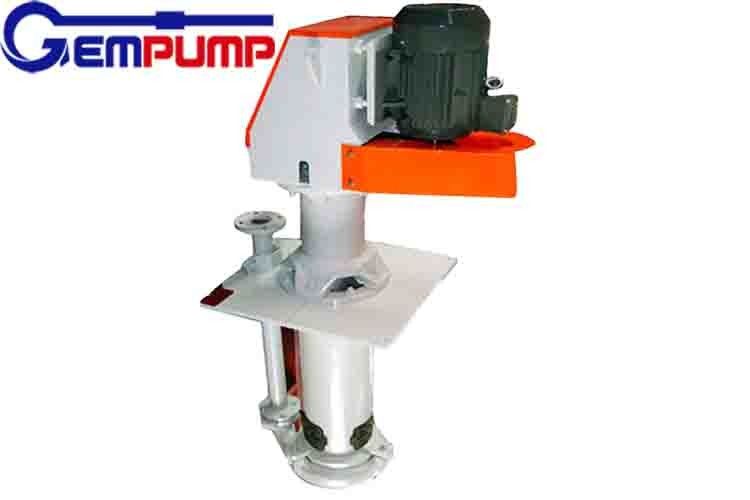

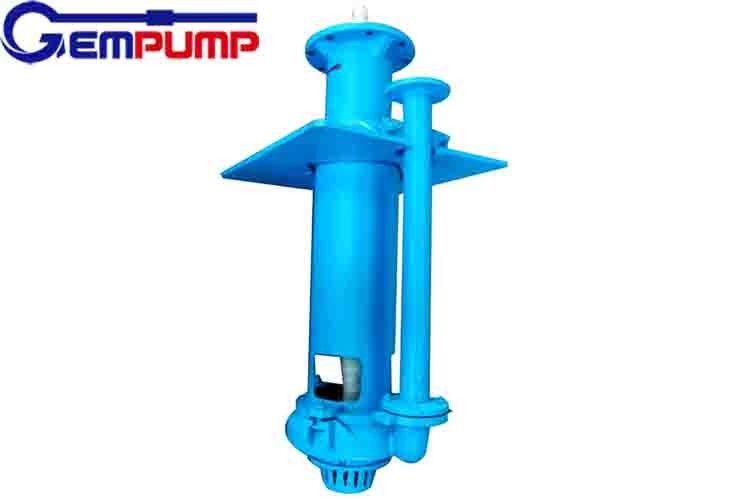

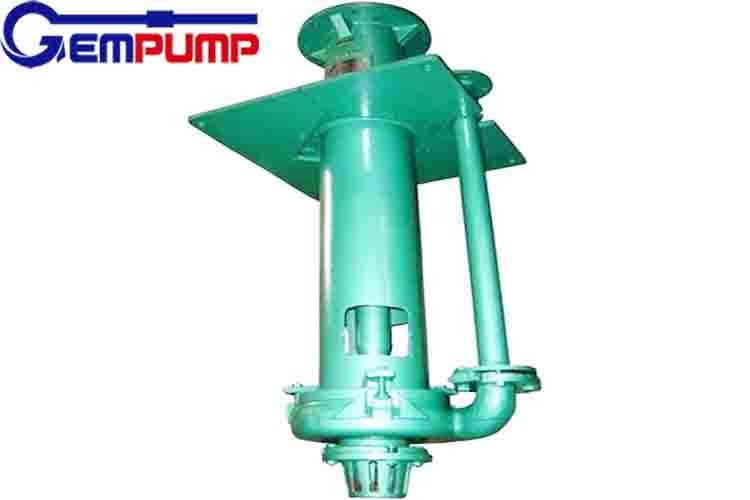

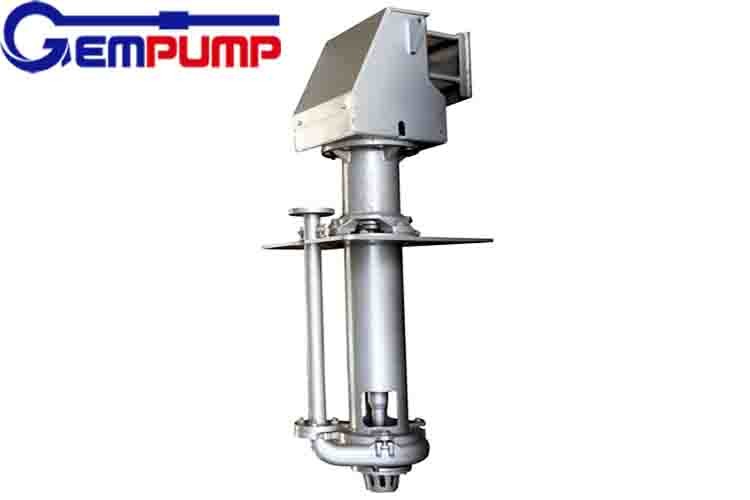

Cr27 Vertical Sump Pump 80L/S Mining Dewatering Sewage Pump

small.img.alt
small.img.alt Cr27 Vertical Sump Pump 80L/S Mining Dewatering Sewage Pump Cr27 Vertical Sump Pump 80L/S Mining Dewatering Sewage Pump small.img.alt Cr27 Vertical Sump Pump 80L/S Mining Dewatering Sewage Pump Cr27 Vertical Sump Pump 80L/S Mining Dewatering Sewage Pump small.img.alt Cr27 Vertical Sump Pump 80L/S Mining Dewatering Sewage Pump Cr27 Vertical Sump Pump 80L/S Mining Dewatering Sewage Pump small.img.alt Cr27 Vertical Sump Pump 80L/S Mining Dewatering Sewage Pump Cr27 Vertical Sump Pump 80L/S Mining Dewatering Sewage Pump
Basic Information
Place of Origin: China
Brand Name: Gempump
Certification: IOS9001,CE
Model Number: 100RV-SPGEM
Minimum Order Quantity: 1 set
Price: USD 1000/Set
Packaging Details: Ply wooden case
Delivery Time: 5-8 working days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Product: Water Treatment Submersible Pump Theory: Centrifugal Pump
Material: High Chrome Alloy Warranty: 1 Year
Place Of Origin: Shijiazhuang,China Power: Electric Motor
Voltage: AC380V/AC400V/AC415V Certification: CE,ISO9001
High Light:

Cr27 Vertical Sump Pump

,

80L/S Mining Dewatering Sewage Pump

,

80L/S Vertical Sump Pump

China Vertical Sump Mining Dewatering Sewage Pump Submersible Slurry Pump

Vertical Submersible Slurry Pump Details

Gempump BRAND Type of SPGEM series centrifugal slurry pumps are cantilevered, vertical, centrifugal slurry pumps. SPGEM  type submerged slurry pumps are mainly applicable to transport abrasive, coarse particle,high concentration slurry.

They are widely used in metallurgy, mining, coal, electric power, building materials,environmental protection and other departments. Both high chrome metal or rubber material are available.

SUBMERSIBLE SLURRY PUMP FEATURES

1. SP(R)GEM type submerged pumps are vertical centrifugal slurry pump, generally into the pool or pit to work,used to transport abrasive, coarse particle, high concentration slurry.

2. Don't need any shaft seal and shaft seal water, in the inhaled volume insufficient conditions  they can also work normally.

3. SP(R)GEM type submerged pumps' pump body is made of wear-resisting metal. Impeller is made of wear-resistant metal or rubber, polyurethane SP(R)GEM type submerged pumps parts into the liquid with rubber lining,they are all applicable to transport corrosive slurry.

Gempump Company Overview

GemPump mainly focus on international high  standard pumps and effective project design  solutions. Over 20years development, we have  passed ISO and CE,UL ect certifications, we owned  modern standard workshops,CNC equipment,  advanced testing lab,spar-baking booth, strictly QC  team,  large performance testing center to guarantee  each spare parts and pumps in 100% top international quality.

Vertical Sump Mining Dewater Slurry Pump Wokring Performance

The assembly is grease lubricated and sealed by labyrinths; the upper is grease purged and the lower protected by a special flinger. The upper or drive end bearing is a parallel roller type whilst the lower bearing is a double taper roller with preset end float. This high performance bearing arrangement and robust shaft eliminates the need for a lower submerged bearing.
Casing – Has a simple bolt-on attachment to the base of the column. It is manufactured from a wear resistant alloy for the SP and from molded elastomer for the SPR.

Impeller – Double suction impellers (top and bottom entry) induce low axial bearing loads and have heavy deep vanes for maximum wear resistance and for handling large solids. Wear resistant alloys, polyurethane and molded elastomer impellers are interchangeable.
Lower Strainer – Bolted metal or polyurethane for SP; molded snap-on elastomer for SPR.
Discharge Pipe – Metal for SP; elastomer covered for SPR. All wetted metal parts are completely rust protected.

Cr27 Vertical Sump Pump 80L/S Mining Dewatering Sewage Pump 0

Product Paramenters



Model
Max. Power(kw)
Material
Flow(L/S)
Head(m)
Speed(r/min)
Impeller Diameter(mm)
SP-GEM
40PV-SPGEM
15
Cr27
5-12
4-28
1000-2200
188
65QV-SPGEM
30
6-24
5-31
700-1500
280
100RV-SPGEM
75
15-80
5-35
500-1200
370
150SV-SPGEM
110
30-130
8-40
500-1000
450
SPR-GEM
40PV-SPRGEM
15
Rubber
5-11
4-26
1000-2200
188
65QV-SPRGEM
30
6-29
5-30
700-1500
280
100RV-SPRGEM
75
18-80
5-35
600-1200
370
150SV-SPRGEM
110
30-130
8-40
500-1000
450



Cr27 Vertical Sump Pump 80L/S Mining Dewatering Sewage Pump 1

FAQ
● How is the quality of your products?
Answer : Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
● How about the Guaranteed?
Answer : All of our products are guaranteed for one year. If products quality is not consistent with the description as we Described or the promise before you place order, we promise 100% refund.
● How about price?
Answer : For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
● How about the service and payment terms?
Answer : We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
