Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | IOS9001,CE |
| Model Number: | 100RV-SPRGEM |
| Minimum Order Quantity: | 1 set |
| Price: | USD 1000/Set |
| Packaging Details: | Ply wooden case |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per month |
| Product: | Water Treatment Submersible Pump | Theory: | Centrifugal Pump |
|---|---|---|---|
| Material: | High Chrome Alloy | Warranty: | 1 Year |
| Place Of Origin: | Shijiazhuang,China | Power: | Electric Motor |
| Voltage: | AC380V/AC400V/AC415V | Certification: | CE,ISO9001 |
| High Light: | 75KW submersible slurry pump,32mm Sand Suction Vertical Sump Pump,75KW Vertical Sump Pump |
||

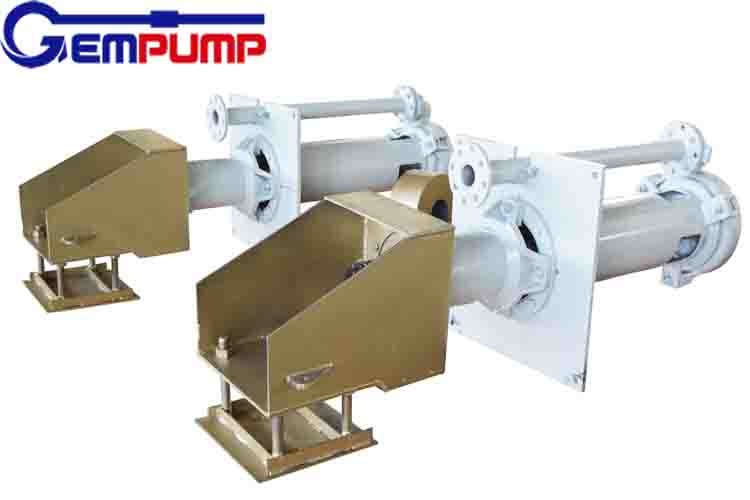

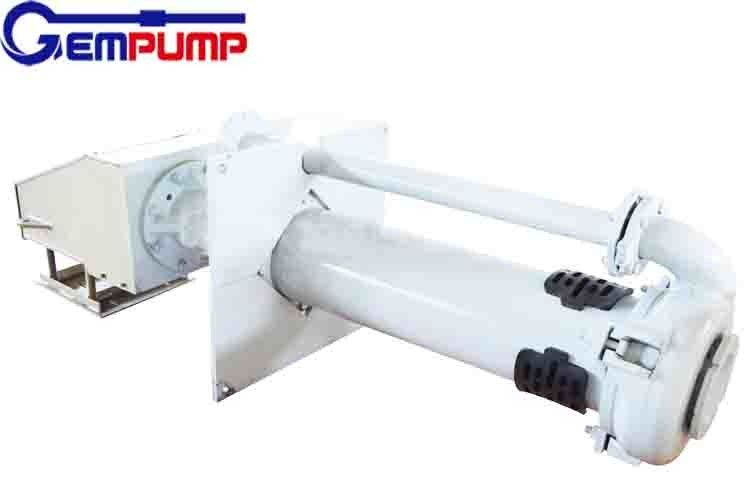

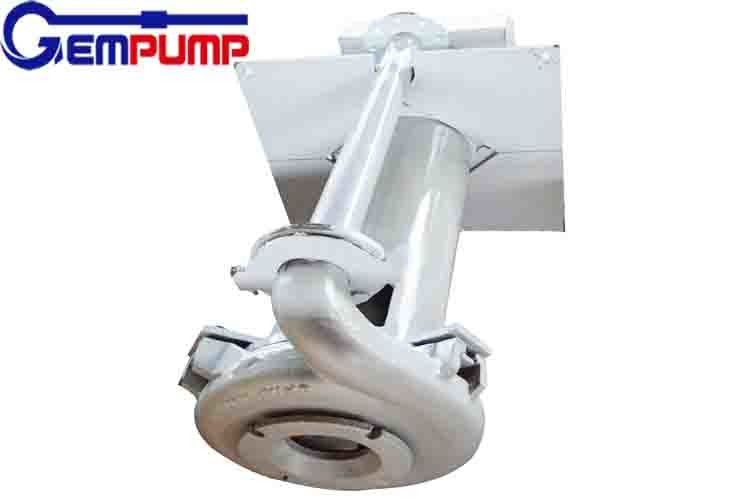

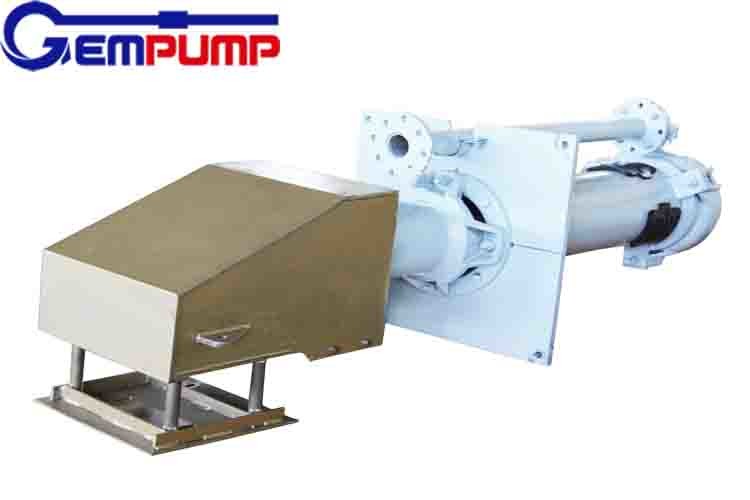

Centrifugal Vertical Submersible Sand Suction Slurry Pump For Mining Floatation
The Gempump vertical sump pump excellence is embodied in the range of vertical Sump Pumps. Use a variety of speed and various modifications way, makes the pump in the best condition operation, long service life, high operating efficiency and can meet many kinds of poor transport conditions. It's widely used in the metallurgy, mining, coal, power, building materials, environmental protection and other departments.
1. SPGEM seires pumps are vertical and centrifugal slurry pumps, which work submerged to transport the abrasive and high-density slurry with large particles. The pumps have no need for any shaft seal and completely equivalent with the world famous pump sealing water. They can also run under the conditions of inadequate suction duty.Wet parts of SP(R)GEM pump are made of wear-resistant metal.
2. All parts of SP(R)GEM pump immersed in liquid are equipped with rubber liner, which is suitable for delivering the non-edge abrasive slurry.
3. Sump pump with extended-length shaft (L Series) is suitable to operate in deeper level in liquid. Guide bearing is added on this pump to make its operation more stable and flushing water should be fixed at the position of guide bearing.
Model No.:
e.g.
65QV(R)-SPGEM
65---Outlet diameter (mm)
QV---Frame type
SPGEM---Slurry pump submerged in sump
R---Rubber liner
Vertical Slurry Pump Materials:
Metal:
Wear-resistant metal: A61, A05, A07, A11, A01
Anti-abrasive, anti-corrosive metal: A49, A33
Anti- abrasive metal: A22, A23, A25
Other optional metals or alloys: Duplex stainless steel, stainless steel, nickel cast iron, brass, bronze, etc.
Nonmetal:
Anti-corrosive, anti-corrosive rubber: natural rubber(R26, R24, R55......);
Synthetic rubber(S01, S12, S21, S42......)
Ceramics
(Note: The materials could be changed according to the customer’s requirements. )
Centrifugal Vertical Submersible Slurry Pump Application :
KY type submerged and vertical slurry pumps are mainly applicable to transport abrasive, coarse particle,
high concentration slurry. They are widely used in metallurgy, mining, coal, electric power, building
materials, environmental protection and other departments.
|
Models
|
Outlet DN
(mm)
|
Capacity
(m3/h)
|
Head
(m)
|
Speed
(r/min)
|
Max Power
(KW)
|
Max Solid
(mm)
|
|
40PV-SPGEM
|
40
|
19 ~40
|
4.5~25
|
1000~2200
|
15
|
12
|
|
65QV-SPGEM
|
65
|
36~108
|
5~29
|
700~1500
|
30
|
15
|
|
100RV-SPGEM
|
100
|
54~289
|
5~35
|
500~1200
|
75
|
32
|
|
150SV-SPGEM
|
150
|
108~479
|
8.5~32
|
500~1000
|
110
|
45
|
|
200SV-SPGEM
|
200
|
189~750
|
6.5~37
|
1000~2200
|
110
|
65
|
