Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | IOS9001,CE |
| Model Number: | 65QV-SPGEM |
| Minimum Order Quantity: | 1 set |
| Price: | USD 1000/Set |
| Packaging Details: | Ply wooden case |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per month |
| Product: | Water Treatment Submersible Pump | Theory: | Centrifugal Pump |
|---|---|---|---|
| Material: | High Chrome Alloy | Warranty: | 1 Year |
| Place Of Origin: | Shijiazhuang,China | Power: | Electric Motor |
| Voltage: | AC380V/AC400V/AC415V | Certification: | CE,ISO9001 |
| High Light: | Single Stage Vertical Turbine Centrifugal Pump,1500RPM Vertical Turbine Centrifugal Pump,1500RPM Sand Gravel Pump |
||

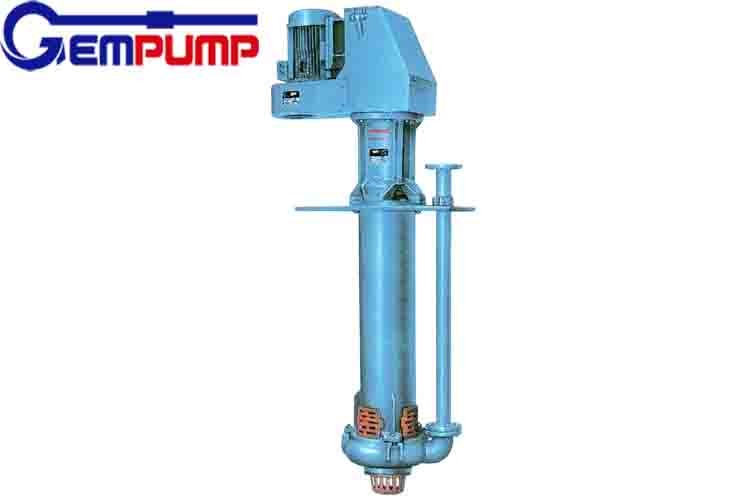

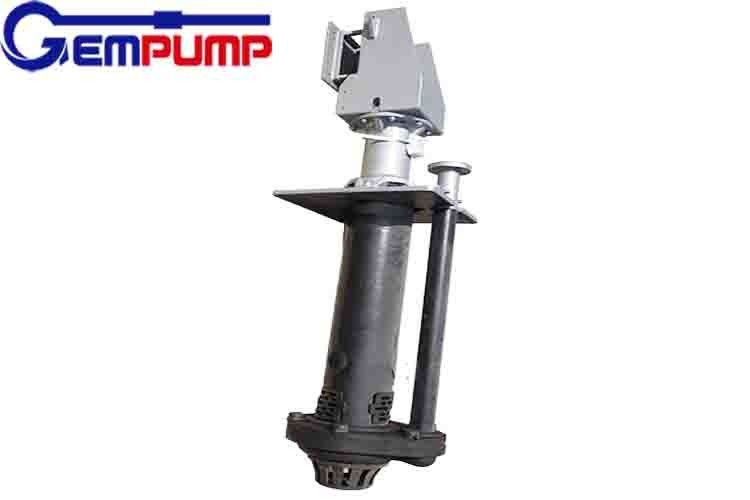

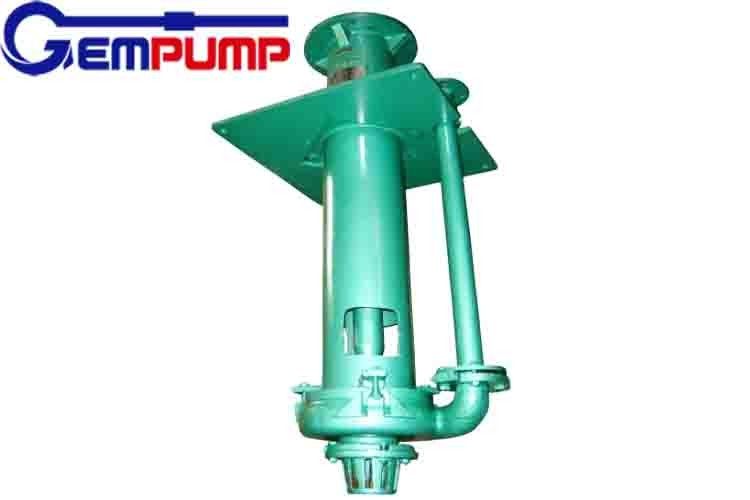

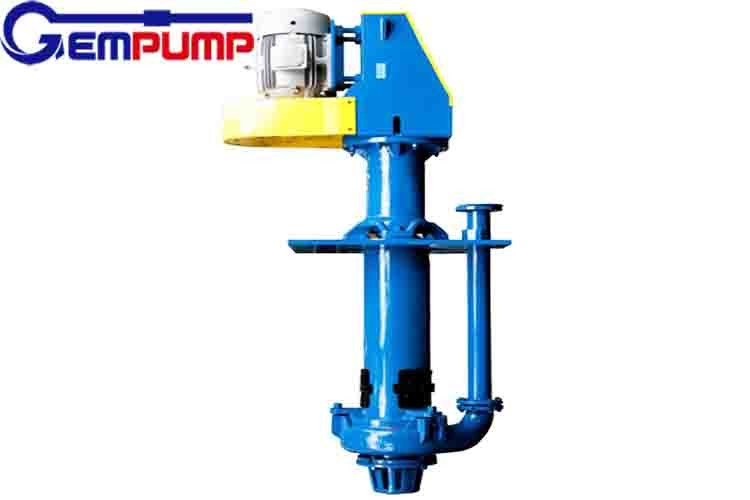

Vertical Single Stage Strong Suction Sand Gravel Pump Vertical Turbine Centrifugal Pump
The SP/SPRGEM series vertical slurry pumps are vertical, centrifugal slurry pumps submerged in sump during operation. They are designed for delivering highly abrasive, large particles and high density slurries. These sump pump have no need of any shaft seal and sealing water. The pump casing of type SPGEM pumps are made of wear-resistant metal. The wear parts are made of high chromium for the SPGEM series and are rubber lined for the SPR series.
Underground Pumps Specification:
| Item | 40PVGEM vertical slurry pumps |
| vertical slurry pumps | 40PV-SPGEM vertical slurry pumps for sale |
| Model | SP/SPRGEM |
| Material | Cast iron and customized |
| Color | Green and adjustable |
| Mode | Vertical |
| Impeller | Semi-open impeller |
| Drive | Belt or coupling |
| Seal | Soft packing seal or mechanical seal |
| Speed | 400r/min-2200r/min, adjustable |
| Theory | Centrifugal pump |
| Structure | Single stage pup |
| Usage | Slurry, mud |
| Power | Electric |
| Standard or Nonstandard | Standard |
| Application | Mine, coal industry, power station |
| Outlet diameter | 40-200mm |
| Capacity | 7.5-828m³/h |
| Head | 4-37m |
| Power | 1.1-185kw |
| Warranty | 1year |
| Certificate | ISO9001 |
| OEM | Acceptable |
| Feature | Abrasion resistant, no clogging |
SP/SPRGEM series Underground Pumps parameter:
| Model | Capacity | Head | Speed | Efficiency | Power | Diameter(mm) | |
| m3/h | m | r/min | % | kw | Impeller | Outlet | |
| 40PV-SPGEM | 17-43.2 | 4-28.5 | 1000-2200 | 40 | 15 | 188 | 40 |
| 65QV-SPGEM | 18-114 | 5-31.5 | 700-1500 | 60 | 30 | 280 | 65 |
| 100RV-SPGEM | 54-289 | 5-36 | 500-1200 | 62 | 75 | 370 | 100 |
| 150SV-SPGEM | 108-479 | 8.5-40 | 500-1000 | 52 | 110 | 450 | 150 |
| 200SV-SPGEM | 189-891 | 6.5-37 | 400-850 | 64 | 110 | 520 | 200 |
| 250TV-SPGEM | 261-1089 | 7-33.5 | 400-750 | 60 | 200 | 575 | 250 |
| 300TV-SPGEM | 288-1267 | 6-33 | 350-700 | 50 | 200 | 610 | 300 |
The SP/SPRGEM series vertical slurry pumps are suited for handling abrasive or corrosive, dense slurry with large particle size, SP (SPR)GEM vertical sump pump are mainly applicable to transport abrasive, coarse particle, high concentration slurry. They are widely used in metallurgy, mining, coal, electric power, building materials, environmental protection and other departments
1.Widely used for electric power.
2.Widely used for building materials.
3.Widely used for metallurgy.
4.Widely used for mining.
5.Widely used for coal.
FAQ
1. What is your product range?
Centrifugal pump, slurry pump, gravel pump, clean water pump, sewage pump, chemical pump, single stage pump, double suction pump, industry pump, oil pump, paper pulp pump, mud pump, self-priming pump, pipe water pump, boiler water pump, etc.
Q2. Are you a Pump manufacturer?
Yes, we have been in manufacturing and marketing industry centrifugal pump over 20 years.
Q3. What information should I let you know if I want to get a quotation?
Pump capacity(flow rate), pump head(outlet pressure), medium(slurry,clean water), medium temperature, pump material(cast iron,stainless steel), quantity, if possible, please also provide the pump model you are using now, price will be calculated as per the pump model, if not, we will
recommend relevant product for reference.
Q4. Do you impact the finished product?
Yes, each batch of production and finished product will be quality checked strictly before delivering.
Q5. How do you ship the finished product?
By sea/By plane.
