Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001,CE |
| Model Number: | HD-E2-V |
| Minimum Order Quantity: | 1 Set Water Pump |
| Price: | 1000USD |

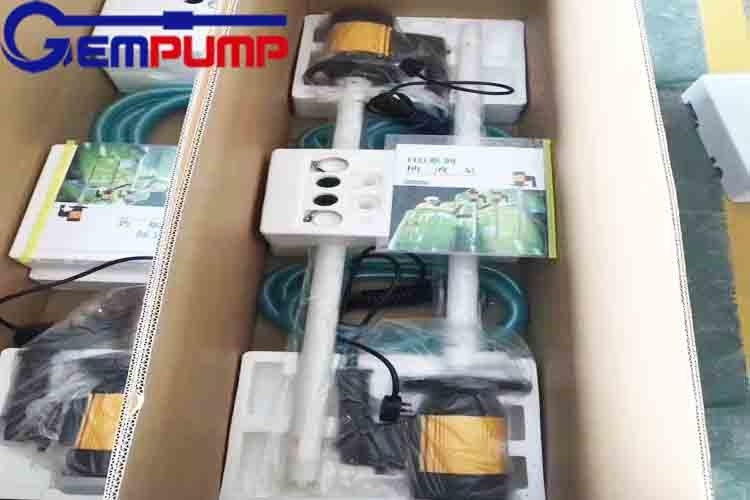

| Packaging Details: | Plywooden box |
| Delivery Time: | 5 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets pumps per month |
| Model: | HD/SB | Pump: | Barrel Drum Pump |
|---|---|---|---|
| Voltage: | 220V/50HZ | Power: | 800W, Electric |
| Medium: | Oil,water,chemical Liquid Ect | Warranty: | 12 Months |
Chemical Electric Motor For Barrel Pumps/ Strong Acid Pump/ High Viscosity Screw Oil Drum Pumps

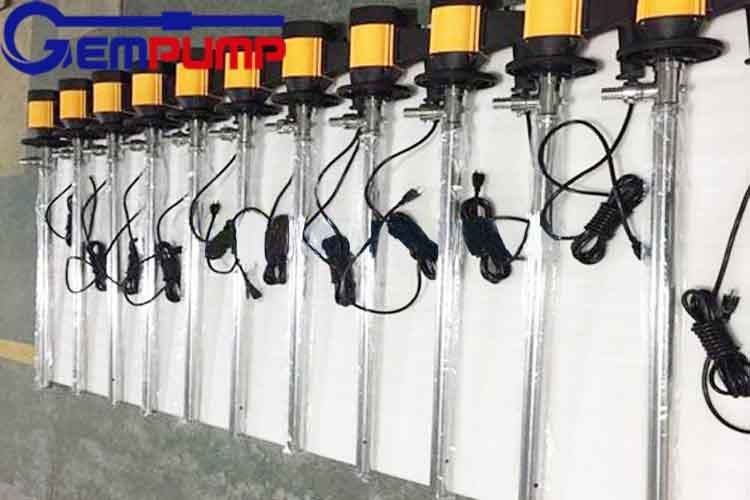

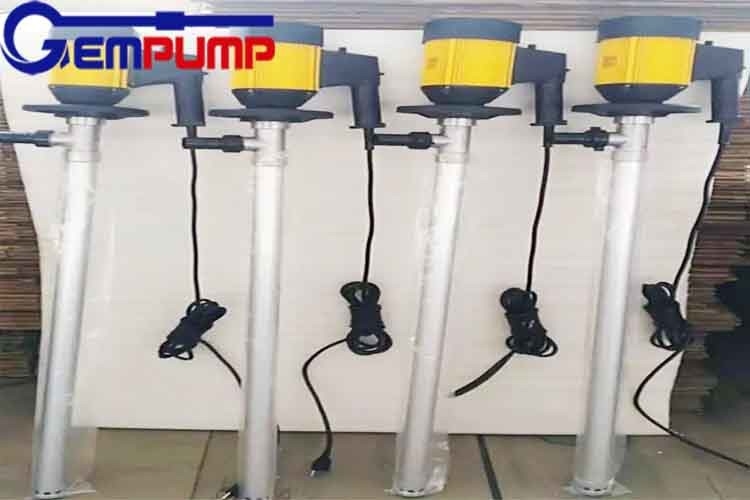

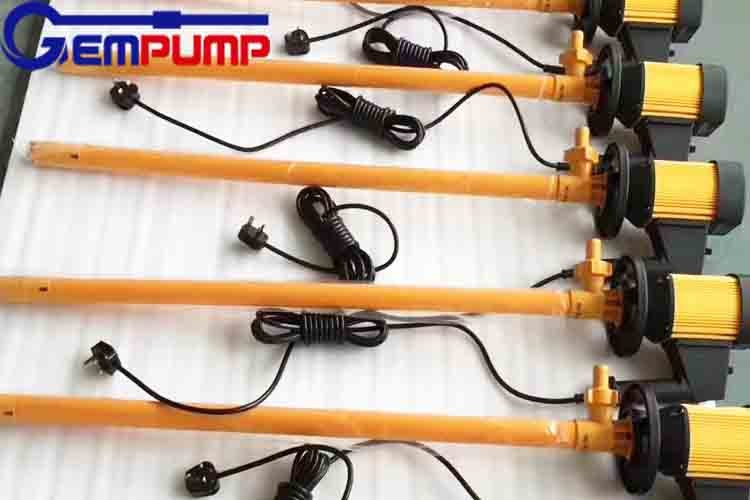

HD Series Barrel Drum Pump Features
Pump Introduction
Drum Pump is a kind of barrel pump. The tube can be directly put into the drum to pump liquid. As per different transferring liquid, the pump wet part can choose Aluminum Alloy, Stainless Steel, PP, RPP, PVDF, PTFE Material. The driving motor can be single phase common motor, Ex-proof motor, no brush motor &high-speed motor for option. It is easy to use, maintenance &high efficiency. It is widely used to transfer acid, petrochemical liquids, treatment water, drinks, gas, kerosene, diesel and some low-viscosity liquids in extensive fields of petrochemical, refinery, food, petro oil, marine, pharmacy, filling station etc.
Zero-leakage, pump pipe non-leakage design, is more suit for corrosion and explosive and inflammable liquid convery.
Overload Protection: adjusting speed motor matches overload protection device.
Economic Use
Light and convenice, pump pipe and motor is weighedfor 4-10kg in add, is easy to carry and move.
Prompt: 2-3 minutes takes for cleaning a 200L standard barrel.
Without shaft seal: nonleakage structure, useless of mechanical seal, reducing maintain, protecting cost.
Barrel Drum Pump Application commonly
Varienty kinds of material: PP, PVDF, PTFE, stainless steel, aluminum alloy, are applied for low and middle viscosity liquid delivery, is able to satisfied 80% above application. The present Lanco has HD-AL, HD-SS304, HD-SS316L, HD-PPHT, HD-PVDF, HD-PTFE etc model.
Varienty of operation method: Electric and Pneumatic driven, are satisfied for diffirent engine source.
Easy use of Barrel Pump
Human design: according to human body apperance design, is much easy for operator.
High application: it can delivery common medium to all kinds of strong acid and alkali, and flammable and explosive liquid.
Joints convenience: Standard G1 screw outlet, fit to connecting all kinds of joints.
Improved type coupling: no need assemble to the center, only takes seconds for connection.
Quick coupling: between motor and pump pipe connected wit quick coupling, free to open.
Wholly quick open structure: unpack and assembly whithout additional tools.
Full spare parts: complete parts, depends on different needs.
Reliablity: 100% passed testing, every lanco pump is strickly according to performance testing before delivery from factory.It can run dry, within short time when from greasing bearing without injuiring the pump pipe.
Mould structure, Lanco spare parts are highly integrated, easy for disassemby and fix.
High efficency Barrel Pump
High performance impeller: high performance double suction impeller with give consideration to big flow rate and high head.
Simple structure: easy for open and cleaning, 10 minutes finishing disassembly and assembly.
Enviromental protection
Zero-leakage: never makes enviroment pollution.
HD Variable Speed Control Electric and Pneumatic Motor
| Motor | Pump Model | Max.Flow L/min |
Max.Head (M) |
Power (W) |
Speed (r/min) |
Diameter of pump tube (mm) |
Outlet diameter (mm) | Material of pump tube |
| Variable speed control motor | HD-E2-V+AL-X | 165 | 10 | 800 | 10000 | 41 | 25 | Aluminum |
| HD-E2-V+AL-X-HP | 100 | 28 | 800 | 10000 | 41 | 25 | ||
| HD-E2-V+SS304-X | 165 | 10 | 800 | 10000 | 42 | 25 | SS304 | |
| HD-E2-V+SS304-X-HP | 100 | 28 | 800 | 10000 | 42 | 25 | ||
| HD-E2-V+SS316L-X | 165 | 10 | 800 | 10000 | 42 | 25 | SS316L | |
| HD-E2-V+SS316L-X-HP | 100 | 28 | 800 | 10000 | 42 | 25 | ||
| HD-E2-V+PPHT-X | 165 | 10 | 800 | 10000 | 41 | 25 | PP | |
| HD-E2-V+PPHT-X-HP | 100 | 28 | 800 | 10000 | 41 | 25 | ||
| HD-E2-V+PVDF-X | 165 | 10 | 800 | 10000 | 41 | 25 | PVDF | |
| HD-E2-V+PVDF-X-HP | 100 | 28 | 800 | 10000 | 41 | 25 | ||
| Explosion proof air motor) | HD-A1+AL-X | 100 | 7 | 370 | 9500 | 41 | 25 | Aluminum |
| HD-A1+AL-X-HP | 60 | 13 | 370 | 9500 | 41 | 25 | ||
| HD-A1+SS304-X | 100 | 7 | 370 | 9500 | 42 | 25 | SS304 | |
| HD-A1+SS304-X-HP | 60 | 13 | 370 | 9500 | 42 | 25 | ||
| HD-A1+SS316L-X | 100 | 7 | 370 | 9500 | 42 | 25 | SS316L | |
| HD-A1+SS316L-X-HP | 60 | 13 | 370 | 9500 | 42 | 25 | ||
| HD-A1+PPHT-X | 100 | 7 | 370 | 9500 | 41 | 25 | PP | |
| HD-A1+PPHT-X-HP | 60 | 13 | 370 | 9500 | 41 | 25 | ||
| HD-A1+PVDF-X | 100 | 7 | 370 | 9500 | 41 | 25 | PVDF | |
| HD-A1+PVDF-X-HP | 60 | 13 | 370 | 9500 | 41 | 25 | ||
| Remarks: The above models"X" for the pump tube length, tube length can be 700mm, 1000mm, 1200mm, 1500mm | ||||||||
China Gempump is an enterprise involved in designing, developing, manufacturing and selling water pumps. Relying on the local industrial chain, China Gempump has established its production base in Shijiazhuang,China.
Our main product:
Self priming pump, double suction pump, chemical magnetic pump, slurry pump, multistage pump, barrel drum pump and some others centrifugal pumps.
