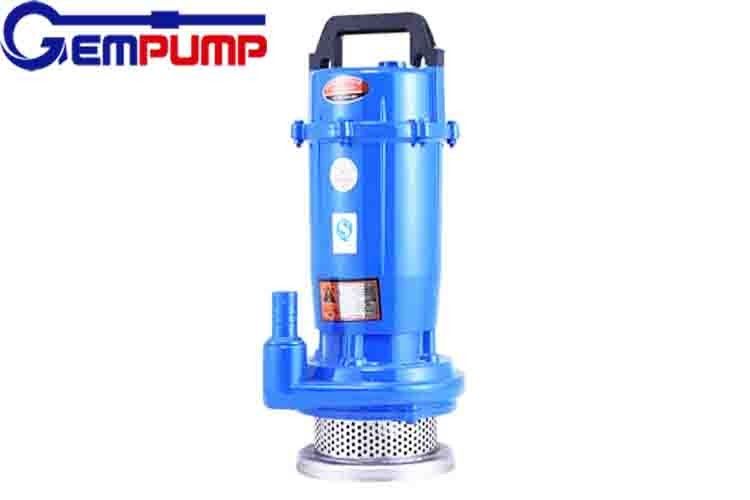

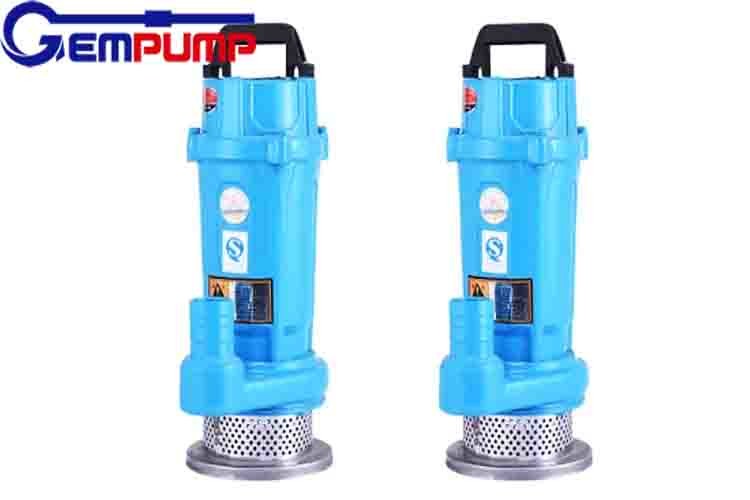

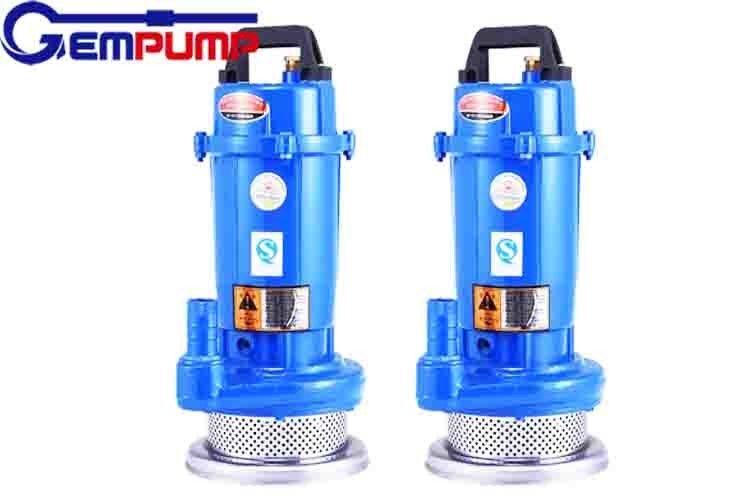

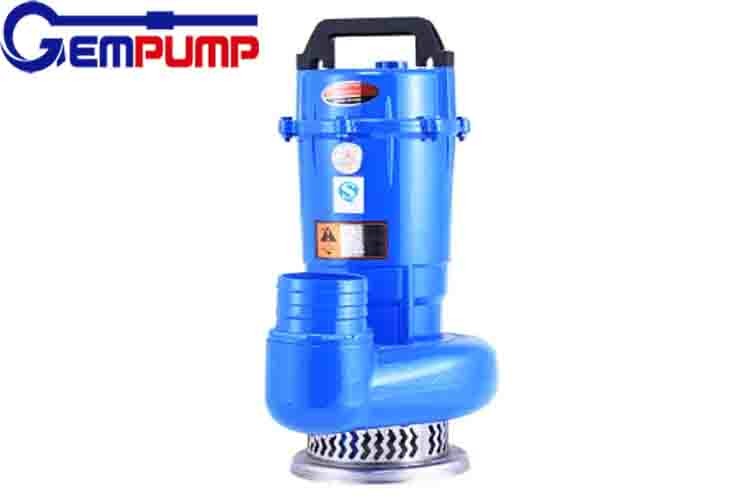

QDX 0.5HP High Pressure Submersible Borehole Pump With Float Switch

small.img.alt
small.img.alt QDX 0.5HP High Pressure Submersible Borehole Pump With Float Switch QDX 0.5HP High Pressure Submersible Borehole Pump With Float Switch small.img.alt QDX 0.5HP High Pressure Submersible Borehole Pump With Float Switch QDX 0.5HP High Pressure Submersible Borehole Pump With Float Switch small.img.alt QDX 0.5HP High Pressure Submersible Borehole Pump With Float Switch QDX 0.5HP High Pressure Submersible Borehole Pump With Float Switch small.img.alt QDX 0.5HP High Pressure Submersible Borehole Pump With Float Switch QDX 0.5HP High Pressure Submersible Borehole Pump With Float Switch
Basic Information
Place of Origin: China
Brand Name: Gempump
Certification: ISO9001,CE,SGS
Model Number: QDX1.5-16-0.37(Y)
Minimum Order Quantity: 1 Set
Price: 500USD/Set
Packaging Details: Plywooden box
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Sets per month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Product: Borehole Turehole Deep Well Water Pump Model: QDX Series
Pressure: High Pressure Application: Family Homes, Industrial
Material: Cast Iron/stainless Steel/ F46 Theory: Centrifugal Pump
Power: Electric Motor Voltage: AC220V/AC380V
Warranty: 1 Year Structure: Multi Stage
High Light:

QDX 0.5HP Submersible Borehole Pump

,

QDX Submersible Borehole Pump

,

0.5HP submersible water pump

Qdx 0.5HP Submersible High Pressure Water Pumps Clear Water Borehole Pump with Float Switch



QDX pump are with high quality of aluminum or cast iron material. They are widely used for drainage or water supply from shallow borehole, river and etc. Good performence of flow rate and head of pump. Full of series from 0.37kw to 11kw can meet domestic pumps' and indutrial pumps' requirments. High quality and competitive price help us to win good reputation from our customers.

QDX 0.5HP High Pressure Submersible Borehole Pump With Float Switch 0

QDX 0.5HP High Pressure Submersible Borehole Pump With Float Switch 1

QDX Submersible Clear Water Pump
Max. immersion depth: 5m
Max. liquid temperature: +40ºC
Fluid temperature up to: +35ºC
Cast iron pump body
Aluminum impeller
Double-sealing structure


QDX Submersible Clear Water Pump Motor
Copper winding
Single-phase / continuous work
Motor housing: Aluminum
Built-in thermal protector
Shaft: Stainless steel welded shaft / 45# steel be electroplated
Insulation class: B or F
Protection class: IPX8
Adopts oil-filled type structure

PUMP INSTALLATION AND APPLICATIONS
Small submersible pumps are consisted with pump, seal and motor.
This serie is used two sets of high quality mechanical seal, which is good sealing property, and good waterprof structure.
These pumps are the new product with well-designed, novel and attractive appearance.

MODEL POWER FLOW
(m³/h)
Head
(m)
OUTLET
(in)
G.W.
(kg)
PACKING
DIMENSION
(MM)
kW HP
QDX1.5-16-0.37(Y) 0.37 0.5 1.5 16 1" 9 400X220X190
QDX3-20-0.55(Y) 0.55 0.75 3 20 1" 12 430X205X200
QDX10-10-0.55(Y) 0.55 0.75 10 10 2" 12 430X205X200
QDX1.5-32-0.75(Y) 0.75 1.0 1.5 32 1" 14.5 440X260X240
QDX10-16-0.75(Y) 0.75 1.0 10 16 2" 14.5 440X260X240
QDX15-10-0.75(Y) 0.75 1.0 15 10 2.5" 14.5 440X260X240
QDX15-18-1.1(Y) 1.1 1.5 15 18 2" 18 590X350X250
QDX32-12-1.5(Y) 1.5 2.0 32 12 3" 20 590X350X250
QDX65-7-2.2(Y) 2.2 3.0 65 7 4" 22 530X350X285



Gempump is a modern enterprise with a combination of development, production, service. It is specialized in producing electric pump and motor with more than 50 series and 1000 specifications.
Our company centers on people, equipped with a large technology team and management talent, forming significant human resource and powerful technology advantagement.

We own advanced electric pumps and assembly line for motors as well as online automatic testing systems. All these equipments supply favorable managing condition and reliable detecting methods. Our company has passed the ISO9001:2000 international quality system certification and "3C" electrician product certification. The products have won the producing licence granted by the national technical supervision bureau and "Agricultural Machinery popularization licence" granted by the national agriculture ministry.

Customers' satisfaction is the everlasting pursuit of "Qiantao" staff. Quality and credit standing is the forever main topic of Qiantao. We sincerely wish to cooperate and develop together with all partners. At the same time, we warmly welcome the new and old customers from home and abroad to do business with us and direct us.

At all times, Gempump is appling ourselves to normalized technology development and quality management construction. We constantly solidify, perfect and improve the company's total quality management standard. We also popularize ISO9000 quality management system. These not only uprise the management standard, promise the product quality, strengthen the running belief of "Customers' satisfaction is Shijiazhuang people's persistent pursuit. Quality and credit standing is the forever main topic of Shijiazhuang.", but also win the customers' trust.

Why choose us?
1- We're the professional manuafacture with more than 20 years experience in water pump field.
2- Every month around 40000 to 50000pcs of water pumps and motors are finished and exported to other countries.
3- The material are tested before production, we test the goods ONE BY ONE during the productive process to ensure the good quality. We also produce the goods according to customer's requests
4- There's no best, just only better. So we have better work team, better production capability, better quality control and better service.
