Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001,CE |
| Model Number: | HD-E2-V+SS316L-HP |
| Minimum Order Quantity: | 1 Set Water Pump |
| Price: | 1000USD |
| Packaging Details: | Plywooden box |
| Delivery Time: | 5 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets pumps per month |
| Type: | Barrel Drum Pump | Power: | 0.37-0.8KW |
|---|---|---|---|
| Material: | AL,304,316L,PTFE,PP | Head: | 7-28m |
| Flow Rate: | 3.6-9.9m³/h | Voltage: | AC220V/380V/415V |

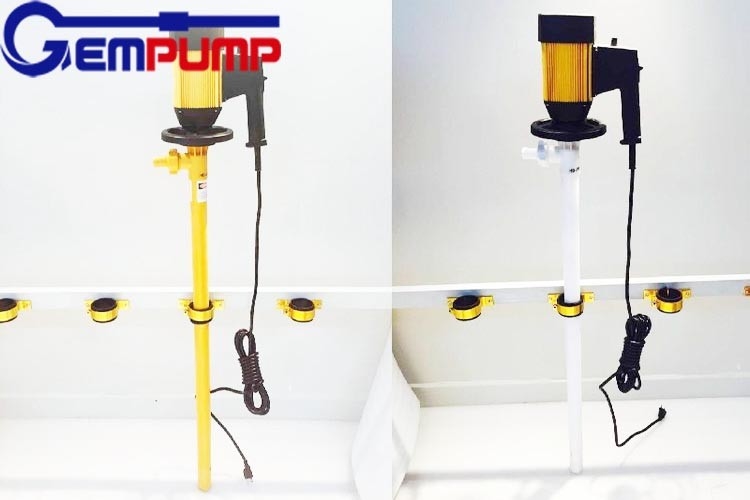

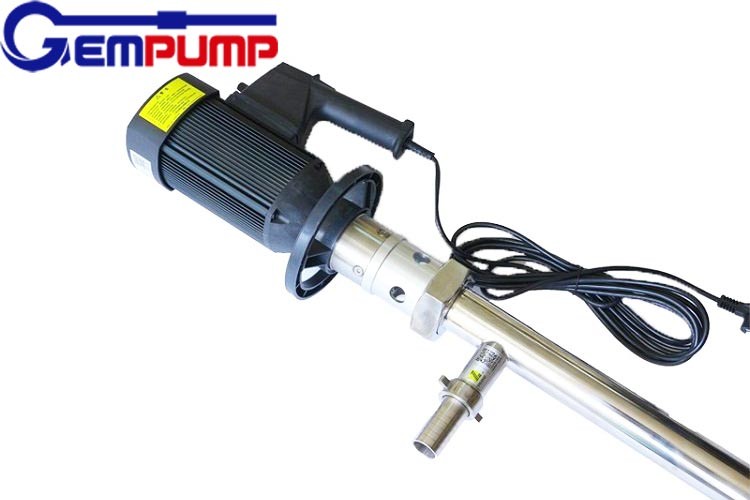

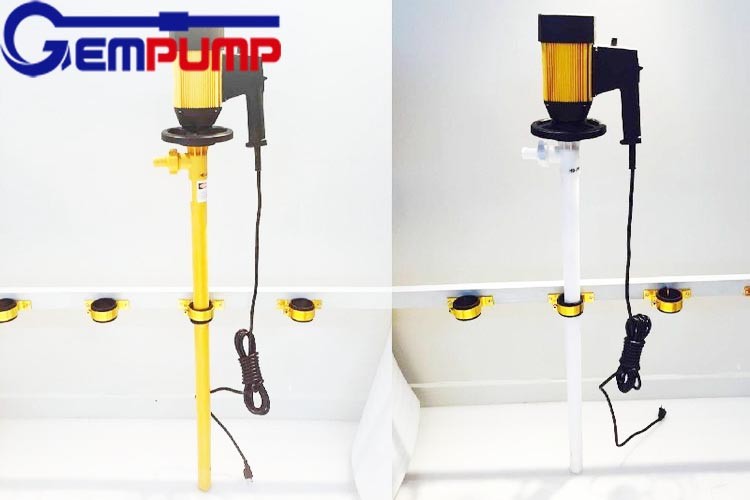

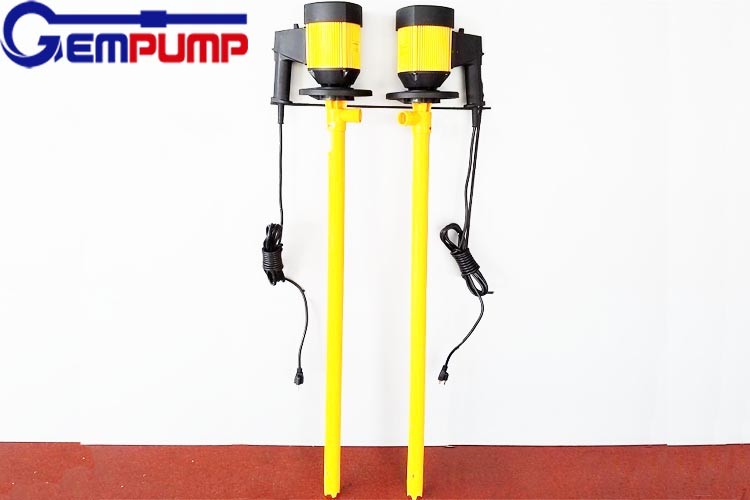

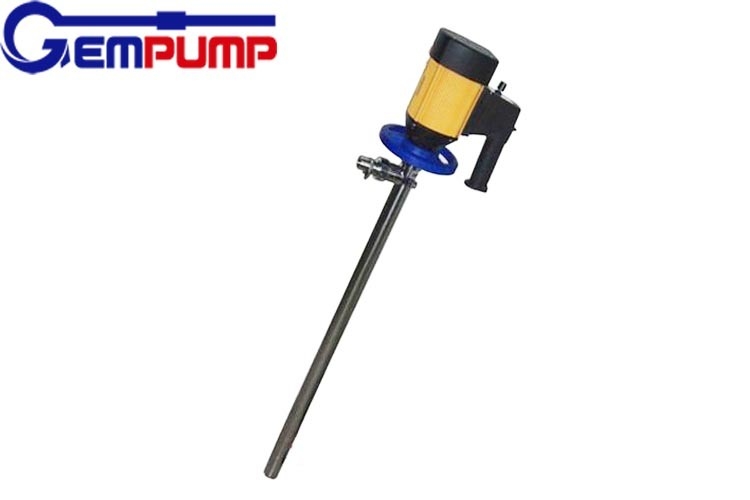

HD Electric Barrel Drum Pump Adjustable Speed Stainless Steel Oil Extraction Pump
1.Overview of HD speed regulating electric bucket pump
HD adjustable speed electric bucket pump adopts non sealing pump pipe technology, which does not need to consider the erosion of liquid to the sealing ring. The segmented modular pump pipe design technology, the pump body and motor adopt threaded flange mounting plate, which makes the use, disassembly and maintenance of the pump very simple, and the replacement of any parts can be realized without auxiliary tools. The motor adopts the stepless adjustable speed motor with advanced domestic technology, which has the advantages of low noise and small impact. The use of speed regulating motor makes the transmission flow rate of liquid controllable. Only one product can replace the requirements of traditional products with different power. All electric motors adopt built-in safety switch technology to effectively prevent damage to the motor due to overload and excessive current. The adoption of low-voltage protection technology can effectively prevent accidents when the pump is restarted after sudden power failure, so as to ensure the high reliability and durability of the motor. It can transport epoxy resin, glycerin, honey, printing ink, fruit juice, gear oil, grease, paint, tomato paste, shampoo and other high viscosity products. It is widely used in chemical, petrochemical, fine chemical, dye chemical, environmental protection, water treatment, medicine, food and other departments. It is especially suitable for coating slurry transportation in leather industry and other industrial industries.
2.Characteristics of HD speed regulating electric Barrel Drum pump
Pump Safety: the HD pump pipe with no leakage design, which is more suitable for the transportation of corrosive, flammable and explosive liquids. The motor is equipped with overload protection device.
Economy and practicability: the total weight of pump pipe and motor is 4-10kg, which is easy to carry and move. A 200L standard barrel can be emptied in 2-3 minutes. No leakage structure, no need to use mechanical seal, reducing maintenance cost.
Pump Material Versatility: polypropylene, PVDF, PTFE, stainless steel and aluminum alloy are suitable for the transportation of most low viscosity to medium viscosity liquids, which can meet more than 80% of applications. A variety of driving modes: electric or pneumatic drive to meet different power sources.
Ease of use: HD adjustable speed electric bucket pump conforms to the ergonomic shape design and is easier for the operator to use.
Reasonable structure: the standard G1 "thread outlet is suitable for connecting all kinds of joints. The improved coupling does not need to be centered for installation, and the connection takes only a few seconds. The motor and pump pipe adopt a fast interface, which can be disassembled and assembled freely. Auxiliary tools are not required for disassembly and assembly. Complete accessories can meet different needs.
Reliability: each machine passes strict performance test before leaving the factory. The self-lubricating bearing can dry for a short time without damaging the pump pipe. Parts are highly integrated for easy disassembly and maintenance.
HD Electric Barrel Drum Pump Application:
