Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | 10/8F-G |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 SET/Month |
| Application: | Mining Sand Dredging Pump | Driven Power: | Motor/Diesel Engine |
|---|---|---|---|
| Wet Parts: | Chrome Alloy | Warranty: | 1 Year |
| Theory: | Centrifugal Pump | Structure: | Single Stage |
| High Light: | 260KW Horizontal Gravel Sand Pump,260KW sand dredge pump,Metallurgy Mining Gravel Sand Pump |
||

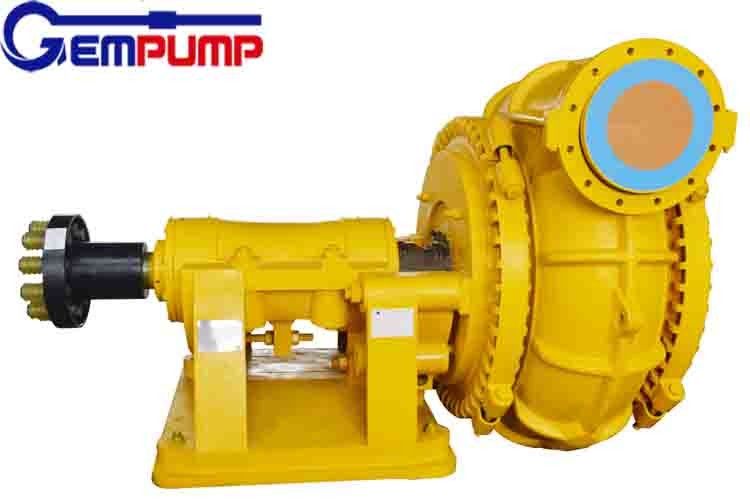

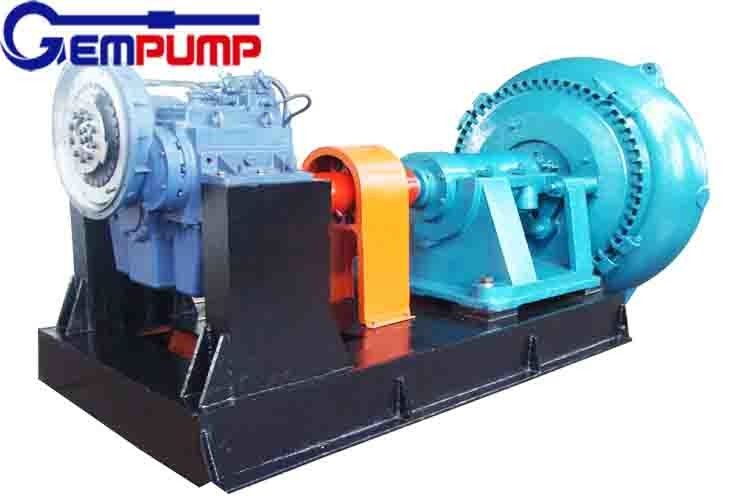

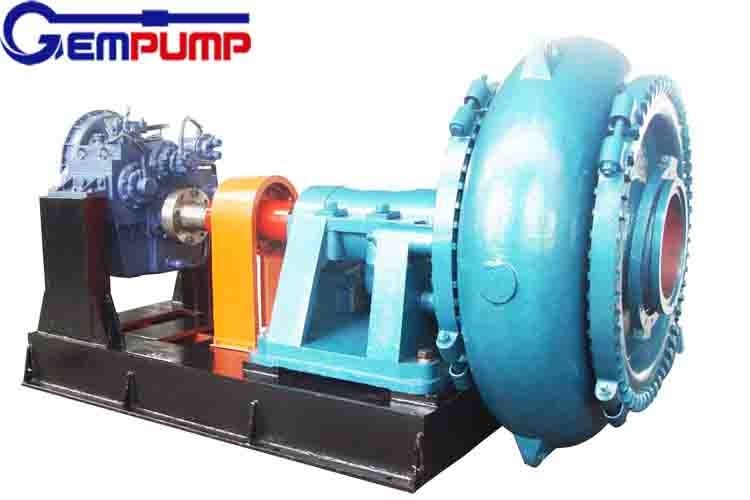

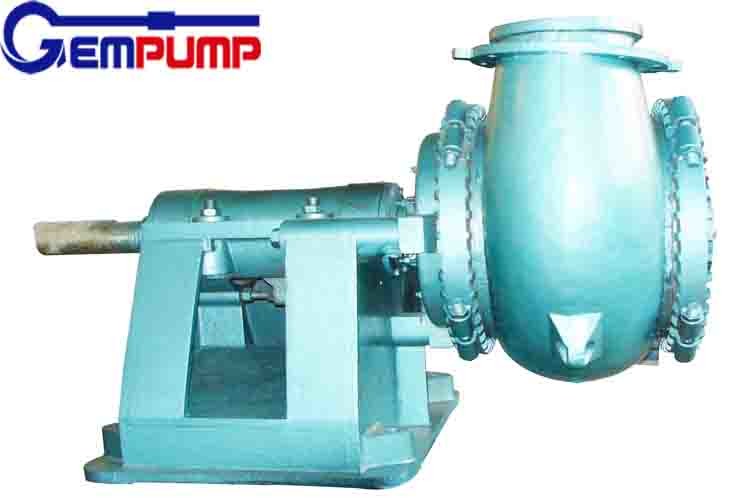

High Efficiency Horizontal Slurry Sand Pump Product Features
Type G(orGH) gravel pumps are designed for continuously handling the most difficult high abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurries in Mining, Explosive sludge in metal melting, Dredging in dredger and river course, and other fields. Type GH are high head pumps.
Metallurgy Mining Horizontal Heavy Duty Centrifugal Sand Pump Construction
Construction of this pump is of single casing connected by means of clamp bands and wide wet-passage. The wet-parts are made of Ni_hard and high chromium abrasion-resistance alloys. The discharge direction of pump can be oriented in any direction of 360°.
| Pump Model | Allowable Max. Power (kw) |
Clear Water Performance | ||||
| Capacity Q | Head H (m) |
Speed n(r/min) |
Max.Eff. (%) |
Impeller. Dia. (mm) | ||
| m3/h | ||||||
| 6/4D-G | 60 | 36-250 | 5-52 | 600-1400 | 58 | 378 |
| 8/6E-G | 120 | 126-576 | 6-45 | 800-1400 | 60 | 378 |
| 10/8S-G | 560 | 216-936 | 8-52 | 500-1000 | 65 | 533 |
| 10/8F-G | 260 | 216-936 | 8-52 | 500-1000 | 65 | 533 |
| 10/8S-GH | 560 | 180-1440 | 24-80 | 500-950 | 72 | 711 |
| 12/10F-G | 260 | 360-1440 | 10-60 | 400-850 | 65 | 667 |
| 12/10G-G | 600 | 360-1440 | 10-60 | 400-850 | 65 | 667 |
| 12/10G-GH | 600 | 288-2808 | 16-80 | 350-700 | 73 | 950 |
| 14/12G-G | 600 | 576-3024 | 8-70 | 300-700 | 68 | 864 |
| 16/14G-G | 600 | 720-3600 | 18-44 | 300-500 | 70 | 1016 |
| 16/14TU-G | 1200 | 324-3600 | 26-70 | 300-500 | 72 | 1270 |
| 18/16G-G | 600 | 720-4320 | 12-48 | 250-500 | 72 | 1067 |
| 18/16TU-G | 1200 | 720-4320 | 12-48 | 250-500 | 72 | 1067 |
Company Overview:
Gempump, founded in 2010 which is a big professional high-tech industrial pump manufacturer engaged in researching and exporting slurry pump, Chemical Pump,Stainless Steel Pump,wear and corrosion resistant materials and OEM processing.
With the continued expansion of the scale, our company has become the largest slurry pump supply base in the same industry in Shijiazhuang.
The desined annual pump output is 10000 sets as well as all kinds of 2000 tons high chromium alloy castings.Our production area is divided into five districts,one warehouse and two centres.
Namely five districts are mould casting, heat treatment, fine machining, forge welding and assembly coating;
One warehouse is the middle stock for spare parts;Two centres are quality inspection are pump test station.
