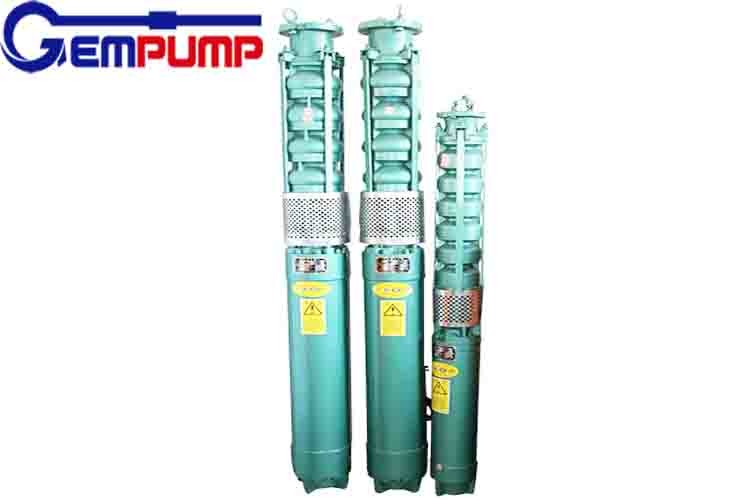

SS316 SS304 Industrial Centrifugal Pumps 75kw Hydraulic Oil Submersible Pump

Basic Information

Place of Origin:	China
Brand Name:	Gempump
Certification:	ISO9001
Model Number:	200QJ20-135/10

Minimum Order Quantity:	1 Set
Price:	500USD/Set
Packaging Details:	Plywooden box
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000 Sets per month

Get Best Price Contact Now

Product:	Submersible Deep Well Water Pump	Model:	QJ Series
Pressure:	Low Pressure	Application:	Family Homes, Industrial
Material:	Cast Iron/stainless Steel/ F46	Theory:	Centrifugal Pump
Power:	Electric Motor	Voltage:	AC220V/AC380V
Warranty:	1 Year	Structure:	Multi Stage
High Light:	SS304 Submersible Industrial Centrifugal Pumps , SS316 75kw Hydraulic Oil Submersible Pump , 75kw Industrial Centrifugal Pumps

Centrifugal submersible hydraulic water spare parts with motor pump price

Specification
Min.well diameter	150-500mm
Capacity Q	5-900m3/h
Head H	13-600m
Power P	3-250KW
Motor	Brand optional,100% Copper Wire
Voltage	380V/415V/660V/1140V
Material	Cast Iron/SS316/SS304/Copper,Can be customized
Scope of supply	Pump,Motor,Pipe,Control cabinet,Flange,Wearing parts,Other Accessories
Certification	ISO 9001
Warranty	One Year/According to customer requirements

If you have any questions, please send me an inquiry, we will choose the model and quotation for you.

The deep well pump is the host by the series QJ(R) well submersible pump and YQS submersible motor of underwater integrated work,it has a compact structure, small volume, low noise, no secondary pollution, installation & use convenient maintenance, safe and reliable operation, high efficiency and energy saving, no need to build the pump room and so on. It can vertical and horizontal installation. It can also be used for open water and as a ground pump. Compared with other ground water pumps, it has the advantages of small footprint, no pollution and leakage, convenient use and installation, etc. It can be used for water supply and other occasions. It is the traditional ISG, DL centrifugal pump ideal alternative pumping, drainage tools.

The QJ(R) submersible pump is an energy-saving product designed according to national standards.It is mainly used to pump groundwater from deep wells, and is also widely used in farmland irrigation, water supply and drainage in cities, industrial and mining enterprises, water supply for human and animal water in highland and mountainous areas, and high-rise buildings.

For example:150QJ(R)10-150 MOTOR:YQST250-75
150- Adapt to the minimum diameter (mm) 150 YQS - Asynchronous submersible motor.
QJ(R)- Well submersible pump (hot water) T - High thrust structure
10-Capacity:10m³/h 250 - Min well diameter(mm)
150-Head:150m 75 - Motor power(kw)

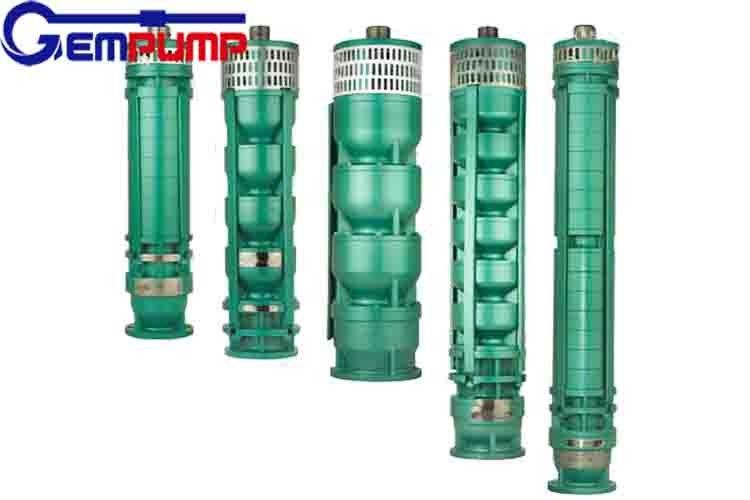

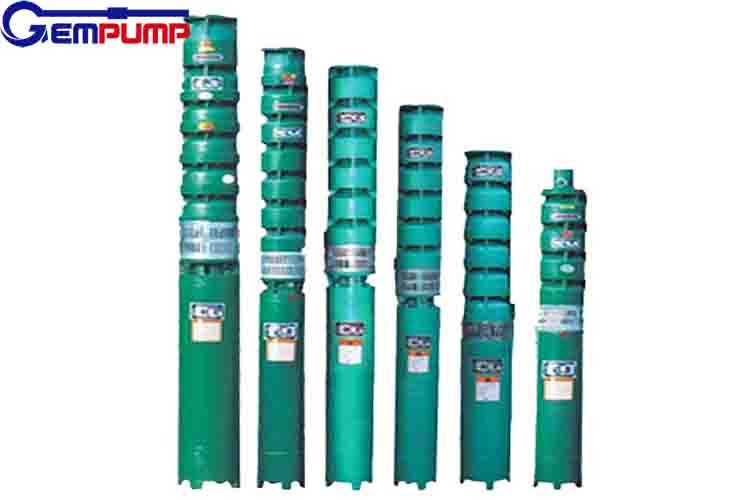

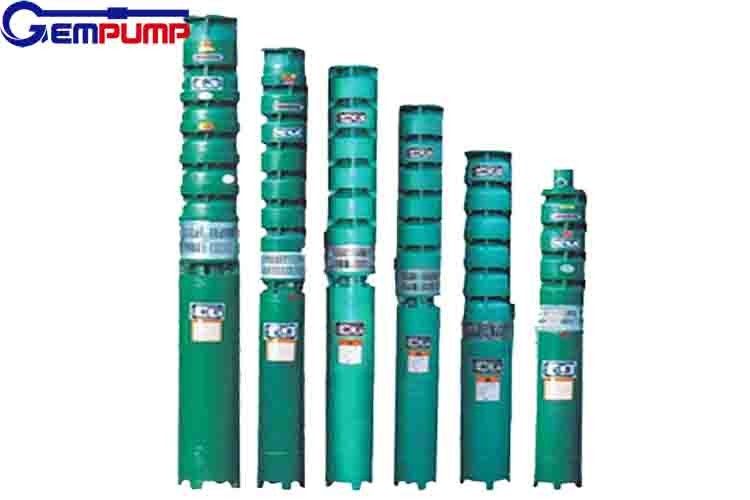

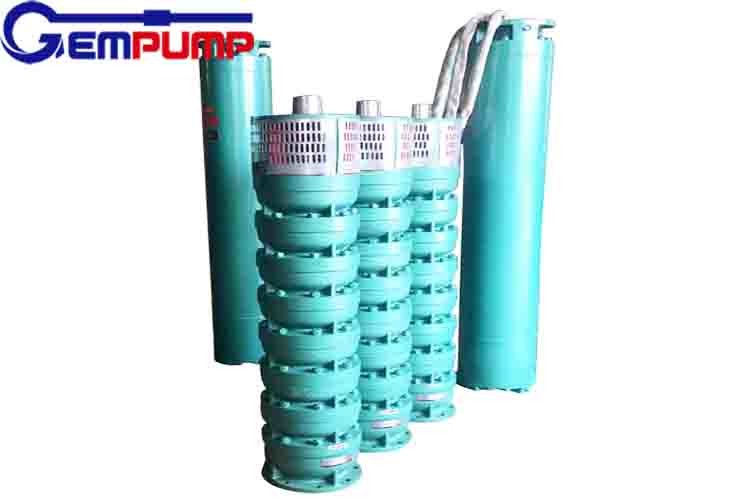

Electric vertical submersible deep well centrifugal water pump

1) The pump is centrifugal or mixed flow; the water lubricated bearing is adopted;connected with teh motor by rigid coupling.A non-return valve body is arranged at the upper end of the water pump to prevent the working parts from being damaged due to the backflow of water in the water pipe when the electric pump is stopped.
2) The motor is a closed water-filled wet structure.The stator winding of the motor is made of water-resistant polyethylene insulated nylon sheathed multilayer electromagnetic wire.The motor is filled with clean water to cool the motor and lubricate the bearings.
3) Pipe part: It is used to connect the electric pump to hoist it in the machine well and transport the water to the ground.

Model	Min.well diameter (mm)	Capacity (m3/h)	Head (m)	Power (KW)
150QJ	150	5-50	13-350	3-30
200QJ	200	20-80	22-500	4-90
225QJ	225	40-130	14-360	4-90
250QJ	250	50-200	15-600	5.5-220
300QJ	300	200-300	20-240	18.5-220
350QJ	350	360	36-144	55-220
400QJ	400	370	16-96	25-140
500QJ	500	550-900	27-108	63-250
