Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 |
| Model Number: | IHF25-20-125 |
| Minimum Order Quantity: | 1 Set |
| Price: | 500USD/Set |
| Packaging Details: | Plywooden box |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Sets per month |
| Product: | IHF Acid PTFE Pump | Model: | IHF Series |
|---|---|---|---|
| Pressure: | Low Pressure | Application: | Chemical, Pharmaceutics |
| Material: | Cast Iron/stainless Steel/ F46 | Theory: | Centrifugal Pump |
| Power: | Electric Motor | Voltage: | AC220V/AC380V |
| Warranty: | 1 Year | Structure: | Single Stage |
| High Light: | IHF Sulfuric Acid Transfer Pump,IHF PTFE Lined Pump,High Concentration Sulfuric Acid Pump |
||

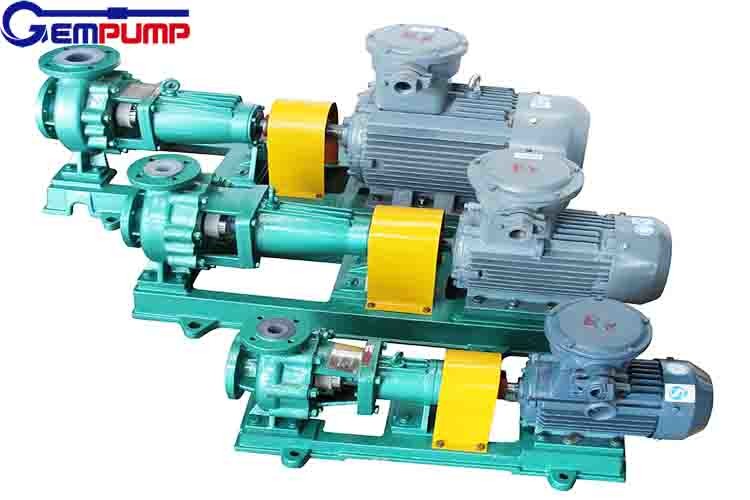

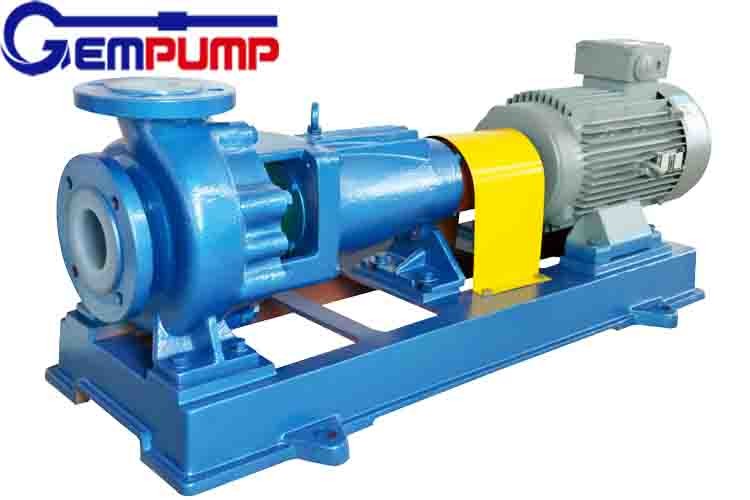

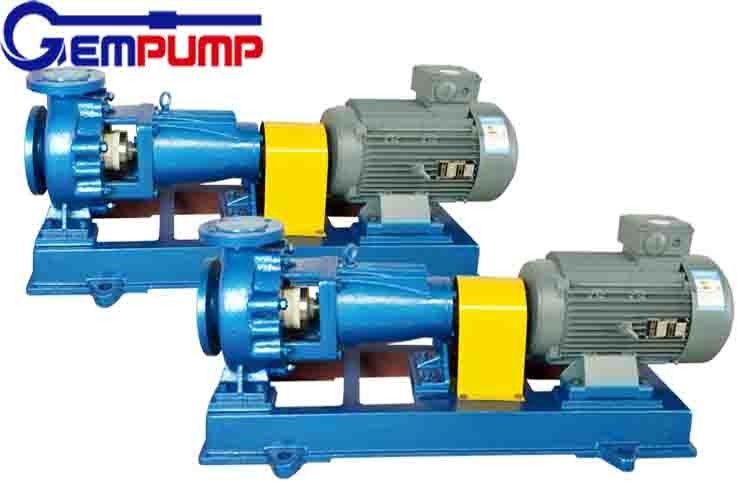

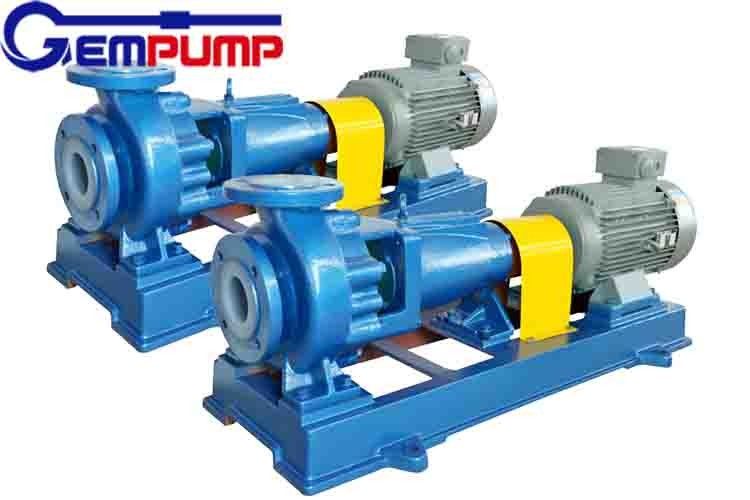

IHF High Concentration Sulfuric Acid Pump PTFE Lining Pump Acid Sulfuric Pump
IHF sulfur water treatment acid circulation salt water pump
Operating Range
Flow: 7m3/h-400m3/h; 31 GPM-1770 GPM
Head: 22m-80m; 22 GPM to 260 feet
Temperature: -20 °C to +160 °C;-4 to 320°F
IHF Acid Pump PTFE Lining Pump Application:
Corrosive, pure and contaminated media in the chemical, pharmaceutics and petrochemical industries, in metal processing, waste water treatment;
When stainless steel is not sufficiently resistant;
An alternative to expensive haste alloy, titanium alloy pumps;
When anti-adhesive surfaces are important.
|
Working principle:
|
Centrifugal
|
|||
|
Casing Material:
|
FEP/PFA/PTFE Lining
|
|||
|
Maximum flow rate:
|
400 m3/h
|
|||
|
Maximum Head:
|
80 m
|
|||
|
Maximum Power:
|
110 Kw
|
|||
Pumping Liquid
1. Acid and caustic liquid
2. Oxidizer corrosive liquids
3. Difficult-to-seal liquids
4. Sulfuric acid
5. Hydroelectric acid
6. Nitric acid
7. Acid and lye
8. Nitromuriatic acid
|
Pump Model
|
capacity(m³/h)
|
head(m)
|
power(kw)
|
inlet/outlet(mm)
|
|
IHF32-25-125
|
5
|
20
|
1.5
|
32/25
|
|
IHF32-25-125A
|
4.5
|
16
|
1.1
|
32/25
|
|
IHF32-25-160
|
5
|
32
|
2.2
|
32/25
|
|
IHF32-25-160A
|
4.5
|
28
|
1.5
|
32/25
|
|
IHF40-32-125
|
6.5
|
20
|
2.2
|
40/32
|
|
IHF40-32-125A
|
5.6
|
16
|
1.5
|
40/32
|
|
IHF40-32-160
|
6.5
|
32
|
2.2
|
40/32
|
|
IHF40-32-160A
|
5.6
|
28
|
1.5
|
40/32
|
|
IHF50-32-125
|
20
|
12.5
|
2.2
|
50/32
|
|
IHF50-32-125A
|
11
|
11
|
1.5
|
50/32
|
|
IHF50-32-160
|
12.5
|
32
|
4
|
50/32
|
|
IHF50-32-160A
|
11.7
|
28
|
3
|
50/32
|
|
IHF50-32-200
|
12.5
|
50
|
7.5
|
50/32
|
|
IHF50-32-200A
|
11.7
|
44
|
5.5
|
50/32
|
|
IHF50-32-250
|
12.5
|
80
|
11
|
50/32
|
|
IHF50-32-250A
|
11.7
|
70
|
7.5
|
50/32
|
|
IHF65-40-200
|
25
|
50
|
11
|
65/40
|
|
IHF65-50-125
|
25
|
20
|
3
|
65/50
|
|
IHF65-50-125A
|
22.3
|
16
|
2.2
|
65/50
|
|
IHF65-50-160
|
25
|
32
|
5.5
|
65/50
|
|
IHF65-50-160A
|
23.3
|
28
|
4
|
65/50
|
|
IHF65-50-200
|
25
|
50
|
11
|
65/50
|
|
IHF65-50-200A
|
23.3
|
44
|
7.5
|
65/50
|
|
IHF65-50-250
|
25
|
80
|
11
|
65/50
|
|
IHF65-50-250A
|
23.3
|
70
|
15
|
65/50
|
|
IHF80-65-125
|
50
|
20
|
5.5
|
80/65
|
|
IHF80-65-125A
|
45
|
16
|
4
|
80/65
|
|
IHF80-50-250
|
50
|
80
|
30
|
80/50
|
|
IHF80-50-250A
|
45
|
70
|
22
|
80/50
|
|
IHF100-80-125
|
100
|
20
|
11
|
100/80
|
|
IHF100-80-125A
|
89
|
16
|
7.5
|
100/80
|
|
IHF100-80-160
|
100
|
32
|
15
|
100/80
|
|
IHF100-80-160A
|
93.5
|
28
|
11
|
100/80
|
|
IHF100-65-200
|
100
|
50
|
30
|
100/65
|
|
IHF100-65-200A
|
93.6
|
44
|
22
|
100/65
|
|
IHF100-65-250
|
100
|
80
|
45
|
100/65
|
FAQ
Q:Can you supply pump qualified with ANSI and ASME standard?
A:Yes, our pump compliant with ISO / ASME/ANSI standard.
Q:How to customize pumps and mechanical seals ?
A:Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight
Q:How long is warranty?
A:1 year for main construction warranty.
Q:How long is production lead time?
A:Normally 7 days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 3-5 days.
Q:What is the shipping terms you can provide?
A:Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.
Q:Who is in charge of after-sales?
A:Teflow has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.
Q:Who is in charge of maintenance?
A:Local agent. If pump running has any problem on site, our local agent will arrival the plant within 24 hours
