Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 |
| Model Number: | CHLF(T)20-10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 500USD/Set |
| Packaging Details: | Plywooden box |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Sets per month |
| Product: | Horizontal Multistage Centrifugal Pump | Model: | CM Series |
|---|---|---|---|
| Pressure: | 10 Bar | Application: | Clean Water |
| Material: | AISI304 | Theory: | Centrifugal |
| Power: | Electric Motor | Voltage: | AC220V/AC380V |
| Warranty: | 1 Year | Structure: | Multistage |
| High Light: | ISO9001 Centrifugal Booster Pump,CM Series Centrifugal Booster Pump,CM multistage booster water pump |
||
Water Booster Multi Stage Horizontal Centrifugal Pump For Agriculture Irrigation

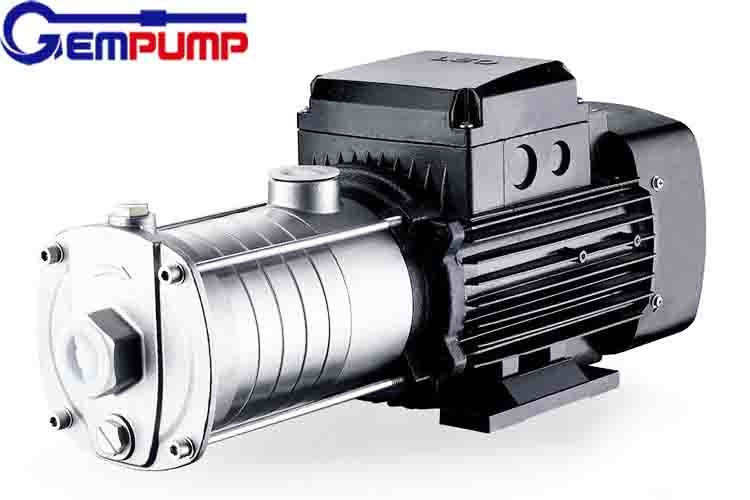

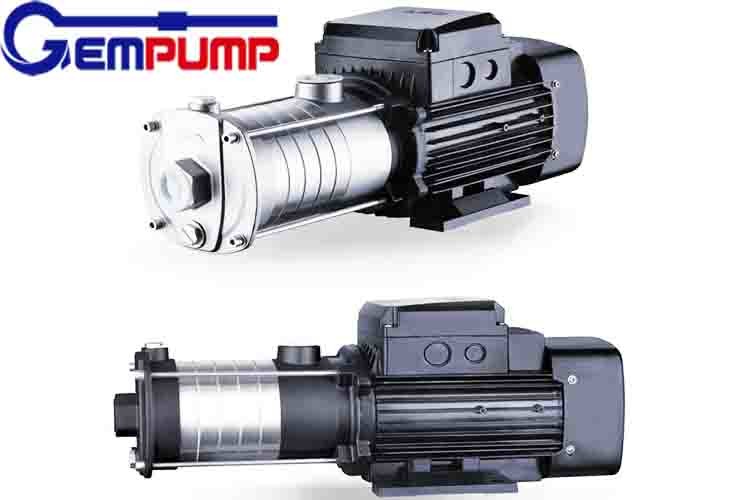

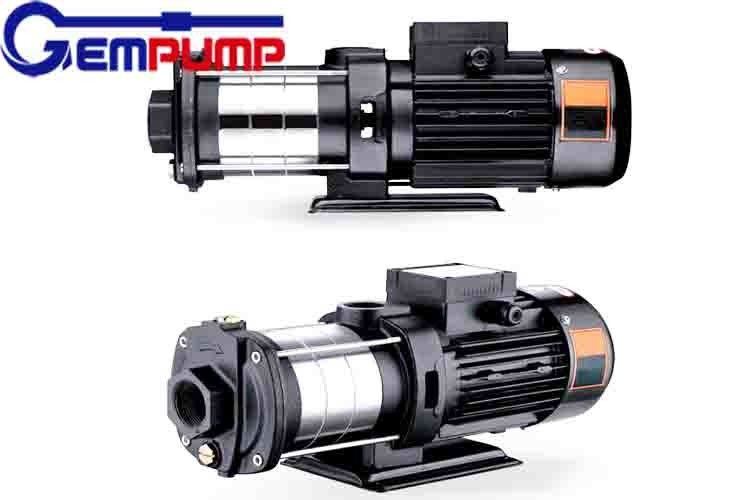

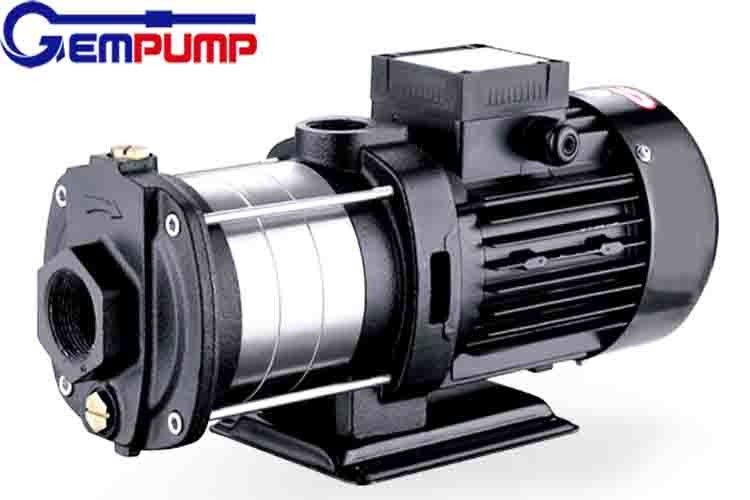

CM Series Horizontal Centrifugal Pump Description
Horizontal Multistage Centrifugal Pump: CM series Stainless Steel Horizontal Multistage Centrifugal Pump is segmental multistage stainless steel pump; The material of inlet and outlet is cast iron; The liquid part is made of SUS304, . Under processing of advanced welding equipment, heat treatment, the stress caused by end-cut plate in tension and press forming is eliminated to make in high strength, no deformation, long life, safe and reliable usage; Applied mechanical seal type ensure watertight in long-time continuous operation. The material of frame is aluminum; It is under low-noise and less-vibration and durability. Insulation class F, protection IPX55, continuous duty; Single-phase with thermal protector from T1 to ensure safety and convenience.
|
Product Name:
|
Agriculture Irrigation Water Booster Multi Stage Horizontal Centrifugal Pump
|
|||
|
Certificate:
|
ISO9001
|
|||
|
Voltage:
|
380v/220v
|
|||
|
Application:
|
Water Treatment Solutions, Clean water transfer
|
|||
|
MOQ:
|
5 PCS
|
|||
|
Material:
|
Stainless steel
|
|||
|
Motor:
|
100%copper wire, full power
|
|||
|
Power:
|
Electric Centrifugal Pumps
|
|||
|
OEM:
|
Acceptable
|
|||
Centrifugal Water Pump Certificate:
1. China CCC certificate
2. TUV certificate Germany
3. ISO 9001
Multistage Booster Water Pump Application:
1. Air-conditioning system
2. Water treatment
3. Pressure boosting for the water on processing line.
4. Heating and cooling water on industrial processing line
5. Air freshen, moistening equipment (soft water)
6. Water supply and pressure boosting (drinking water, weak chlorine water)
7. Fertilization/metering system
8. Aquaculture
9. Convey thin, clean, non-flammable and non-explosive liquid without solid granules and fibers
Horizontal Centrifugal Booster Pump Operation conditions:
1. Liquid temperature: +5C-+60C
2. Max ambience temperature: +50C
3. Max pressure: 10 bar
4. Max suction head: No self-priming
5. Maximum inlet pressure is limited by the maximum operating pressure
Guide for model selction:
1. Request for the flow and pressure
2. The mechanical seal configurations is selective as ordinary type and pure water type and heat water type etc.
3. Applied region's voltage and frequency:
Single-phase: 220-240V/50Hz; 220V-240V/60Hz; 110-120V/60Hz is available;
Three-phase: 380-415V/50Hz; 380-415V/60Hz is available.
4. Applied region's request for safety certific4. Confirm the bore of outlet and inlet.
5. Plug's type and length (no plug, Chinese plug. Europe plug, UL plug is available)
Horizontal Centrifugal Pump Model:
1. CM2 Series:
CM2-20: (0.37KW/220/380V/50Hz),
CM2-30: (0.37KW/220/380V/50Hz),
CM2-40: (0.55KW/220/380V/50Hz),
CM2-50: (0.55KW/220/380V/50Hz),
CM2-60: (0.75KW/220/380V/50Hz).
2. CM4 Series:
CM4-20: (0.55KW/220/380V/50Hz),
CM4-30: (0.75KW/220/380V/50Hz),
CM4-40: (0.75KW/220/380V/50Hz),
CM4-50: (1.0KW/220/380V/50Hz),
CM4-60: (1.1KW/220/380V/50Hz).
3. CM8 Series:
CM8-10: (0.55KW/220/380V/50Hz),
CM8-15: (0.75KW/220/380V/50Hz),
CM8-20: (1.0KW/220/380V/50Hz),
CM8-25: (1.5KW/220/380V/50Hz),
CM8-30: (1.85KW/220/380V/50Hz),
CM8-35: (2.2KW/220/380V/50Hz).
4. CM12 Series:
CM12-10: (1.0KW/220/380V/50Hz),
CM12-15: (1.5KW/220/380V/50Hz),
CM12-20: (1.85KW/220/380V/50Hz),
CM12-25: (2.2KW/220/380V/50Hz),
CM12-30: (3.0KW/380V/50Hz).
5. CM16 Series:
CM16-10: (1.0KW/220/380V/50Hz),
CM16-20: (1.5KW/220/380V/50Hz),
CM16-30: (2.2KW/220/380V/50Hz).
6. CM20 Series:
CM20-10: (1.0KW/220/380V/50Hz),
CM20-20: (1.85KW/220/380V/50Hz),
CM20-30: (2.0KW/380V/50Hz).
Company Overview
Gempump China, established in Shijiazhuang.Is a set of design, research and development, manufacturing, marketing, service in one of the modern enterprise.Professional production and sales of industrial pumps, civil water pump, chemical pump, slurry pumps, fire pumps and other pumps, products widely used pressurization, industrial applications, water treatment, water supply, air conditioning water circulation, heating, cooling, fire protection system, groundwater supply, sewage treatment, chemical industry and many fields such as desalination) focus on the water pump mechanical and electrical production 30 years, we produce the pump more than 50 series 1000 varieties, the company established a perfect marketing service network, continues to meet the demand of the domestic market at the same time actively export market.
