Pumping The Water , Pumping Our Honor
| Place of Origin: | Shijiazhuang,China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001, CE |
| Model Number: | 14/12ST-AHGEM |
| Minimum Order Quantity: | 1 set |
| Price: | USD1000/SET |
| Packaging Details: | Plywooden Box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Sets Per Month |
| Product: | Horizontal Centriufgal Slurry Pump | Material: | Chrome Alloy |
|---|---|---|---|
| Place Of Origin: | Shijiazhuang,China | Structure: | Centrifugal |
| Power: | Electric Motor | Application: | Mining |
| Seal: | Packing,Mechanical | Warranty: | 1 Year |
| High Light: | Oilfield Marine Sand Slurry Pump,Chrome Alloy Horizontal Slurry Pump,Chrome Alloy Sand Slurry Pump |
||
Zero Risk Horizontal Centrifugal Hydraulic River Borehole Oilfield Marine Sand Pump for Slurry Transportation
Heavy Duty Slurry Pump Application and Features:
Type HHGEM series slurry pumps are cantilevered, horizontal, centrifugal slurry pumps. They are designed for the handling highly abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments etc. The pumps of this type also may be installed in multistage series.
The frame plate liner and impeller for HHGEM pump are adoptable of wear-resistant metal only.
The shaft seals for type HHGEM pumps may be adoptable of gland seal or expeller seal. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.
Brief Introduction to Pump Type Selection:
Refering to the performance curves of the pumpm the selected capacity range should be as follows:
Pump type HHGEM: 40%-80% for medium density, medium abrasive slurries 40%-100% for lower density, lower abrasive slurries
| Pump Model | Allowable Max. Power(kw) | Clear Water Performance | ||||||
| capacity Q | Head H(m) | speed n(r/min) | Max.eff. η% | NPSH (m) | Impeller Dia(mm) | |||
| m3/h | l/s | |||||||
| 1.5/1C-HHGEM | 30 | 16.2-34.2 | 4.5-9.5 | 25-92 | 1400-2200 | 20 | 2-5.5 | 330 |
| 3/2D-HHGEM | 60 | 68.4-137 | 19-38 | 25-87 | 850-1400 | 47 | 3-7.5 | 457 |
| 4/3E-HHGEM | 120 | 126-252 | 35-70 | 12-97 | 600-1400 | 50 | 2-5 | 508 |
| 6/4F-HHGEM | 560 | 324-720 | 90-200 | 30-118 | 600-1000 | 64 | 3-8 | 711 |
| 8/6S-HHGEM | 560 | 468-1008 | 130-280 | 20-94 | 500-1000 | 65 | 4-12 | 711 |

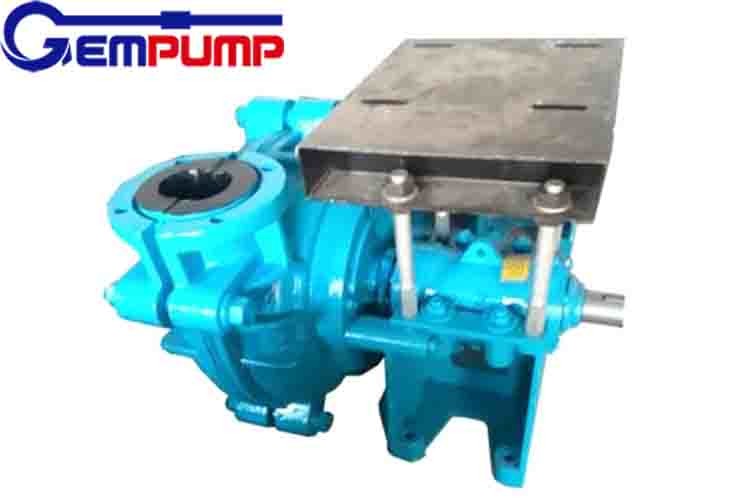

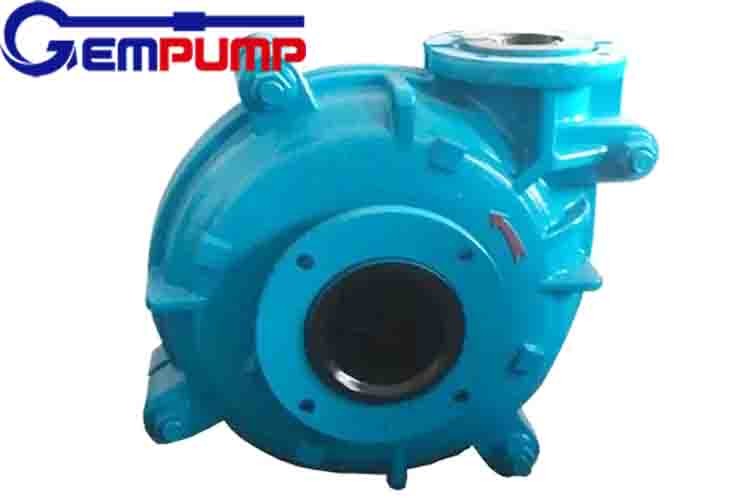

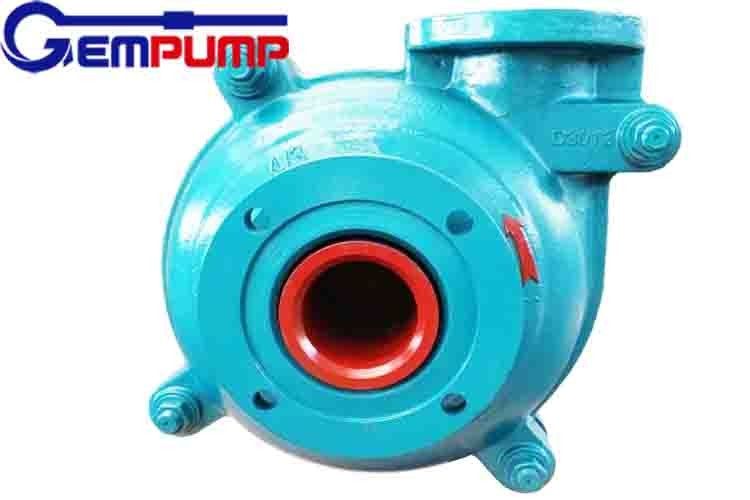

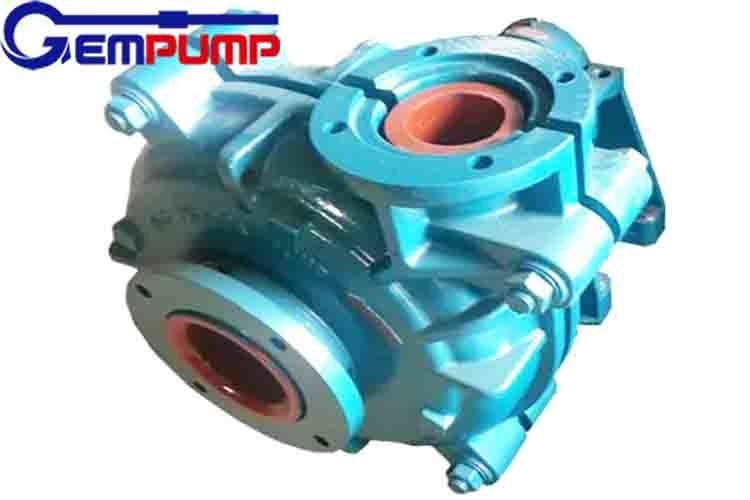

Slurry Pump Product Description
1). Cantilever, horizontal centrifugal slurry pump
2). Better wear-resistance and corrosive resistance
3). Frame plate for type pumps have replaceable wear-resistant metal( high chrome alloy ) liners or rubber liners. Impeller material : high chrome alloy , Ceramic or Natural rubber .
4). In allowable pressure range, it can be used in series in stages, and allowable maximum working pressure is 3.6Mpa.
5). Expeller seal, mechanical seal and packing seal are available .
6). The discharge branch can be positioned at interval of 45 degrees by request and oriented to any eight positions to suit installations and applications.
7). To adapt to convey heavy abrasion, high concentration dreg ,slurry pump's body is used double-shell construction , in other words, being made of inside lining and outside casing.
Typical Application:
| • Mineral processing | • Mining | • Coal Washery | • Cyclone feeds |
| • Bentonite | • Chemical slurry | • Tailing | • Mill grinding |
| • Ash handing | • Tunnel | • Waste sludge | • Coarse sand |
| • Lime mud | • Phosphoric acid | • Dredging | • Construction |
| • Alumina Industry | • Power Plant | • Potash Fertilizer Plant | • Other industries |
| • Iron ore sand | • Copper Concentration | • Gold mine | •Molybdenum |
