Place of Origin: | Shijiazhuang,China |
---|---|
Brand Name: | Gempump |
Certification: | ISO9001, CE |
Model Number: | 14/12ST-AHGEM |
Minimum Order Quantity: | 1 set |
Price: | USD1000/SET |
Packaging Details: | Plywooden Box |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 Sets Per Month |
Product: | Horizontal Centriufgal Slurry Pump | Material: | Chrome Alloy |
---|---|---|---|
Place Of Origin: | Shijiazhuang,China | Structure: | Centrifugal |
Power: | Electric Motor | Application: | Mining |
Seal: | Packing,Mechanical | Warranty: | 1 Year |
High Light: | 4" Horizontal Slurry Pump,Metal Lined Horizontal Slurry Pump,4" heavy duty slurry pump |

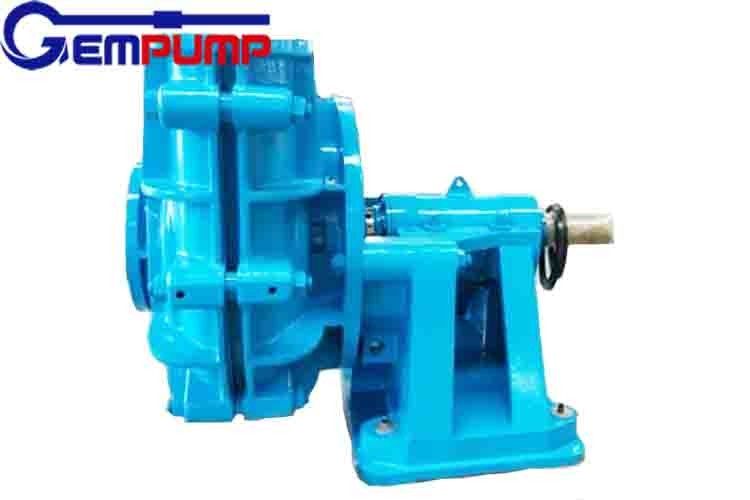

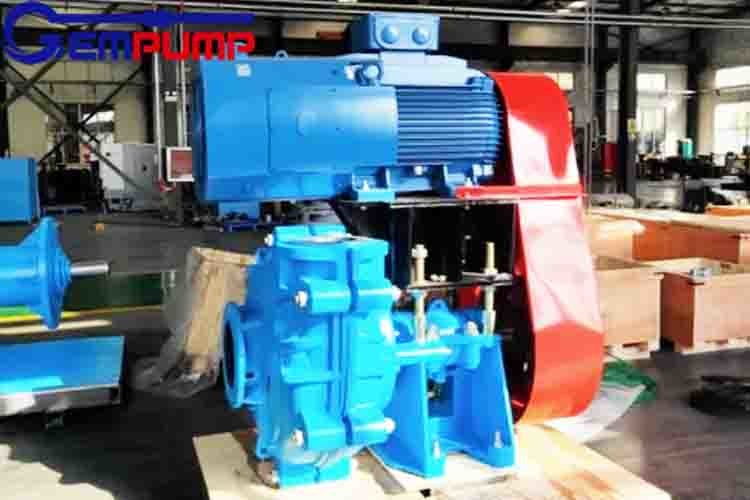

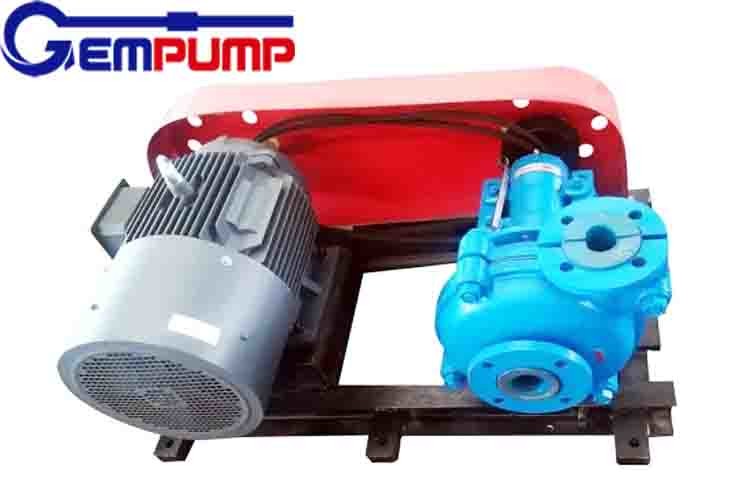

4" Anti Corrosion Horizontal Rubber/Metal Lined Tailing Transfer Non-Clogging Slurry Pump
AHGEM series pump is a horizontal, cantilevered heavy duty centrifugal slurry pump introduction
AHGEM pumps are designed for the continuous pumping of highly abrasive, high density slurries with minimal maintenance requirements bolts reduce maintenance and minimize downtime, the horizontal centrifugal pumps will maintain high efficiencies over the wear life of its components. Rubber lined pumps expand application to chemical slurries handling, several different rubber options are available to meet different application need.
Slurry Pump Main Factures
*Horizontal, cantilevered centrifugal slurry pump
*Widely used in industries of mining, metallurgy, electric power, coal, chemicals, building,transporting abrasive or corrosive slurry etc.
*Interchangeable high wear resistant metal or pressure molded elastomer liner, so as the impeller.
*The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installation and application
*Three seal type option:Gland packing seal, Expeller seal,Mechanical seal
*Excellent wear life,easy maintenance.
*Best total operating cost.
Product Name | Heavy duty slurry pump |
Material | High chrome alloy Cr28, A05, A07 |
Standard | ISO9001, ASME, ANSI |
Flow rate | 3.6m3-1620m3/h |
Head | 6-134m |
Voltage | 380V,415V,460V or as customer required |
Working temperaturer | 20ºC to 90ºC |
Application | Heavy duty mining process. Heavy refuse removal. Cyclone feeds Coal preparation plant Pulp&paper. Dredging.Mineral processing. Abrasive slurry.Tailings. High density slurries.Mill grinding. Ash handling. Slurry feed system. Industrial processing |
AHGEM SLURRY PUMP CLEAR WATER PERFORMANCE DATASHEET | |||||||||
MODEL | MAX | MATERIAL | CAPACITY | HEAD | SPEED | MAX | NPSH | ||
POWER | LINER | IMPELLER | m3/h | l/s | H(m) | n(r/min) | η% | m | |
KW | |||||||||
1.5/1B-AHGEM | 15 | M | M | 12~28 | 3.5~8 | 6~68 | 1200~3800 | 40 | 2~4 |
RU | RU | 10~25 | 3~7 | 7~52 | 1400~3400 | 35 | 2~4 | ||
2/1.5B-AHGEM | 15 | M | M | 32~12 | 9~20 | 6~58 | 1200~3200 | 45 | 3.5~8 |
RU | RU | 25~54 | 7~15 | 5~41 | 1000~2600 | 50 | 2.5~5 | ||
3/2C-AHGEM | 30 | M | M | 39~86 | 11~24 | 12~64 | 1300~2700 | 55 | 4~6 |
RU | RU | 36~75 | 10~21 | 13~39 | 1300~2100 | 55 | 2~4 | ||
4/3C-AHGEM | 30 | M | M | 86~198 | 24~25 | 9~52 | 1000~2200 | 71 | 4~6 |
4/3D-AHGEM | 60 | ||||||||
4/3C-AHGEM | 30 | RU | RU | 79~180 | 22~50 | 5~34 | 800~1800 | 59 | 3~5 |
4/3D-AHGEM | 60 | ||||||||
6/4D-AHGEM | 60 | M | M | 162~360 | 45~100 | 12~56 | 800~1550 | 65 | 5~8 |
6/4E-AHGEM | 120 | ||||||||
6/4D-AHGEM | 60 | RU | RU | 144~324 | 40~90 | 12~45 | 800~1350 | 65 | 3~5 |
6/4E-AHGEM | 120 | ||||||||
8/6E-AHGEM | 120 | M | M | 360~828 | 100~230 | 10~61 | 500~1140 | 72 | 2~9 |
8/6R-AHGEM | 300 | ||||||||
8/6E-AHGEM | 120 | RU | RU | 324~720 | 90~200 | 7~49 | 400~1000 | 65 | 5~10 |
8/6R-AHGEM | 300 | ||||||||
10/8ST-AHGEM | 560 | M | M | 612~1368 | 170~380 | 11~61 | 400~850 | 71 | 4~10 |
RU | RU | 540~1188 | 150~330 | 12~50 | 400~750 | 75 | 4~12 | ||
12/10ST-AHGEM | 560 | M | M | 936~1980 | 260~550 | 7~68 | 300~800 | 82 | 6 |
M | RU | 720~1620 | 200~450 | 7~45 | 300~650 | 80 | 2.5~7.5 | ||
14/12ST-AHGEM | 560 | M | M | 1260~2772 | 350~770 | 13~63 | 300~600 | 77 | 3~10 |
RU | RU | 1152~2520 | 320~700 | 13~44 | 300~500 | 79 | 3~8 | ||
16/14TU-AHGEM | 1200 | M | M | 1368~3060 | 380~850 | 11~63 | 250~550 | 79 | 4~10 |
20/18TU-AHGEM | 1200 | M | M | 2520~5400 | 700~1500 | 13~57 | 200~400 | 85 | 5~10 |
