Pumping The Water , Pumping Our Honor
| Place of Origin: | Shijiazhuang,China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001, CE |
| Model Number: | 14/12ST-AHGEM |
| Minimum Order Quantity: | 1 set |
| Price: | USD1000/SET |
| Packaging Details: | Plywooden Box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Sets Per Month |
| Product: | Horizontal Centriufgal Slurry Pump | Material: | Chrome Alloy |
|---|---|---|---|
| Place Of Origin: | Shijiazhuang,China | Structure: | Centrifugal |
| Power: | Electric Motor | Application: | Mining |
| Seal: | Packing,Mechanical | Warranty: | 1 Year |
| High Light: | 560KW Horizontal Slurry Pump,560KW Centrifugal Slurry Pump,77% Efficiency Horizontal Slurry Pump |
||

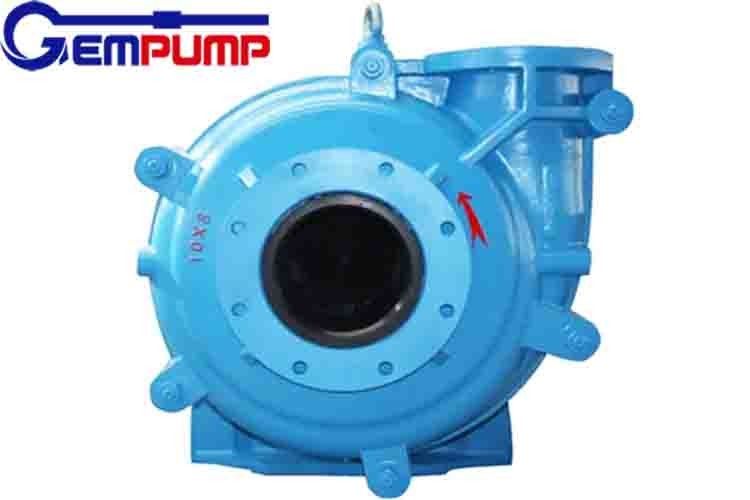

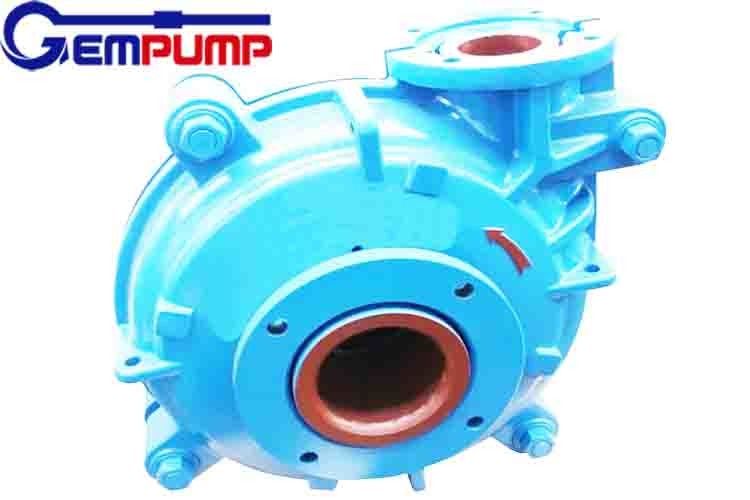

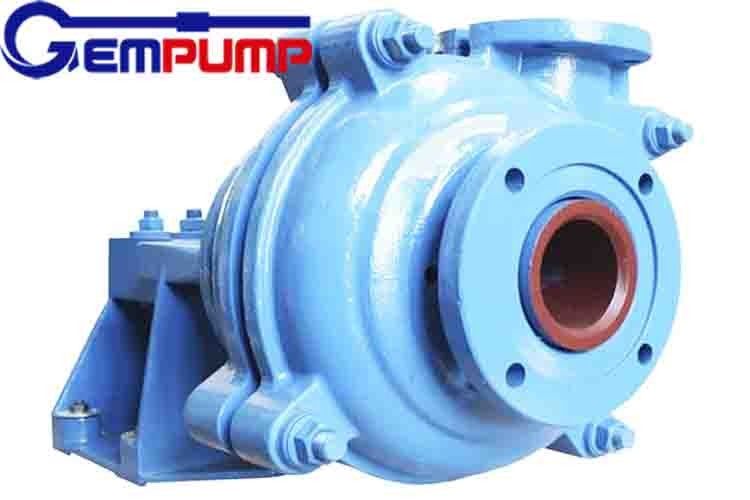

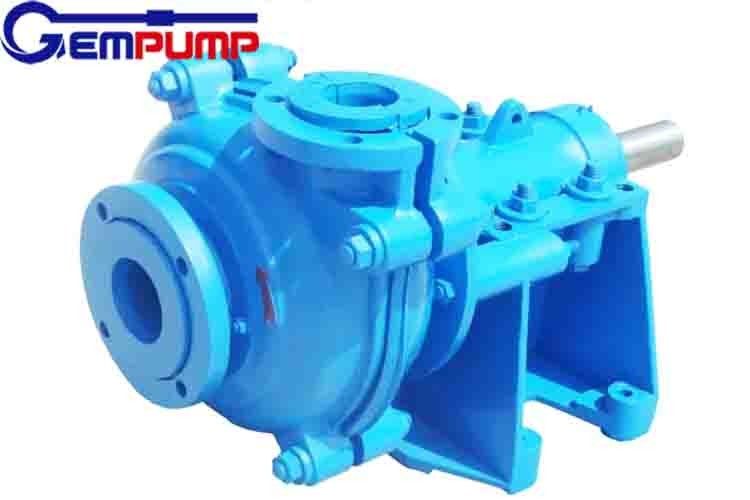

China Horizontal Heavy Duty Industrial Anti-Corrosive Coal Mining Mineral Centrifugal Slurry Pump
Product Introduction
The Heavy duty centrifugal coal mining slurry pump is used to transport solid and liquid that can be widely used to the deparments of metallurgy, mine, coal, electric power, chemical&industry, food, sewage treatment and channel dredging, etc. we can use these pumps in industry field like: Alumina, asbestos, bauxite, biulding products, cement, wolfram&scheelite, water & sewage utilities, copper, electric, iron ore, lead &zinc, mineral sands, sugar,tin, oil shale, paper&pulp and tobacco.
Slurry pump product features:
| No. | Name | Material code | ASTM code |
| 1 | Pump cover | QT500-7 | 70-50-05 |
| 2 | Front liner insert | KmTBCr26 | Rubber+A570Gr.C |
| 3 | Impeller | KmTBCr26 | Rubber+70-50-05 |
| 4 | Thrust bush | KmTBCr26 | Rubber+A570Gr.C |
| 5 | Pump body | QT500-7 | 70-50-05 |
| 6 | Back protecting bush | KmTBCr26 | Rubber+A570Gr.C |
| 7 | Gland box | KmTBCr26 | Rubber+NO.30A |
| 8 | Waterproof case | 1Cr18Ni9Ti | 321 |
Performance Parameter Data of AH Slurry Pump:
|
Model
|
Power(kw)
|
Flow(m3/h)
|
Head(m)
|
n (r/min)
|
Efficiency(%)
|
NPSH(m)
|
Weight(Kg)
|
|
1.5/1B-AHGEM
|
2.2-15
|
3.6-20
|
5-68
|
1200-3800
|
40
|
2-4
|
91
|
|
2/1.5B-AHGEM
|
2.2-15
|
7-48
|
7-62
|
1200-3200
|
45
|
3.5-8
|
118
|
|
3/2C-AHGEM
|
4-30
|
21-86
|
12-65
|
1300-2700
|
55
|
4-6
|
191
|
|
4/3C-AHGEM
|
5.5-30
|
50-150
|
9-45
|
1000-2000
|
71
|
4-6
|
263
|
|
4/3D-AHGEM
|
7.5-60
|
68-160
|
10-52
|
1000-2200
|
71
|
4-6
|
363
|
|
6/4D-AHGEM
|
15-60
|
72-360
|
12-56
|
800-1550
|
65
|
5-8
|
626
|
|
6/4E-AHGEM
|
22-120
|
93-385
|
12-63
|
800-1600
|
65
|
5-8
|
728
|
|
8/6E-AHGEM
|
18.5-120,
|
360-820
|
10-61
|
500-1100
|
72
|
2-9
|
1473
|
|
8/6R-AHGEM
|
110-300
|
360-820
|
10-61
|
500-1140
|
72
|
2-9
|
1836
|
|
10/8ST-AHGEM
|
45-560
|
630-1300
|
11-60
|
400-850
|
71
|
4-10
|
3750
|
|
12/10ST-AHGEM
|
55-560
|
800-1900
|
7-58
|
350-730
|
82
|
6
|
4318
|
|
14/12ST-AHGEM
|
75-560
|
1200-2600
|
13-60
|
300-600
|
77
|
3-10
|
4609
|
|
16/14TU-AHGEM
|
160-1200
|
1368-3000
|
11-60
|
250-550
|
79
|
4-10
|
10000
|
|
14/12ST-AHGEM
|
75-560
|
1200-2600
|
13-60
|
300-600
|
77
|
3-10
|
4609
|
|
16/14TU-AHGEM
|
160-1200
|
1368-3000
|
11-60
|
250-550
|
79
|
4-10
|
10000
|
Company Introduction
Gempump was established in 2010, it's a professional machinery factory special in pumps and mining equipment research, manufacturing, sales and offers professional mine processing plant workflow design, plant installation, equipment maintenance, beneficiation processing technology guidance service as one of the metallurgical machinery equipment factory. Our products are exported to Arica,Nigeria,Zambia,Zimbabwe,Congo,Uganda,Mozambique,Angola,Southeast Asia,South America and many other coutries and regions.We are committed to creating high quality and efficient crushing and screening equipment,quality is our eternal pursuit and responsibility.
