Pumping The Water , Pumping Our Honor
| Place of Origin: | Shijiazhuang,China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001, CE |
| Model Number: | 14/12ST-AHGEM |
| Minimum Order Quantity: | 1 set |
| Price: | USD1000/SET |
| Packaging Details: | Plywooden Box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Sets Per Month |
| Product: | Horizontal Centriufgal Slurry Pump | Material: | Chrome Alloy |
|---|---|---|---|
| Place Of Origin: | Shijiazhuang,China | Structure: | Centrifugal |
| Power: | Electric Motor | Application: | Mining |
| Seal: | Packing,Mechanical | Warranty: | 1 Year |
| High Light: | 1200KW Heavy Duty Slurry Pump,Heavy Duty 2 Inch Slurry Pump,15KW 2 Inch Slurry Pump |
||

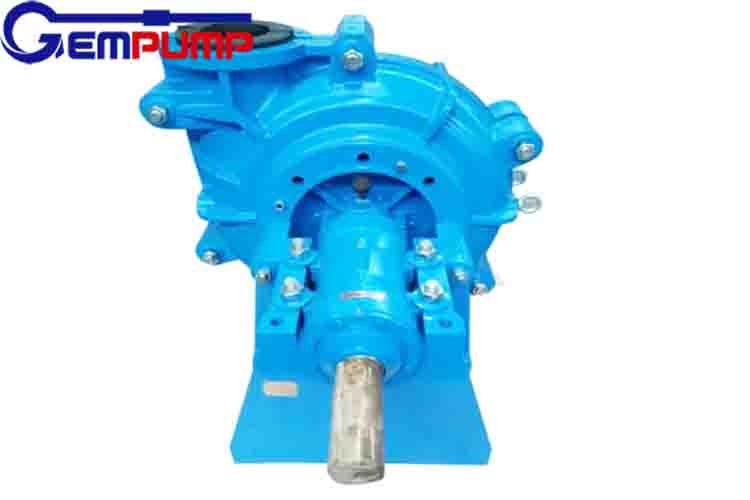

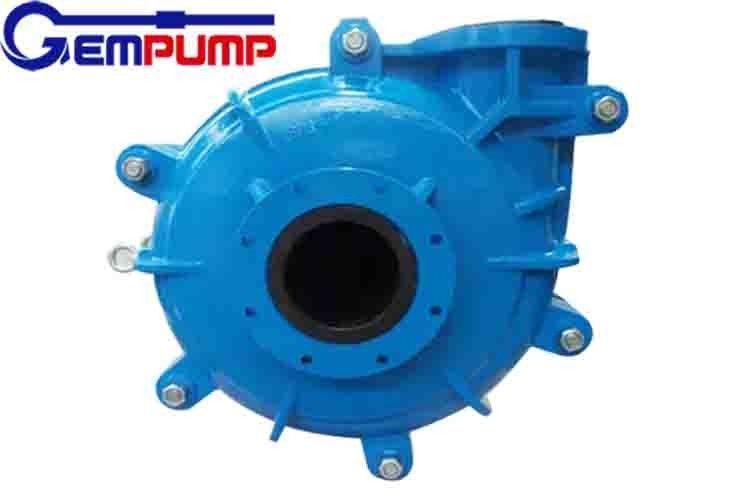

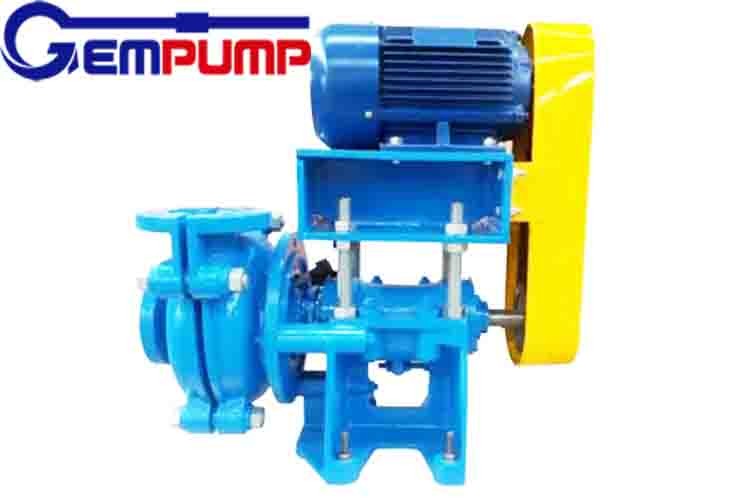

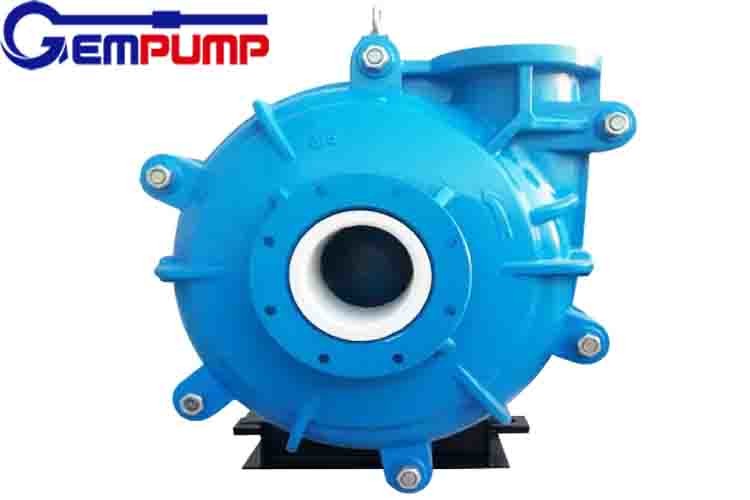

2 Inch Horizontal Mineral Processing Concentrator Underflow Heavy Duty Slurry Pump
Metal Liner Heavy Duty Slurry Pump AHGEM TYPE
1.5/1B-AHGEM, 2/1.5B-AHGEM, 3/2C-AHGEM, 3/2CC-AHGEM, 4/3C-AHGEM, 4/3CC-AHGEM, 4/3D-AHGEM, 4/3DD-AHGEM, 6/4D-AHGEM, 6/4DD-AHGEM, 6/4E-AHGEM, 6/4EE-AHGEM, 8/6E-AHGEM, 8/6EE-AHGEM, 8/6F-AHGEM, 8/6FF-AHGEM, 8/6R-AHGEM, 10/8ST-AHGEM, 10/8F-AHGEM, 10/8FF-AHGEM, 12/10ST-AHGEM, 12/10G-AHGEM, 12/10F-AHGEM, 12/10FF-AHGEM, 14/12ST-AHGEM, 14/12G-AHGEM, 14/12FF-AHGEM, 14/12F-AHGEM, 16/14TU-AHGEM, 20/18TV-AHGEM.
Rubber Liner Heavy Duty Slurry Pump AHRGEM TYPE
1.5/1B-AHRGEM, 2/1.5B-AHRGEM, 3/2C-AHRGEM, 3/2CC-AHRGEM, 4/3C-AHRGEM, 4/3CC-AHRGEM, 4/3D-AHRGEM, 4/3DD-AHRGEM, 6/4D-AHRGEM, 6/4DD-AHRGEM, 6/4E-AHRGEM, 6/4EE-AHRGEM, 8/6E-AHRGEM, 8/6EE-AHRGEM, 8/6F-AHRGEM, 8/6FF-AHRGEM, 8/6R-AHRGEM, 10/8F-AHRGEM, 10/8X-AHRGEM, 12/10ST-AHRGEM, 14/12ST-AHRGEM, 16/14TU-AHRGEM.
| Type | Allowable Mating Max. Power(Kw) | Clear Water Performance | Impeller | |||||
| Capacity/Q m³/hr | Head/m | Speed/rpm | Max Efficiency/% | NPSH/m | Nos of Vane | Impeller Diameter/mm | ||
| 1.5X1-AHGEM | 15 | 12.6--28.8 | 6--68 | 1200--3800 | 40 | 2--4 | 5 | 152 |
| 2X1.5-AHGEM | 15 | 32.4--72 | 6--58 | 1200--3200 | 45 | 3.5--8 | 5 | 184 |
| 3X2-AHGEM | 30 | 39.6--86.4 | 12--64 | 1300--2700 | 55 | 4--6 | 5 | 214 |
| 4X3-AHGEM | 30 | 86.4--198 | 9--52 | 1000--2200 | 71 | 4--6 | 5 | 245 |
| 6X4-AHGEM | 60 | 162--360 | 12--56 | 800--1550 | 65 | 5--8 | 5 | 365 |
| 8X6-AHGEM | 300 | 360--828 | 10--61 | 500--1140 | 72 | 2--9 | 5 | 510 |
| 10X8-AHGEM | 560 | 612--1368 | 11--61 | 400--850 | 71 | 4--10 | 5 | 686 |
| 12X10-AHGEM | 560 | 936--1980 | 7--68 | 300--800 | 82 | 6 | 5 | 762 |
| 14X12-AHGEM | 560 | 1260--2772 | 13--63 | 300--600 | 77 | 3--10 | 5 | 965 |
| 16X14-AHGEM | 1200 | 1368--3060 | 11--63 | 250--550 | 79 | 4--10 | 5 | 1067 |
| 20X18-AHGEM | 1200 | 2520--5400 | 13--57 | 200--400 | 85 | 5--10 | 5 | 1370 |
Main Spare Parts
Impeller, Volute Liner, Casing, ThroatBush, Frame Plate Liner Insert, Cover Plate, Frame Plate, Pump Liner Expeller, Expeller Ring,Stuffing Box, Expeller, Pump Shaft, shaft sleeve, Shaft Spacer, Bearing Assembly, Base, Stuffing Box, Gland Assembly, Bearing Housing,Lantern Ring, pump discharge pipe, flange, and so on.
