Pumping The Water , Pumping Our Honor
| Place of Origin: | Shijiazhuang,China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001, CE |
| Model Number: | 12/10ST-AHGEM |
| Minimum Order Quantity: | 1 set |
| Price: | USD1000/SET |
| Packaging Details: | Plywooden Box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Sets Per Month |
| Product: | Horizontal Centriufgal Slurry Pump | Material: | Chrome Alloy |
|---|---|---|---|
| Place Of Origin: | Shijiazhuang,China | Structure: | Centrifugal |
| Power: | Electric Motor | Application: | Mining |
| Seal: | Packing,Mechanical | Warranty: | 1 Year |
| High Light: | Cr27 Chrome Liner Horizontal Slurry Pump,4800m3/H Horizontal Slurry Pump,4800m3/H sand dredge pump |
||

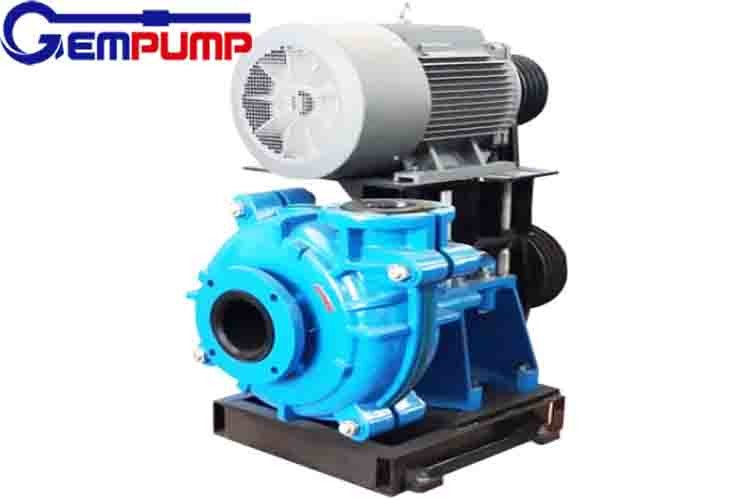

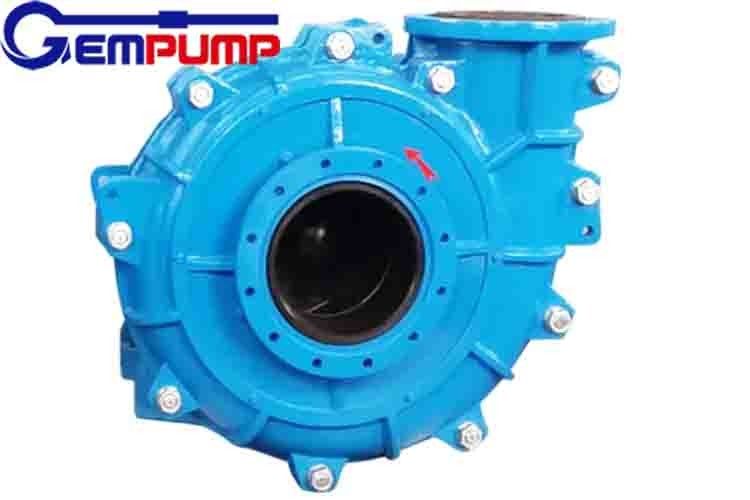

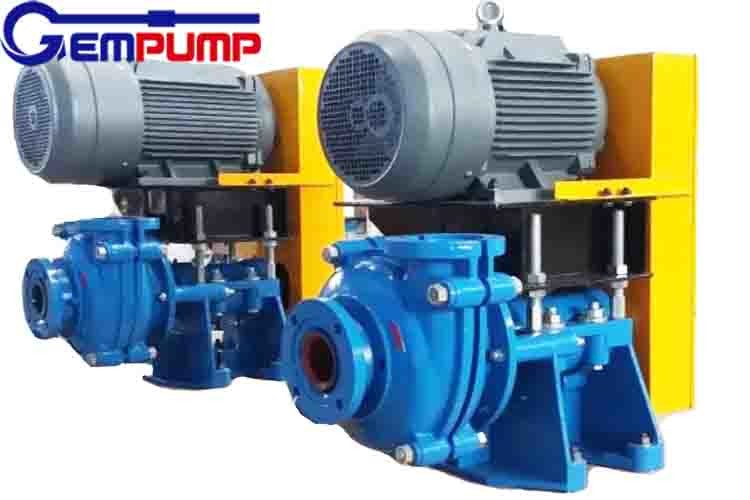

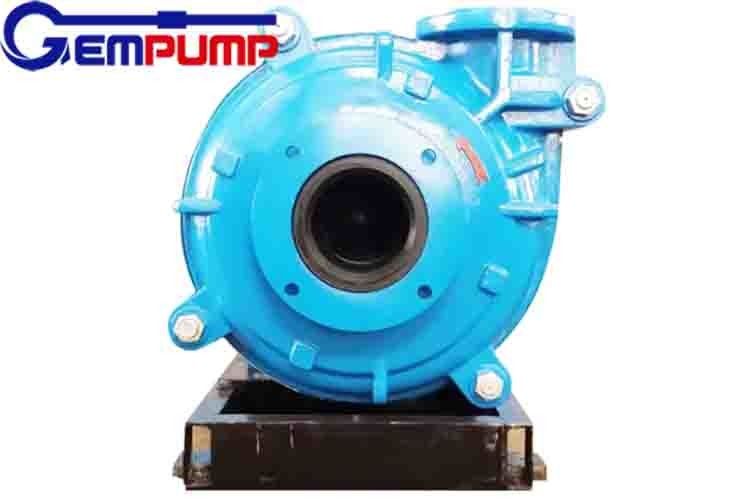

High Head Horizontal Sand Pump for Channel Dredging Slurry in Mining Pump Mud Pump
Company Overview:
Gempump is a preofessional manufacturer in Shijiazhuang City,Hebei Province, we have our own casting workshop, foundry workshop ,machine workship and assemble workshop. We produce AH slurry pumps, normally from 1.5/1B-AHGEM to 16/14TU-AHGEM, and SPGEM vertical slurry pumps from 40PV-SPGEM to 200SV-SPGEM, if larger pumps, please contact with us to discuss the details.Our slurry pumps sell we all around the world,especiall in South Africa, America, Russia,etc.
Producing process of our pumps and spare parts, first to make the molds by different methods, such as lost foam and then casting, heat treatment,machine and assemble.Our pumps do both static balance and dynamic balance.
Brief description
1. Highly wear-resistant with rubber liner or high chrome liner
2. Can be used in series
3. Can transfer high density slurry
4. With 3 types of seal: gland seal, mechanical seal, expeller seal
Technical Specificaiton for slurry pump
| Size | 16/14TU-AHGEM | ||
| Flow Rate | up to 4800m 3/h | ||
| Head | 10-65m | ||
| Materials | High chrome liner Cr27, Cr28 and rubber liner, R26, R24, R55 | ||
| Sealing Method | Packing seal, vice-impeller seal and mechanical seal | ||
Advantages for slurry pump
1. Easy for maintenance: Cantilevered, horizontal, centrifugal, single stage
2. Widely application: Designed for handling abrasive, high density slurries in the metallurgical, mining,coal, power, building material and other industrial departments.
3. Long bearing life: The bearing assembly is with large diameter shaft and short overhang.
4. Wear resistant wet parts: can make pressure molded rubber liner. Completely interchangeable with metal wet parts.
5. Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.
6. Expeller seal , mechanical seal and packing seal are available to meed your different demands.
Features for High Head Horizontal Slurry Pump
1. Our pump wet parts are made of wear-resistant high chromium alloy.
2. Our Pump bearing assembly use cylindrical structure, adjusting the space between impeller and front liner easily. They can be removed completely when being repaired. Bearing assembly use grease lubrication.
3. The shaft seal could use the packing seal, expeller seal and mechanical seal for all slurry pump.
4. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications at its working site.
5. There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.
6. Wide performance, good NPSH and high efficiency. The slurry pump can be installed in multistage series to meet the delivery for long distance.
Application for Slurry Pump
They are widely used in industry of mining, electrical power, metallurgy, coal, environmental, etc for transportation of abrasive solid slurry. Mud pump, sand pump, impurity pump, dredge pump and desilting pump are all belong to category of slurry pump.
FAQ
Q: Can you supply pump qualified with ANSI and ASME standard?
A: Yes, our pump compliant with ISO / ASME/ANSI standard.
Q: How to customize pumps and mechanical seals ?
A: Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.
Q: How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight
Q: How long is warranty?
A: 1 year for main construction warranty.
Q: How long is production lead time?
A: Normally 15 working days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7 days.
Q: What is the shipping terms you can provide?
A: Depends on customer's requirements, we can provide different transportantintion terms, such as EXW, FOB, CIF.
Q: Who is in charge of after-sales?
A: Nainater Slurry Pump has professional after sales service team, we will follow up the client's comments and suggest them with good solutions. Solve client's problems and keeping the clients profit.
Q: Who is in charge of maintenance?
A: Local agent. If pump running has any problem on site, our local agent will arrival the plant within 24 hours.
