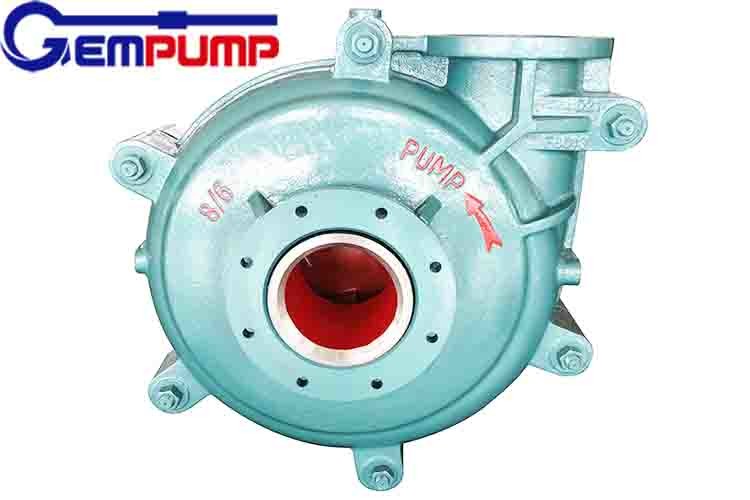

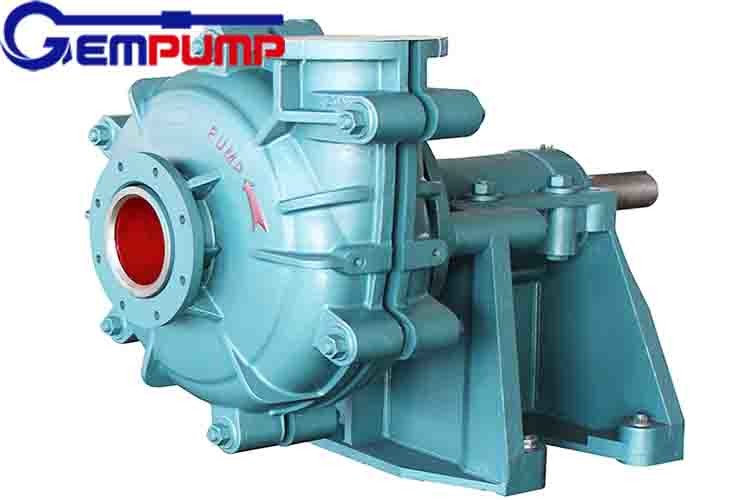

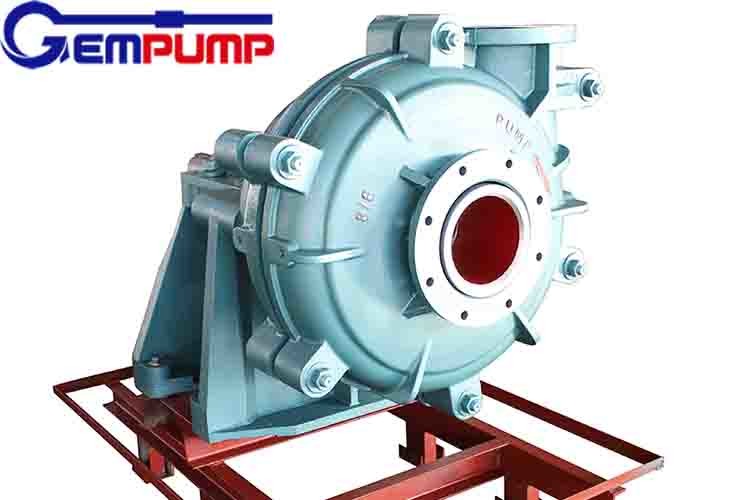

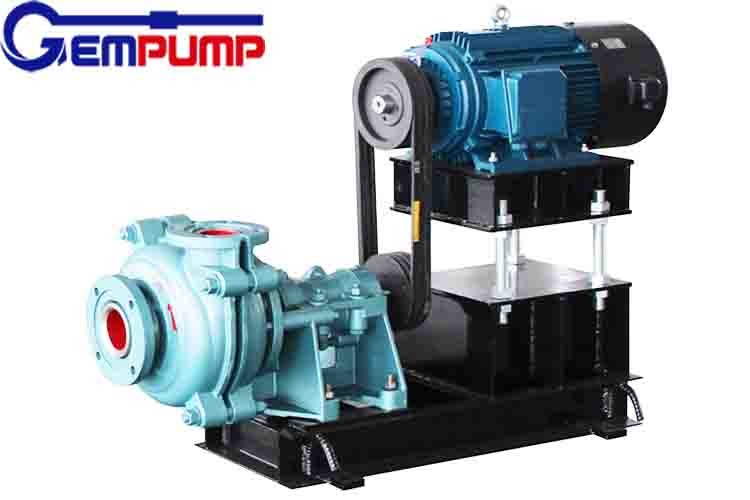

Diesel Waste Water Horizontal Slurry Pump 5 Vanes Single Suction

small.img.alt
small.img.alt Diesel Waste Water Horizontal Slurry Pump 5 Vanes Single Suction Diesel Waste Water Horizontal Slurry Pump 5 Vanes Single Suction small.img.alt Diesel Waste Water Horizontal Slurry Pump 5 Vanes Single Suction Diesel Waste Water Horizontal Slurry Pump 5 Vanes Single Suction small.img.alt Diesel Waste Water Horizontal Slurry Pump 5 Vanes Single Suction Diesel Waste Water Horizontal Slurry Pump 5 Vanes Single Suction small.img.alt Diesel Waste Water Horizontal Slurry Pump 5 Vanes Single Suction Diesel Waste Water Horizontal Slurry Pump 5 Vanes Single Suction
Basic Information
Place of Origin: Shijiazhuang,China
Brand Name: Gempump
Certification: ISO9001, CE
Model Number: 6/4E-AHGEM
Minimum Order Quantity: 1 set
Price: USD1000/SET
Packaging Details: Plywooden Box
Delivery Time: 5-8 working days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Sets Per Month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Product: Horizontal Centriufgal Slurry Pump Material: Chrome Alloy
Place Of Origin: Shijiazhuang,China Structure: Centrifugal
Power: Electric Motor Application: Mining
Seal: Packing,Mechanical Warranty: 1 Year
High Light:

Single Suction Horizontal Slurry Pump

,

5 Vanes Horizontal Slurry Pump

,

5 Vanes slurry centrifugal pump

High Flow Capacity Horizontal diesel slurry centrifugal pump for slurry and waste water



The AHGEM series slurry pump are robust state of the art slurry pumps that feature oil or grease lubrication bearing assemblies and complete interchangeable with other major brands. The ZJ can be supplied in either a packed gland version using expeller technology,or mechanical seal system specifically designed for heavy duty slurry applications.

Those pumps are single-stage,single-suction,cantilevered,double casing,horizontal, centrifugal slurry pump. They are designed for handing abrasive, high concentration slurries in the mining,coal,metallurgical, power, building material and other industrial departments. This series of pump is suitable for various liquids performance, which is the first select product for convey mine mill slurry and tails slurry.

Diesel Waste Water Horizontal Slurry Pump 5 Vanes Single Suction 0

A complete range of build specifications

  • Rubber lined with rubber impeller
  • Rubber lined with metal impeller
  • All metal lined using white iron chrome alloys
  • Urethane lined with optional urethane impeller for special applications

Features

  • Choice of piston ring style labyrinth or other new style of water proof
  • Fully interchangeable with the common brand reducing inventory hold requirements
  • A full range of mechanical seal adaptations available upon request
  • Oil lubrication or packed grease
  • Painted to customer specifications upon request
  • Diesel Waste Water Horizontal Slurry Pump 5 Vanes Single Suction 1
  • Horizontal Slurry Pump Application
  • Diesel Waste Water Horizontal Slurry Pump 5 Vanes Single Suction 2
  • Structural features
    ★ A large diameter with a short overhang ensure the rigidity of shaft, suitable for high power condition.
    ★ Hardened stainless steel shaft sleeve with ‘O’ ring seals at both ends. A slip fit allows the sleeve protects the shaft from the wear and corrosion.
    ★ The deputy vanes in both former and rear cover of Impeller relieve seal pressure and minimize recirculation.
    ★ Casing is made of ductile iron, ribs help casing to stand high pressure.
    ★ The wet parts are made of high-chrom alloy or rubber, having the abrasion-resist, corrosion-resist and impact erosion-resist properties, improved the service life of pump.
    ★ The wet parts are made of metal or rubber are interchangeable or mixed use, suited different working condition.
    ★ Impeller adopt the method of wide flow and vane concave to improve flow and corrosion resistance, prolong service life.
    ★ The shaft seal may be adoptable of packing
    seal,expeller seal and mechanical seal to fit different working conditions.
    ★ The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.
    ★ The bearing Assembly have the grease lubrication and oli lubrication are optional depend on the usage.
    ★ Adopted the oil lubrication bearing assembly can effectively lower the high operating temperature and reduce bearing fault
    ★ The grease lubrication bearing assembly easy installation and adjustment, simple structure and easy to maintain and perform reliably.
