Pumping The Water , Pumping Our Honor
| Place of Origin: | Shijiazhuang,China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001, CE |
| Model Number: | 3/2C-AHGEM |
| Minimum Order Quantity: | 1 set |
| Price: | USD1000/SET |
| Packaging Details: | Plywooden Box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Sets Per Month |
| Product: | Horizontal Centriufgal Slurry Pump | Material: | Chrome Alloy |
|---|---|---|---|
| Place Of Origin: | Shijiazhuang,China | Structure: | Centrifugal |
| Power: | Electric Motor | Application: | Mining |
| Seal: | Packing,Mechanical | Warranty: | 1 Year |
| High Light: | 2'' Outlet Solid Mud Slurry Pump,30KW Centrifugal Slurry Pump,30KW mining slurry pumps |
||

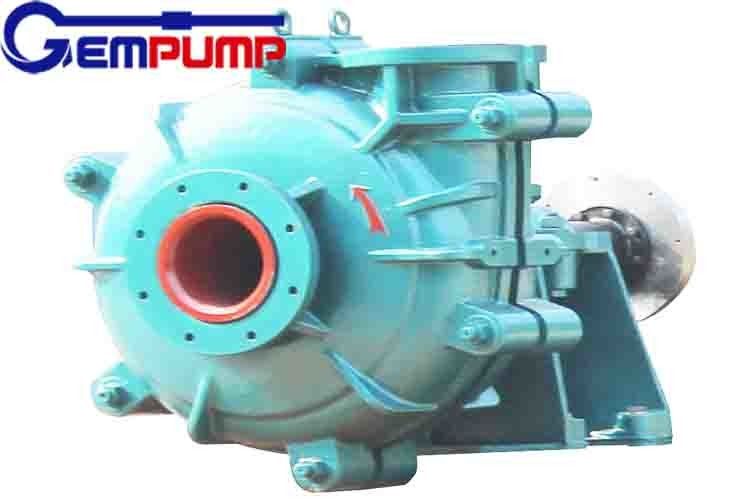

3/2C-AHGEM Horizontal Centrifugal Solid Mud Waste Thick Gold Mining Slurry Pump
What is the Slurry Pump Price?
The slurry pump is widely used at the mining and mineral process to transfer the ore mixed with water.
No matter gravity separation,magnetic separation or flotation to get the mine, you should need the slurry pump to make all system workable and the slurry pump also used to transfer the slurry out off the mineral process to tailing dam.
AHGEM(R) Mining and Mineral Grease Lubricationhorizontal slurry pump is the horizontal, cantilevered centrifugal slurry pump, with reasonable construction, reliable operation, long service life. It is widely used in transporting abrasive or / and corrosive slurry in mining, metallurgy, electric power, coal, chemicals, building, etc. Especially well accepted by coal / chrome washing plant, mineral processing plant, power plant etc.
Design Features of Mud pumps ex price 12x10 high quality slurry pump
The performance of all slurry pumps for reference
|
Models
|
Outlet DN
(mm)
|
Inlet DN
(mm)
|
Capacity
(m3/h)
|
Head
(m)
|
Speed
(r/min)
|
Max power
(KW)
|
|
1.5/1-B
|
25mm(1'')
|
1.5''
|
12.6~28.8
|
6~68
|
1200~3800
|
15
|
|
1.5-1B-HH
|
25mm(1'')
|
1.5''
|
16.2~34.2
|
25~92
|
1400~2200
|
30
|
|
2/1.5B
|
40mm(1.5'')
|
2‘’
|
32.4~72
|
6~58
|
1200~3200
|
15
|
|
3/2-C
|
50mm(2'')
|
3''
|
39.6~86.4
|
12~64
|
1300~2700
|
30
|
|
3/2-D
|
50mm(2'')
|
3''
|
68.4~136.8
|
25~87
|
850~1400
|
60
|
|
4/3-C
|
75mm(3'')
|
4''
|
86.4~198
|
9~52
|
1000~2200
|
30
|
|
4/3-E
|
75mm(3'')
|
4''
|
126~252
|
12~97
|
600~1400
|
120
|
|
6/4-D
|
100mm(4'')
|
6''
|
162~360
|
12~56
|
800~1550
|
60
|
|
6/4-E
|
100mm(4'')
|
6''
|
324~720
|
30~118
|
600~1000
|
560
|
|
8/6-E
|
150mm(6'')
|
8''
|
360~828
|
10~61
|
500~1140
|
300
|
|
10/8-E
|
200mm(8'')
|
10''
|
666~1440
|
14~60
|
600~1100
|
120
|
|
10/8-ST
|
200mm(8'')
|
10''
|
612~1368
|
11~61
|
400~850
|
560
|
|
12/10-ST
|
250mm(10'')
|
12''
|
936~1980
|
7~68
|
300~800
|
560
|
|
14/12-TU
|
300mm(12'')
|
14''
|
1260~2772
|
13~63
|
300~600
|
560
|
|
16/14-TU
|
350mm(14'')
|
16''
|
1368~3060
|
11~63
|
250~550
|
1200
|
|
20/18-TU
|
450mm(18'')
|
20''
|
2520~5400
|
13~57
|
200~400
|
1200
|
Slurry pump feature

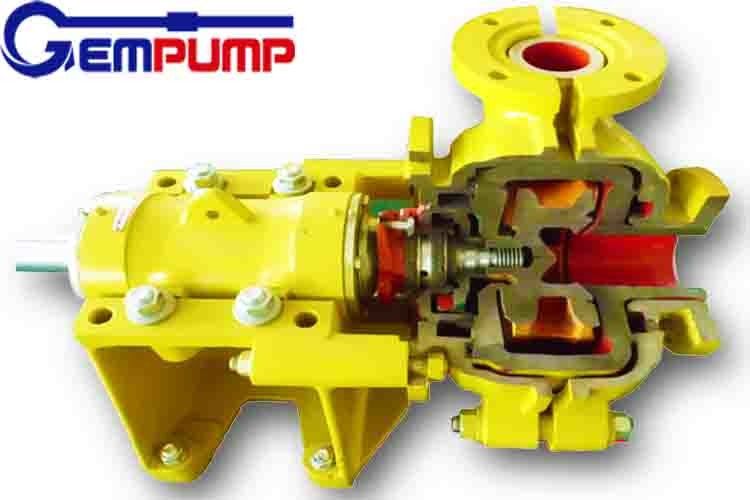

• Bearing assembly – A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
• Liners – Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.
• Casing – Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
• Impeller – Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are completely interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
• Throat bush – Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
• One-piece frame – A very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for
easy adjustment of impeller clearance.
