Place of Origin: | Shijiazhuang,China |
---|---|
Brand Name: | Gempump |
Certification: | ISO9001, CE |
Model Number: | 2/1.5B-AHGEM |
Minimum Order Quantity: | 1 set |
Price: | USD1000/SET |
Packaging Details: | Plywooden Box |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 Sets Per Month |
Product: | Horizontal Centriufgal Slurry Pump | Model: | 2/1.5B-AHGEM |
---|---|---|---|
Place Of Origin: | Shijiazhuang,China | Structure: | Centrifugal |
Power: | Electric Motor | Application: | Mining |
Seal: | Packing,Mechanical | Warranty: | 1 Year |
High Light: | 3200RPM Electric Horizontal Slurry Pump,High Head Centrifugal Sand Pump,3200RPM Centrifugal Sand Pump |

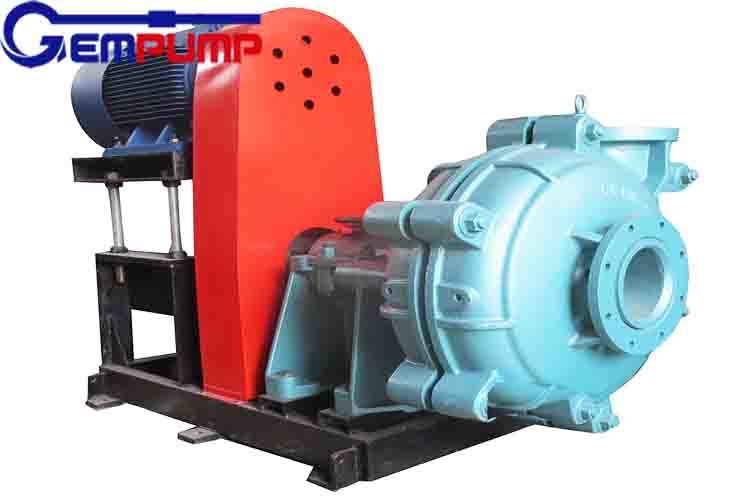

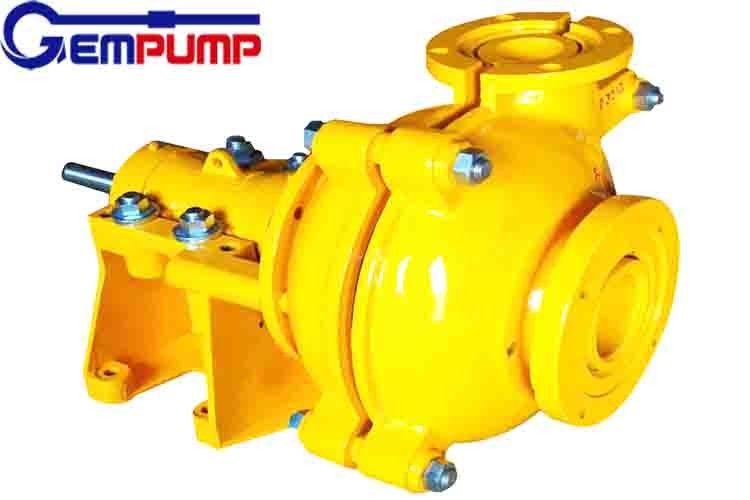

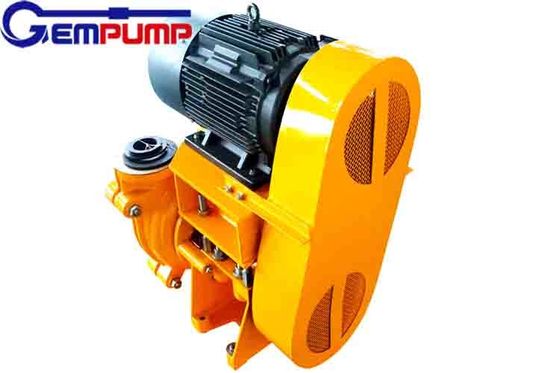

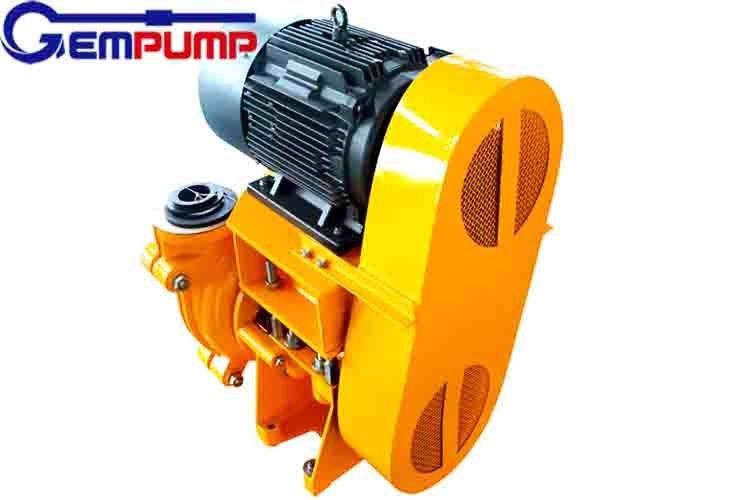

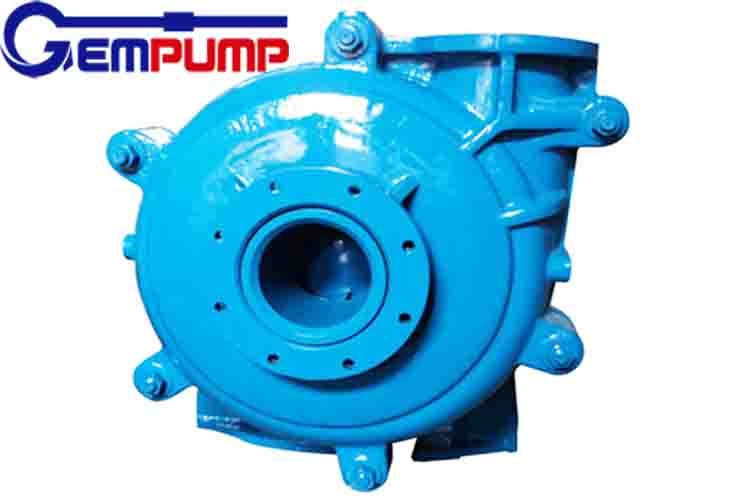

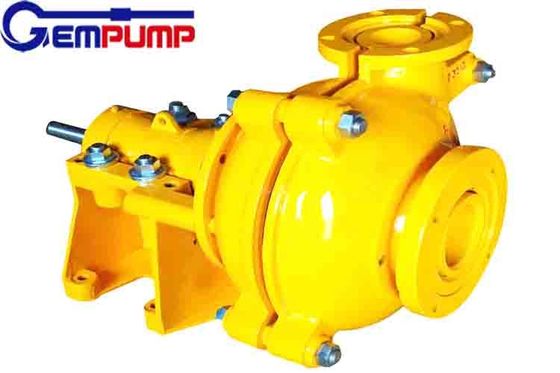

2/1.5B-AHGEM China High Head Electric Centrifugal Horizontal Sand Mining Slurry Pump
Slurry pump
1. Highly anti-abrasive and anti-corrosive
2. Can be used in series
3. Can transfer high density slurry
4. With 3 types of seal: gland seal, mechanical seal, expeller seal
Slurry pump Technical Specifications
|
|||
Size
|
4/3C-AHGEM
|
||
Flow Rate
|
up to 310m3/h
|
||
Head
|
11-87m
|
||
Materials
|
Cr27, Cr28 and materials for rubber liner, R26, R24, R55
|
||
Sealing Method
|
Packing seal, vice-impeller seal and mechanical seal
|
Section2 Brief Introduction for Slurry pump
This mining gravel pump is also called as heavy -duty pump.
Can be operated in multi -stage series installation
With thicker wear -parts and large-duty frame
Suitably transporting highly abrasive high density slurry or lower density high head slurry
Also can be used in certain corrosive slurry.
Section3 Slurry pump parts
High chrome alloy or rubber material for slurry pump wet parts
Anti-abrasive and anti-corrosive to satisfy different working conditions.
1. Cantilevered, horizontal, centrifugal, single stage slurry pump
2. Widely application: Designed for handling abrasive, high density slurries in the metallurgical, mining,coal, power, building material and other industrial departments.
3. Long bearing life: The bearing assembly is with large diameter shaft and short overhang.
4. Anti-abrasion wet parts: can be made of pressure molded rubber. Completely interchangeable with metal wet parts.
5. Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.
6. Expeller seal , mechanical seal and packing seal are available to meed your different demands.
