Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | S100-250 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | Horizontal Split Casing Centriufgal Pump | Warranty: | 1 Year |
|---|---|---|---|
| Place Of Origin: | China | Pressure: | High Pressure |
| Structure: | Single Stage Centrifugal | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Material: | Cast Iron,Stainless Steel |
| Application: | Irrigation ,Agriculture,Mining | Certification: | CE,ISO9001 |
| High Light: | Double Suction Horizontal Split Case Pump,1480RPM Horizontal Split Case Pump,1480RPM double suction split case pump |
||

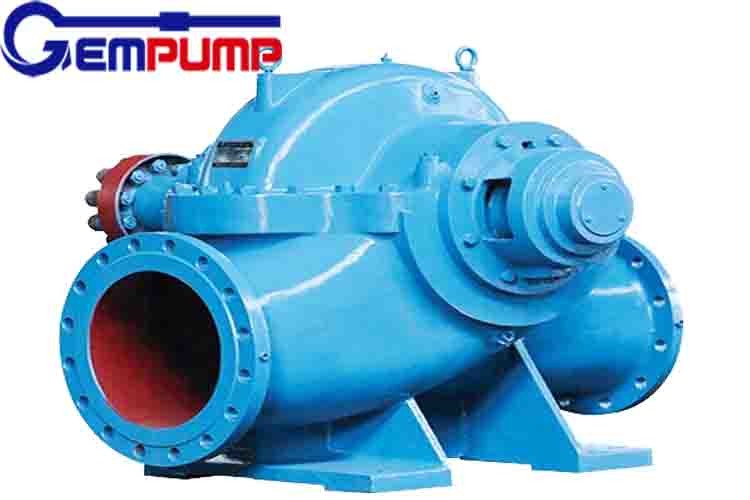

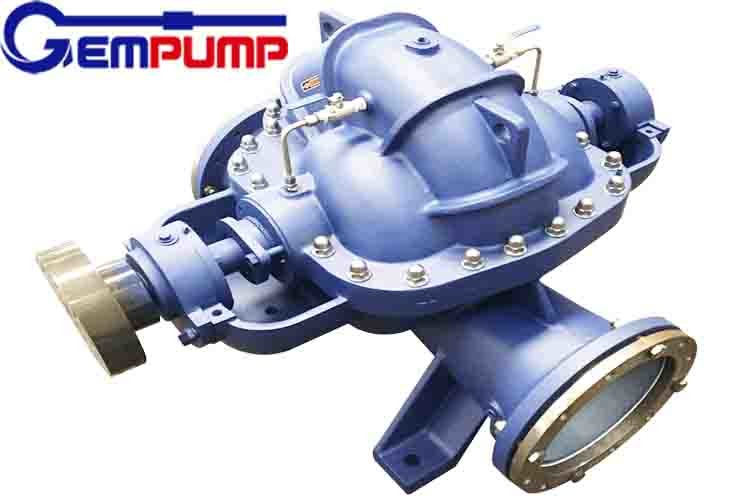

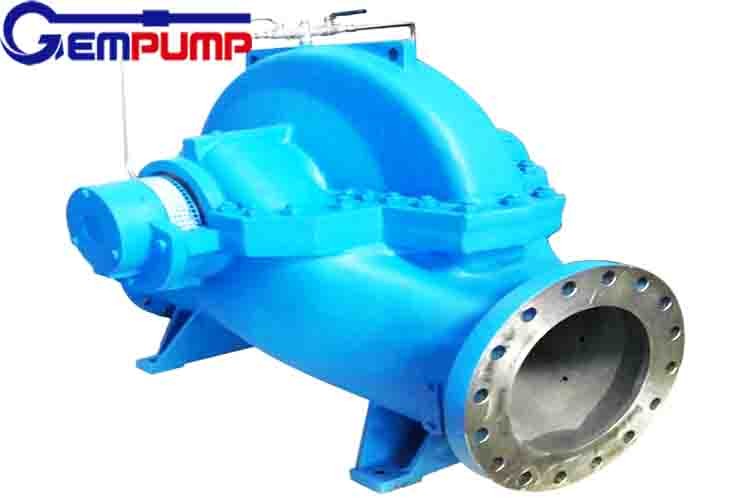

Horizontal Split Case Industrial Agricultural Irrigation Electric Water Pump With Engine Motor
Brief Introduction
S Series Double Suction Horizontal Split Casing Pumps are developed by using the latest 3D CAD and CFD techniques. S pumps are of robust, energy saving, low fluctuation in head and capacity, low noise and easy maintenance.
S Pumps are used for delivering clean water or light corrosive liquid with minor solid particles and short length fibers. S pumps are wide used in the following applications: municipal water supply, fire fighting, air conditioning, circulation, boiler feed, irrigation, etc., especially in water supply plant, power plant, paper mill, steel plant, chemical and petrochemical, farming. When the pump’s wetted parts are made in duplex stainless steel(such as Din 1.4460) or coated with SEBF(Super Epoxy Bond Fusion)coating, the pumps can be used for delivering sea water and other type of liquids with medium corrosiveness.
Pump Features
1. Hydraulic Design
The hydraulic design of the impeller and volute casing are achieved by using latest 3D CAD and CFD software, followed by RP techniques for sand casting to verify the designs. Then the metallic patterns are prepared via CNC machining directly from drawing in electronic format. All these efforts guarantee KPS pumps’ excellent hydraulic performances which are normally 2~7 percentage points higher in efficiency than the common pumps of the same size in the market. High efficiency of the pumps demand smaller motors, so KPS pumps save money for customers not only in the operation cost and also in the buying cost when pump and motor being taken into consideration together.
2. Low fluctuation in head and capacity
The impeller is of double suction design. Furthermore, the impeller has alternating vanes on the left hand suction side and on the right hand suction side, thus making the fluctuation in head and capacity during operation much lower than the usual design.
3. Two Side Drive
The S pumps have shaft extension in both the right hand side and the left hand side. This means the pump could be driven from either side, giving more flexibility to customers’ installation arrangement.
4. Rotor Balancing
Rotors are dynamic balanced in conform to ISO 1940/1 G6.3 before assembled into pumps.
5. Flange Rating
Flange rating as follows
GB/T 17241.6 PN 1.0 (For nominal head <95m)
GB/T 17241.6 PN 1.6 (For 95<=nominal head <130m)
GB/T 17241.6 PN 2.5 (For nominal head >=130m)
These flanges can be matched to DIN 2533:1976, BS 4504:1989, ISO 7005.1:1992 and ISO 7005.2:1988.
Note:Other flange forms such as ANSI,JIS,AS etc., are also available if specified in inquiry or purchase order.
6. Various Shaft Seal Option
Pack gland, single mechanical seal, double mechanical seals are available. Customers to specify in inquiry/order.
7. Various Material Options for the wetted parts
Wetted Parts could be made in different materials to meet different application scenarios.
Material Options for Wetted Parts
Note:Please specify the material option in inquiry/order. When your option is different from the above table, please specify in inquiry/order.

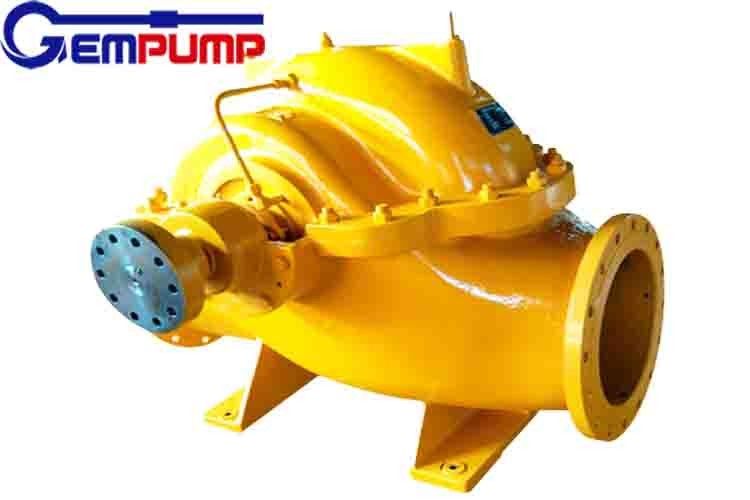

SEBF stands for Super Epoxy Bond Fusion, a power coating which is sprayed on the clean and hot(above 230 ºC) metallic surface to protected the metal from corrosion and abrasion. See below for S pump with SEBF coating
Specification
S pumps have 40 sizes, with different trimming impellers and running at different speed, KPS can supply several hundreds of options for customer’s requirements.
Suction and Discharge Diameters: Suction 150~1200mm, Discharge 100~1000mm
Capacity: up to 18000m3/h( 50Hz )
Head: up to 150m( 50Hz)
Max. Working pressure(20 ºC)
1.0 MPa For Nominal Head <95m
1.6 MPa For 95m<=Nominal Head <130m
2.5 MPa For 130m<=Nominal Head
(Max. working pressure=Suction pressure+ Shut-off head)
Medium temperature: -15 ºC~105 ºC, please specify when temperature exceeds 80 ºC.
Note
When the medium temperature is higher than 80 ºC or is not clean water, please specify the running conditions of the pump in inquiry/order.
When the Maximum Working Pressure is over the above specification, please specify in inquiry/order.
Capacity and Head of 60Hz are slightly different to those of 50Hz, please send inquiry to the nearby KENFLO Dealer or KENFLO itself for performance @60Hz.
