Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | S100-250 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | Horizontal Split Casing Centriufgal Pump | Warranty: | 1 Year |
|---|---|---|---|
| Place Of Origin: | China | Pressure: | High Pressure |
| Structure: | Single Stage Centrifugal | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Material: | Cast Iron,Stainless Steel |
| Application: | Irrigation ,Agriculture,Mining | Certification: | CE,ISO9001 |
| High Light: | 280m Head Volute Split Casing pump,AC380V Sea Water Centrifugal Pump,280m Head Sea Water Centrifugal Pump |
||

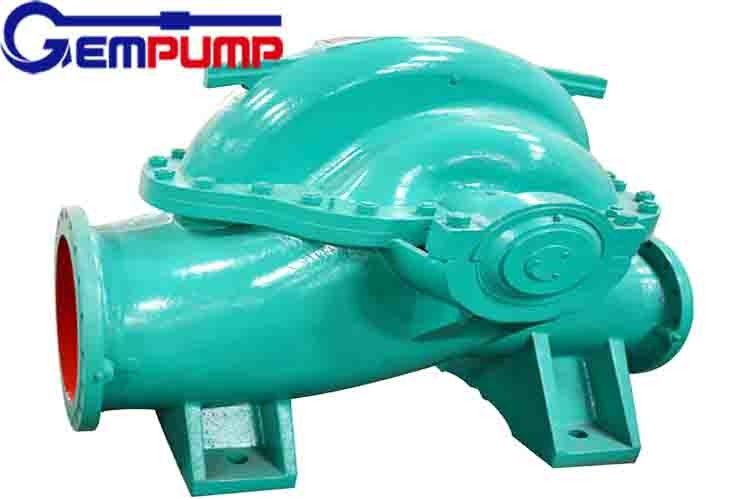

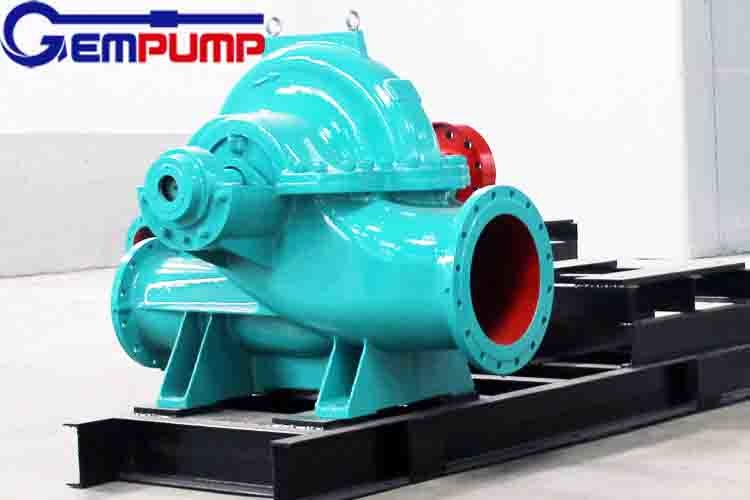

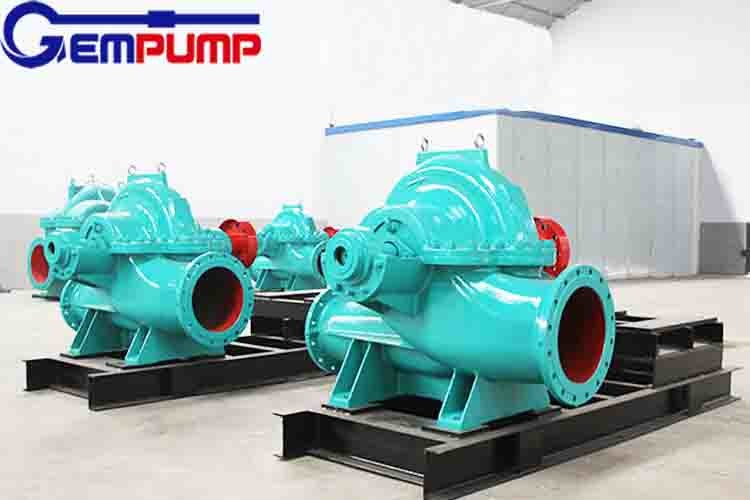

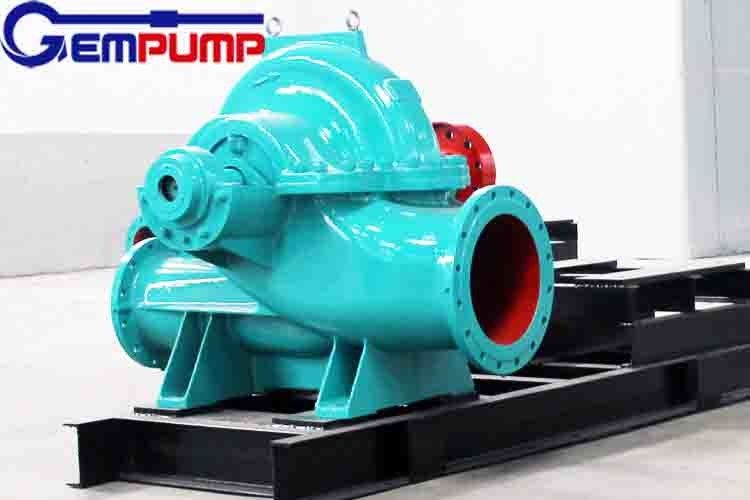

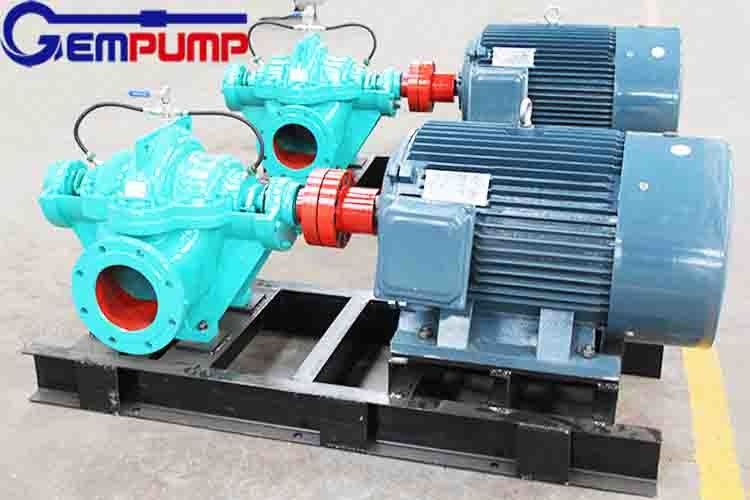

Volute-Split Casing Sea Water Centrifugal Pump With Double Suction Impeller
Pump description
The casing is axially split, so it allows to maintain the pump without dismantling the pump from the whole water system. It has reasonable compact structure and can rotate clockwise or anti-clockwise to meet the different site condition.
The shafts are sealed by reliable mechanical seal or gland packing. According to different applications, the bearings can be lubricated by grease or thin oil. S split casing sea water pump is excellent split case pump that are widely used in large amount water transportation,water lifting,fire fighting in water plant,offshore project, mining, factories and so on.
| Capacity | up to 25200m3 /h |
| Head | 280m |
| Speed | 960-3600r/min |
| DN Size | Up to 1400mm |
| Power | 0.55~3000kW |
| Medium temperature | <160°C |
| Frequency | 50~60Hz |
| Driver | electric motor or diesel engine |
| Standard | DIN, ISO |
| Flange connection | DIN, ANSI, BS, JIS, GB |
Product Material
| Casing |
Casing,Cast iron,Ductile cast iron Ni-resistant cast Iron,Cast steel AISI304,AISI316,AISI316L Duplex stainless steel |
| Impeller |
Cast iron,Ductile cast iron Ni-resistant cast Iron,Cast steel Bronze,AISI304,AISI316,AISI316L Duplex stainless steel |
| shaft |
Ductile cast iron,Ni-resistant cast Iron Cast steel,Bronze,AISI304 AISI316,AISI316L,Duplex stainless steel |
FAQ
Q: 1. How to get our quotation in time, pls answer following questions:
1)What liquid do you transfer ? Oil, Water, Seawater or Corrosive Chemical liquid,with solid particle or not, and so on~
2) What's the flow or capacity (m3/h, L/m)?
3) What's the discharge head (m, feet, Mpa, bar )
If you do not have any request, we will do as our normal standard.
Good quality with competitive pirce
ISO9001: 2008, SGS certificate
Q: What are your payment terms?
A: T/T, L/C at sight, D/P, D/A or as customer required
Q: How about the warranty?
A: One year warranty for pumps expect the easy-wearing parts,it depends on pump working condition details.
Q: What is the delivery time?
A: 7-30 days according to pump materials and quantities.
Q: Can you do OEM brand?
A: Yes, Welcome.
