Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | S100-250 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | Horizontal Split Casing Centriufgal Pump | Warranty: | 1 Year |
|---|---|---|---|
| Place Of Origin: | China | Pressure: | High Pressure |
| Structure: | Single Stage Centrifugal | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Material: | Cast Iron,Stainless Steel |
| Application: | Irrigation ,Agriculture,Mining | Certification: | CE,ISO9001 |
| High Light: | 1000M3/H Horizontal Split Case Pump,120HP double suction impeller centrifugal pump,0.15Mpa Horizontal Split Case Pump |
||

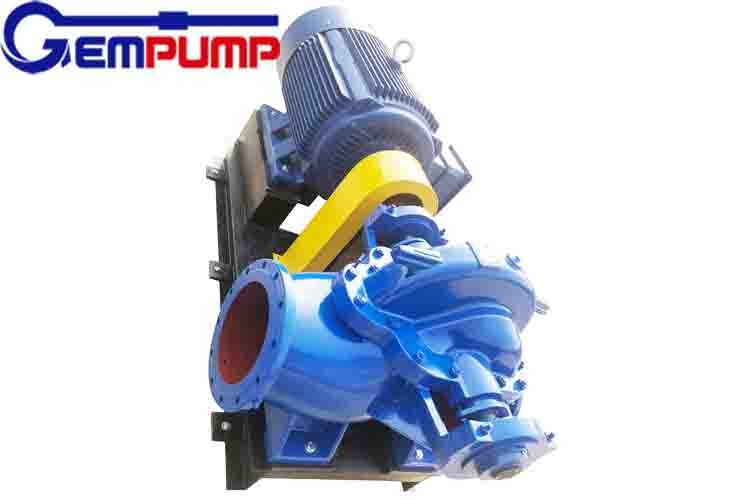

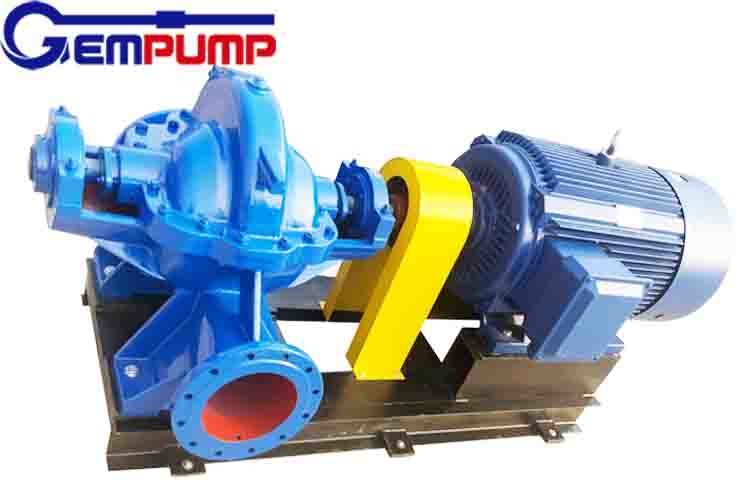

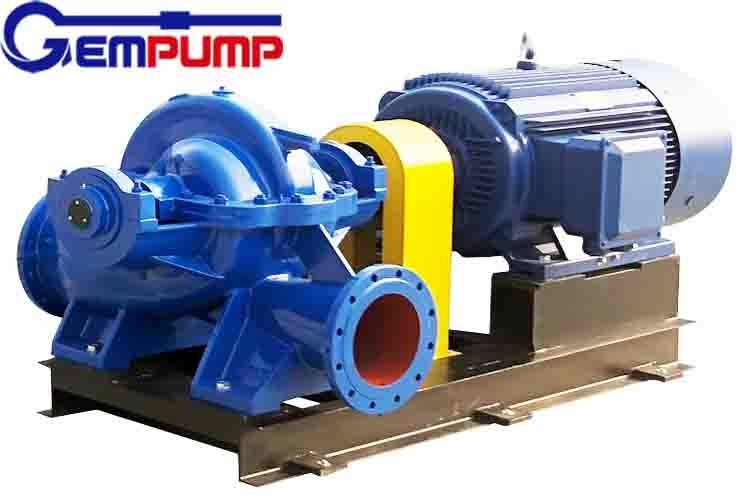

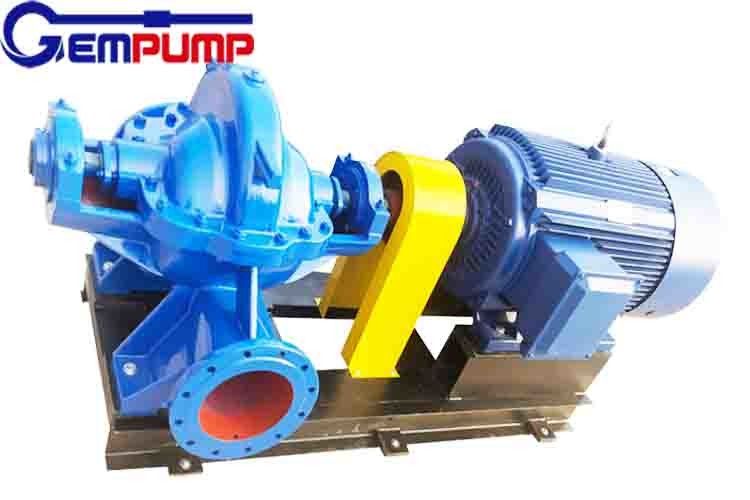

Double Suction 120hp 0.15Mpa 1000 M3/H Horizontal Split Case Centrifugal Pump
The single-stage double-suction horizontal split centrifugal pump are used to transport pure water and the liquid of both physical and chemical nature similar to those of water, the maximum temperature of which must not be over 80 ,suitable for water supply and drainage in factories, mines, cities and electric stations, waterlogged land drainage and irrigation of farming land and carious hydraulic projects.
|
Pump Name
|
Double suction 120hp 0.15Mpa 1000 m3/h horizontal split case centrifugal pump
|
|
Inlet Dia.(mm)
|
350
|
|
Outlet Dia.(mm)
|
350
|
|
Head
|
15m
|
|
Speed(rpm)
|
1480
|
|
NPSHr(m)
|
5.2
|
|
Efficiency
|
86%
|
|
Shaft
|
45# steel
|
|
Shaft seal
|
Packing seal
|
|
Specification
|
||
|
Inlet Diameter
|
6-48inch
|
|
|
Capacity Q
|
112-12500m3/h
|
|
|
Head H
|
8.6-140m
|
|
|
Power P
|
22-2240KW
|
|
|
Motor
|
Brand optional,100% Copper Wire
|
|
|
Voltage
|
380V/415V/660V/1140V
|
|
|
Material
|
Cast Iron/SS316/SS304/Copper,Can be customized
|
|
|
Scope of supply
|
Pump,Motor,Coupling,Base,Pipe,Control cabinet,Flange,Wearing parts,Other Accessories
|
|
|
Certification
|
ISO 9001
|
|
|
Warranty
|
One Year/According to customer requirements
|
|
Features
• Cast-iron,duct alloy,carbon,steel,zinc free bronze,silicon brass or stainless steel construction (other materials available on request)
• High efficiency double suction impeller
• Durable, low noise, long life bearing
• Premium quality mechanical seal
• Electric or diesel drive
S Double Suction Water Pump Application
Irrigation system: Agriculture irrigation,farm irrigation and spray irrigation
General water supply: Circulation of HVAC building systems,water booster service, boiler feed,general circulation service and more.
Agriculture/food/beverage: Irrigation,water supply,food processing,beverage processing ,fertilizers.
Manufacturing: Pulp and paper fans,plastic&rubber,metal&steel, pharmaceutical,paper mills,air wash,marine ballast service.
Fire/disaster relief: Fire pumps,fire protection,flood control,disaster relief, federal/military.
Utilities Water/waste water: Power generation stations,desalination, energy recovery turbines
Chemical/mining: Chemical plants,refineries,petroleum distribution,coal sites, pumping.
