Axially Volute Split Case Centrifugal Pump API610 Bronze Impeller

Basic Information

Place of Origin:	China
Brand Name:	Gempump
Certification:	ISO9001 CE
Model Number:	S100-250

Minimum Order Quantity:	1 set
Price:	1000 USD/SET
Packaging Details:	Ply wooden box
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000 SET/Month

Get Best Price Contact Now

Product:	Horizontal Split Casing Water Pump	Warranty:	1 Year
Place Of Origin:	China	Pressure:	High Pressure
Structure:	Single Stage Centrifugal	Power:	Electric Motor
Voltage:	AC220V AC380V AC415V/50HZ	Material:	Cast Iron,Stainless Steel
Application:	Irrigation ,Agriculture,Mining	Certification:	CE,ISO9001
High Light:	Axially Volute Split Case Centrifugal Pum , API610 Split Case Centrifugal Pump , API610 Bronze double impeller centrifugal pump

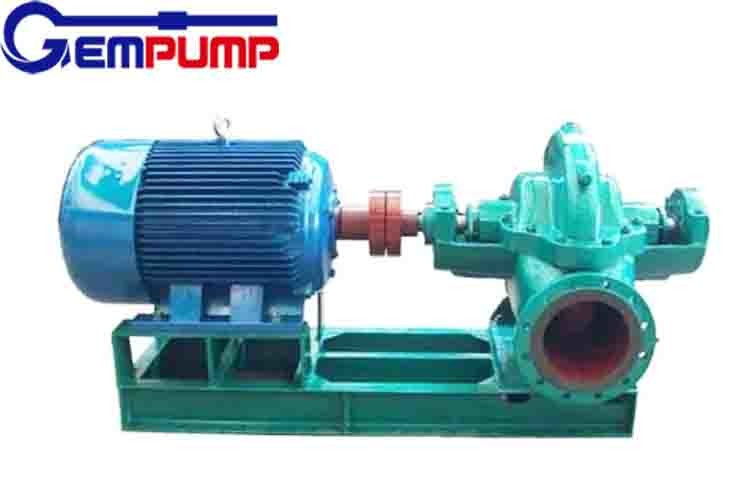

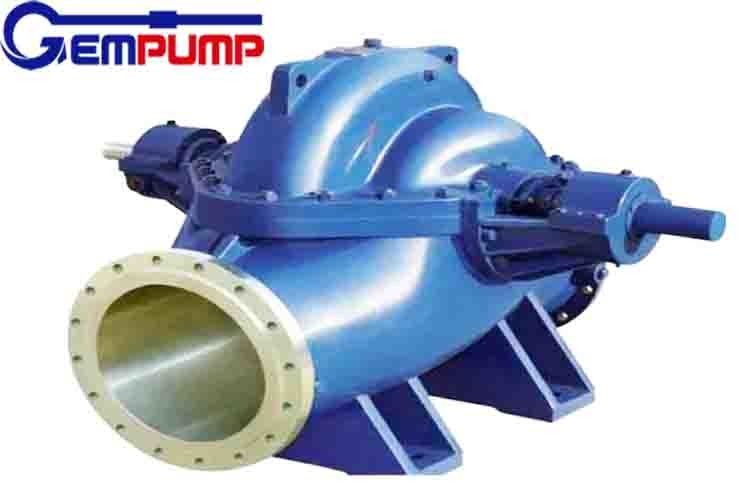

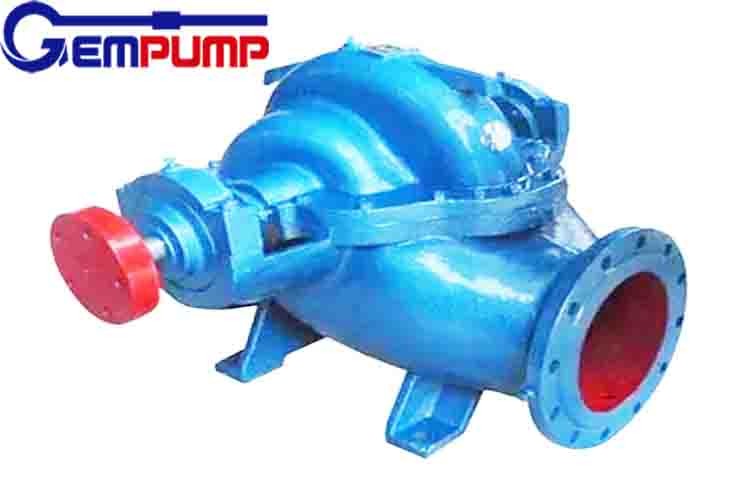

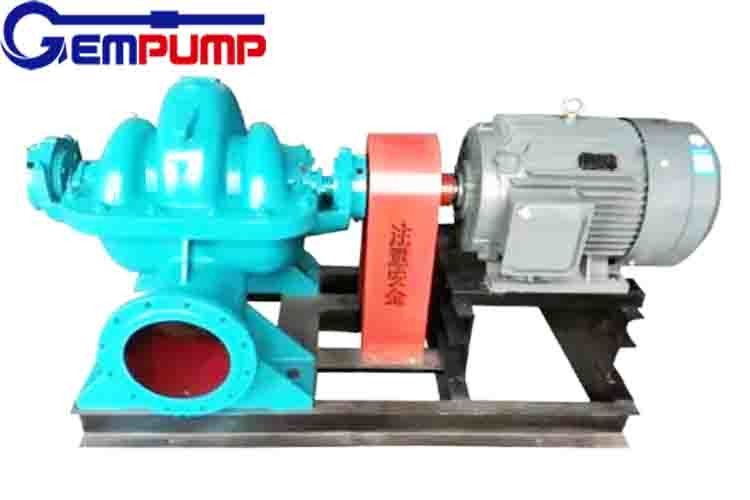

API610 Horizontal Centrifugal Diesel Bronze Impeller Axially Volute Split Casing Water Pump

S type Split casing water pump 1000 cubic meter per hour is a Split casing water pump. It is used
totransport pure water and the liquid which physical and chemical nature is similar with water
themaximum temperature isn't more than 80 ºC.
This series of pump is suitable for water supply and drainage in factories, mines and cities,
power station, drainage and irrigation of farming, and kinds of hydraulic projects.

Axially Volute Split Case Centrifugal Pump API610 Bronze Impeller 0

Model	Inlet/Outlet (mm)	Capacity m³/h	Head m	Speed (rpm)	Shaft power(kw)
200S-95	200/200	280	95	2900	94
200S-63	200/200	280	63	2900	59.3
200S-42	200/200	280	42	2900	37.7
250S-65	250/250	485	65	1450	108.7
250S-39	250/250	485	39	1450	62.1
250S-24	250/250	485	24	1450	36.9
250S-14	250/250	485	14	1450	21.7
300S-90	300/300	790	90	1450	249.8
300S-58	300/300	790	58	1450	148.5
300S-32	300/300	790	32	1450	79
300S-19	300/300	790	19	1450	46.9
300S-12	300/300	790	12	1450	31.1
350S-125	350/350	1260	125	1450	531
350S-75	350/350	1260	75	1450	304
350S-44	350/350	1260	44	1450	177.6
350S-26	350/350	1260	26	1450	101.5
350S-16	350/350	1260	16	1450	63.8
500S-13	500/500	2020	13	980	86.2
500S-35	500/500	2020	35	980	219
500S-98	500/500	2020	98	980	678
600S22	600/600	3241	22	980	231.8
600S75	600/600	3060	75	980	694.4
800S32	800/800	5500	32	730	538.5
800S47	800/800	5500	47	730	782.2

Axially Volute Split Case Centrifugal Pump API610 Bronze Impeller 1

Why choose us?

Specialized production Manufactory for many kinds of diesel water pumps
Focus on R&D for improvement
Experienced in Domestic and oversea market
Carefully paint or plastic powder coated ensuring good appearance
Years of International service standards, Engineer one-to-one service

FAQ

1, What information is needed to offer a split casing pump?
Liquid:___
Capacity:___ m3/hr
Head: ___ m
Voltage:___V, Frequency:___hz

2, What is the advantage of split casing pump?
Super operation performance with large flow rate at high pressure.

3, Can this split casing pump transfer sea water?
Yes, with St.st.316 or duplex 2205 material.

4, Can you send the pump to our country?
Of course. Please advise the destination port or your address.

5, How long is your warranty?
12 months.
