Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | S100-250 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | Horizontal Split Case Water Pump | Warranty: | 1 Year |
|---|---|---|---|
| Place Of Origin: | China | Pressure: | High Pressure |
| Structure: | Single Stage Centrifugal | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Material: | Cast Iron,Stainless Steel |
| Application: | Irrigation ,Agriculture,Mining | Certification: | CE,ISO9001 |
| High Light: | Horizontal Axial Split Casing Pump,140m Head Axial Split Casing Pump,8.6m Head split case centrifugal pump |
||
Double Suction Horizontal Split Case Diesel Water Pump For Irrigation-Flood Drainage-Mining
Description

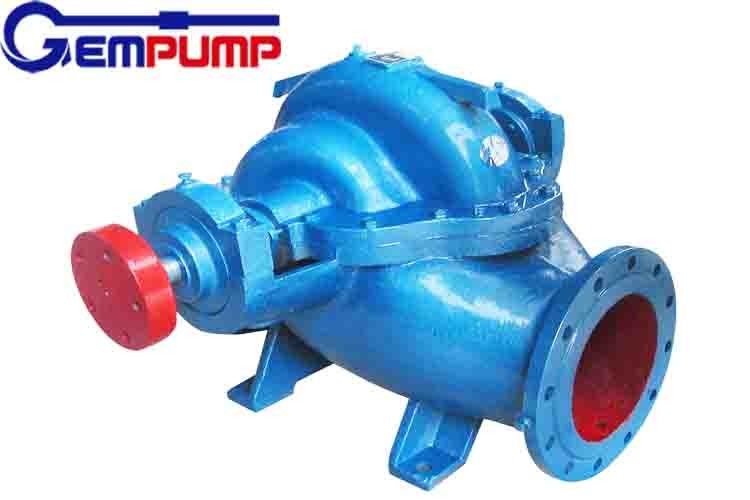

Model S pump is a single-stage double-suction horizontal split centrifugal pump and used to transport pure water and the liquid of both physical and chemical nature similar to those of water, the maximum temperature of which must not be over 80℃.
The casing and the cover of pump are divided along the axis.
The pump cover is above the shaft and the casing is under the shaft.
The inlet and the outlet are under the shaft.
The center line of inlet and outlet is perpendicular to the axis.
The rotor elements will be removed without disturbing the inlet piping and the outlet piping, only dismantling the pump cover while maintenance. The shaft seal uses packing seal or mechanical seal.
|
Specification
|
|
|
Inlet Diameter
|
150-1400mm
|
|
Capacity Q
|
108-27000m3/h
|
|
Head H
|
8.6-140m
|
|
Power P
|
18.5-2500KW
|
|
Motor
|
Brand optional,100% Copper Wire
|
|
Voltage
|
380V/415V/660V/1140V
|
|
Material
|
Cast Iron/SS316/SS304/Copper,Can be customized
|
|
Scope of supply
|
Pump,Motor,Coupling,Base,Pipe,Control cabinet,Flange,Wearing parts, Other Accessories
|
|
Certification
|
ISO 9001
|
|
Warranty
|
One Year/According to customer requirements
|
Application
It is suitable for water supply and drainage in factories, mines, cities and electric stations, waterlogged land drainage and irrigation of farming land and carious hydraulic projects.
Technical Data
Flow rate: up to 6500 m³/h
Head: up to 140 m
Speed: 2950/1450 rpm
Temperature: max 80 ℃
Casing pressure: up to 2.5 MPa
Shaft seal: mechanical sealing
Material: nodular iron, stainless steel, duplex.
FAQ
Q1: Are you a manufacturer or a trading company?
A: We are a manufacturer, providing OEM & ODM service.
Q2. What standards do your products conform to?
A: Our products conform to GB, ISO or API610, etc. to be decided according to your specific requirements.
Q3. What’s the warranty for your products?
A:1 Year Warranty(except Wearing Parts)
Q4. What about after-sale service?
A: Our after-sales engineers will provide technical support within 24 hours after receiving claims or consultation requirements.
