Place of Origin: | China |
---|---|
Brand Name: | Gempump |
Certification: | ISO9001 CE |
Model Number: | S100-250 |
Minimum Order Quantity: | 1 set |
Price: | 1000 USD/SET |
Packaging Details: | Ply wooden box |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 1000 SET/Month |
Product: | Horizontal Split Case Water Pump | Warranty: | 1 Year |
---|---|---|---|
Place Of Origin: | China | Pressure: | High Pressure |
Structure: | Single Stage Centrifugal | Power: | Electric Motor |
Voltage: | AC220V AC380V AC415V/50HZ | Material: | Cast Iron,Stainless Steel |
Application: | Irrigation ,Agriculture,Mining | Certification: | CE,ISO9001 |
High Light: | 2950RPM Horizontal Split Case Pump,AC415V 50HZ Horizontal Split Case Pump,2950RPM Cast Iron horizontal split pump |

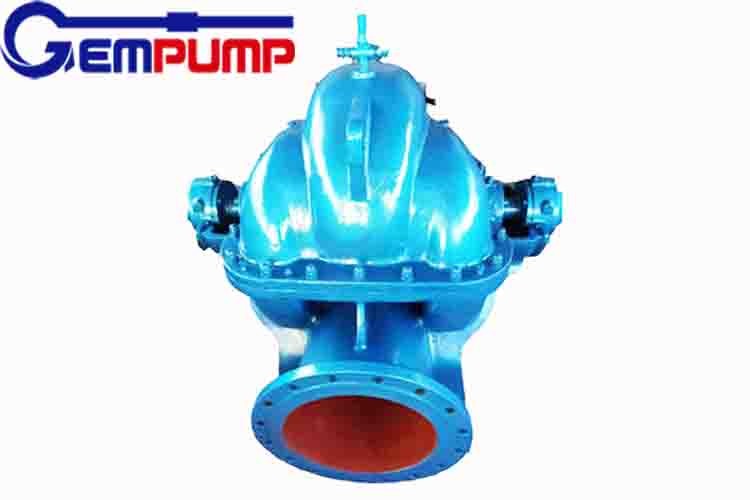

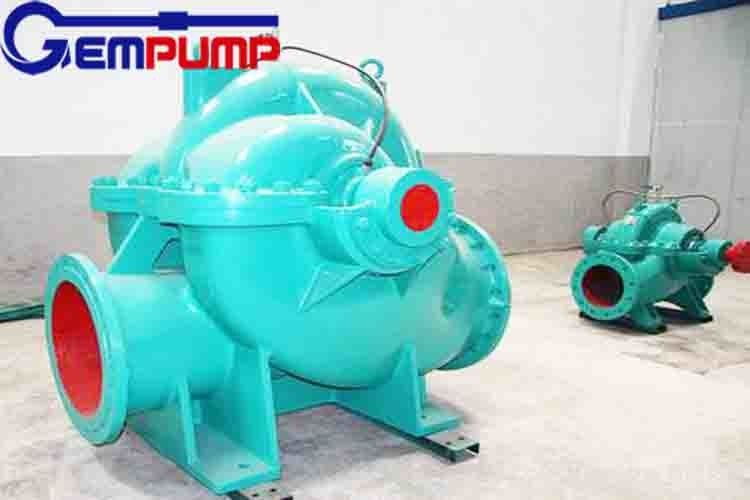

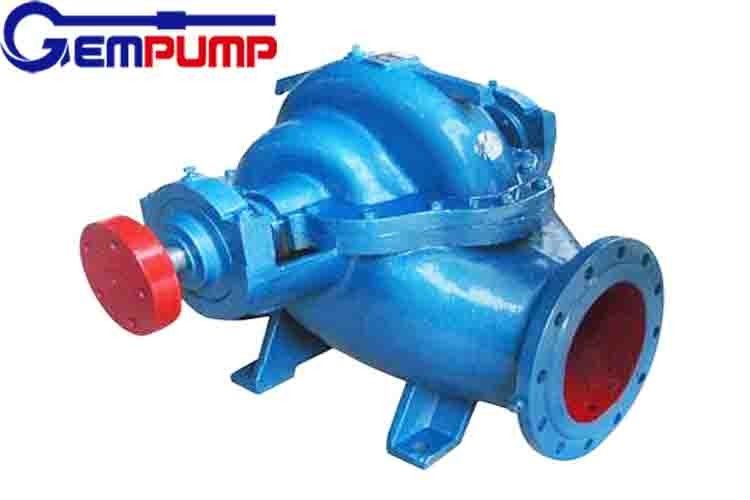

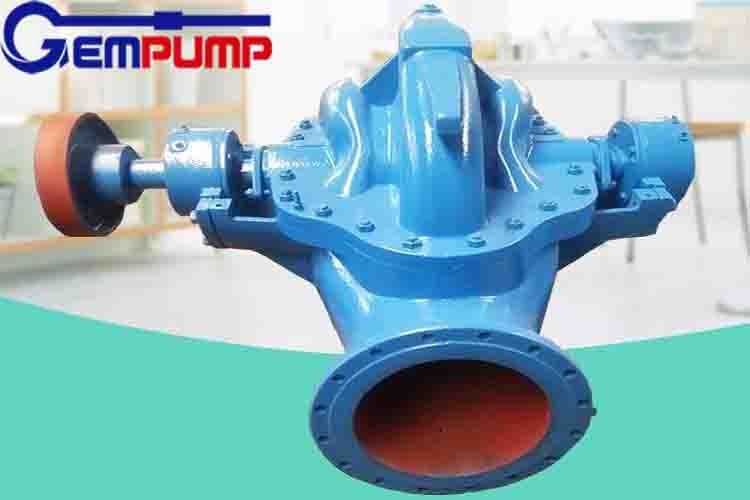

Horizontal Split Case Centrifugal Pump High Flow Low Head With Motor And Engine For Irrigation
The single-stage double-suction horizontal split centrifugal pump are used to transport pure water and the liquid of both physical and chemical nature similar to those of water, the maximum temperature of which must not be over 80 ,suitable for water supply and drainage in factories, mines, cities and electric stations, waterlogged land drainage and irrigation of farming land and carious hydraulic projects.
High Flow Rate Low Head Split Case Centrifugal Pump APPLICATION
1) For municipal water supply and drainage in industries and cities;
2) For Electric power plants, industrial water supply system,fire fighting system, drainage of heating system;
3) For Large-scaled water supply and sewerage works, etc.
4) Transport of clean water or liquid of which physical chemical properties similar as water.
Horizontal Water Pump FEATURES
1). Some of the Large Single Stage Double Suction Split Volute Casing Centrifugal Pump adopting rolling bearing, grease or thin oil lubricaton. Some adoptng sliding bearing, think oil lubrication;
2). Declining exit edge of impeller and symmentrically and staggered arranged bilateral vanes, minimizing the plusing of pump duing operating;
3). Double volute design adopted, reducing radial force and making pump perfom more stable;
4). Design with international advanced hydrodynamics software and molding with 3 D software, ensuring high efficiency, stability and reliable running;
5) Full application of stuffing sealing and biset type stuffing gland, facilitatin check and maintenance. Mechanical seal can be customized as required.
Product Paramenters
Model
|
Capacity (m3/h)
|
Head (m)
|
Rapid Seepd (r/min)
|
ShaftPower (kw)
|
100S90
|
80
|
90
|
2950
|
30.1
|
100S90A
|
72
|
75
|
2950
|
23
|
150S100
|
160
|
100
|
2950
|
59.8
|
150S78
|
164
|
78
|
2950
|
45
|
150S78A
|
144
|
62
|
2950
|
33.8
|
150S78B
|
144
|
40
|
2950
|
22.4
|
150S97A
|
170
|
84.5
|
2950
|
50.1
|
150S97J
|
170
|
22.5
|
2950
|
7.45
|
200S42
|
280
|
42
|
2950
|
37.7
|
200S42A
|
270
|
36
|
2950
|
33.1
|
200S63
|
280
|
63
|
2950
|
59.3
|
200S95
|
280
|
95
|
2950
|
90.8
|
250S14
|
485
|
14
|
2950
|
22.6
|
250S14A
|
430
|
11
|
2950
|
15.7
|
250S24
|
485
|
24
|
2950
|
36.9
|
250S39
|
485
|
39
|
2950
|
62.1
|
250S65
|
485
|
65
|
1480
|
108.7
|
300S12
|
790
|
11.25
|
1480
|
31.1
|
300S19
|
790
|
19
|
1480
|
46.9
|
300S32
|
790
|
32
|
1480
|
79
|
300S58
|
790
|
58
|
1480
|
148.5
|
300S90
|
790
|
219
|
1480
|
242
|
350S16
|
1260
|
200
|
1480
|
63.9
|
350S26
|
1260
|
350
|
1480
|
101.5
|
350S44
|
1260
|
350
|
1480
|
177.6
|
350S75
|
1260
|
350
|
1480
|
303
|
350S125
|
1260
|
125
|
1480
|
530
|
