Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | S100-250 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | Split Case Water Pump | Warranty: | 1 Year |
|---|---|---|---|
| Place Of Origin: | China | Pressure: | High Pressure |
| Structure: | Single Stage Centrifugal | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Material: | Cast Iron,Stainless Steel |
| Application: | Irrigation ,Agriculture,Mining | Certification: | CE,ISO9001 |
| High Light: | 180m3/H Split Case Centrifugal Pump,180m3/H Split Case Water Pump,750gpm Split Case Centrifugal Pump |
||

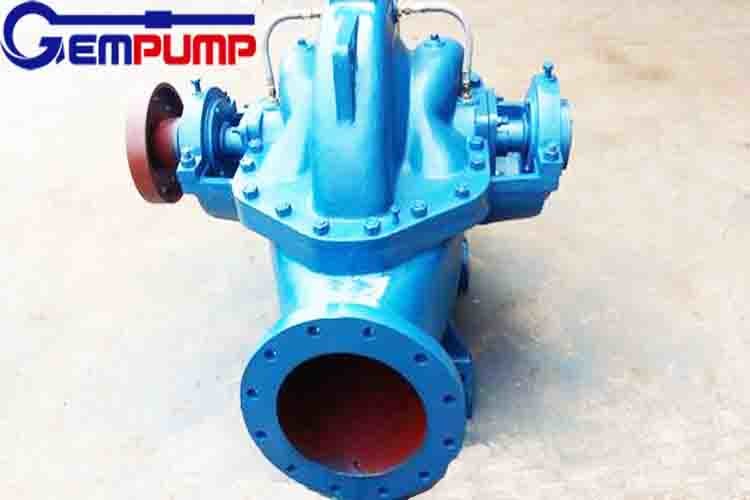

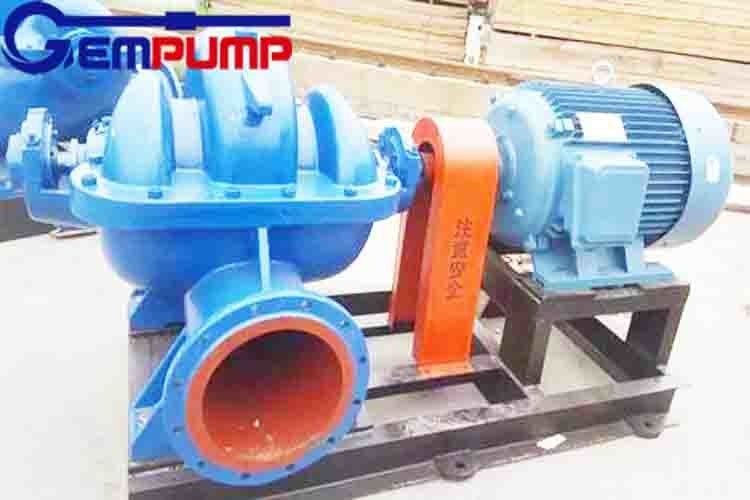

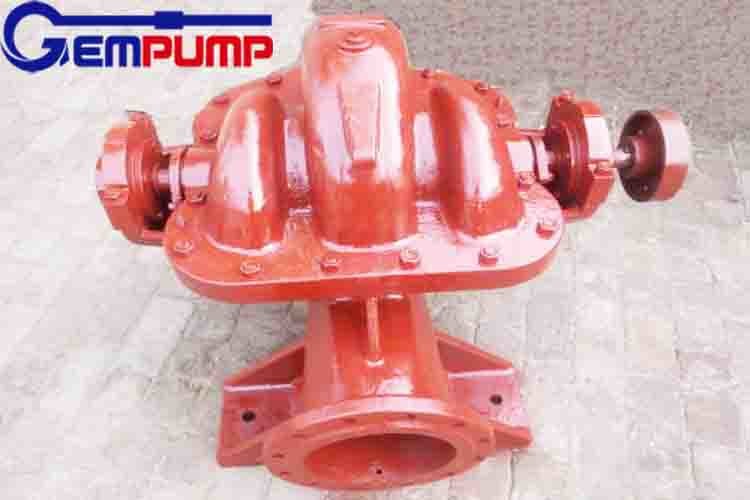

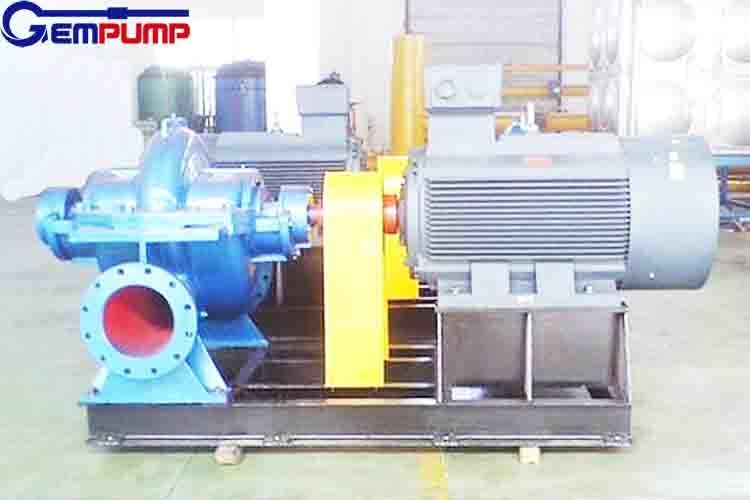

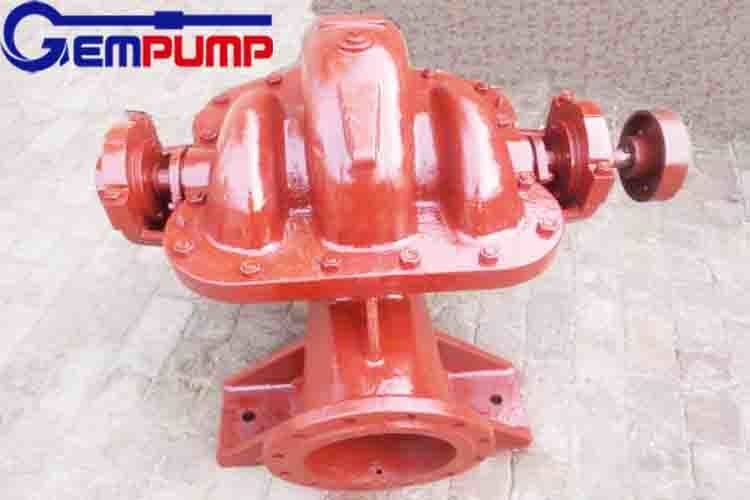

Horizontal Split Case Industrial Agricultural Irrigation Electric Water Pump 750gpm with Engine Motor
Product Introduction
The S serial single stage double-suction centrifugal pump has the high head, large flow characteristics, widely used in engineering. It is late-model energy-saving horizontally split pump newly developed by us on the base of the old style double suction pump at home and abroad.
They are used to handle clean water or other liquids similar to water in physical and chemical properties, the maximum temperature is not exceeding 80°C.This series of pumps are suitable for water supply and drainage in factories,mines and cities, power stations, irrigation and drainage of farming and soon.Shaft sealing is soft packing sealing.
|
Type
|
Flow Rate
|
Head
|
Media
|
Application
|
Other characteristics
|
|
200S--95A
|
Min.:180m3/h
|
Min: 78m
|
Multi water
|
Handing
|
Horizontal
|
|
Max.:324m3/h
|
Max: 92m
|
• Cast-iron,duct alloy,carbon,steel,zinc free bronze,silicon brass or stainless steel construction (other materials available on request)
• High efficiency double suction impeller
• Durable, low noise, long life bearing
• Premium quality mechanical seal
• Electric or diesel drive
|
No.
|
Type
|
Speed
|
Flow
|
Head
|
Motor Power
|
Eff
|
NPSHr
|
Weight
|
|
|
Model
|
rpm
|
m3/h
|
m
|
Kw
|
%
|
m
|
mm
|
|
1
|
200S-95
|
2950
|
234
|
93.5
|
90
|
71
|
4.45
|
309
|
|
2
|
250S-65
|
1470
|
486
|
65.1
|
132
|
76.5
|
3.65
|
596
|
|
3
|
300S-90
|
1470
|
792
|
90
|
315
|
77.5
|
3.5
|
857
|
|
4
|
350S-125
|
1470
|
1250
|
125
|
710
|
74.5
|
7.6
|
1500
|
|
5
|
500S-98
|
980
|
2020
|
98
|
800
|
79.5
|
4
|
4330
|
|
6
|
600S-75
|
980
|
3170
|
75
|
900
|
88
|
6
|
4300
|
|
7
|
800S-76
|
730
|
5500
|
76
|
1600
|
88
|
6
|
7900
|
|
|
|||
|
No.
|
Part Description
|
Material Specification
|
Material Options
|
|
1
|
Gland of Mechanical Seal
|
Cast Iron
|
SS304/SS316/AL2205
|
|
2
|
Sealing Ring
|
Cast Iron
|
SS304/SS316/AL2205
|
|
3
|
Pump Cover
|
Cast Iron
|
SS304/SS316/AL2205
|
|
4
|
Impeller
|
Cast Iron
|
SS304/SS316/AL2205
|
|
5
|
Shaft Sleeve
|
Cast Iron
|
SS304/SS316/AL2205
|
|
6
|
Stuffing
|
Cast Iron
|
SS304/SS316/AL2205
|
|
7
|
Gland of Stuffing
|
Cast Iron
|
SS304/SS316/AL2205
|
|
8
|
Shaft
|
Cast Iron
|
SS304/SS316/AL2205
|
|
9
|
Mechanical Seal Hard Alloy
|
Hard Alloy
|
|
|
10
|
Pump Casing
|
Cast Iron
|
SS304/SS316/AL2205
|
|
11
|
Bearing Assembly
|
Cast Iron
|
SS304/SS316/AL2205
|
|
12
|
Coupling
|
Cast Iron
|
SS304/SS316/AL2205
|
|
|
Bolts
|
Zinc Plated Steel
|
Horizontal Split Case Pump Application
FAQ
Q1: Are you a manufacturer or a trading company?
A: We are a manufacturer, providing OEM & ODM service.
Q2. What standards do your products conform to?
A: Our products conform to GB, ISO or API610, etc. to be decided according to your specific requirements.
Q3. What’s the warranty for your products?
A:1 Year Warranty(except Wearing Parts)
Q4. What about after-sale service?
A: Our after-sales engineers will provide technical support within 24 hours after receiving claims or consultation requirements.
