Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | ISG40-160 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | Inline Transfer Vertical Pump Pipeline | Power: | Electric Motor |
|---|---|---|---|
| Material: | Cast Iron/ Stainless Steel | Seal: | Packing Seal,Mechanical Seal |
| Voltage: | AC220V AC380V AC415V/50HZ | Application: | Irrigation And Agriculture |
| High Light: | ISG Vertical Inline Pump,6.3m3/h Clean Water Pipe Booster Pump,ISG vertical Pipe Booster Pump |
||

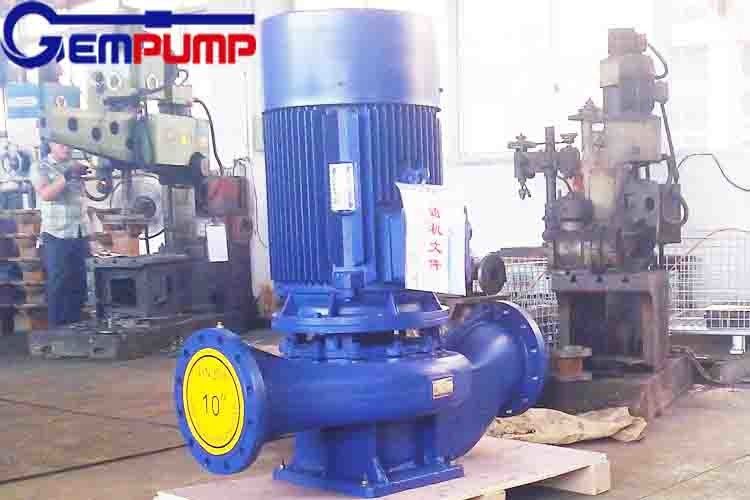

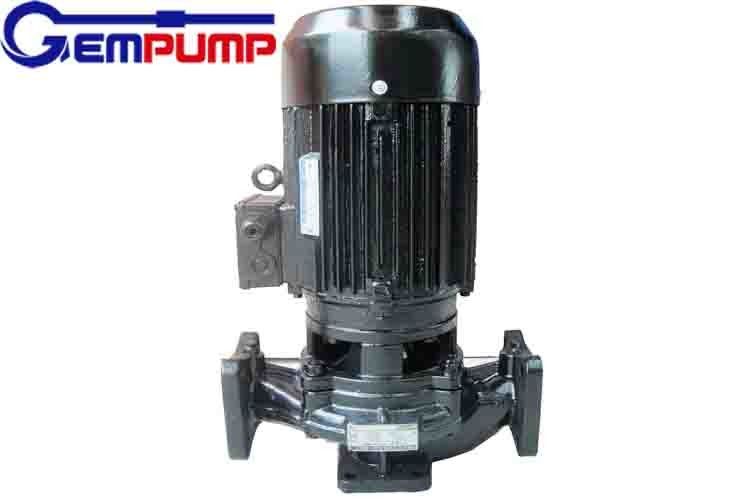

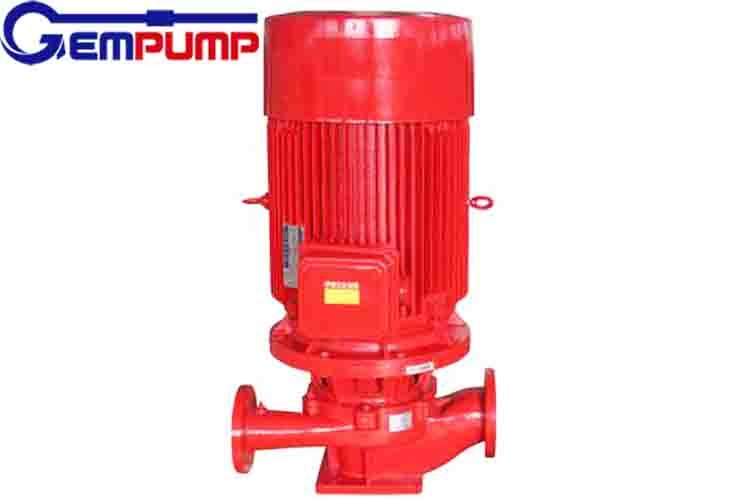

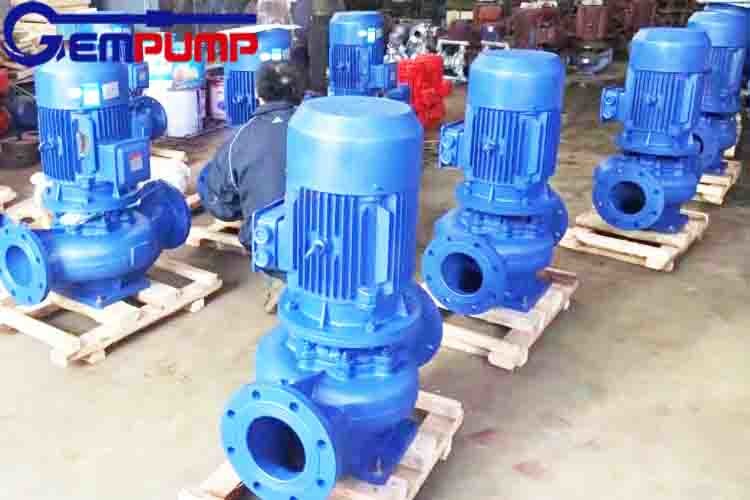

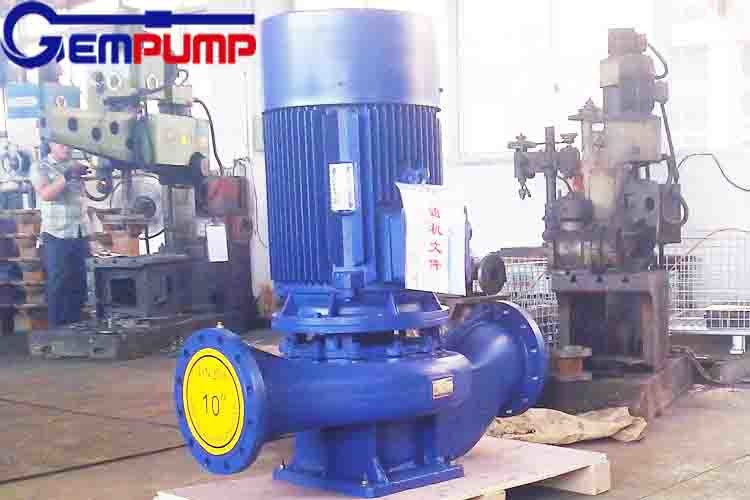

Isg Pipe Booster Pump Delivery of Clean Water Vertical Pipeline Centrifugal Pump
Gempump-ISW series pumps designed in accordance with ISO2858 standard,are single-stage single-suction horizontal centrifugal pumps featured by integrated simple construction for less space, easy installation, smooth operation with less noise and free of daily maintenance due to the introduction of high quality mechanical seals and closed coupling.
Typical Applications---
Water supply system
Lowering underground water level
Boosting
Gardening and aricultural irrigation
Various kinds of industrial application

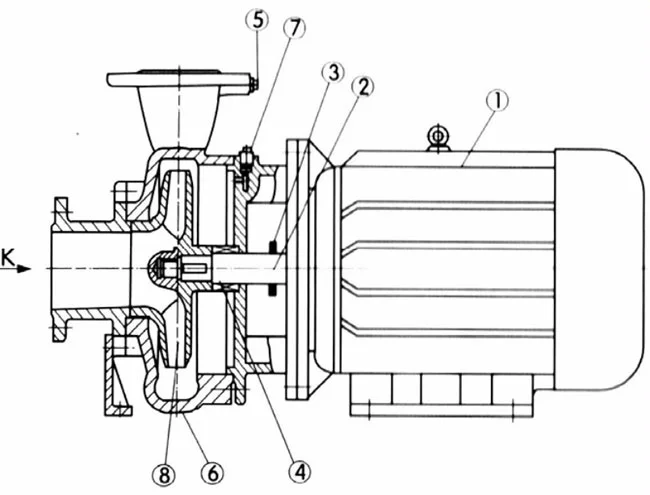

Gempump-ISW End Suction Pump Configuration Drawing
Main Part Number At The Drawing
| 1 Motor 2 Shaft 3 Deflector 4 Mechanical Sea |
5 Pressure Monitoring Hole 6 Pump Casing 7 Pressure Release Plug 8 Impeller |
Product details:
| Working Principle: | Centrifugal |
| Main applications: | Water (oil, chemical, contact us) |
| Driver: | Electric motor |
| Power Specs: | 220V/240V380/415V 3phase; 50hz/60hz |
| Max.permissible fluid temperature: | 100ºC (212°F) |
| Type of connection: | Flange |
| Casing: | Cast iron, Stainless steel |
| Impeller: | Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Mechanical seal |
| Maximum drive rating: | 250KW(340HP) |
| Maximum caliber: | 500mm(20inch) |
| Maximum discharge-side pressure: | 1.6MPa(16bar) |
| Maximum head: | 160m(524.8ft) |
| Flow rate range: | 1.1-2400m3/h(4.8-10560US.GPM) |
| Pump type: | Water, Hot water type, oil type, chemical type |
Performance data:
| MODEL | CAPACITY | HEAD | EFFECIENCY | POWER |
| (m 3 /h) | (m) | (%) | (kw) | |
| 15-80 | 1.5 | 8 | 34 | 0.18 |
| 20-110 | 2.5 | 15 | 34 | 0.37 |
| 20-160 | 2.5 | 32 | 25 | 0.75 |
| 25-110 | 4 | 15 | 42 | 0.55 |
| 25-125 | 4 | 20 | 36 | 0.75 |
| 25-125A | 3.6 | 16 | 35 | 0.55 |
| 25-160 | 4 | 32 | 32 | 1.5 |
| 25-160A | 3.7 | 28 | 31 | 1.1 |
| 32-125 | 5 | 20 | 44 | 0.75 |
| 32-125A | 4.5 | 16 | 43 | 0.5 |
| 40-100 | 6.3 | 12.5 | 54 | 0.55 |
| 40-100A | 5.6 | 10 | 52 | 0.37 |
| 40-125 | 6.3 | 20 | 46 | 1.1 |
| 40-125A | 5.6 | 16 | 45 | 0.75 |
| 40-160 | 6.3 | 32 | 40 | 2.2 |
| 40-160A | 5.9 | 28 | 39 | 1.5 |
| 40-160B | 5.5 | 24 | 38 | 1.1 |
| 40-200 | 6.3 | 50 | 33 | 4 |
| 40-200A | 5.9 | 44 | 31 | 3 |
| 40-200B | 5.3 | 36 | 29 | 2.2 |
| 40-250 | 6.3 | 80 | 28 | 7.5 |
| 40-250A | 5.9 | 70 | 28 | 5.5 |
| 40-250B | 5.5 | 60 | 27 | 4 |
| 40-100(I) | 12.5 | 12.5 | 62 | 1.1 |
| 40-100(I)A | 11 | 10 | 60 | 0.75 |
| 40-125(I) | 12.5 | 20 | 58 | 1.5 |
| 40-125(I)A | 11 | 16 | 57 | 1.1 |
| 40-160(I) | 12.5 | 32 | 52 | 3 |
| 40-160(I)A | 11.7 | 28 | 51 | 2.2 |
| 40-160(I)B | 10.4 | 22 | 50 | 1.5 |
| 40-200(I) | 12.5 | 50 | 46 | 5.5 |
| 40-200(I)A | 11.7 | 44 | 45 | 4 |
| 40-200(I)B | 10.6 | 36 | 44 | 3 |
| 40-250(I) | 12.5 | 80 | 38 | 11 |
| 40-250(I)A | 11.6 | 70 | 38 | 7.5 |
| 40-250(I)B | 10.8 | 60 | 37 | 7.5 |
| 40-250(I)C | 10 | 52 | 36 | 5.5 |
| 50-100 | 12.5 | 12.5 | 62 | 1.1 |
| 50-100A | 11 | 10 | 60 | 0.75 |
| 50-125 | 12.5 | 20 | 58 | 1.5 |
| 50-125A | 11 | 16 | 57 | 1.1 |
| 50-160 | 12.5 | 32 | 52 | 3 |
| 50-160A | 11.7 | 28 | 51 | 2.2 |
| 50-160B | 10.4 | 22 | 50 | 1.5 |
| 50-200 | 12.5 | 50 | 46 | 5.5 |
| 50-200A | 11.7 | 44 | 45 | 4 |
| 50-200B | 10.6 | 36 | 44 | 3 |
| 50-250 | 12.5 | 80 | 38 | 11 |
| 50-250A | 11.6 | 70 | 38 |
