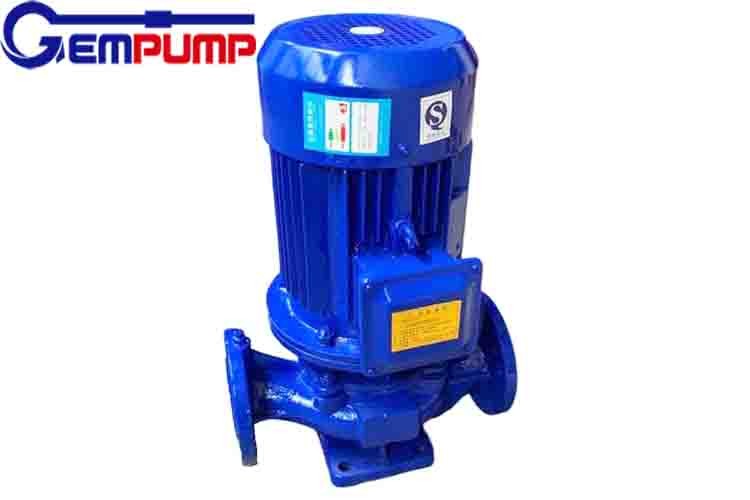

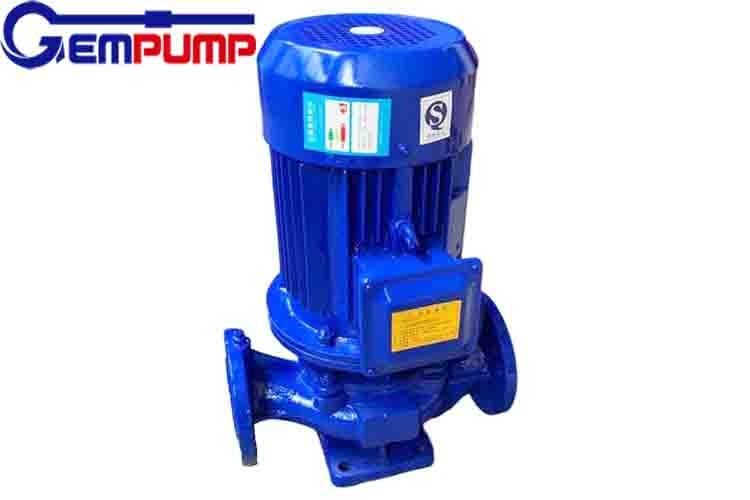

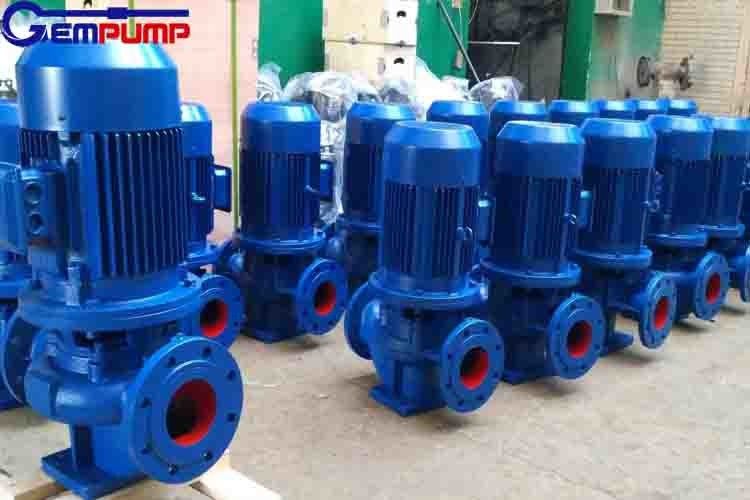

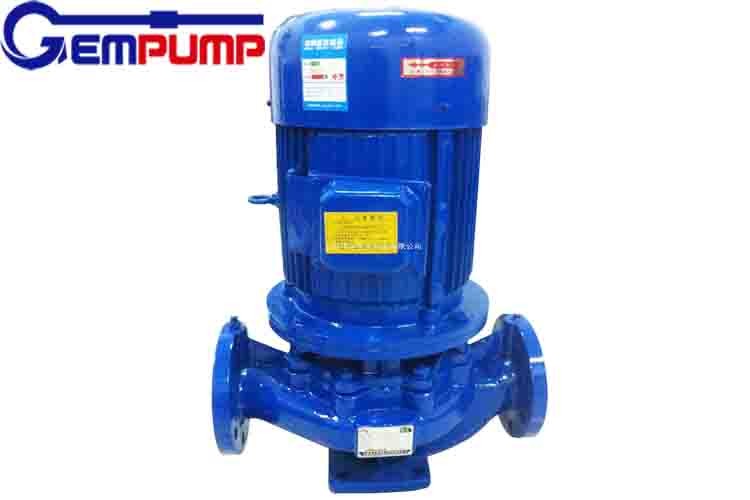

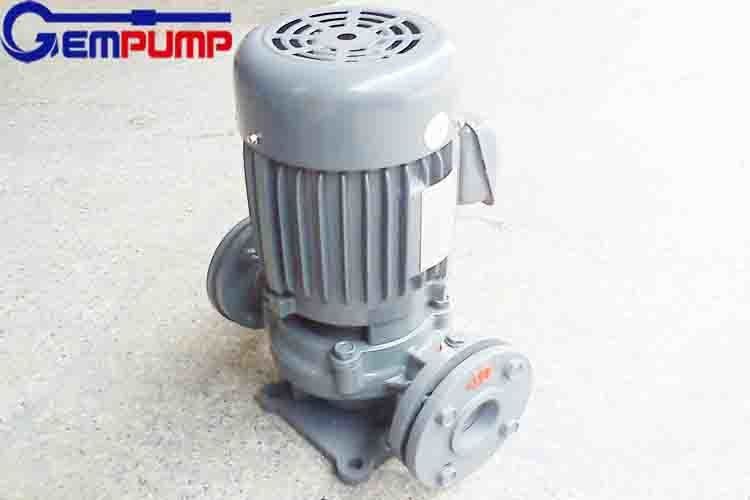

IHG ISW Pressure Boosting Vertical Inline Centrifugal Pump 2900RPM

small.img.alt
small.img.alt IHG ISW Pressure Boosting Vertical Inline Centrifugal Pump 2900RPM IHG ISW Pressure Boosting Vertical Inline Centrifugal Pump 2900RPM small.img.alt IHG ISW Pressure Boosting Vertical Inline Centrifugal Pump 2900RPM IHG ISW Pressure Boosting Vertical Inline Centrifugal Pump 2900RPM small.img.alt IHG ISW Pressure Boosting Vertical Inline Centrifugal Pump 2900RPM IHG ISW Pressure Boosting Vertical Inline Centrifugal Pump 2900RPM small.img.alt IHG ISW Pressure Boosting Vertical Inline Centrifugal Pump 2900RPM IHG ISW Pressure Boosting Vertical Inline Centrifugal Pump 2900RPM
Basic Information
Place of Origin: China
Brand Name: Gempump
Certification: ISO9001 CE
Model Number: ISG40-160
Minimum Order Quantity: 1 set
Price: 1000 USD/SET
Packaging Details: Ply wooden box
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 SET/Month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Product: Inline Transfer Vertical Pump Pipeline Power: Electric Motor
Material: Cast Iron/ Stainless Steel Seal: Packing Seal,Mechanical Seal
Voltage: AC220V AC380V AC415V/50HZ Application: Irrigation And Agriculture
High Light:

IHG Pressure Boosting Pump

,

2900RPM Vertical Inline Centrifugal Pump

,

ISW Vertical Inline Centrifugal Pump

Isg/Ihg/Isw/Ihw Pressure Boosting with High Efficiency Inline Centrifugal Pump for Agriculture-Industry

Features:

  1. ISW/ISG water pump is a high-effective and energy-saving product;
  2. Stable running, low noise, the impellers are of best dynamic and static balance without vibration at running
  3. No leakage. The shaft is mechanically sealed with carbide alloy wearable material, settling the serious leakage of the filling seal of a centrifugal pump, extending the duration and ensuring the operation place clean and tidy.
  4. The pump, according to the operation condition of the worksite, may be vertically, horizontally etc. and also according to the requirements for the flow and head, mounted in parallel and/or in series to increase the needed flow and head.

Isg/Ihg/Isw/Ihw Inline Centrifugal Pump for Agriculture, Industry, Pressure Boosting with High Efficiency
Isg/Ihg/Isw/Ihw Inline Centrifugal Pump for Agriculture, Industry, Pressure Boosting with High Efficiency
Working Conditions:
Ambient temperture ≤40ºC
Relative humidity ≤95%
Solid particles' volume≤0.1%
Particle size ≤0.2mm


ISG/YG/ISW pump
Maximum medium temperature:120ºC
IHG/IHW pump
Medium temperature:20-150ºC

Application:

  1. ISG vertical centrifugal pump is used to transport clear water or other liquids with similar physical and chemical properties, with less than 80 ºC medium temperature, which is applicable for industrial and urban water supply and drainage, pressure boosting and water supply for high-rise, firefighting and water for circulation in bathroom, sprinkling irrigation for garden and farms;
  2. IRG vertical hot water circulating pump is applicable for pressure boosting and circulating hot water for boiler in fields such as energy, metallurgy, wood processing, chemical engineering, textiles, paper making, hotel, and city heating system;
  3. IHG vertical chemical engineering centrifugal pump is applicable for pressure boosting and transporting of corrosive medium;
  4. YG vertical pipeline oil pump is used to deliver oil products such as gas, kerosene and diesel.

Model instruction:
ISG100-160(I)A(B)(C)

Indicator Meaning
ISG pump classification:
ISG vertical centrifugal pump
IRG single-stage single-suction hot water pipeline centrifugal pump
IHG single-stage single-suction pipeline chemical pump
YG single-stage single-suction pipleline oil pump
ISW single-stage singel-suction horizontal centrifugal pump
ISGB removable centrifugal pump
100 diameter of both inlet and outlet(mm)
160 nominal diameter of inpeller(mm)
(I) flow classification
A primary impeller cutting
(B) secondary impeller cutting
(C) tertiary impeller cutting


Technical parameter:

Model Flow(m3/h) Head(m) Speed(r/min) Power(kw)
15-18 1.5 8 2800 0.18
20-125 2.5 20 2800 0.75
25-100 3 12.5 2900 0.37
25-125A 3.6 16 2900 0.75
25-160 4 32 2900 1.5
32-100 4.5 12.5 2900 0.55
32-125A 4 16 2900 0.55
32-160 4.5 32 2900 1.5
32-200 4.5 50 2900 3
32-100(I) 6.3 12.5 2900 0.75
32-125(I) 6.3 20 2900 1.1
32-200(I) 6.3 50 2900 4.0
40-100 6.3 12.5 2900 0.75
40-125A 5.6 16 2900 0.75
40-160B 5.2 24 2900 1.1
40-250 6.3 80 2900 7.5
40-100(I)A 11.2 10 2900 0.75
40-160(I) 12.5 32 2900 3.0
40-200(I)B 10.5 35 2900 3.0
50-100 12.5 12.5 2900 1.1
50-160 12.5 32 2900 3.0
50-200B 10.5 35 2900 3.0
50-250 12.5 80 2900 11.0
50-200C 10 52 2900 5.5
50-125(I) 25 20 2900 3.0
50-315(I) 25 125 2900 30
65-125 25 20 2900 3.0
65-160A 23.4 28 2900 4.0
65-200 25 50 2900 7.5
65-250B 21.6 60 2900 11
65-100(I) 50 12.5 2900 3.0
80-125 50 20 2900 5.5
80-125A 44.8 16 2900 4.0
80-200B 43 37 2900 7.5
80-315C 41.3 85 2900 22
80-315(I) 100 125 2900 75.5
100-100 100 12.5 2900 5.5
100-250A 93.5 70 2900 30
100-250B 86.4 60 2900 30
100-315C 82 85 2900 37
100-100(I) 160 12.5 2900 11.0
125-100 160 12.5 2900 11
125-160A 150 28 2900 18.5
125-315B 143 100 2900 75
125-315C 134 88 2900 55
150-160 160 32 2900 22
150-160A 150 28 2900 18.5
150-200B 140 38 2900 22
40-160 3.2 8 1450 0.37
40-250A 3.0 17.5 1450 0.75
40-160(I) 6.3 8 1450 0.55
50-125 2.8 17.0 1450 0.55
65-125A 11.0 3.8 1450 0.37
80-100 25 3 1450 0.37
100-160 50 8 1450 2.2
125-125 100 5 1450 2.2
125-400B 87 37.5 1450 18.5
150-315 160 32 1450 22
200-330A 352 112 2900 200
200-400(I)C 320 32 1450 45
250-200A 5.6 10.8 1450 22
300-235A 657 15 970 45
300-380B 623 33 970 90
350-400A 750 44 1450 132
350-460C 900 34 1450 132
400-625 996 17 970 132
500-300 996 27 1450 110
500-500 1200 20 970 110
500-500A 1106 17 970 90
500-625B 1040 24 970 110

For more detailed specification and performance data , please contact us directly by email or call.

After Service:
To satisfy customers, the company provides the users with before-sale, in-sale and post-sale full respect services.

Item of service
·Technical training Equipment evaluation
·Installation and debugging Troubleshoot
·Maintenance Update and improvement
Commitment to the service
√ One-year warranty. Provide technical support free all-life of the products.
√ Keep all-life contacting with clients, get feedback on use of the equipment and make the products quality continually perfected.
√ Hot-line of service is available in 24h, responded in 8h.
