Place of Origin: | China |
---|---|
Brand Name: | Gempump |
Certification: | ISO9001 CE |
Model Number: | ISG40-160 |
Minimum Order Quantity: | 1 set |
Price: | 1000 USD/SET |
Packaging Details: | Ply wooden box |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 1000 SET/Month |
Product: | Inline Transfer Vertical Pump Pipeline | Power: | Electric Motor |
---|---|---|---|
Material: | Cast Iron/ Stainless Steel | Seal: | Packing Seal,Mechanical Seal |
Voltage: | AC220V AC380V AC415V/50HZ | Application: | Irrigation And Agriculture |
High Light: | Cast iron Vertical Inline Pump,1600m3/H Centrifugal Pump For Water Supply,1600m3/H Vertical Inline Pump |

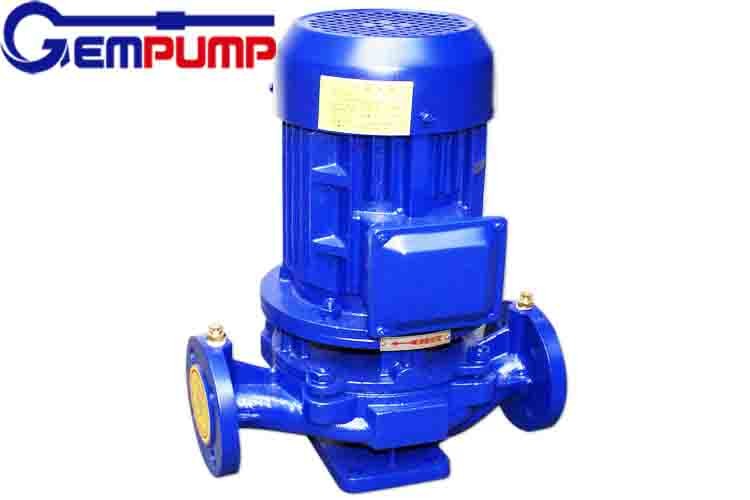

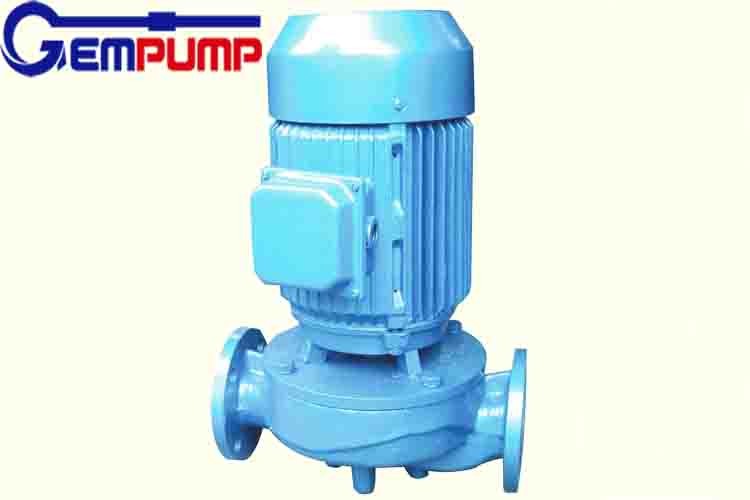

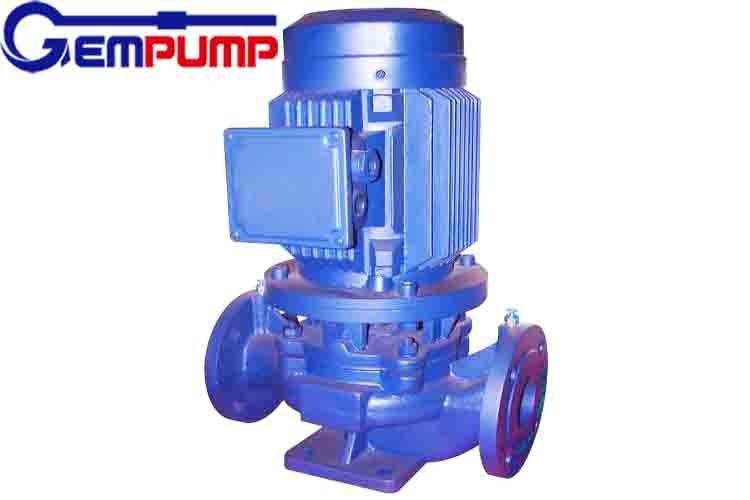

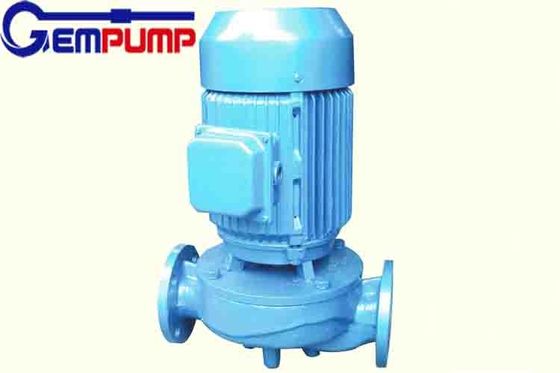

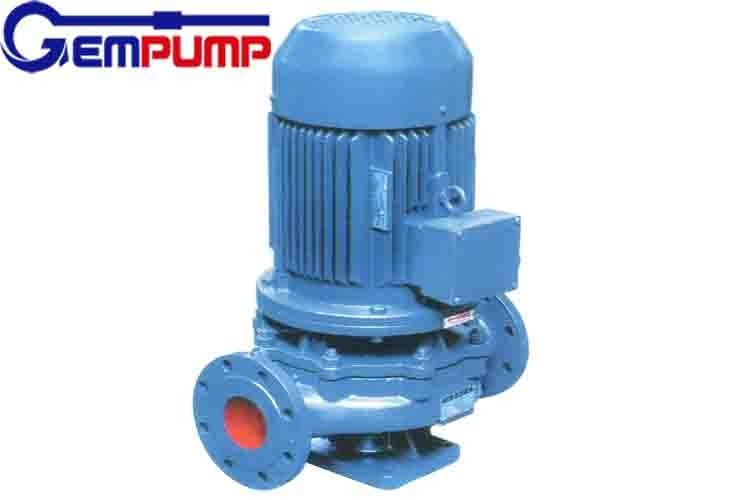

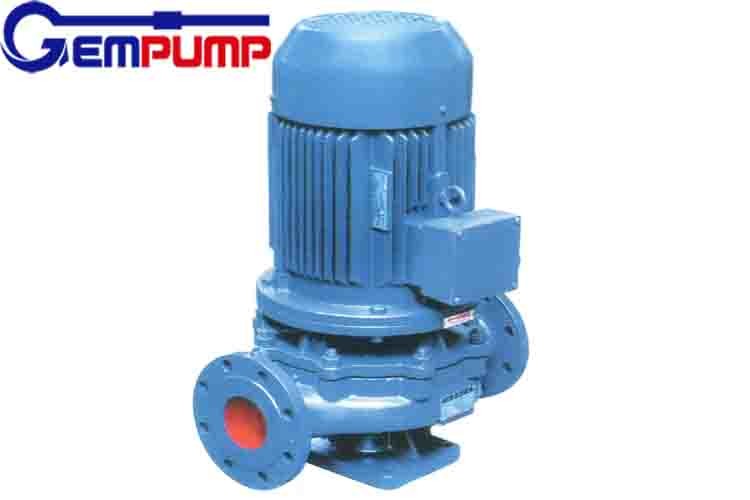

Vertical Inline Centrifugal Processing Tank Unloading Water Supply Pump
Vertical Inline Pump Capacity: 1.5~1600m3/h
Pump Head: 5~125m
Speed: 1450 ~ 2900 r/m
Material: Cast iron, Stainless Steel
Temperature: Less than 80 degree
1. Summarize
The IFG Series is single-stage, single suction and vertical centrifugal pumps. It is designed according to the international standard ISO2858 and manufactured according to the international standard JB/T6878.2-93. It is combined with our company for many years production experience and the design of the second generation of energy efficient products. It is the ideal product to replace the SG pipeline centrifugal pump, IS centrifugal pump, D multi-stage centrifugal pump and other common pumps.
2. Usage
The IFG vertical pump is used for Daily and fire water which is supply for constructions, air conditioning system, and cyclic pressurization for other cold and hot clean mediums. It can be widely used in households, construction, water supply and drainage, irrigation works. The temperature: <80 degree.
3. Characteristic
The pump is vertical configuration. Their outlets and inlets are in the same line, which makes them able to be installed amid all pipelines like valve. All above mean that they are compact, occupy less space and can be used outside house. The ISG and lRG series of pumps can move with low noise and less vibration, because impellers are directly equipped on the lengthened axes of motors and the pump casings are rationally combined with their motors, which efficiently reduces the axial thrust when pumps are working. They can be easily set up, examined and repaired without disassembling the pipeline system. The above works can be finished by discharging the bolts combining the pump casings and motors and taking out ail the rotor units. Series flux: 1.5~1600m3/h Outlet pressure 5~125m. It is divided into basic type, distributor type and incision type.
Pump Name | Vertical Pipeline Water Pump |
Capacity | 1.5~1600m3/h |
Head | 5~125m |
Temperature | less than 80 degree |
Material | Cast iron, 304 304L 316 316L |
Application | households, construction, water supply and drainage, irrigation works etc. |
Certificate | ISO9001 |
4. Major Applications
Hot and cold water conveying and circulating systems
Boiler feed water
District water supply system
District (apartment) or district central heating system
Central air-conditioning water cycle system for refrigeration
Washing system
General industrial water system
5. Features
ISG series products have the advantages of high efficiency, energy saving, low noise and reliable performance. The utility model has compact structure, convenient installation and dis-assembly, direct access to pipelines, and is used for liquid transportation, circulation and pressurization, etc;
ISG Pumps are easy-to-disassemble structure, no need to disassemble the motor to replace the seals.
6. Performance Range
Flow Range(Q): 1-900m³/h
Delivery Head Max: 80m (8 Bar)
Liquid Temperature: -20 °C~ + 120°C
MOC: CI & SS304 & SS316
Speed: 2900rpm
Power: up to 200KW
7.Performance and Advantages:
Highly efficiency, Energy saving, With tube-type structure, easy for installation, Electro-mechanically integrated design, Space efficient,
Easy for service just by disassembling the nut of the pump bonnet and taking out the motor and the actuator unit. Wide application scope.
8.Packaging & Delivery
Packaging Detail: | Exporting plywood case |
Delivery Detail: | 5 days |
ISG pipeline centrifuagl pump used in households, water lifting from wells and irrigation for gardens, etc.
