Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | ISG40-160 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | Inline Transfer Vertical Pump Pipeline | Power: | Electric Motor |
|---|---|---|---|
| Material: | Cast Iron/ Stainless Steel | Seal: | Packing Seal,Mechanical Seal |
| Voltage: | AC220V AC380V AC415V/50HZ | Application: | Irrigation And Agriculture |
| High Light: | 7.5kw Inline Vertical Transfer Pump,50m3/H Water Booster Vertical Transfer Pump,7.5kw Vertical Pipe Centrifugal Pump |
||

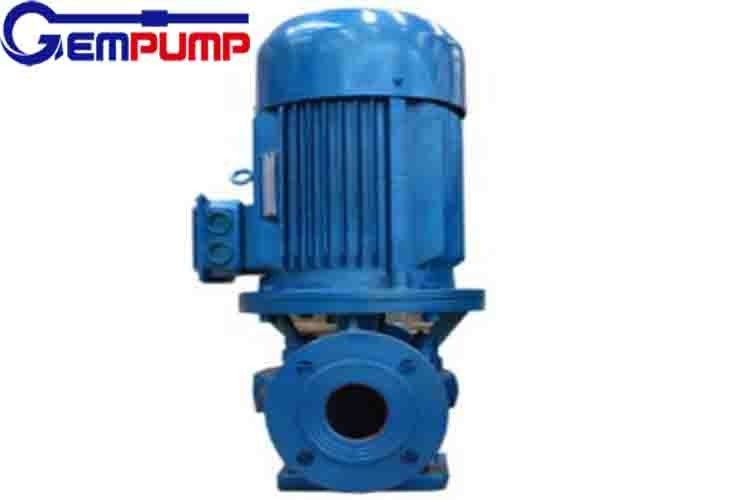

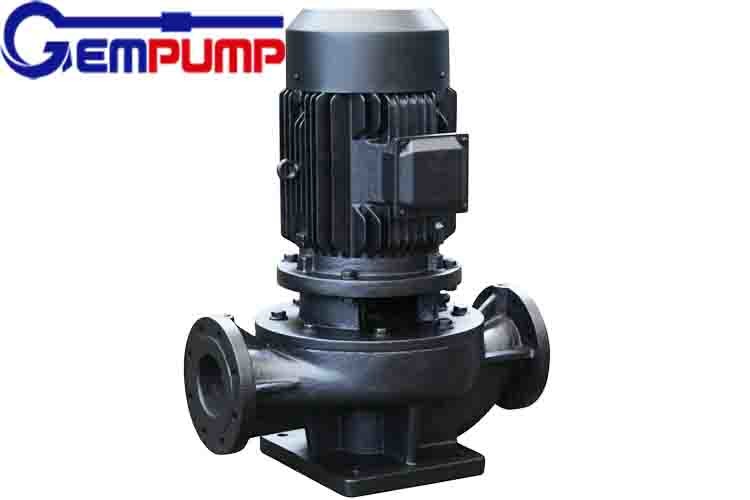

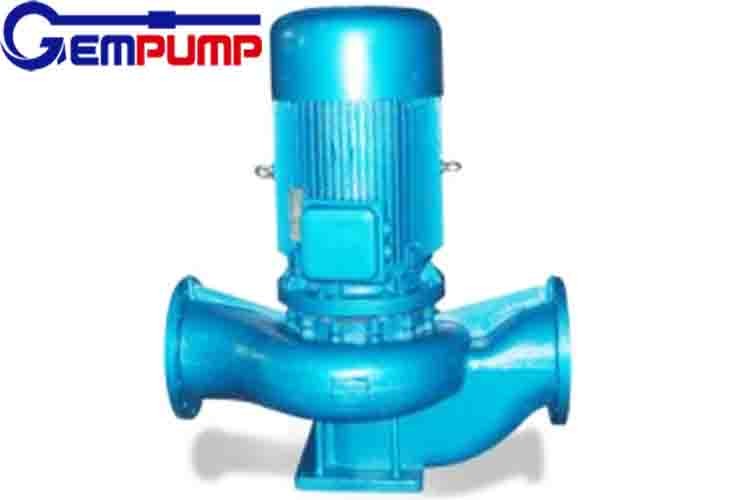

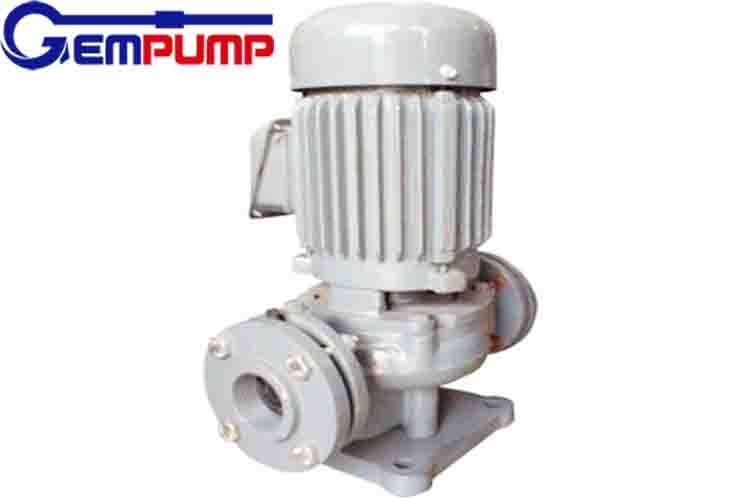

7.5kw 50m3/H Electric Inline Water Booster Pump Inline Centrifugal Pump Vertical Piping Centrifugal Water Pump
ISG type vertical pipe centrifugal pump, used for transporting clean water and liquid with similar physical and chemical properties as that of water at a temperature up to 80℃, suitable for industry and city water supply and drainage, high floor building water supercharging and delivery, garden irrigation, fire supercharging, long-distance transportation, HVAC and refrigeration, cooling and heating water circulation supercharging and equipment supporting.
Application
Apply as the transportation of liquids in the fields of fire fighting ,air condition, heating, sanitary water, water treatment cooling, refrigerating system, liquid circulation, water supply, pressure boosting,sea water delivery and irrigation etc.
Working Conditions
Rotating speed: 3600r/min, 1800r/min, 2960r/min, 1480r/min
Medium: clean water or other liquids similar to clean water in physical and chemical properties
Medium temperature: -10 ~ 80℃,400℃ available under special design
Ambient temperature: Up to 40℃
Range of capacity:1.8~2000m3/h
Range of head: up to 230m
Maximum working pressure: suction pressure+head of pump≤25 bar
Pump Construction
Casing/impeller:cast iron,stainless steel,copper,bronze
Shaft:carbon steel 45#,stainless steel
Mechnical seal:graphite/silicon carbide/tungsten carbide
Advantages
1.Directly coupled, vibration proof and low noise.
2.Same diameter of inlet and outlet inline,the angle between inlet and outlet can be 270O C , 90O C
3.C&U bearing ,which is the most famous brand in China.
4.Circulating flow cooling ensure mechnical seal long life .
5.Small foundation required that will saving construction investment by 50-70%.
6.Excellent seal that is no leakage
Structure
1. Are you manufacturer or trading company?
We are a professional manufacturer of water pumps.
2. How to buy our pumps?
(1) We should know from you: What is the fluid? Clean water, dirty water,particles, or slurry?
(2) What is the flow, head, and motor power?
3. How about warranty and after service?
Gempump video guidance from professional engineer.
