Place of Origin: | China |
---|---|
Brand Name: | Gempump |
Certification: | ISO9001 CE |
Model Number: | ISG40-160 |
Minimum Order Quantity: | 1 set |
Price: | 1000 USD/SET |
Packaging Details: | Ply wooden box |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 1000 SET/Month |
Product: | Inline Transfer Vertical Pump Pipeline | Power: | Electric Motor |
---|---|---|---|
Material: | Cast Iron/ Stainless Steel | Seal: | Packing Seal,Mechanical Seal |
Voltage: | AC220V AC380V AC415V/50HZ | Application: | Irrigation And Agriculture |
High Light: | 6.3m3/H Jockey Water Pump,3HP Jockey Water Pump,3HP vertical jockey pump |

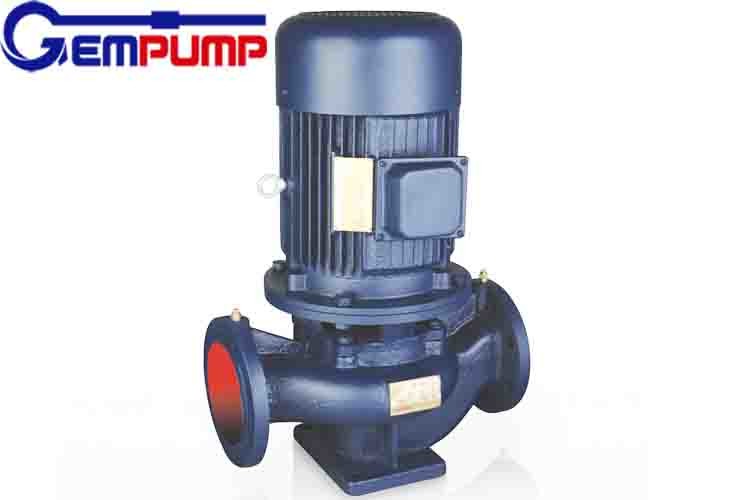

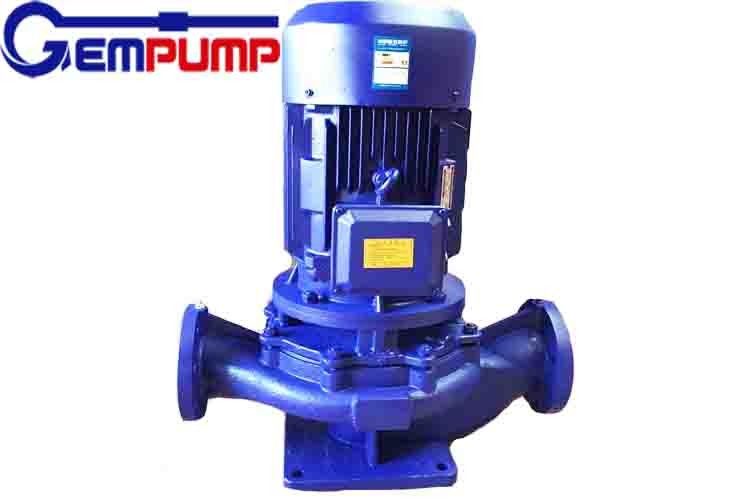

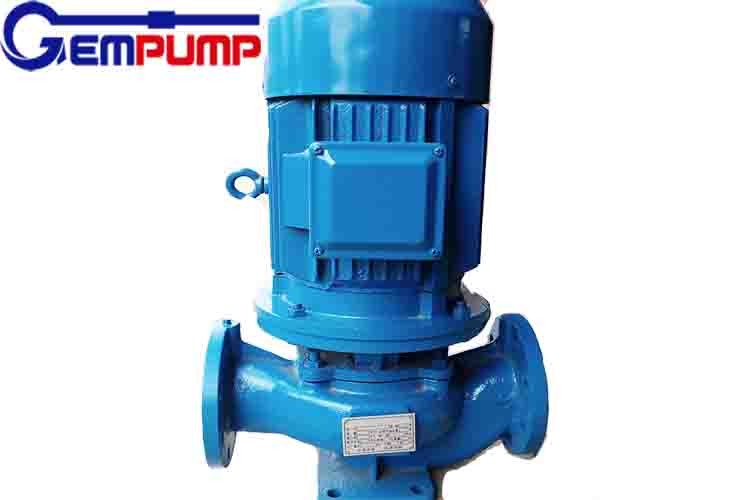

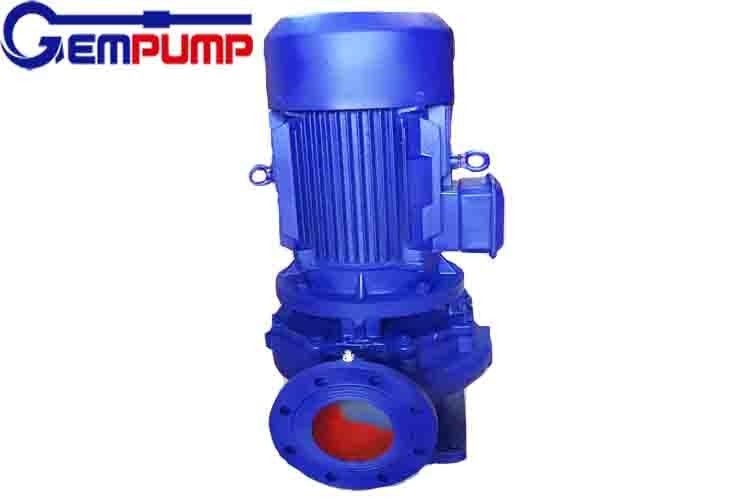

Vertical Inline Pump Pipeline Pressure Test Pump For High Rise Building Booster Jockey Pump
Introduction:
Type ISG electric pump adopts special combination structure design. They are generally applied to transport pure water or the liquids with physical and chemical properties similar to pure water, and the maximum allowed medium temperature is 80°C. Especially suitable for
pressurization of water supply network. The advantages are small size, easy installation, no vibration and low noise. The shaft sealing adopts mechanical seal. Type IRG pump can transport liquids of Maximum 120°C. Type IHG pump could be used in chemical process.
Item | Jockey Pump |
Electric Water Pump | Vertical Electric Water Jockey Pump |
Model | ISG |
Material | Cast iron |
Mode | Vertical |
Theory | Centrifugal Pump |
Structure | Single-stage Pump |
Usage | Water |
Power | Electric |
Standard or Nonstandard | Standard |
Fuel | Gasoline |
Pressure | High Pressure |
Application | Transport water |
Flow-passage parts | cast iron |
Outlet Diameter | 25-500mm |
Capacity | 1.1-720m3/h |
Head | 8-150m |
Rotation Speed | 1450-2900 r/min |
Power | 0.37-160kW |
Certificate | ISO9001 |
Feature | High efficiency,Easy maintenance |
Vertical Inline Pump Parameters:
Model | Capacity | Head | Efficiency | Speed | Power | NPSHr | Weight |
m3/h | m | % | r/min | kw | m | kg | |
15-80 | 1.5 | 8 | 34 | 2800 | 0.18 | 2.3 | 17 |
20-110 | 2.5 | 15 | 34 | 2800 | 0.37 | 2.3 | 25 |
20-160 | 2.5 | 32 | 25 | 2900 | 0.75 | 2.3 | 29 |
25-110 | 4 | 15 | 42 | 2900 | 0.55 | 2.3 | 26 |
25-125 | 4 | 20 | 36 | 2900 | 0.75 | 2.3 | 28 |
25-125A | 3.6 | 16 | 35 | 2900 | 0.55 | 2.3 | 27 |
25-160 | 4 | 32 | 32 | 2900 | 1.5 | 2.3 | 39 |
25-160A | 3.7 | 28 | 31 | 2900 | 1.1 | 2.3 | 34 |
32-100 | 4.5 | 12.5 | 44 | 2900 | 0.55 | 2 | 27 |
32-100(I) | 6.3 | 12.5 | 54 | 2900 | 0.75 | 2 | 32 |
32-125 | 5 | 20 | 44 | 2900 | 0.75 | 2.3 | 28 |
32-125A | 4.5 | 16 | 43 | 2900 | 0.55 | 2.3 | 28 |
32-160 | 6.5 | 32 | 44 | 2900 | 1.5 | 2.3 | 39 |
32-160A | 4 | 25 | 34 | 2900 | 1.1 | 2 | 38 |
32-160(I) | 6.3 | 32 | 40 | 2900 | 2.2 | 2 | 47 |
32-200 | 4.5 | 50 | 32 | 2900 | 3 | 2 | 55 |
32-200(I) | 6.3 | 50 | 33 | 2900 | 4 | 2 | 43 |
32-200A | 4 | 44 | 40 | 2900 | 2.2 | 2 | 74 |
40-100 | 6.3 | 12.5 | 54 | 2900 | 0.55 | 2.3 | 32 |
40-100A | 5.6 | 10 | 52 | 2900 | 0.37 | 2.3 | 32 |
40-125 | 6.3 | 20 | 46 | 2900 | 1.1 | 2.3 | 34 |
40-125A | 5.6 | 16 | 45 | 2900 | 0.75 | 2.3 | 33 |
40-160 | 6.3 | 32 | 40 | 2900 | 2.2 | 2.3 | 47 |
40-160A | 5.9 | 28 | 39 | 2900 | 1.5 | 2.3 | 43 |
40-160B | 5.5 | 24 | 38 | 2900 | 1.1 | 2.3 | 38 |
40-200 | 6.3 | 50 | 33 | 2900 | 4 | 2.3 | 74 |
40-200A | 5.9 | 44 | 31 | 2900 | 3 | 2.3 | 62 |
40-200B | 5.3 | 36 | 29 | 2900 | 2.2 | 2.3 | 52 |
40-250 | 6.3 | 80 | 28 | 2900 | 7.5 | 2.3 | 105 |
40-250A | 5.9 | 70 | 28 | 2900 | 5.5 | 2.3 | 98 |
40-250B | 5.5 | 60 | 27 | 2900 | 4 | 2.3 | 77 |
40-100(I) | 12.5 | 12.5 | 62 | 2900 | 1.1 | 2.3 | 34 |
40-100(I)A | 11 | 10 | 60 | 2900 | 0.75 | 2.3 | 32 |
40-125(I) | 12.5 | 20 | 58 | 2900 | 1.5 | 2.3 | 38 |
40-125(I)A | 11 | 16 | 57 | 2900 | 1.1 | 2.3 | 33 |
