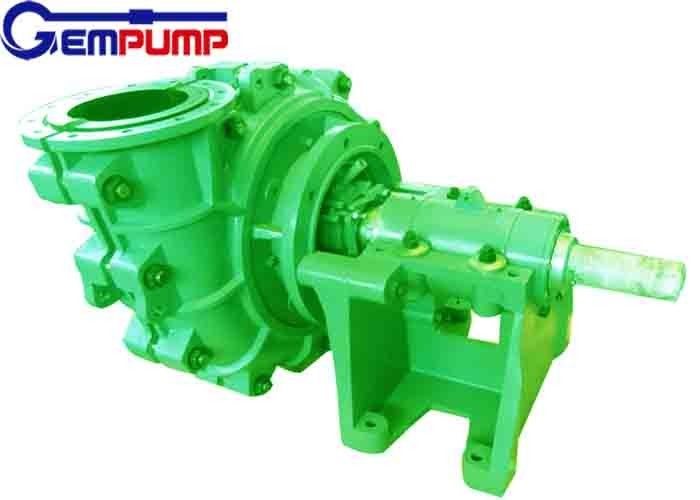

350S-LR High Chrome Alloy Horizontal Slurry Pump 0.7kw-559kw

small.img.alt
small.img.alt 350S-LR High Chrome Alloy Horizontal Slurry Pump 0.7kw-559kw 350S-LR High Chrome Alloy Horizontal Slurry Pump 0.7kw-559kw small.img.alt 350S-LR High Chrome Alloy Horizontal Slurry Pump 0.7kw-559kw 350S-LR High Chrome Alloy Horizontal Slurry Pump 0.7kw-559kw small.img.alt 350S-LR High Chrome Alloy Horizontal Slurry Pump 0.7kw-559kw 350S-LR High Chrome Alloy Horizontal Slurry Pump 0.7kw-559kw small.img.alt 350S-LR High Chrome Alloy Horizontal Slurry Pump 0.7kw-559kw 350S-LR High Chrome Alloy Horizontal Slurry Pump 0.7kw-559kw
Basic Information
Place of Origin: China
Certification: ISO9001 CE
Model Number: 350S-L(R)
Minimum Order Quantity: 1 set
Price: 1000 USD/SET
Packaging Details: Ply wooden box
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 SET/Month
Get Best Price Contact Now
Product: 350S-L Centrifugal Slurry Pump Port: Tianjin,Qingdao
Color: Light Blue Or Other Sealing Type: Packing Seal,Expeller Seal
Power: Electric Motor Application: Mining,Mud,Slurry Pumping
High Light:

350S-LR Horizontal Slurry Pump

,

High Chrome alloy electric slurry pump

,

559kw Horizontal Slurry Pump

0.7kw ~ 559kw Power ISO9001350S-L R Centrifugal Horizontal Slurry Pump For Mining



Light Type Slurry Pump Description

  • L series pump incorporates the same design points of the AH pump, but with a wider range of flow-rates and lower life-cycle costs.
  • Corrosion resistant rubber or polyurethane lining and impellers for highly corrosive slurries can be interchanged with AH (M) series metal parts;
  • By explosion proof motor or diesel engine ZV / Cr / CV / DC type
  • Discharge size 1 "to 18""
  • Capacity up to 1000 liters / sec, head up to 70 million
  • Impeller seals, packing seals and mechanical seals are available
  • Spare and frame power supply is interchangeable with the popular brand mud pump in the market.
  • Products Name L Series Low abrasive Slurry Pump
    Material High Chrome alloy or Nature rubber
    Size 20mm to 550mm
    Pump Type Single Stage Single SuctionCentrifugal slurry pumps
    Drive ZVz/CRz/CV/DC
    Power Motor/diesel
    Capacity 2.34 - 7920 m3/h
    Head 6-50m
    Seal Type Mechanical seal, packing seal , expeller seal
    MQQ 1 set
    Sample Time Within 15 days
    OEM Accepted Yes
    Package Free fumigation wooden cases
    Payment term TT , west union, Money gram
  • Main part no meaning



032 - Frame Plate
018 - Cover Plate Liner
083 - Throatbush
013 - Cover Plate
036 - Frame Plate Liner
147 - Impeller



Slurry pump Applications

  • Mainly used in the two processing circuit, rod mill row, heavy minerals, pulp, slag granulation and other fields. Widely used in metallurgy, mining, coal, municipal engineering and other industries. Can be used to transport high concentration, low abrasive slurry.
Our service
OEM service: Production of pumps and spare parts according to customer drawings or samples.
  • Pump selection: Help customers select the type, size, and speed of the pump to be executed at the lowest cost.
  • Use service: Provide design, installation, maintenance solutions and mine surveying services.
  • Quality Control: Pay more attention to the quality of each process with different instruments.
  • Material service: Interchangeable metal designs allow for optimum material selection for any application.
  • Guarantee: Except for wet end of the machine, one year warranty.
  • After-sale service: Provide lifelong after-sales service to solve any problems in the process of use and the large inventory of standard spare parts.
350S-LR High Chrome Alloy Horizontal Slurry Pump 0.7kw-559kw 0
Slurry Pump Feature

Model P(KW) Q(m³/h) H(m) n(r/min) η% NPSH(m) Impeller D(mm) Weight( kw)

350S-L 55-560 650-2800 10-59 400-840 81 3-10 736
350S-LR 55-560 720-2844 10-41 400-700 86 3-7 736



Type

Max.

Power

Kw

 Clear Water Performance Impeller Application

Capacity

m³/hr

 Head/m Speed/rpm

Efficiency

%

NPSH

m

Nos

of

Vane

Diameter

mm

350 S-L 560 650-2800 10-59 400-840 81 3-10 5 736 -FGD waste water

300 S-LR 560 432-1900 7-41 400-800 81 3-8 5 653 -Phosphoric acid
350 S-LR 560 720-2844 10-41 400-700 86 3-7 5 736 -Coal
