Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Certification: | ISO9001 CE |
| Model Number: | S |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Type: | Centrifugal Pump | Warranty: | 1 Year |
|---|---|---|---|
| High Light: | 32 Inch Horizontal Split Case Pump,Stationary Horizontal Split Case Pump,6 inch Axial Split Casing Pump |
||
|
THE SPECIFICATION OF DOUBLE SUCTION CENTRIFUGAL WATER PUMP ( SPLIT CASE WATER PUMP ) |
|
| Model | S series |
| Inlet & Outlet Diameter | 6-32 inch ( 150-1200 mm) |
| Flow Rate | 0-12500 m3/h |
| Head | 0-140m |
| Speed | 1480/2950 rpm |
| Power | 5.5-1600kw all have |
| Material | Cast iron, Stainless steel 304/316/316L |
| Fuel | Diesel engine, Gas engine or Electric motor |
| Application | Agriculture irrigation, firefighting, drainage, Sewage, chemical, oil and other fields. |
| Accessories | 2 or 4 wheels trailer, silence-box, control panel, base plate and so on. |
Application Area
| ♦ Construction | ♦ Industrial | ♦ Municipal |
| ♦ Agricultural | ♦ Mining | ♦ Dewatering |
| ♦ Industrial Waste | ♦ Sewage | ♦ Oil Field |
| ♦ Petrochemical | ♦ Paper Mills | ♦ Processing |
Summarize:

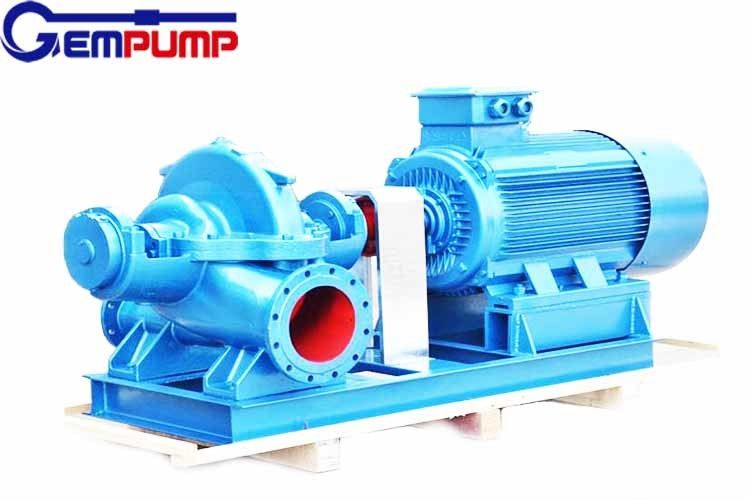

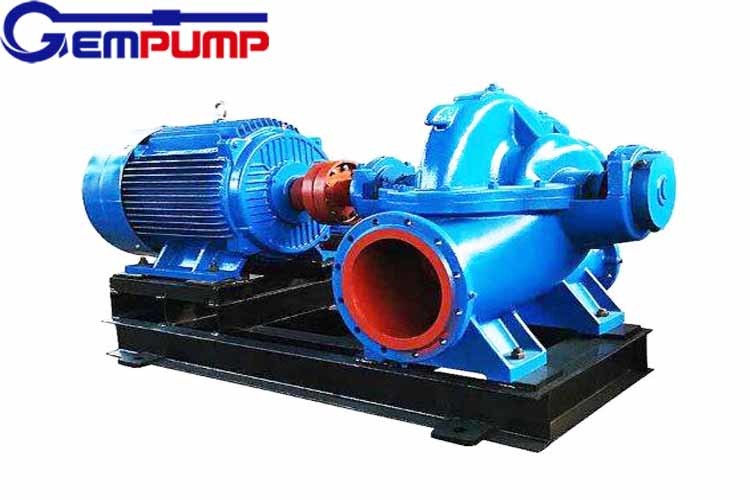

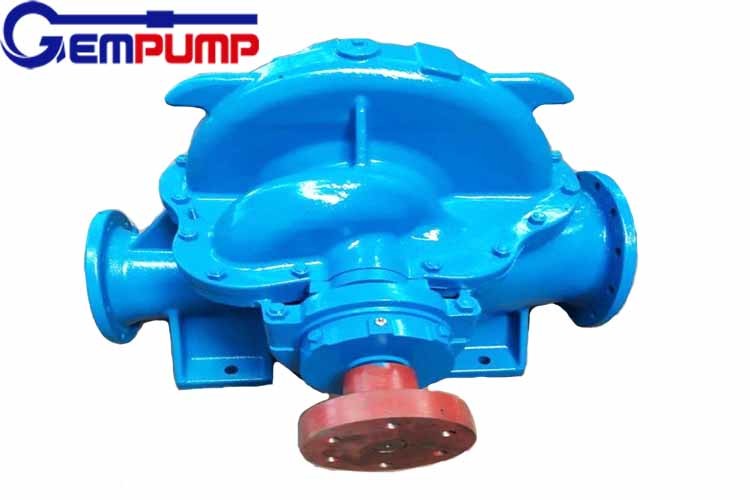

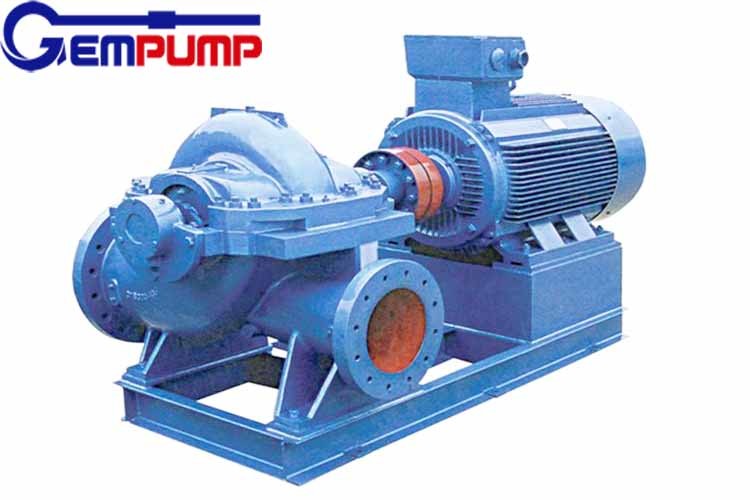

1.Horizontal Split Case Diesel Engine Fire Fighting Centrifugal Pump is a single stage double suction split casing pump with high capacity and pressure, which can transmit clean water or similar liquids(Oil).
2. S,XS, YPS single stage double suction split case are widely used in delivering liquids to the water plant,circulation water system of airconditioner,pipe net syetem of supplying heated water,construction,drainage pumping station,power station,industrial water supply system,ship industry,mine and etc.
