Place of Origin: | China |
---|---|
Brand Name: | Gempump |
Certification: | ISO9001 |
Model Number: | G15-1 |
Minimum Order Quantity: | 1 Set |
Price: | 500USD/Set |
Packaging Details: | Plywooden box |
Delivery Time: | 3-5 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000 Sets per month |
Product: | Small Single Screw Pump | Model: | G Series |
---|---|---|---|
Pressure: | Low Pressure | Application: | Food, Pharmaceutical Industry |
Material: | Stainless Steel | Theory: | Screw Pump |
Power: | Electric Motor | Voltage: | AC220V/AC380V |
Warranty: | 1 Year | Structure: | Single Stage |
High Light: | 100T/H Single Screw Pump,Food Grade SS304 Single Screw Pump,100T/H SS304 mono screw pump |

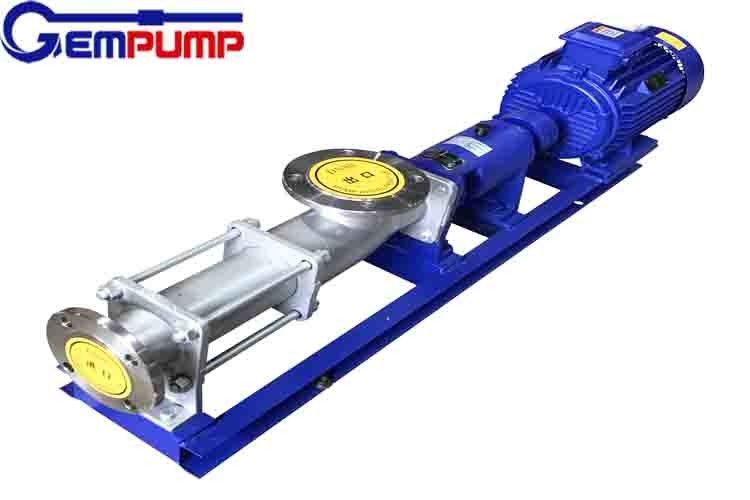

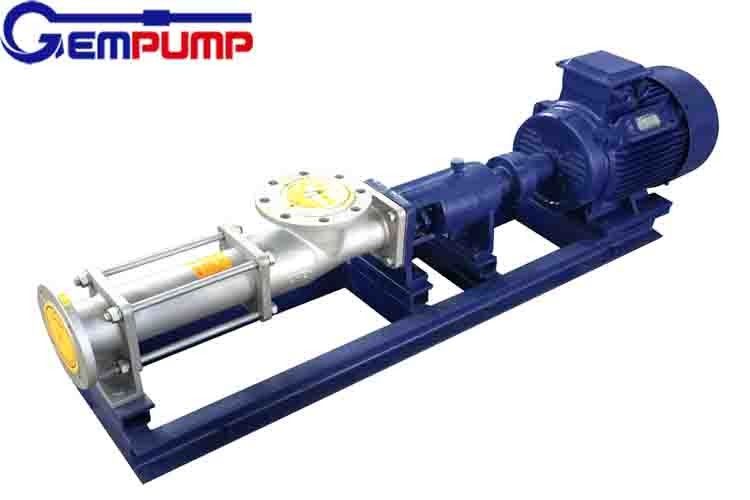

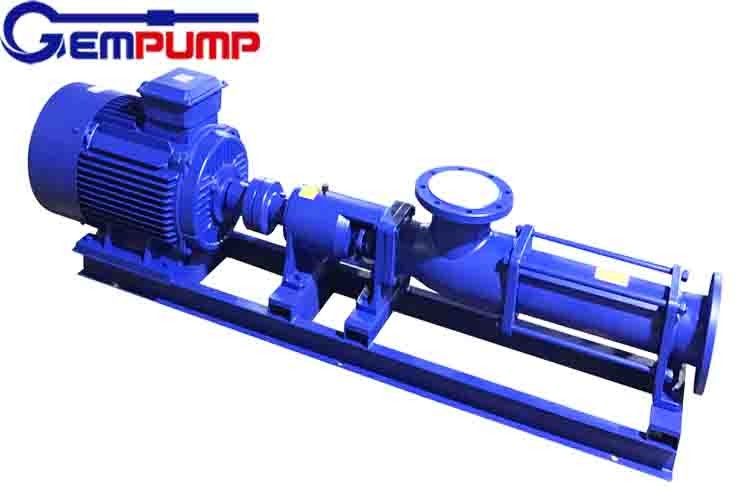

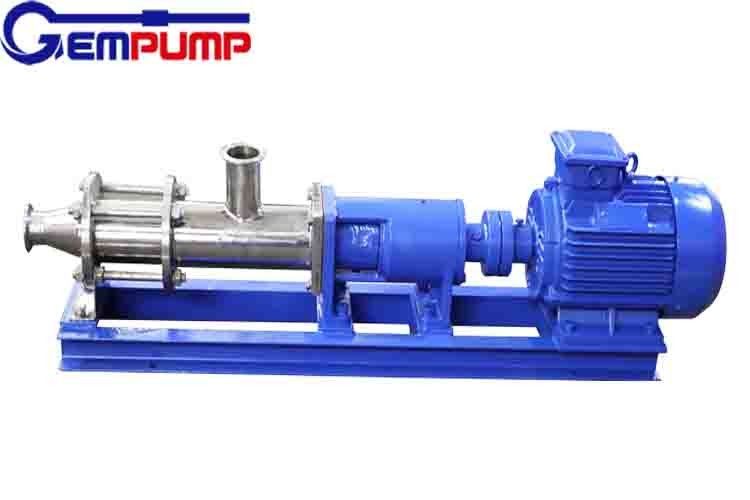

Small Single Screw Pump Electric Honey Mayonnaise Grease Food Grade Single Screw Pump
Product Name:G series screw pump
Summary:
G type screw pump is used for the transferring neutral and corrosive liquids with air bubble, high viscosity ,fiber, granules.etc Base on the screw design ,the pump can transfer the high viscosity liquid with granules
Application:
Widely used in chemical, pharmaceutical,petroleum,metallurgy,power-station, plating,dye,pesticide and other industries.
Features:
Feeding Medium
This product is applicable for feeding medium which has following properties:
1. High solid content(diameter of the biggest particle is 50mm)or no solid content
2. Medium with all viscosities(1mPas~3,000,000mPas)
3. Medium that is easy to be generated and swelled
4. Shearing sensitive medium
5. Medium with/without self lubrication
6. Erosive medium(PH=0~14)
7. Adhesive medium
8. Toxicity hazard medium
Parameters:
Material
|
Stainless Steel 304/316L
|
Capacity
|
0.5T/H-100T/H(Customized)
|
Pressure
|
0-8bar
|
Speed
|
0-960RPM
|
Temperature
|
0℃-80℃
|
Motor Cover
|
Round/Square
|
Main technical parameter:
Model | Caliber | Speed (rmp) | Flow (m³/h ) | Power ( kw ) |
G10-1 | 20 | 1400 | 0.5 | 0.37 |
G15-1 | 25 | 960 | 1 | 0.55 |
G20-1 | 32 | 960 | 1.5 | 0.75 |
G25-1 | 32 | 960 | 2 | 1.1 |
G30-1 | 40 | 960 | 3 | 1.5 |
G35-1 | 50 | 960 | 5 | 2.2 |
G40-1 | 50 | 960 | 7 | 3 |
G40-1 | 50 | 720 | 5.5 | 2.2 |
G45-1 | 50 | 960 | 9 | 4 |
50 | 720 | 7 | 3 | |
G50-1 | 65 | 960 | 13 | 5.5 |
65 | 720 | 10 | 4 | |
G55-1 | 65 | 960 | 18 | 7.5 |
65 | 720 | 13 | 5.5 | |
G65-1 | 80 | 720 | 30 | 11 |
G86-1 | 100 | 720 | 60 | 15 |
FAQ
