Place of Origin: | China |
---|---|
Brand Name: | Gempump |
Certification: | ISO9001 |
Model Number: | G10-1 |
Minimum Order Quantity: | 1 Set |
Price: | 500USD/Set |
Packaging Details: | Plywooden box |
Delivery Time: | 3-5 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000 Sets per month |
Product: | Stainless Steel Screw Pump | Model: | G Series |
---|---|---|---|
Pressure: | Low Pressure | Application: | Food, Pharmaceutical Industry |
Material: | Stainless Steel | Theory: | Screw Pump |
Power: | Electric Motor | Voltage: | AC220V/AC380V |
Warranty: | 1 Year | Structure: | Single Stage |
High Light: | 1400rmp Stainless Steel Mono Screw Pump,1400rmp Mono Screw Pump,1400rmp single screw pump |

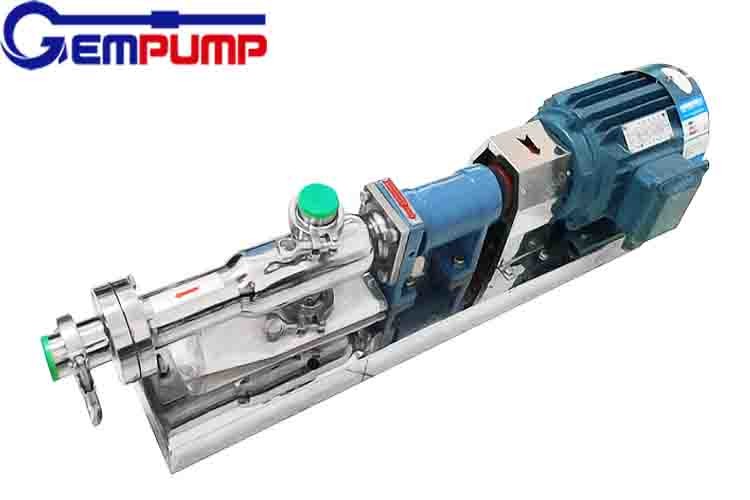

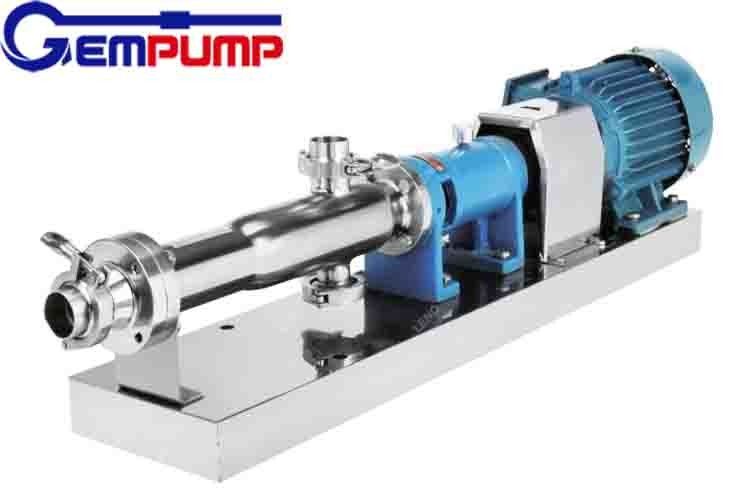

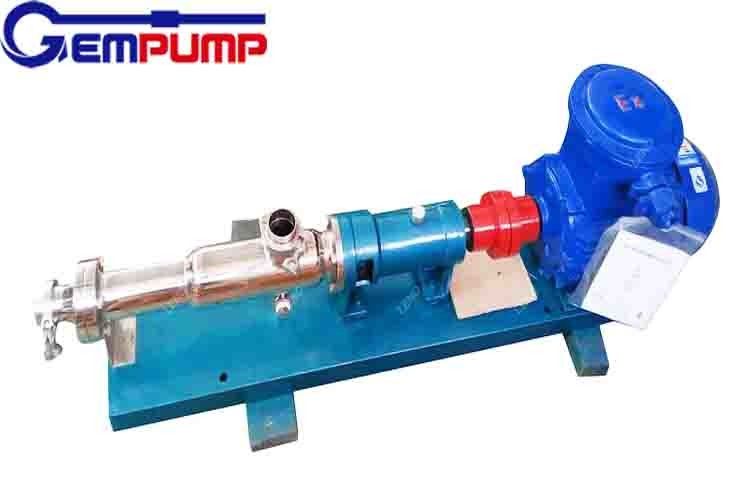

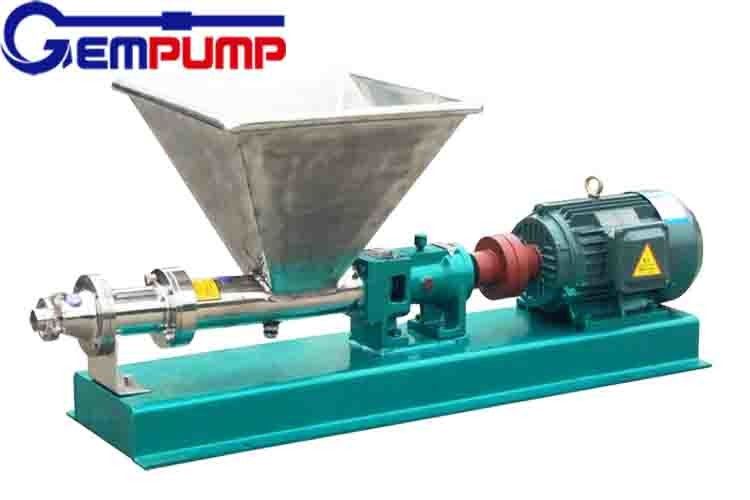

Food Grade Screw Pump Stainless Steel Mono Screw Pump Mini Single Screw Pump
G single screw pump belongs to the rotor type positive displacement pump, it is depend on the screw meshing with liner on the discharge and suction cavity to conveying liquid volume change.It is a kind of method of pressurized screw pump, a main working parts by bushing has a double helix cavity (stator) and the stator cavity and its meshing singlehead screw screw (rotor).When the input shaft through the universal joint drive making planets revolving around the center of the stator, rotor stator, rotor, vice is continuous mesh form sealed cavity, the seal chamber volume invariably uniform axial movement, the medium from the suction end of deputy to the stator, rotor pressure side, the suction medium sealed cavity through the stator without stirring and destruction.
Profile/type |
Stainless steel food grade mono screw pump |
||
material | SS304 or SS316L | ||
Capacity | 0-100T (Customized) | ||
Pressure | 0-8bar | ||
High Viscosity | 1-100,000,00pas | ||
Stator type | Rubber type | ||
temperature | 0-80 celsius degree | ||
connection type | Clamp | Union | Flange |
motor type | Normal | Ex-Proof | inverter |
motor cover | Round/Square | ||
Speed | 0-960RPM |
High solid content(diameter of the biggest particle is 50mm)or no solid content
Medium with all viscosities(1mPas-3, 000, 000mPas)
Medium that is easy to be generated and swelled
Shearing sensitive medium
Medium with erosion
Medium with/without self lubrication
Erosive medium(PH=0-14)
Adhesive medium
Toxicity hazard medium
Main technical parameter:
Model | Caliber | Speed (rmp) | Flow (m³/h ) | Power ( kw ) |
G10-1 | 20 | 1400 | 0.5 | 0.37 |
G15-1 | 25 | 960 | 1 | 0.55 |
G20-1 | 32 | 960 | 1.5 | 0.75 |
G25-1 | 32 | 960 | 2 | 1.1 |
G30-1 | 40 | 960 | 3 | 1.5 |
G35-1 | 50 | 960 | 5 | 2.2 |
G40-1 | 50 | 960 | 7 | 3 |
G40-1 | 50 | 720 | 5.5 | 2.2 |
G45-1 | 50 | 960 | 9 | 4 |
50 | 720 | 7 | 3 | |
G50-1 | 65 | 960 | 13 | 5.5 |
65 | 720 | 10 | 4 | |
G55-1 | 65 | 960 | 18 | 7.5 |
65 | 720 | 13 | 5.5 | |
G65-1 | 80 | 720 | 30 | 11 |
G86-1 | 100 | 720 | 60 | 15 |
FAQ
Q: How long have you worked in this field?
A: Over 10 years.
Q:What's the delivery time?
A: Standard products will be 5-10 days after receive your down payment or full payment.
Q: Can your factory produce products according to our drawings or samples?
A: Yes, of course we can.
Q: Are you manufacturer or trading company ?
A: We are a professional manufacturer.
Q: What is your factory's biggest advantage?
A: Technology is our core competitiveness.
