Place of Origin: | China |
---|---|
Brand Name: | Gempump |
Certification: | ISO9001 CE |
Model Number: | 32GDF-20 |
Minimum Order Quantity: | 1 set |
Price: | 1000 USD/SET |
Packaging Details: | Ply wooden box |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 1000 SET/Month |
Product: | GDF Vertical Chemical Pump | Principle: | Centrifugal |
---|---|---|---|
Applications: | Chemical | Power: | Electric Motor |
Voltage: | AC220V AC380V AC415V/50HZ | Temperature: | 80°C (176°F) |
Connection: | Flange | Position: | Horizontal |
Material: | Fluoro Plastic, Teflon,F46 | Seal: | Mechanical Seal |
High Light: | ISO9001 Chemical Centrifugal Pump,60kg Vertical Inline Centrifugal Pump,ISO9001 Vertical Inline Centrifugal Pump |

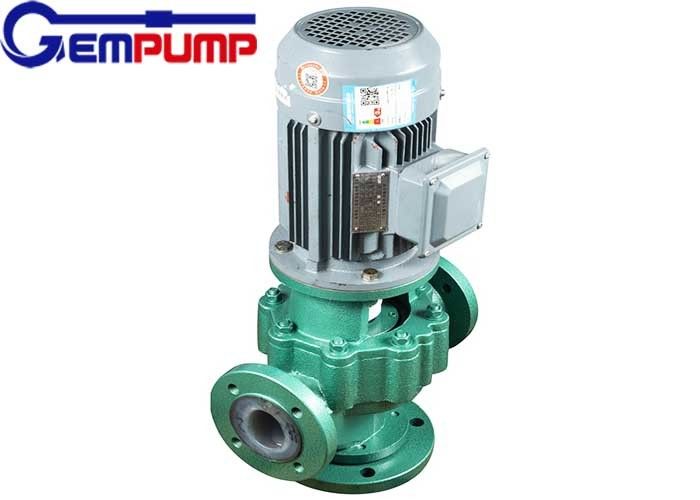

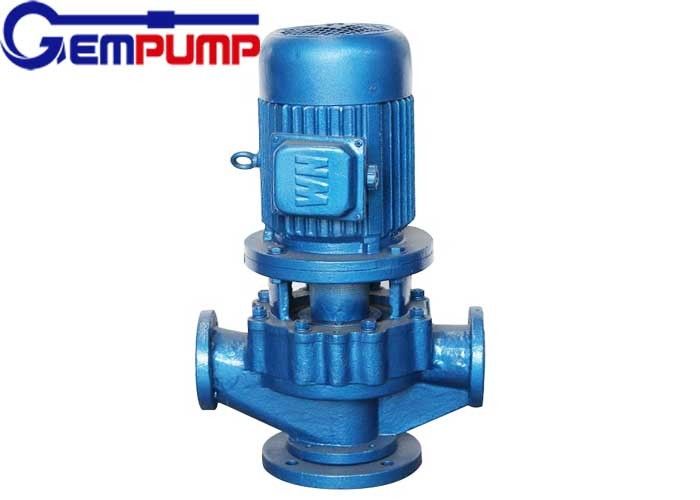

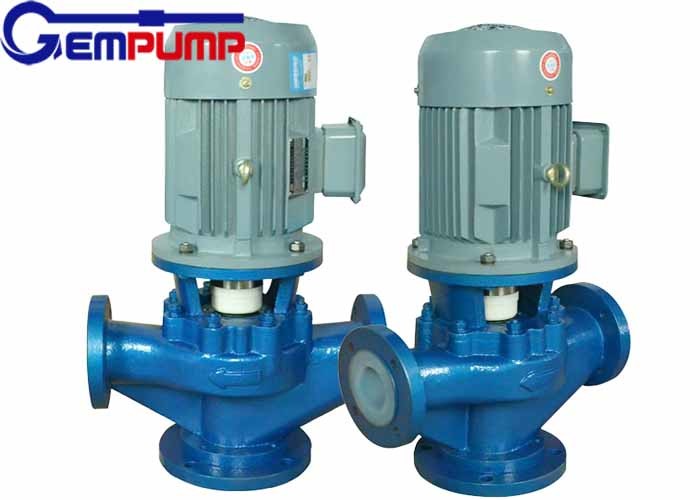

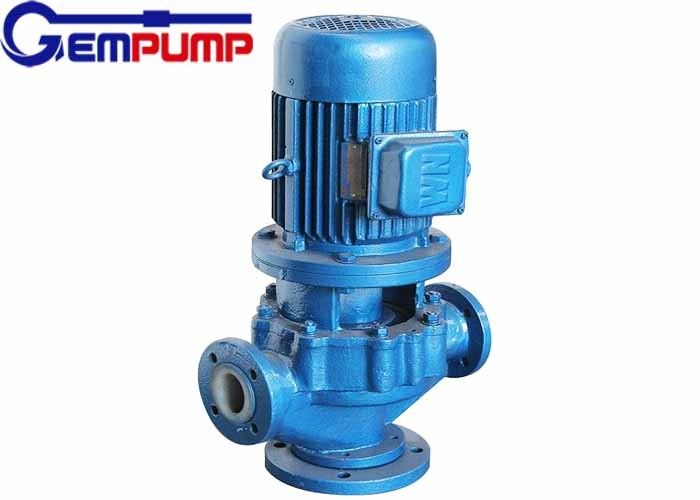

GDF Vertical FEP Lined Industrial Inline Chemical Resistant Centrifugal Pump
GDF Vertical Plastic Lined Chemical Pump Introduction
Model Type
|
GDF ( vertical fluorine lined centrifugal pump)
|
Flow
|
3.6-100m3/h(60-1666L/min)
|
Head
|
20-32m (2Bar-3.2Bar)
|
Power
|
1.5-15kw(2-2hp)
|
EFF
|
30-64%
|
Aperture
|
32*32mm-100*100mm
|
Weight
|
60-280kg
|
NPSHr
|
3-4m (10-13feet)
|
Speed
|
2900r/min, 1450r/min or as customer required
|
Voltage
|
220V-600V, 50Hz-60Hz or as customer required
|
Connection
|
Flange butt joint(ASME-ANSI-JIS-GB) or as customer required
|
Temperature range
|
-20 °C to +160 °C (- 68°F to 320°F)
|
Brand name
|
TEFLOW PUMP
|
Introduction
|
Pipeline centrifugal pump applications corrosive, pure and contaminated media in the chemical, pharmaceutics and petrochemical industries, in metal processing, wastewater treatment;
When stainless steel is not sufficiently resistant, an alternative to expensive haste alloy, titanium alloy pumps, when anti-adhesive surfaces are important |
GDF Pump Model Parameters
GDF Plastic Lined Chemical Pump Assembly Drawing
No
|
Item
|
Material
|
1
|
Mount
|
45#steel F46 lined
|
2
|
Shell
|
HT200 F46 lined
|
3
|
Impeller
|
fluorine alloy
|
4
|
Pump cover
|
HT200 F46 lined
|
5
|
Static ring
|
SIC
|
6
|
Pressure cover
|
HT200 F46 lined
|
7
|
Moving ring
|
filled with teflon
|
8
|
Rack
|
HT200
|
