Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | 3FLD3.2-80-48-750 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Warranty: | 1 Year | Application: | Irrigation And Agriculture |
|---|---|---|---|
| Pressure: | Low Pressure Solar Borehole Water Pump | Structure: | Centrifugal Solar Pump |
| Material: | Stainless Steel 304/316 | Max.Head: | 80m |
| Voltage: | 48v DC | Motor: | Brushless Dc Motor |
| Packaging: | Plywood Wooden Box | Lead Time: | In 3 Days |
| High Light: | ISO9001 dc borehole pumps,80m Head Solar Submersible Pump Kit,ISO9001 Solar Submersible Pump Kit |
||

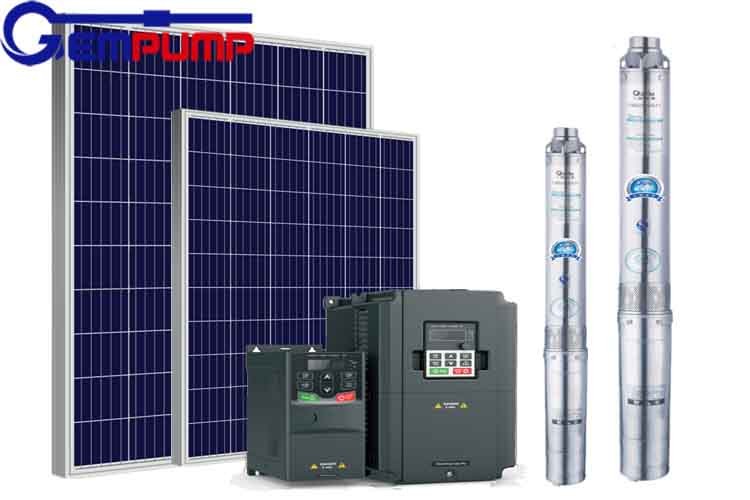

Submersible Deep DC Borehole Solar Pump Well Water Pump For Agriculture
Solar Well Water Pump Brief Introduction
Solar powered irrigation water pump is an environmentally-friendly water supply solution. solar powered irrigation water pump are fitted with a permanent magnet motor which enables the efficient use of energy from nature, which offers the perfect water supply solution in remote areas where water is scarce and the power supply is non-existent or unreliable.
Adapt to the characteristic weather profile of any given area. A battery backup system can store the extra energy generated and take over when the energy from nature is not available.
solar powered irrigation water pump is more than just a pump –it's a complete intelligent system. Thanks to its built-in electronics, compatible with both DC and AC power supply without requiring an external inverter.
Solar Well Water Pump Specifications
3'' DC Solar Pump
|
Model |
Power (W) |
Voltage (V) |
Max.Flow (M3/H) |
Max. Head (M) |
Outlet (Inch) |
|
3DSP3.6/40-D24/400 |
400 |
24 |
3.6 |
40 |
1‘’ |
|
3DSP4.0/50-D48/500 |
500 |
48 |
4.0 |
50 |
1'' |
|
3DSP4.0/75-D48/600 |
600 |
48 |
4.0 |
75 |
1'' |
|
3DSP4.0/95-D48/750 |
750 |
48 |
4.0 |
95 |
1'' |
|
3DSP4.0/95-D72/750 |
750 |
72 |
4.0 |
95 |
1'' |
|
3DSP4.0/125-D72/1000 |
1000 |
72 |
4.0 |
125 |
1.25'' |
|
3DSP4.0/125-D110/1000 |
1000 |
110 |
4.0 |
125 |
1.25'' |
|
3DSP4.0/165-D110/1500 |
1500 |
110 |
4.0 |
165 |
1.25'' |
4'' DC Solar Pump
|
Model |
Power (W) |
Voltage (V) |
Max.Flow (M3/H) |
Max.Head (M) |
Outlet (Inch) |
|
4DSP6.0/28-D24/250 |
250 |
24 |
6.0 |
28 |
1.25‘’ |
|
4DSP6/45-D24/400 |
400 |
24 |
6.0 |
45 |
1.25‘’ |
|
4DSP6/45-D48/500 |
500 |
48 |
6.0 |
45 |
1.25‘’ |
|
4DSP6/60-D48/750 |
750 |
48 |
6.0 |
60 |
1.25‘’ |
|
4DSP6/60-D72/750 |
750 |
72 |
6.0 |
60 |
1.25‘’ |
|
4DSP6/88-D72/1000 |
1000 |
72 |
6.0 |
88 |
1.25‘’ |
|
4DSP6/95-D110/1000 |
1000 |
110 |
6.0 |
95 |
1.25‘’ |
|
4DSP6/135-D110/1500 |
1500 |
110 |
6.0 |
135 |
1.5‘’ |
|
4DSP9/45-D110/750 |
750 |
110 |
9.0 |
45 |
1.5‘’ |
|
4DSP9/60-D110/1000 |
1000 |
110 |
9.0 |
60 |
1.5‘’ |
|
4DSP9/88-D110/1500 |
1500 |
110 |
9.0 |
88 |
1.5‘’ |
|
4DSP12/52-D110/1000 |
1000 |
110 |
12 |
52 |
1.5‘’ |
|
4DSP12/65-D110/1500 |
1500 |
110 |
12 |
65 |
1.5‘’ |
|
4DSP17.5/50-D110/1500 |
1500 |
110 |
17.5 |
50 |
1.5‘’ |
|
Pump body |
Stainless steel |
|
Motor bracket |
Stainless Steel |
|
Motor&pump shaft |
AISI304 |
|
Machanical seal |
Silicon carbide-Tunsten carbide |
|
Impeller |
POM |
|
Diffuser |
Stainless Steel |
|
Coupling and outlet |
Brass / Stainless Steel |
|
Electric motor |
Advanced brushless DC motor |
|
Insulation Class |
B |
|
Protection |
IP ×8 |
|
Diameter of Outlet |
1”/1.25"/1.5‘’/2‘’ |
Solar Well Pump Features:
Solar Well Pump Pack & Delivery
Wooden Case
Delivery Time:3-15 days for samples; 30 days for batch goods
