Place of Origin: | China |
---|---|
Certification: | ISO9001 CE |
Model Number: | ISG |
Minimum Order Quantity: | 1 set |
Price: | 1000 USD/SET |
Packaging Details: | Ply wooden box |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 1000 SET/Month |
Material: | Cast Iron/Stainless Steel | Warranty: | 1 Year |
---|---|---|---|
Type: | Booster Pump | Application: | Inline Pump |
High Light: | ISG Series Vertical Inline Pump,140m Head Vertical Inline Pump,ISO9001 Vertical End Suction Pump |
Item | Vertical or horizontal inline pump |
Suction | end |
Model | ISW(horizontal),ISG(vertical) |
Material | Cast iron or stainless steel |
Color | Blue and adjustable |
Drive | Direct connection by motor |
Impeller | Close impeller |
Seal | Mechanical seal |
Speed | 2900r/min,1450r/min |
Theory | Centrifugal pump |
Structure | Single stage pump |
Usage | Circulation, booster |
Power | Electric |
Standard/ Nonstandard | Standard |
Production standard | GB/T5657-1995 |
Outlet diameter | 25-300mm |
Capacity | 2.5-500m³/h |
Head | 10-140m |
Power | 0.55-180kw |
Warranty | 1year |
Certificate | ISO9001 |
OEM | Acceptable |
Feature | Small size |
Features:

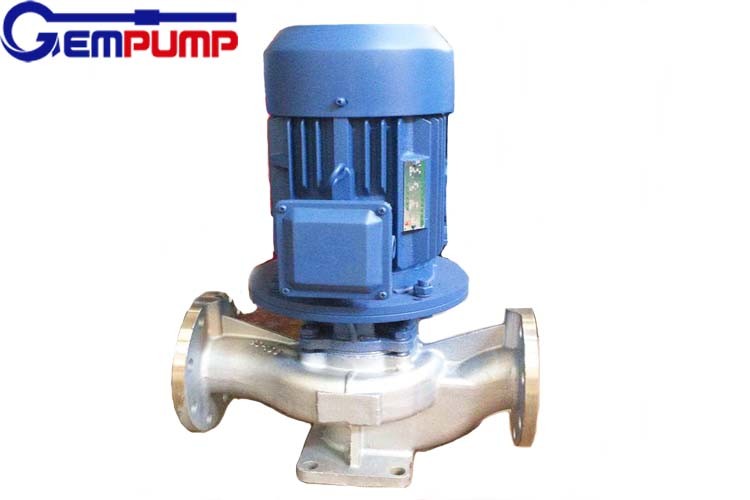

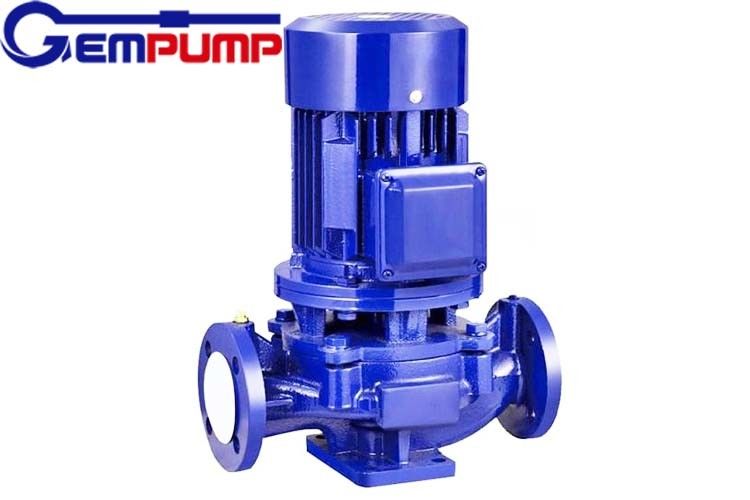

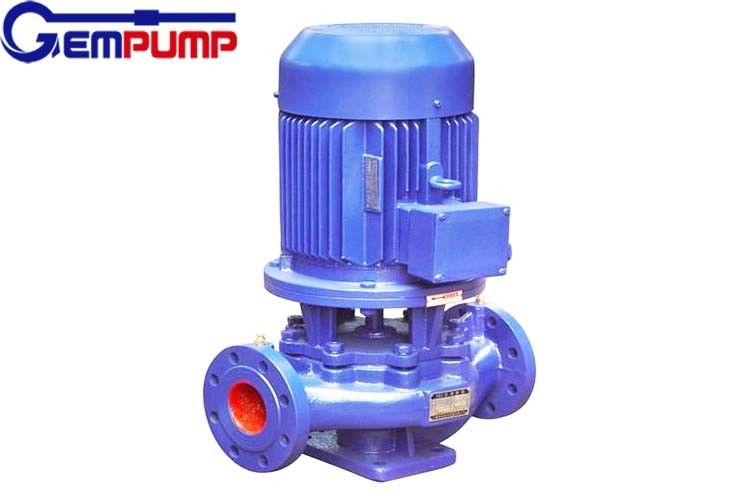

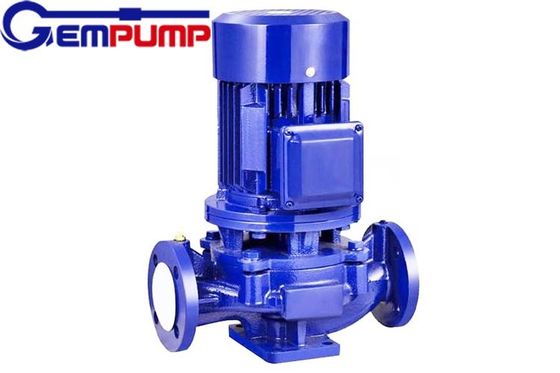

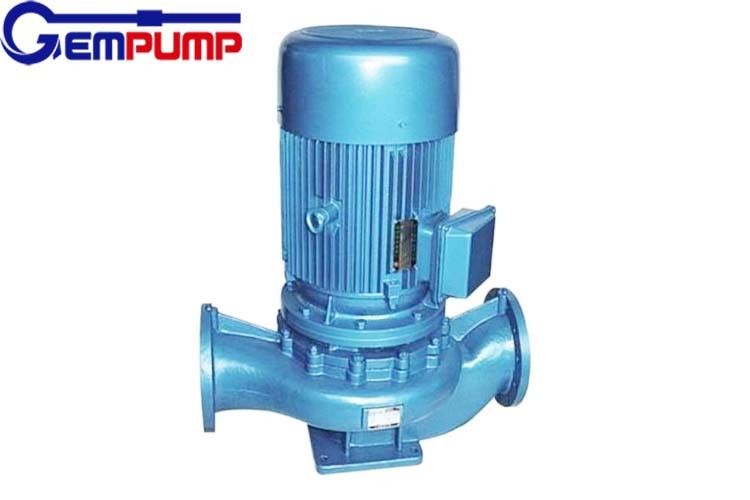

ISG series vertical single stage inline centrifugal water pump.
ISG vertical pipeline centrifugal pump is suitable for transporting clean water and other liquids with similar physical and chemical properties to clean water.
Application:
It is suitable for industrial and urban water supply and drainage, pressurized water supply for high-rise buildings, garden irrigation, fire fighting water pressurization, long-distance transportation, cold and warm water circulation, etc.
Specification:
Flow: 3 - 1600m³/h
Head: 3 - 125m
Power: 0.55 - 280kw
Pressure: 1.6m
Model
|
Flow(m³/h)
|
Head(m)
|
Speed(r/min)
|
Power(kw)
|
Weight(kg)
|
ISG15-80
|
1.1
|
8.5
|
2800
|
0.81
|
17
|
ISG15-80
|
1.5
|
8
|
2800
|
0.81
|
17
|
ISG15-80
|
2
|
7
|
2800
|
0.81
|
17
|
ISG25-110
|
2.8
|
16
|
2900
|
0.55
|
26
|
ISG25-110
|
4
|
15
|
2900
|
0.55
|
26
|
ISG25-110
|
5.2
|
13.5
|
2900
|
0.55
|
26
|
ISG25-160A
|
2.6
|
29
|
2900
|
1.1
|
34
|
ISG25-160A
|
3.7
|
28
|
2900
|
1.1
|
34
|
ISG25-160A
|
4.9
|
26
|
2900
|
1.1
|
34
|
ISG32-125
|
3.5
|
22
|
2900
|
0.75
|
28
|
ISG32-125
|
5
|
20
|
2900
|
0.75
|
28
|
ISG32-125
|
6.5
|
18
|
2900
|
0.75
|
28
|
ISG32-160(1)
|
4.4
|
33.2
|
2900
|
2.2
|
47
|
ISG32-160(1)
|
6.3
|
32
|
2900
|
2.2
|
47
|
ISG32-160(1)
|
8.3
|
30.2
|
2900
|
2.2
|
47
|
ISG32-200A
|
2.8
|
44.6
|
2900
|
2.2
|
74
|
ISG32-200A
|
4
|
44
|
2900
|
2.2
|
74
|
ISG32-200A
|
5.2
|
42.7
|
2900
|
2.2
|
74
|
ISG40-100A
|
3.9
|
10.6
|
2900
|
0.37
|
32
|
ISG40-100A
|
5.6
|
10
|
2900
|
0.37
|
32
|
ISG40-100A
|
7.4
|
9
|
2900
|
0.37
|
32
|
For more models, please contact us.
|
