Place of Origin: | China |
---|---|
Certification: | ISO9001 CE |
Model Number: | CDLF |
Minimum Order Quantity: | 1 set |
Price: | 1000 USD/SET |
Packaging Details: | Ply wooden box |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 1000 SET/Month |
Type: | Centrifugal Booster Pump | Warranty: | 1 Year |
---|---|---|---|
High Light: | CDL Stainless Steel Centrifugal Pump,150m3/H Centrifugal Booster Pump,150m3/H Stainless Steel Centrifugal Pump |

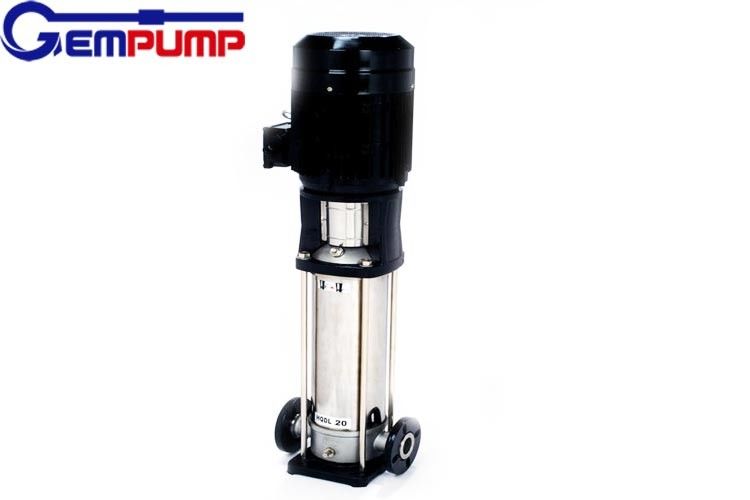

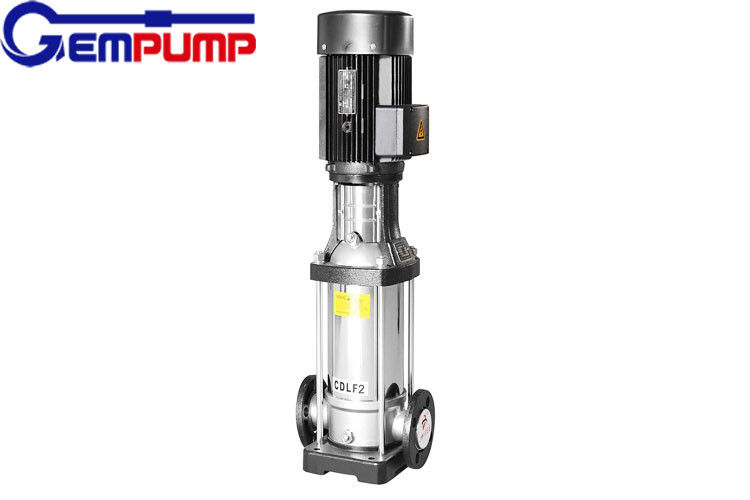

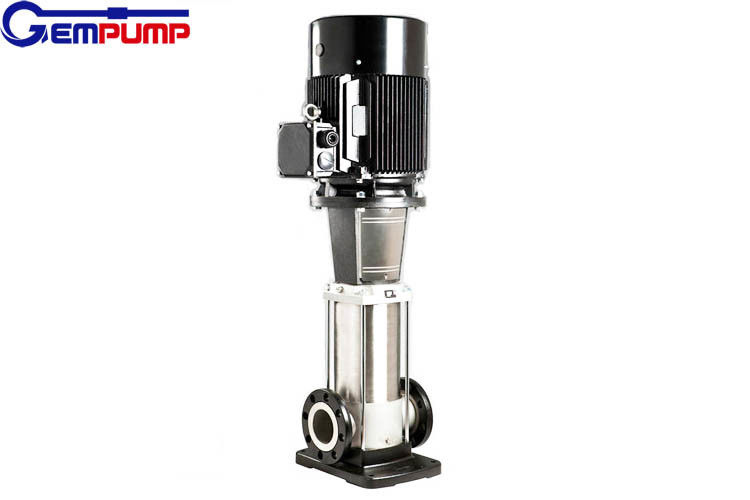

Vertical multistage 304/316 stainless steel pipeline centrifugal pump
CDLF Pump Parameter range:
Flow range:1-150m3/h
Head range:10-305m
Diameter: 25-125mm
Temperature:-15-70℃(hot water:70-120℃)
Description
CDL / CDLF is a kind of vertical multi-functional centrifugal pumps.It can be used to convey various medium at different temperature and with different flow rate and pressure. CDL type is applicable to conveying non-corrosive liquid, while CDLF is suitable for slightly corrosive liquid.
Application
1) Water Supply: water filter and transport in waterworks, boosting of main pipeline, boosting in high-rise buildings.
2) Industrial Boosting: process flow water system, cleaning system, high-pressure washing system, fire fighting system.
3) Industrial Liquid conveying: cooling and air-conditioning system, boiler water supply and condensing system,machine-associated purpose, acids and alkali.
4) Water Treatment: ultra filtration system.
5) Reverse Osmosis System.
6) Distillation System, separator, swimming pool.
7) Irrigation: Farmland irrigation, spray irrigation, dripping irrigation
Operation Conditions
1) Clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
2) Liquid temperature: Normal temperature type:-15℃~ +70℃ ; Hot water type:-15℃~ +120℃
3) Ambient temperature: up to +40℃
4) Altitude:up to 1000m
5) When the density or viscosity of the transmission medium exceeds that of water, it is necessary to select a driving motor of high-power.
6) PH 5-8
