Place of Origin: | China |
---|---|
Brand Name: | Gempump |
Certification: | ISO9001,CE |
Model Number: | IHF40-25-125F |
Minimum Order Quantity: | 1 Set Water Pump |
Price: | 1000USD |
Packaging Details: | Plywooden box |
Delivery Time: | 5 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 sets pumps per month |
Type: | IHF Plastic Pump | Material: | FEP PFA Fluorine Plastic |
---|---|---|---|
Warranty: | 12 Months | Voltage: | AC220V/380V/415V |
Pressure: | High Pressure | Usage: | Chemical And Petrochemical Industries |
High Light: | 220v industrial centrifugal pumps,stainless steel industrial centrifugal pumps,220v stainless steel centrifugal pump |

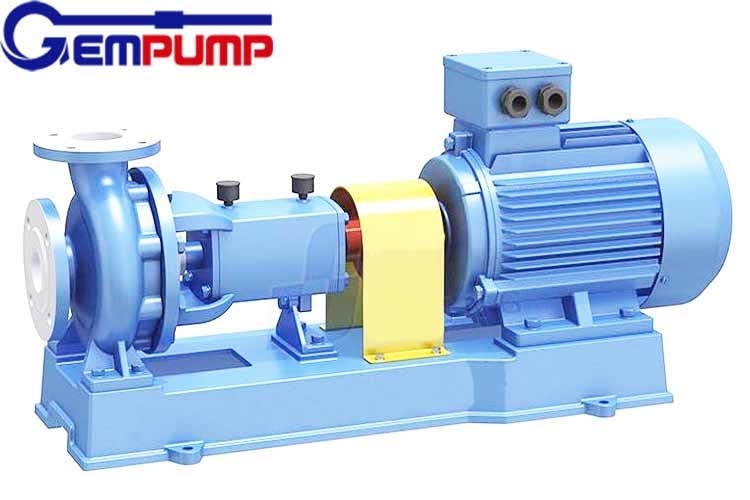

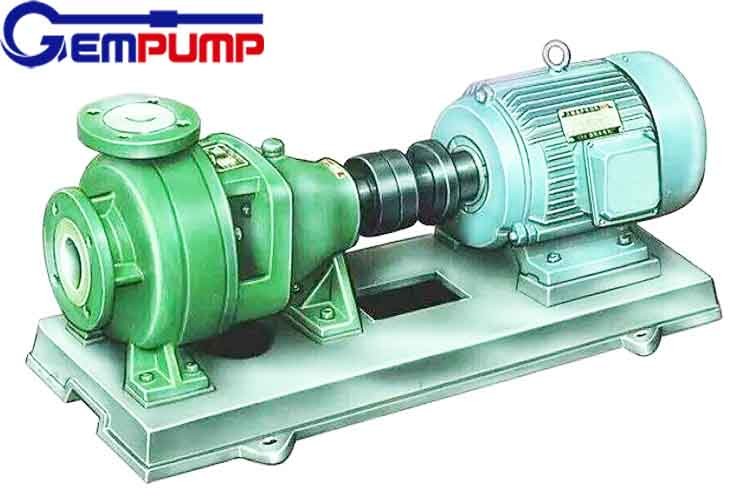

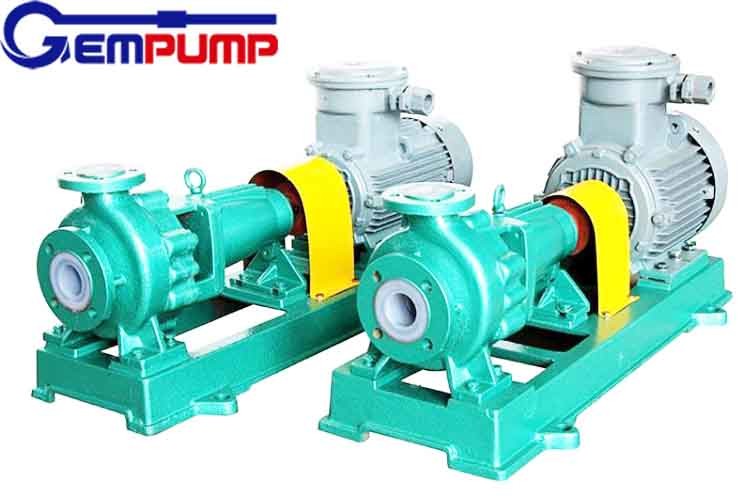

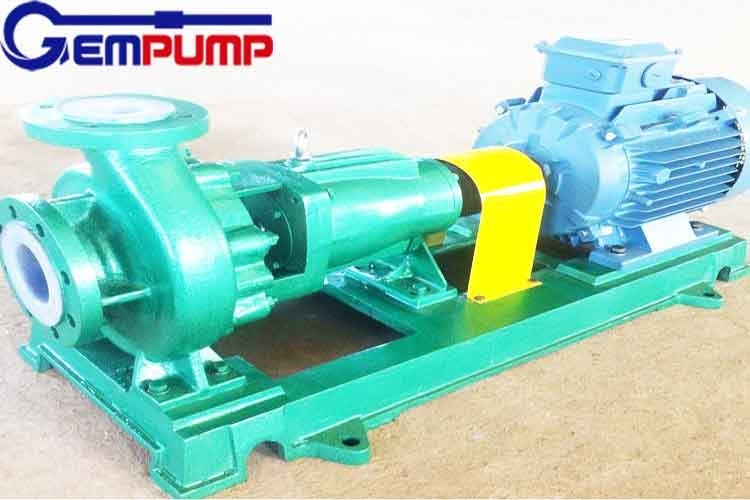

IHF40-25-125 Process Discharge Acid Liquid Alkaline Liquid Transfer FEP PFA Fluorine Plastic Electric Pump
IHF Aicd Liquid Alkaline Likaline Transfer Pump Summarize:
IHF Series pump is a single-stage, fluorinated ethylene propylenelined, chemical centrifugal pump, grease or oil bath lubrication, external installed mechanical seals, heavy duty horizontal design. Technical specifications to ISO 15783 and ISO 5199. The pump design permits dismantling of complete bearing unit towards the drive end, without the pump casing having to be disconnected from the piping. If a spacer coupling is used, it is also unnecessary to disconnect the motor. The IHF type pump is a Gempump China standard pump for all the applications listed.
All components which come into contact with the medium are either plastic-lined or made of other resistant materials, e.g. silicon carbide.
IHF Chemical Pump Product Details:
Working Principle: | Centrifugal Chemical Pump |
Usage: | Corrosive Chemical Liquid,Acid,Alkaline,98% Sulfuric Acid |
Main Applications: |
• Chemical and petrochemical industries • Pharmaceutical industy • Paint industy • Plastic and rubber industries • Ferrous and non-ferrous metal industries • Paper and cellulose industries • Textile industry • Food and drink industries |
Shaft seal type: |
• Single Mechanical Seal • Double Mechanical Seal • Cartridge Seal |
Material: | PTEE,F46/FEP,PFA |
Max.Temperature: | 170℃ (338℉) |
Heating Jacket: | Can |
Liquid with Solid: | No |
IHF Plastic Horizontal Centrifugal Pump Performance Curve Data:
Pump Model | Flow rate | Head | Speed | Eff. | NPSHr | Motor Power |
m3/h | m | rpm | % | m | KW | |
IHF25-20-125 | 1.6 | 20 | 2900 | 45.9 | 1.59 | 1.5 |
IHF25-20-160 | 1.6 | 30 | 2900 | 45.9 | 1.59 | 1.5 |
IHF32-20-125 | 3.6 | 20 | 2900 | 48.3 | 2 | 1.5 |
IHF32-25-160 | 3.6 | 30 | 2900 | 48.2 | 2 | 1.5 |
IHF40-25-125 | 6.3 | 20 | 2900 | 51.6 | 2.43 | 1.5 |
IHF40-25-160 | 6.3 | 30 | 2900 | 51.6 | 2.43 | 2.2 |
IHF40-25-200 | 6.3 | 50 | 2900 | 51.6 | 2.43 | 5.5 |
IHF40-32-250 | 6.3 | 80 | 2900 | 51.6 | 2.43 | 11 |
IHF50-32-125 | 12.5 | 20 | 2900 | 57.8 | 3.21 | 2.2 |
IHF50-32-160 | 12.5 | 32 | 2900 | 57.8 | 3.21 | 4 |
IHF50-32-200 | 12.5 | 50 | 2900 | 57.8 | 3.21 | 7.5 |
IHF50-32-250 | 12.5 | 80 | 2900 | 57.8 | 3.21 | 11 |
IHF65-50-125 | 25 | 20 | 2900 | 63.8 | 2.97 | 3 |
IHF65-50-160 | 25 | 32 | 2900 | 63.8 | 2.97 | 5.5 |
IHF65-40-200 | 25 | 50 | 2900 | 63.8 | 2.97 | 11 |
IHF65-40-250 | 25 | 80 | 2900 | 63.8 | 2.97 | 18.5 |
IHF80-65-125 | 50 | 20 | 2900 | 68.8 | 3.21 | 5.5 |
IHF80-65-160 | 50 | 32 | 2900 | 68.8 | 3.21 | 11 |
IHF80-50-200 | 50 | 50 | 2900 | 68.8 | 3.21 | 15 |
IHF80-50-250 | 50 | 80 | 2900 | 68.8 | 3.21 | 30 |
IHF100-80-125 | 100 | 20 | 2900 | 73 | 3.89 | 11 |
IHF100-80-160 | 100 | 32 | 2900 | 73 | 3.89 | 15 |
IHF100-65-200 | 100 | 50 | 2900 | 73 | 3.89 | 30 |
IHF100-65-250 | 100 | 80 | 2900 | 73 | 3.89 | 45 |
IHF125-100-160 | 160 | 32 | 2900 | 75.3 | 5.18 | 30 |
IHF125-100-200 | 200 | 50 | 2900 | 76.4 | 6.02 | 55 |
IHF125-100-250 | 200 | 80 | 2900 | 76.4 | 6.02 | 55 |
IHF150-125-250 | 200 | 20 | 1450 | 76.4 | 2.39 | 22 |
IHF150-125-315 | 200 | 32 | 1450 | 76.4 | 2.39 | 45 |
IHF150-125-400 | 200 | 50 | 1450 | 76.4 | 2.39 | 75 |
IHF200-150-250 | 400 | 20 | 1450 | 79.4 | 3.34 | 37 |
IHF200-150-315 | 400 | 20 | 1450 | 79.4 | 3.34 | 75 |
IHF200-150-400 | 400 | 50 | 1450 | 79.4 | 3.34 | 110 |
