Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001,CE |
| Model Number: | IHF32-25-125F |
| Minimum Order Quantity: | 1 Set Water Pump |
| Price: | 1000USD |
| Packaging Details: | Plywooden box |
| Delivery Time: | 5 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets pumps per month |
| Type: | IHF Centrifugal Pump | Material: | Plastic Fluorine |
|---|---|---|---|
| Voltage: | AC220V/380V/415V | Warranty: | 12 Months |
| Structure: | Horizontal Single-stage Pump | Working: | -20 °C To +150 °C |
| High Light: | iso chemical centrifugal pump,fluorine chemical centrifugal pump,iso standard stainless steel centrifugal pump |
||

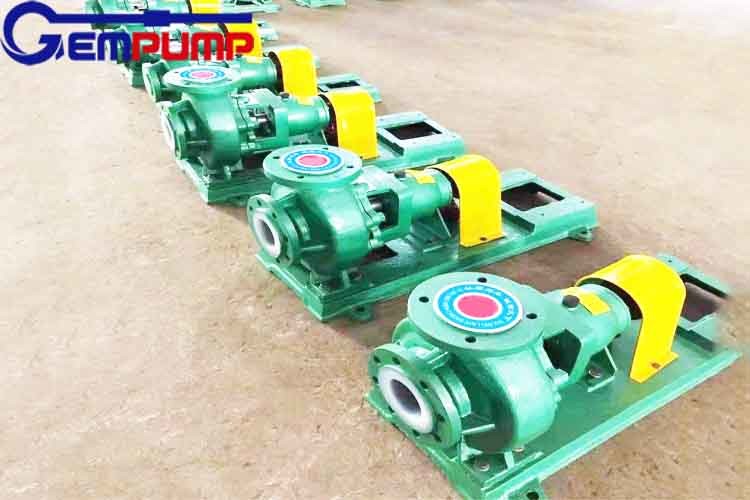

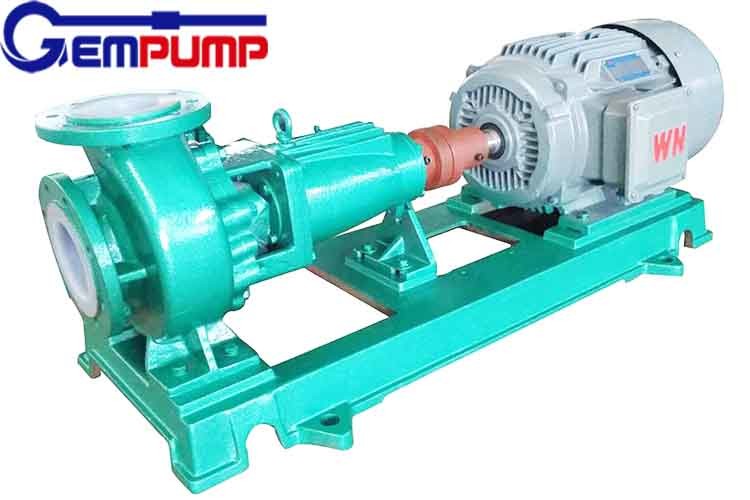

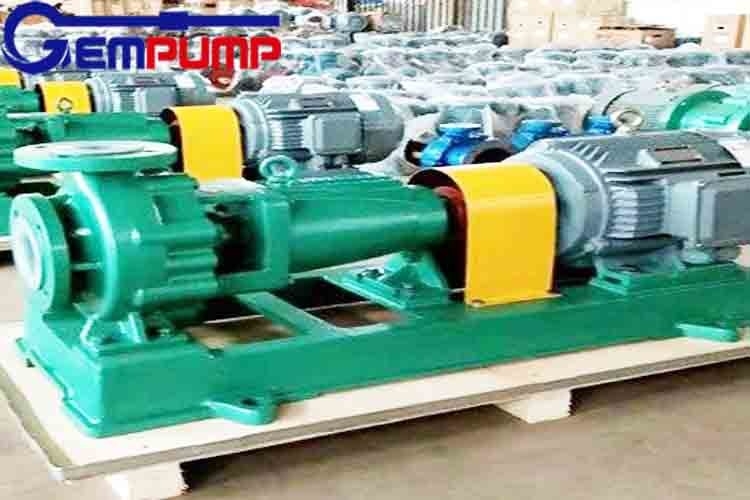

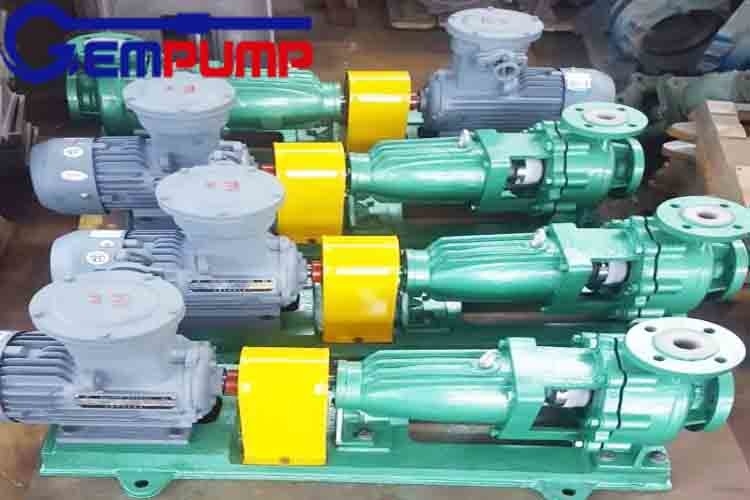

IHF32-25-125 High Quality ISO Plastic Fluorine Centrifugal Pump For Chemical Use
IHF series pump is a horizontal, non-metallic chemical centrifugal pump, which is our factory patent technology product. Compliant with ISO9001,ISO2858, DIN,EN 22858.
IHF corrosive resistant chemical pump can handle strong corrosive medium such as sulfuric acid, hydrochloric acid, etc. IHF corrosive resistant chemical pump is centrifugal pump metal casing lined with teflon, impeller and pump cover integrally sintered and pressure molded by metal inserts with teflon outside, externally mounted bellows mechanical seal for shaft seal, stationary seal ring made of 99.9% aluminum oxide ceramics or silicon carbide, rotating seal ring made of tetrafluoride packing material or silicon carbide. It resists corrosion, abrasion, high temperature and aging, and has high mechanical strength, no toxin decompounding, and wide range of service temperature.
|
型号 Pump Model |
转速 Speed (r／min) |
流量 Flow rate |
扬程 Head (m) |
效率 Eff. (％) |
功率(KW) Motor power |
必需汽 蚀余量 (m) NPSHr |
叶轮直径 Impeller Dia.(mm) |
重量 Weight(kg) |
||
| (m3／h) | (L／s) | 轴功率 | 电机功率 | |||||||
| IHF32-25-125 | 2900 | 3.5 5 6.5 | 0.97 1.39 1.80 | 21 20 18 | 40 44 42 | 0.50 0.62 0.76 | 1.5 | 2.3 | 128 | 80 |
| 1450 | 1.75 2.5 3.25 | 0.49 0.69 0.90 | 5.25 5 4.5 | 37 40 38 | 0.068 0.085 0.105 | 0.75 | 2.3 | 128 | 75 | |
| IHF32-25-125A | 2900 | 3.1 4.5 5.8 | 0.06 1.25 1.61 | 17.6 16 14.4 | 38 41 40 | 0.70 0.48 0.57 | 1.1 | 2.3 | 115 | 75 |
| IHF32-25-160 | 2900 | 3.5 5 6.5 | 0.97 1.39 1.80 | 33 32 30 | 34 40 42 | 0.93 1.10 1.26 | 2.2 | 2.3 | 162 | 90 |
| 1450 | 1.75 2.5 3.25 | 0.49 0.69 0.90 | 8.25 8 7.5 | 30 38 40 | 0.13l 0.143 0.166 | 0.75 | 2.3 | 162 | 75 | |
| IHF32-25-160A | 2900 | 3.1 4.5 5.8 | 0.86 1.25 1.61 | 29 28 26 | 30 35 36 | 0.8l 0.97 1.14 | 1.5 | 2.3 | 152 | 80 |
| IHF40-32-125 | 2900 | 4.4 6.5 8.3 | 1.22 1.80 2.31 | 21 20 18 | 40 45 43 | 0.63 0.79 0.95 | 2.2 | 2.5 | 128 | 90 |
| 1450 | 2.2 3.25 4.15 | 0.60 0.90 1.15 | 5.25 5 4.5 | 37 41 40 | 0.085 0.108 0.127 | 0.75 | 2.5 | 128 | 75 | |
| IHF40-32-125A | 2900 | 3.9 5.6 7.4 | 1.08 1.56 2.06 | 17.6 16 14.4 | 38 42 40 | 0.49 0.58 0.72 | 1.5 | 2.5 | 115 | 80 |
| IHF40-32-160 | 2900 | 4.4 6.5 8.3 | 1.22 1.80 2.31 | 33 32 30 | 34 40 39 | 1.16 1.42 1.71 | 2.2 | 2.5 | 162 | 90 |
| 1450 | 2.2 2.5 3.25 | 0.60 0.90 1.15 | 8.25 8 7.5 | 33 36 37 | 0.14 0.15 0.18 | 0.75 | 2.5 | 162 | 75 | |
| IHF40-32-160A | 2900 | 3.9 5.6 7.4 | 1.08 1.56 2.06 | 29 28 26 | 32 38 37 | 0.96 1.23 1.41 | 1.5 | 2.5 | 152 | 80 |
| IHF50-32-125 | 2900 | 8.8 12.5 16.3 | 1.08 1.56 2.06 | 21.5 20 17.5 | 45 54 53 | 1.15 1.26 1.47 | 2.2 | 3.0 | 128 | 90 |
| 1450 | 4.4 6.25 8.15 | 17 1.74 2.26 | 5.37 5 4.37 | 37 46 45 | 0.17 0.18 0.22 | 0.75 | 3.0 | 128 | 75 | |
| IHF50-32-125A | 2900 | 8 11 14.5 | 2.22 3.05 4.03 | 17 16 14 | 42 52 51 | 0.88 0.92 1.08 | 1.5 | 3.0 | 115 | 80 |
| IHF50-32-160 | 2900 | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 33 32 30 | 41 48 47 | 1.93 2.27 2.84 | 4 | 3.0 | 160 | 120 |
| 1450 | 4.4 6.25 8.15 | 1.2 1.74 2.26 | 8.25 8 7.5 | 31 41 42 | 0.31 0.33 0.39 | 0.75 | 3.0 | 160 | 90 | |
| IHF50-32-160A | 2900 | 8.2 11.7 15.2 | 2.28 3.25 4.22 | 29 28 26 | 39 47 46 | 1.16 1.88 2.34 | 3 | 3.0 | 150 | l00 |
| IHF50-32-200 | 2900 | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 52 50 48 | 34 42 41 | 3.70 4.10 5.20 | 7.5 | 3.0 | 190 | 150 |
| 1450 | 4.4 6.25 8.15 | 1.2 1.74 2.26 | 13 12.5 12 | 25 33 36 | 0.62 0.65 0.74 | 1.5 | 3.0 | 190 | 100 | |
|
型号 Pump model |
转速 (r／min) Speed |
流量 Flow rate |
扬程 (m) Head |
效率 Eff.(％) |
功率(KW) Motor power |
必需汽 蚀余量 (m) NPSHr |
叶轮 直径(mm) Impeller Dia. |
重量 (kg) Weight |
||
| (m3／h) | (1／s) | 轴功率 | 电机功率 | |||||||
| IHF50-32-200A | 2900 | 8.2 11.7 15.2 | 2.28 3.25 4.22 | 45 44 42 | 31 40 39 | 3.24 3.50 4.45 | 5.5 | 3.0 | 178 | 130 |
| IHF50-32-250 | 2900 | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 82 80 76 | 27 35 34 | 7.30 7.80 10 | 11 | 3.0 | 250 | 220 |
| 1450 | 4.4 6.25 8.15 | 1.2 1.74 2.26 | 20.5 20 19 | 20 27 30 | 1.22 1.26 1.40 | 2.2 | 3.0 | 250 | 100 | |
| IHF50-32-250A | 2900 | 8.2 11.7 15.2 | 2.28 3.25 4.22 | 7l 70 68 | 25 34 33 | 4.53 6.56 8.52 | 7.5 | 3.0 | 235 | 170 |
| IHF65-50-l25 | 2900 | 17.5 25 3 | 4.86 6.94 9.0 | 21.5 20 17.5 | 56 64 63 | 1.83 2.13 2.42 | 3 | 3.5 | 128 | 100 |
| 1450 | 8.75 12.5 16 | 2.43 3.47 4.44 | 5.37 5 4.37 | 45 57 58 | 0.28 0.30 0.33 | 0.75 | 3.5 | 128 | 80 | |
| IHF65-50-125A | 2900 | 15.6 22.3 29 | 4.33 6.19 8.1 | 17 16 14 | 53 62 61 | 1.36 1.57 1.79 | 2.2 | 3.5 | 115 | 90 |
| IHF65-50-160 | 2900 | 17.5 25 32 | 4.86 6.94 9.0 | 33 32 27.5 | 50 59 57 | 3.15 3.69 4.20 | 5.5 | 3.5 | 160 | 145 |
| 1450 | 8.75 12.5 16 | 2.43 3.47 4.44 | 8.25 8 6.87 | 40 53 51 | 0.49 0.51 0.59 | 1.1 | 3.5 | 160 | 90 | |
| IHF65-50-160A | 2900 | 16.4 23.3 30.4 | 4.56 6.5 8.44 | 29 28 24 | 48 58 56 | 2.70 3.10 3.54 | 4 | 3.5 | 150 | 130 |
| IHF65-40-200 | 2900 | 17.5 25 32 | 4.86 6.94 9.0 | 52 50 45.5 | 45 54 54 | 5.50 6.30 7.35 | 11 | 3.5 | 195 | 225 |
| 1450 | 8.75 12.5 16 | 2.43 3.47 4.44 | 13 12.5 11.4 | 36 46 47 | 0.86 0.93 1.05 | 1.5 | 3.5 | 195 | 100 | |
| IHF65-40-200A | 2900 | 16.4 23.3 30.4 | 4.56 6.5 8.44 | 46 44 40 | 43 53 52 | 4.30 5.00 5.20 | 7.5 | 3.5 | 183 | 170 |
| IHF65-40-250 | 2900 | 17.5 95 32 | 4.86 6.94 9.0 | 82 80 76 | 39 50 52 | 10.10 10.90 12.74 | 18.5 | 3.5 | 250 | 240 |
| 1450 | 8.75 12.5 16 | 2.43 3.47 4.44 | 20.5 20 19 | 32 42 44 | 1.52 1.62 1.88 | 3 | 3.5 | 250 | 130 | |
| IHF65-40-250A | 2900 | 16.4 23.3 30.4 | 4.56 6.5 8.44 | 71 70 68 | 36 48 50r- | 8.80 9.30 11.25 | 15 | 3.5 | 235 | 230 |
| IHF80-65-125 | 2900 | 35 50 65 | 9.72 13.9 18.1 | 21.5 20 17 | 64 69 67 | 3.20 3.95 4.50 | 5.5 | 4.0 | 134 | 150 |
| 1450 | 17.5 25 32.5 | 4.86 6.9 9.0 | 5.37 5 4.25 | 54 64 62 | 0.47 0.53 0.6l | 1.1 | 4.0 | 134 | 90 | |
| IHF80-65-125A | 2900 | 31 45 58 | 8.6 12.5 16.1 | 17 16 14 | 62 68 67 | 2.30 2.88 3.30 | 4 | 4.0 | 120 | 130 |
| IHF80-65-160 | 2900 | 35 50 65 | 9.72 13.9 18.1 | 33 32 27.5 | 60 68 67 | 5.24 6.41 7.27 | 11 | 4.0 | 165 | 220 |
|
型号 Pump model |
转速 (r／min) Speed |
流量 Flow rate |
扬程 (m) Head |
效率 Eff.(％) |
功率(KW) Motor power |
必需汽 蚀余量 (m) NPSHr |
叶轮直 径(mm) Impeller Dia. |
重量 (kg) Weight |
||
| (m3／h) | (l／s) | 轴功率 | 电机功率 | |||||||
| IHF80-65-160 | 1450 | 17.5 25 32.5 | 4.86 6.9 9.0 | 8.25 8 6.88 | 50 62 61 | 0.78 0.88 1.00 | 1.5 | 4.0 | 165 | 100 |
| IHF80-65-160A | 2900 | 31 45 58 | 8.6 12.5 16.1 | 29 28 24 | 58 67 66 | 4.10 5.12 5.34 | 7.5 | 4.0 | 165 | 190 |
| IHF80-50-200 | 2900 | 35 50 65 | 9.72 13.9 18.1 | 52 50 45.5 | 52 64 65 | 9.53 10.64 12.39 | 15 | 4.0 | 197 | 230 |
| 1450 | 17.5 2532.5 | 4.86 6.9, 9.0 | 13 12.5 11.38 | 51 59 58 | 1.21 1.44 1.74 | 3 | 4.0 | 197 | 130 | |
| IHF80-50-200A | 2900 | 31 45 58 | 8.6 12.5 16.1 | 46 44 40 | 50 63 62 | 7.35 8.56 10 | 11 | 4.0 | 185 | 220 |
| IHF80-50-250 | 2900 | 35 50 65 | 9.72 13.9 18.1 | 82 80 72 | 40 50 51 | 19.40 21.80 25 | 30 | 4.0 | 248 | 400 |
| 1450 | 17.5 25 32.5 | 4.86 6.9 9.0 | 20.5 20 18 | 40 50 51 | 2.40 2.70 3.12 | 4 | 4.0 | 248 | 145 | |
| IHF80-50-250A | 2900 | 31 45 58 | 8.6 12.5 16.1 | 71.5 70 63 | 39 50 51 | 15.40 17.60 19.90 | 22 | 4.0 | 232 | 310 |
| IHF100-80-125 | 2900 | 70 100 130 | 19.4 27.8 36.1 | 23 20 14 | 70 75 65 | 6.26 7.26 7.63 | 11 | 5.0 | 136 | 220 |
| 1450 | 35 50 65 | 9.7 13.9 18.0 | 5.75 5 3.5 | 65 70 64 | 0.85 0.97 0.98 | 1.5 | 4.5 | 136 | 100 | |
| IHF100-80-125A | 2900 | 62.6 89 116 | 17.4 24.7 32.2 | 18 16 11 | 68 73 65 | 4.50 5.30 5.74 | 7.5 | 5.0 | 122 | 200 |
| IHF100-80-160 | 2900 | 70 100 130 | 19.4 27.8 36.1 | 34 32 24 | 68 74 65 | 9.53 11.78 13.03 | 15 | 5.0 | 170 | 230 |
| 1450 | 35 50 65 | 9.7 13.9 18.0 | 8.5 8 6.5 | 60 68 67 | 1.35 1.60 1.69 | 2.2 | 4.5 | 170 | 110 | |
| IHF100-80-160A | 2900 | 65.4 93.5 121 | 18.2 26 33.6 | 32 28 21 | 66 73 65 | 8.60 9.30 10.6 | 11 | 5.0 | 159 | 220 |
| IHF100-65-200 | 2900 | 70 100 130 | 19.4 27.8 36.1 | 52 50 42 | 64 72 71 | 15.50 18.91 20.94 | 30 | 5.0 | 210 | 400 |
| 1450 | 35 50 65 | 9.7 13.9 18.0 | 13 12.5 10.5 | 60 68 63 | 2.06 2.50 2.95 | 4 | 4.5 | 210 | 140 | |
| IHF100-65-200A | 2900 | 65.4 93.5 121 | 18.2 26 33.6 | 46 44 37 | 63 71 70 | 13 15.02 17.40 | 22 | 5.0 | 197 | 310 |
| IHF100-65-250 | 2900 | 70 100 130 | 19.4 27.8 36.1 | 87 80 68 | 62 69 68 | 26.60 31.60 35 | 45 | 4.0 | 255 | 450 |
| 1450 | 30 50 60 | 8.33 13.9 16.7 | 21.2 20 18.5 | 58 63 62 | 3.00 4.30 4.72 | 5.5 | 4.5 | 255 | 170 | |
| IHF100-65-250A | 2900 | 65.4 93.5 121 | 16.2 26 33.6 | 76.5 70 59 | 60 68 67 | 20.25 26.2 28 | 37 | 4.5 | 238 | 410 |
|
型 号 Pump model |
Speed 转速 n=2900 r/min | Speed 转速 n=1450 r/min | ||||||||
|
流 量 Flow rate |
扬 程 Head |
电机功率 Motor Power |
汽蚀余量(m) NPSHr |
效率 Eff.(%) |
流 量 Flow rate (m3/h) |
扬 程 Head |
电机 功率Motor Power |
汽蚀余量 (m) NPSHr |
效率Eff.(%) | |
| IHF40-25-125 | 6.3 | 20 | 1.5 | 3.0 | 51 | 3.6 | 5 | 0.37 | 3.0 | 42 |
| IHF40-25-160 | 6.3 | 32 | 2.2 | 3.0 | 46 | 3.6 | 8 | 0.55 | 3.0 | 45 |
| IHF40-25-200 | 6.3 | 50 | 4 | 3.0 | 39 | 3.6 | 12.5 | 0.75 | 3.0 | 41 |
| IHF40-25-250 | 6.3 | 80 | 7.5 | 3.0 | 41 | 3.6 | 20 | 1.5 | 3.0 | 49 |
| IHF50-32-125 | 12.5 | 20 | 2.2 | 3.0 | 51 | 6.3 | 5 | 0.55 | 3.0 | 45 |
| IHF50-32-160 | 12.5 | 32 | 4 | 3.0 | 46 | 6.3 | 8 | 0.55 | 3.0 | 40 |
| IHF50-32-200 | 12.5 | 50 | 7.5 | 3.0 | 39 | 6.3 | 12.5 | 1.1 | 3.0 | 33 |
| IHF65-50-125 | 25 | 20 | 3 | 3.5 | 62 | 12.5 | 5 | 0.55 | 3.5 | 55 |
| IHF65-50-160 | 25 | 32 | 5.5 | 3.5 | 57 | 12.5 | 8 | 1.1 | 3.5 | 51 |
| IHF65-40-200 | 25 | 50 | 11 | 3.5 | 52 | 12.5 | 12.5 | 1.5 | 3.5 | 46 |
| IHF65-40-250 | 25 | 80 | 18.5 | 3.5 | 50 | 12.5 | 20 | 3 | 3.5 | 43 |
| IHF65-40-315 | 30 | 127 | 30 | 3.5 | 52 | 12.5 | 32.3 | 5.5 | 3.5 | 37 |
| IHF80-65-125 | 50 | 20 | 5.5 | 4.0 | 69 | 25 | 5 | 1.1 | 4.0 | 64 |
| IHF80-65-160 | 50 | 32 | 11 | 4.0 | 67 | 25 | 8 | 1.5 | 4.0 | 62 |
| IHF80-50-200 | 50 | 50 | 15 | 4.0 | 63 | 25 | 12.5 | 2.2 | 4.0 | 57 |
| IHF80-50-250 | 50 | 80 | 30 | 4.0 | 66 | 25 | 20 | 5.5 | 4.0 | 51 |
| IHF100-80-125 | 100 | 20 | 11 | 4.5 | 77 | 50 | 5 | 1.5 | 4.5 | 74 |
| IHF100-80-160 | 100 | 32 | 15 | 4.5 | 73 | 50 | 8 | 2.2 | 4.5 | 69 |
| IHF100-65-200 | 100 | 50 | 30 | 4.5 | 73 | 50 | 12.5 | 5.5 | 4.5 | 68 |
| IHF100-65-250 | 100 | 80 | 55 | 4.5 | 73 | 50 | 20 | 11 | 4.5 | 68 |
| IHF125-80-160 | 160 | 32 | 30 | 5.0 | 70 | 80 | 8 | 5.5 | 5.0 | 74 |
| IHF125-100-200 | 200 | 50 | 55 | 5.0 | 65 | 100 | 12.5 | 11 | 5.0 | 71 |
| IHF125-100-250 | 100 | 20 | 15 | 5.0 | 73 | |||||
| IHF125-100-315 | 100 | 32 | 18.5 | 5.0 | 73 | |||||
| IHF150-125-250 | 200 | 20 | 22 | 5.0 | 73 | |||||
| IHF150-125-315 | 200 | 32 | 45 | 5.0 | 73 | |||||
| IHF200-150-250 | 400 | 20 | 55 | 5.5 | 74 | |||||
| IHF200-150-315 | 400 | 32 | 75 | 5.5 | 74 | |||||
| IHF250-200-315 | 700 | 32.3 | 55 | 7.5 | 75 | |||||
| IHF300-250-315 | 900 | 32.3 | 75 | 8.0 | 70 | |||||
| IHF400-300-315 | 1000 | 15 | 110 | 6.0 | 80 | |||||
| Note: if the IHF Pump parameters required by the user are not in the scope of this table, our engineers can adjust according to the user's requirements | ||||||||||
READ BEFORE INQUIRY
1.What is the flow rate of your IHF Pump product?
2.What is the lift(Pump Head) of your IHF Pump product?
3.What medium are your IHF Pump products used to transport?
4.Is there any impurity in the conveying medium?
5.What is the form of the installation of your IHF Pump product?
6.What is the Pump seal type? Packing seal or Mechanical seal.
7.What is the temperature range of the medium ?
