Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001,CE |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/Set |
| Packaging Details: | Wooden box |
| Delivery Time: | 5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000Sets Per Months |
| Type: | Magnetic Centrifugal Pump | HS Code: | 8413709990 |
|---|---|---|---|
| Material: | Gfrpp/PP/PVDF/PFA | Warranty: | 12 Months |
| Application: | Nuclear Power Plant | Voltage: | 220V/380V/415V/460V |
| High Light: | sealless magnetic centrifugal pump,380v magnetic centrifugal pump,water treatment magnetic drive centrifugal pump |
||

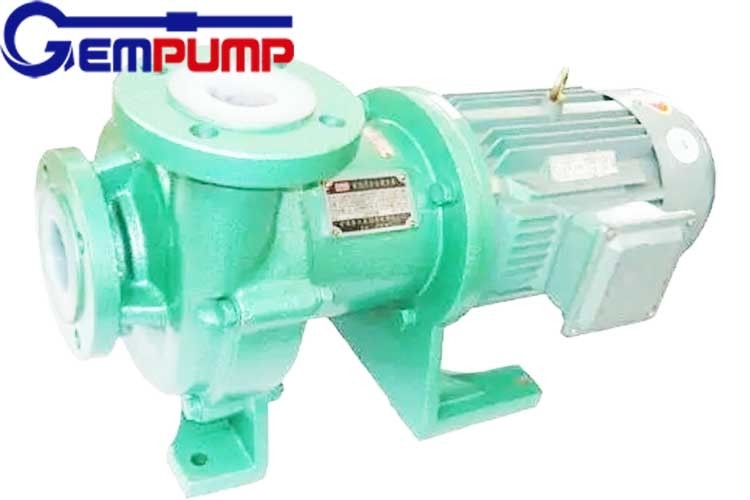

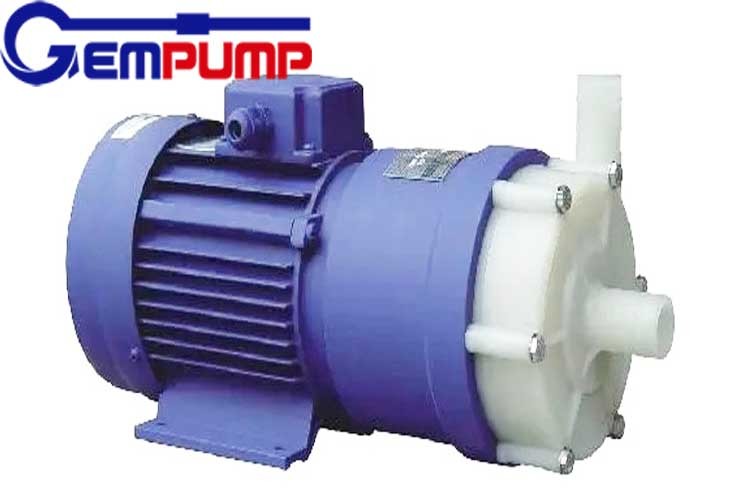

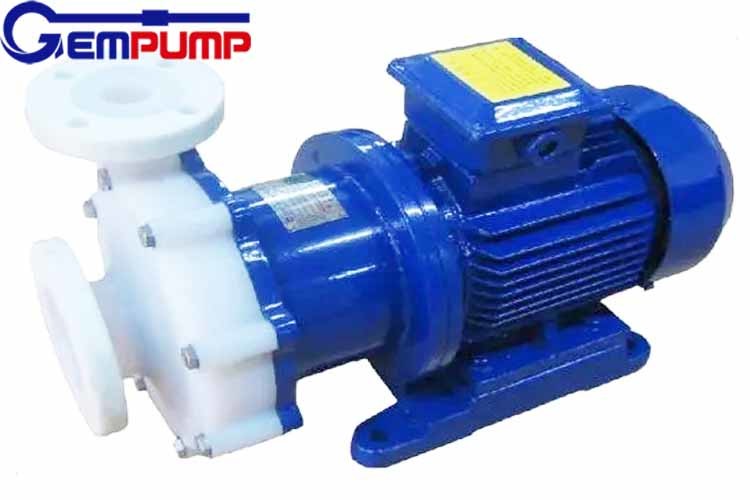

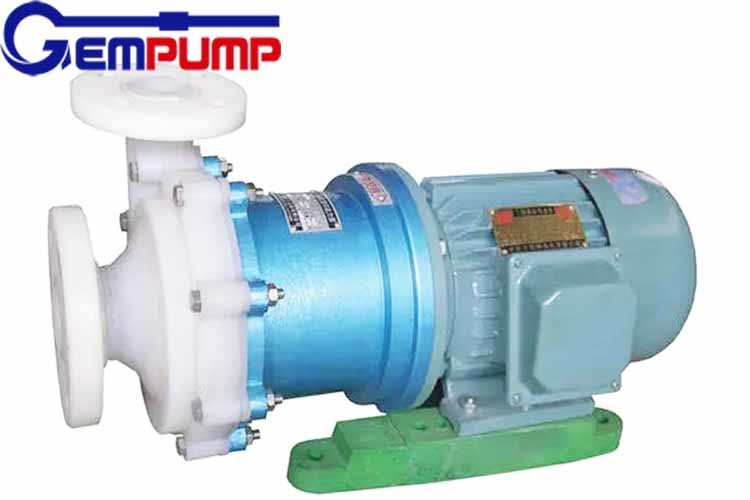

Water Treatment Mag-Drive Sealless Horizontal Chemical Discharge Processing Seal Plastic Pump
MD type Magnetic Pump(Magnetic Drive Pump, Mag drive Pump, Magdrive Pump). It is applicable to pump and transport the acid, alkaline liquid, oil, rare expensive liquid, poisonous liquid, volatile liquid and water circulation equipment, especially the pumping and transportation of the flammable, leaky and explosive liquid.
| Product Name | Teflon lined magnetic pump |
| Material | PTFE/FEP/PVDF/PP lining |
| Standard | ISO9001, ASME, ANSI |
| Flow rate | 1~160 m3/h |
| Head | 17~62m |
| Voltage | 220V/380V/415V/460V or as customer required |
| Working temperature | -20ºC to + 120 ºC |
| Design pressure | 1.6Mpa |
| Warranty | 12 months |
Magnetic Drive Sealless Pump body made of CFRETFE/PP//PVDF/GFRPP
1. Outstanding Acid / Alkaline Resisting Capability
The material of pump body has four kinds to choose from, including PP(Polypropylene), GFRPP(Glass Fiber Filled Polypropylene), PVDF(Natural PVDF), CFRETFE(Carbon Fiber Filled ETFE). Correct choice of pump body material depends on acid / alkaline density of solution. To satisfied the market demand, saiken was the pioneer to provide PP pump material for enhancing the capability of acid resistance. The PP / GFRPP material can resist temperature up to 75ºC. The PVDF material can resist temperature up to 90ºC. The CFRETFE material can resist temperature up to100ºC. In application almost all solutions can be transferred with safety. Flow rate up to 350LPM, Max. head 35 m, Max power 10hp
2. Corrosion Resisting
The major parts of the pump feature outstanding corrosion-resist capability. For example the pump spindle can be made from ceramic and SIC. The ceramic spindle is generally applied for low corrosion liquid. The SIC spindle is excellent for high corrosion liquid.
3. Unique design of Bearing for dry running endure
Due to the unique design of Bearing, while the pump operating normally, the fluid circulated cooling with impeller, spindle and magnet capsule. Although the pump dry-running, the temperature cannot be get higher quickly to avoid pump be damaged seriously.
4. Easy to Assemble
The internal parts of a magnetic drive sealless pump are fully standard for easy assembling completely constructed with high performance. Parts replacement is easy to made without need to of any specially tool. It features convenient maintenance, dismantling and inspection for time saving service.
5. Maximum Durability
The (0.37Kw~3.75Kw) series pump employs extra powerful permanent magnet featuring
outstanding performance and coupling capability.
6. Versatile Applications
The magnetic drive sealless pump is ideal for low capacity with high head or high capacity
with low head applications. It is widely applied in various industrial process. Such as PCB process, chemical industry, circulated filtering, etching, plating, surface treatment, polluted water treatment, etc. these pumps assure outstanding performance and maximum durability.
Horizontal Centrifugal Magnetic Pump Typical Uses:
The wearing part of CQF4 series pump is fluoroplastic, the pump can be used to transfer not only water, but also corrosive medium, expensive liquid or the other physcial and chemical medium. The medium temperature should be within -120ºC to 350ºC. This product is widely apply to:
| Chemical Industry | Petroleum Industry | Pharmaceutical Industry |
| Biological Industry | Nuclear Power Plant | Nonferrous Metal |
| Food Industry | Automotive Industry | Municipal Water Supply |
Why Choose Us:
Specialists in Custom of Pump-Oil transfer Pump Supplier,China Pump Exporter
China Gempump are a specialist pump manufacturer & supplier for the marine and industrial markets for most applications but not limited transfer of water, fuels oil and lubricants. Assured quality, technical expertise and application experience is what you can expect. Our added value is our knowledge in specifying the right pump for your requirements.
With a large portion of China Gempump customers being from overseas, we have great experience in handling pump enquiries and projects for export throughout 70 different countries worldwide.
Technical Parameter:
A) Flow: 6- 100m3/h
B) Head: 16-42m
C) Operating Temperature: -20 - 100ºC
D) Shaft Sealing: Gland / Mech. Seal
E)Motor: Closed, externally ventilated
F)Insulation class: B (Class F if required)
G)Protection class: IP44 / IP54
H)Duty: Continuously rated.
Company Information
FAQ:
Q1: Are you manufacturer or trading company?
Our company China Gempump is a professional producer for centrifugal pumps, and export pumps by ourselves.
Q2: What's your business range?
We manufacture chemical centrifugal pump, self-sucking pump, vertical/horizontal multistage pump,sewage pump, clean water pump,Horizontal centrifugal pump, stainless steel pump, magnetic drive pump, fire pump, chemical pump and so on.
Q3: How to check and verify the products?
We support video inspection and verification .
Q4: What are your payment terms?
Common terms: T/T 30% deposit, balance payment before shipment, L/C.
Q5: How about warranty and after-service?
12 months warranty time after receiving days, not include quick-wear parts and default phase.We promise 24 hours action for your problems.
