Ss 304l 316l 347h Ansi Flanged Mag Drive Centrifugal Pump For Chemical

small.img.alt
small.img.alt Ss 304l 316l 347h Ansi Flanged Mag Drive Centrifugal Pump For Chemical Ss 304l 316l 347h Ansi Flanged Mag Drive Centrifugal Pump For Chemical small.img.alt Ss 304l 316l 347h Ansi Flanged Mag Drive Centrifugal Pump For Chemical Ss 304l 316l 347h Ansi Flanged Mag Drive Centrifugal Pump For Chemical small.img.alt Ss 304l 316l 347h Ansi Flanged Mag Drive Centrifugal Pump For Chemical Ss 304l 316l 347h Ansi Flanged Mag Drive Centrifugal Pump For Chemical small.img.alt Ss 304l 316l 347h Ansi Flanged Mag Drive Centrifugal Pump For Chemical Ss 304l 316l 347h Ansi Flanged Mag Drive Centrifugal Pump For Chemical
Basic Information
Place of Origin: China
Brand Name: Gempump
Certification: ISO9001,CE
Model Number: CQB80-65-125
Minimum Order Quantity: 1 set
Price: 1000 USD/Set
Packaging Details: Wooden box
Delivery Time: 5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000Sets Per Months
Get Best Price Contact Now
Type: MAG Drive Process Pump Material: SS-304L 316L 347H
Voltage: AC380V/220V/415V/440V Temperature: -80℃ To 280℃
Application: Automotive Industry, Industrial Utilities Warranty: 12 Months
High Light:

ansi mag drive centrifugal pump

,

ss 304l mag drive centrifugal pump

,

ss 347h magnetic centrifugal pump

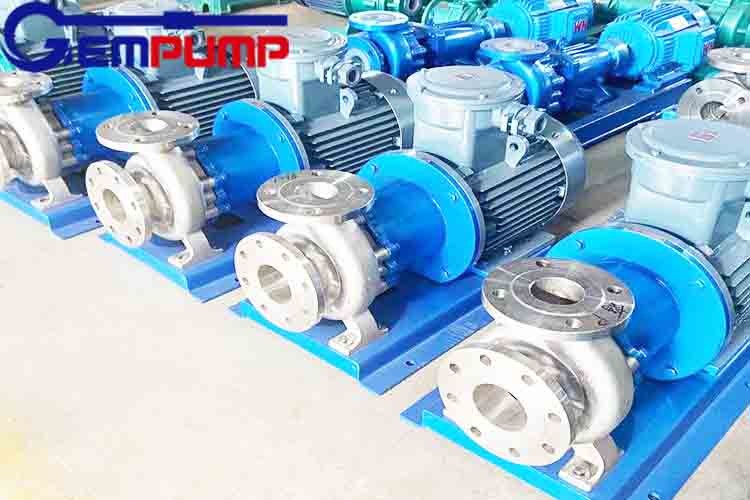

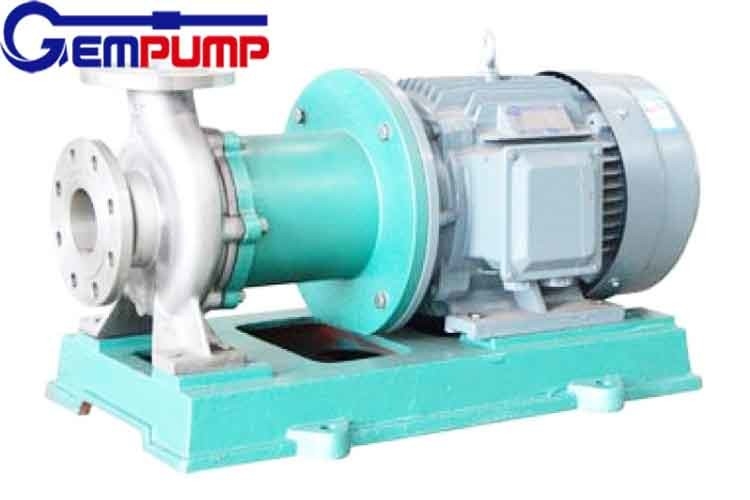

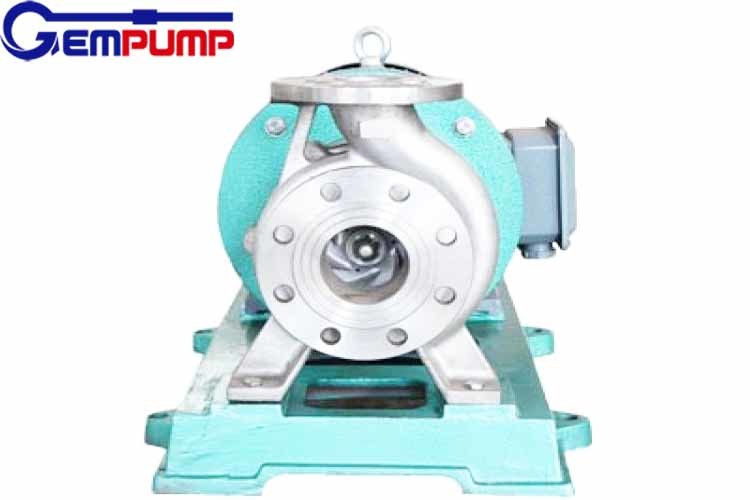

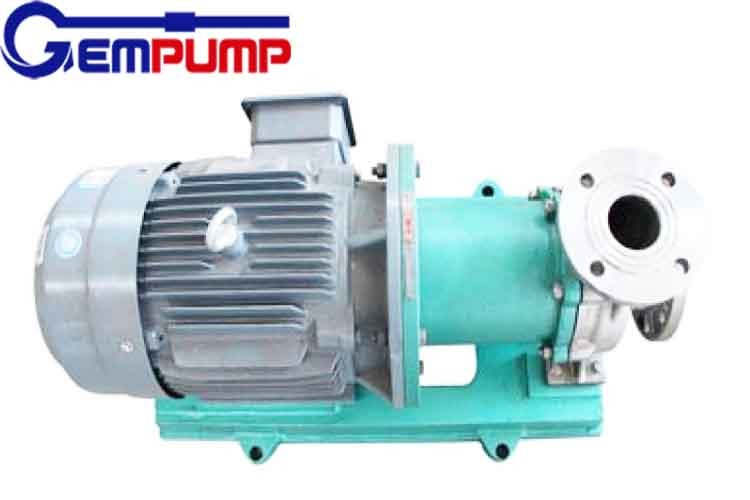

SS-304L 316L 347H ANSI Flanged Horizontal Centrifugal MAG Drive Process Pump For Chemical

Horizontal Centrifugal Magnetic Pump Products overview:

CQ type stainless stell magnetic drive circulation centrifugal oil pump can be divided into two broad categories, stainless steel and engineering plastic, is currently the most widely used pump without leakage.Has a simple structure, beautiful appearance, small size, low noise, reliable operation, convenient to use and repair etc.



CQ type stainless stell magnetic drive circulation centrifugal oil pump is the application of the working principle of magnetic couplings in centrifugal pump of the new product, reasonable design, advanced technology, with fully sealed, without leakage and corrosion, the characteristics of its performance reach the advanced level of similar foreign products.



Magnetic pump with corrosion resistant, high strength engineering plastic, corundum ceramic, as a manufacturing material such as stainless steel, so it has good corrosion resistance, and can make the medium to be delivered from pollution.



Except normal GMP type, also have GMP-H High temperature type (-30℃ to 280℃)

1. Motor bracket with heat dissipation design.

2. Use Rare earth SmCo magnet.

3. Use Anti-High temperature graphite gasket.

GMP-L Low temperature type (-80℃ to 150℃)

1. Motor bracket with Nitrogen fill design, Prevent moisture from freezing.

2. Use Rare earth Neodymium magnet.

3. Use Anti-low temperature graphite gasket.


Stainless steel Magnetic pump Advantages

1. Magnetic pump no mechanical seal, no leaking.
2. Fit for solvent application, most of plastic pump couldn’t do these application.
3. With EX/ATEX motor and grounding, fit for some explosive application.
4. Stainless steel pumpbody fit for high or low temp application (-80℃ to 280℃)

Performance data:
Pump type
GMP
50HZ
60HZ
Max.Head (m)
61
88
Max. Capacity (L/min)
1345
1328
Temperature range
-80℃~280℃
Max.S.G
2
Max. Viscocity (cps)
330
Design Pressure (Mpa)
1.6
Flange type
ANSI/DIN/JIS
Impeller type
Closed
Motor type
Standard / EX/ATEX motor

Product application:

CQB series stainless steel magnetic pump is suitable for petroleum, chemical, pharmaceutical, smelting, electroplating, environmental protection, food, film and television printing, water treatment and other industries. It can transport flammable, explosive, volatile, toxic, rare and precious liquids and various corrosive liquids.
Product parameter table
Model
Caliber(mm)
Flow
Head
Motor Power
Voltage
Material
import
outlet
(m3/h)
(m)
(kW)
(V)
14CQ-5
14
10
1.2
5
0.12
220/380
stainless steel
16CQ-8
16
12
1.8
8
0.18
220/380
20CQ-12
20
12
3
12
0.37
220/380
25CQ-15
25
20
5.4
15
1.1
380
32CQ-15
32
25
6.5
15
1.1
380
32CQ-25
32
25
4.8
25
1.1
380
40CQ-20
40
32
10
20
2.2
380
40CQ-32
40
32
11.5
32
4
380
50CQ-25
50
40
14.4
25
4
380
50CQ-32
50
40
13.2
32
4
380
50CQ-50
50
32
7.8
50
5.5
380
65CQ-25
65
50
16.8
25
5.5
380
65CQ-32
65
50
25
32
7.5
380
80CQ-32
80
65
50
32
11
380
50CQ-50
80
65
50
50
15
380
100CQ-32
100
80
60
32
15
380
100CQ-50
100
80
60
50
18.5
380



FAQ:



Q: Which payments are acceptable?

A: T/T, L/C, Western Union, Paypal.

Q: Which shipping terms are available?

A: By sea, By air,By DHL Express .

Q: How about the delivery time?

A: Delivery time is normally 3-7 working days after confirm the Payment. Depends on your quantity.

Q: What guarantee do you have?
A: The Horizontal Magnetic Drive Centrifugal Pump product warranty period is 1 years, except for wearing parts (if the product fails to work normally due to poor manufacturing, the company will replace and repair products and parts for users free of charge. Product damage caused by human causes is not covered by the warranty).
Q: Can I purchase parts separately?
A: Yes, all pump spare parts can be purchased separately.
