Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001,CE |
| Model Number: | CQB65-50-125F |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/Set |
| Packaging Details: | Wooden box |
| Delivery Time: | 5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000Sets Per Months |
| Type: | IHF Magnetic Pump | Application: | Acid And Alkali Resistance |
|---|---|---|---|
| HS Code: | 8424899990 | Warranty: | 12 Months |
| Flow Rate: | 6.3-200 M3/h | Pump Head: | 20-80 M |
| High Light: | ihf magnetic centrifugal pump,corrosion resistant magnetic centrifugal pump,ihf magnetic drive centrifugal pump |
||

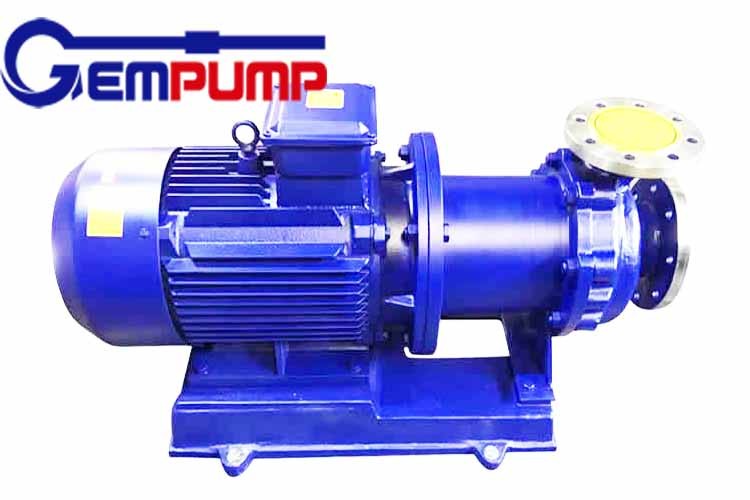

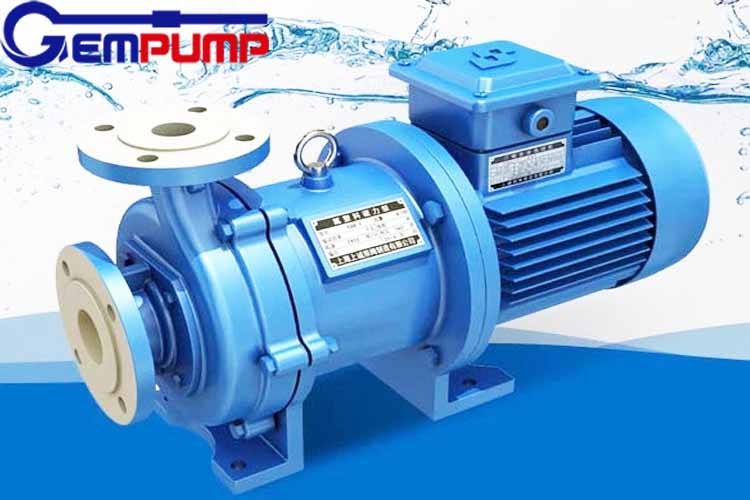

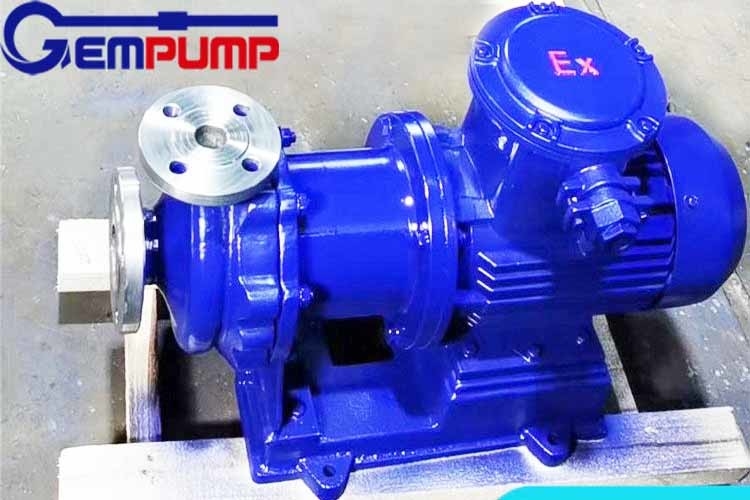

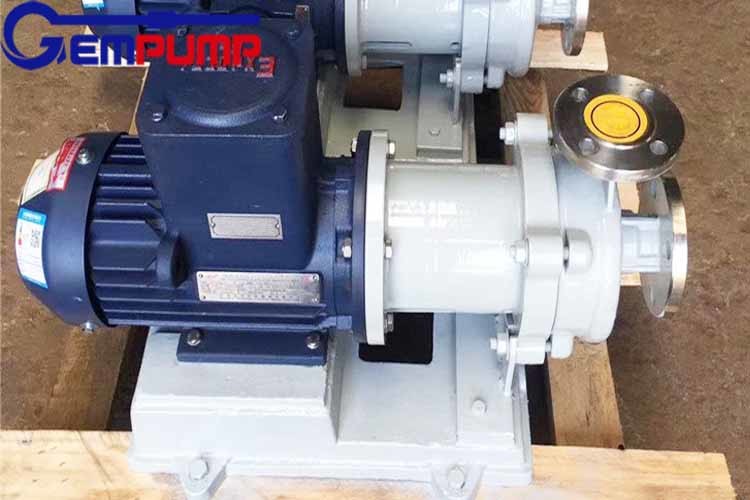

IHF Corrosion Resistant Circulation Acid Transfer Seal-Less Fluoroplastic Alloy Magnetic Drive Pumps
IHF Centrifugal Magnetic Pump Product Introduction:
IHF Magnetic Pump Technical Parameters
| Speed n=2900 r/min | Speed n=1450 r/min | |||||||||
| PUMP MODEL | FLOW (m3/h) |
HEAD (m) |
MOTOR POWER (Kw) |
NSHP(m) | EFF.(%) | FLOW (m3/h) |
HEAD (m) |
MOTOR POWER (Kw) |
NSHP(m) | EFF.(%) |
| IHF40-25-125 | 6.3 | 20 | 1.5 | 3.0 | 51 | 3.2 | 5 | 0.55 | 3.0 | 32 |
| IHF40-25-160 | 6.3 | 32 | 2.2 | 3.0 | 46 | 3.2 | 8 | 0.55 | 3.0 | 28 |
| IHF40-25-200 | 6.3 | 50 | 5.5 | 3.0 | 39 | 3.2 | 12.5 | 0.55 | 3.0 | 23 |
| IHF40-25-250 | 6.3 | 80 | 7.5 | 3.0 | 41 | 3.2 | 20 | 1.5 | 2.0 | 20 |
| IHF50-32-125 | 12.5 | 20 | 2.2 | 3.0 | 51 | 6.3 | 5 | 0.55 | 3.0 | 45 |
| IHF50-32-160 | 12.5 | 32 | 4 | 3.0 | 46 | 6.3 | 8 | 0.55 | 3.0 | 40 |
| IHF50-32-200 | 12.5 | 50 | 7.5 | 3.0 | 39 | 6.3 | 12.5 | 1.1 | 3.0 | 33 |
| IHF50-32-250 | 12.5 | 80 | 11 | 5.0 | 35 | 6.3 | 20 | 1.5 | 5.0 | 30 |
| IHF65-50-125 | 25 | 20 | 3 | 3.5 | 62 | 12.5 | 5 | 0.55 | 3.5 | 55 |
| IHF65-50-160 | 25 | 32 | 5.5 | 3.5 | 57 | 12.5 | 8 | 1.1 | 3.5 | 51 |
| IHF65-40-200 | 25 | 50 | 11 | 3.5 | 52 | 12.5 | 12.5 | 1.5 | 3.5 | 46 |
| IHF65-40-250 | 25 | 80 | 18.5 | 3.5 | 50 | 12.5 | 20 | 3 | 3.5 | 43 |
| IHF80-65-125 | 50 | 20 | 5.5 | 4.0 | 69 | 25 | 5 | 1.1 | 4.0 | 64 |
| IHF80-65-160 | 50 | 32 | 11 | 4.0 | 67 | 25 | 8 | 1.5 | 4.0 | 62 |
| IHF80-50-200 | 50 | 50 | 15 | 4.0 | 63 | 25 | 12.5 | 2.2 | 4.0 | 57 |
| IHF80-50-250 | 50 | 80 | 30 | 4.0 | 66 | 25 | 20 | 5.5 | 4.0 | 51 |
| IHF100-80-125 | 100 | 20 | 11 | 4.5 | 66 | 50 | 5 | 1.5 | 4.5 | 64 |
| IHF100-80-160 | 100 | 32 | 15 | 5.0 | 71 | 50 | 8 | 2.2 | 5.0 | 68 |
| IHF100-65-200 | 100 | 50 | 30 | 5.0 | 67 | 50 | 12.5 | 5.5 | 5.0 | 64 |
| IHF100-65-250 | 100 | 80 | 55 | 5.0 | 65 | 50 | 20 | 7.5 | 5.0 | 62 |
| IHF125-80-160 | 160 | 32 | 30 | 5.0 | 70 | 80 | 8 | 5.5 | 5.0 | 74 |
| IHF125-100-200 | 200 | 50 | 55 | 5.0 | 65 | 100 | 12.5 | 11 | 5.0 | 71 |
| IHF125-100-250 | 200 | 80 | 75 | 5.0 | 73 | 100 | 20 | 15 | 5.0 | 73 |
| IHF125-100-315 | 100 | 32 | 18.5 | 3.0 | 60 | |||||
| IHF150-125-250 | 200 | 20 | 22 | 7.0 | 67 | |||||
| IHF150-125-315 | 200 | 32 | 45 | 7.0 | 65 | |||||
| IHF200-150-250 | 400 | 20 | 55 | 7.5 | 69 | |||||
| IHF200-150-315 | 400 | 32 | 75 | 7.5 | 68 | |||||
| IHF200-150-400 | 400 | 50 | 110 | 7.5 | 74 | |||||
IHF centrifugal pump is a kind of plastic lined pump.
Technical parameters of IHF chemical centrifugal pump
Flow rate: 6.3-400m3 /h;
Head: 5 ~ 132m;
Speed: 2900, 1450r/min;
Power: 0.55 ~ 110KW;
Inlet diameter: 50 ~ 200mm;
Maximum working pressure: 1.6mpa.
IHF Magnetic Pump Application:
They are used for transmission of liquids (oil, sea water ,sulphuric acid, phosphoric acid, H2SiF6acid, alkali liquid) with lowor high temperature,
neutral or corrosive liquids ,or liquids with solid granular and widely used in petroleum chemical industry ,oil refining industry, paper ,pulp industry ,
sugar industry ,mining ,etc.
Lots of material can be chose for different working condition, such as cast steel ,stainless steel 304,316,2205,904L, Hartz alloy C276,C22,
nickel-base alloy GH600, PVDF,PP, UHMWPE-lining .etc
Pump a strong seal system :packing seal ,double face mechnical seal ,cartridge mechnical seal ,API682 flushing syestem.
Company Overview
Gempump is a specialized manufacturer/supplier for the chemical pump,is located in Shijiazhuang city,Hebei Province,China.
With more than 10 years R&D, manufacturing and sales experience, we can supply many kinds of chemical pump with very good quality. and we have
got ISO9001,ISO14001,ISO45001 certificates, and is a High - Tech Enterprise in China .
Q1: Are you manufacturer or trading company?
Our company is a professional producer for chemical pumps, and export pumps by ourselves.
Q2: What's your business range?
We manufacture chemical centrifugal pump, slurry pump, vertical/horizontal multistage pump,sewage pump, water pump,oil pump, screw pump, diaphragm pump, fire pump, constant pressure VFD water supply system and so on.
Q3: How to check and verify the products?
We support video inspection and verification .
Q4: What are your payment terms?
Common terms: T/T 30% deposit, balance payment before shipment.
Q5: How about warranty and after-service?
12 months warranty time after receiving days, not include quick-wear parts and default phase.We promise 24 hours action for your problems.
