Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001,CE |
| Model Number: | CQB50-32-160F |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/Set |
| Packaging Details: | Wooden box |
| Delivery Time: | 5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000Sets Per Months |
| Type: | Magnetic Drive Pump | Usage: | Oil,Acid,Alkali |
|---|---|---|---|
| Voltage: | 380v/415V/440V | Material: | SS304/SS316/SS316L/Duplex Steel |
| Feature: | Anti-acid Alkali Magnetic | Warranty: | 12 Months |
| High Light: | electric engine magnetic centrifugal pump,chromic acid proof magnetic centrifugal pump,chemical transfer magnetic drive centrifugal pump |
||

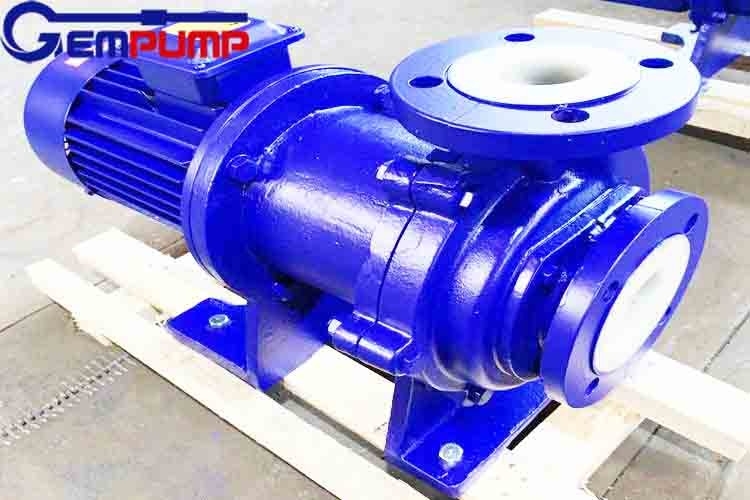

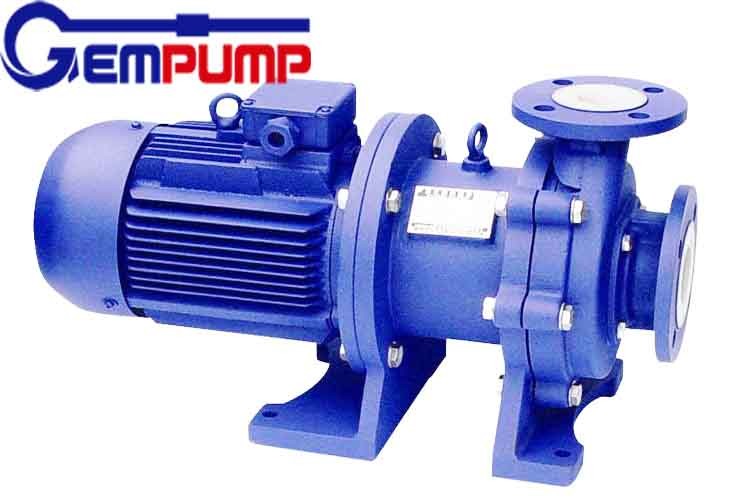

Electric Engine Chromic Acid-Proof Magnetic Drive Chemical Transfer Pump Manufacturers
Magnetic Pump Summary:

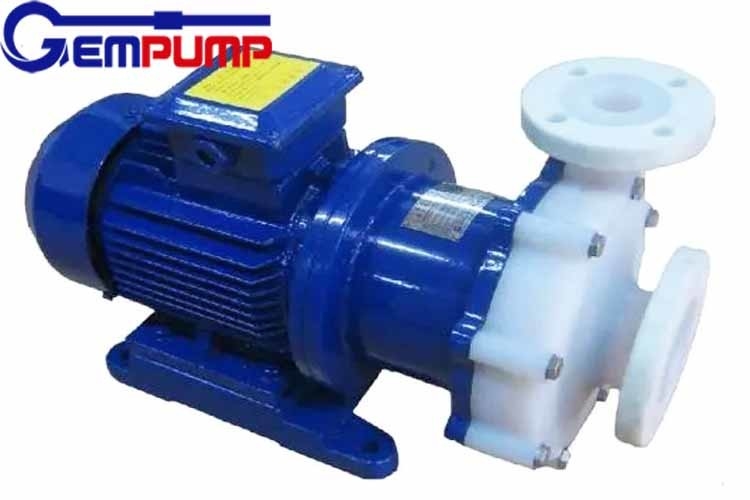

CQB magnetic coupling pump is rated to HG/T 2730 standard design.The impeller and driven magnetic coupling are encased in a watertight canister within the pump body. This feature makes a seal unnecessary. Any possibility of leakage of the pumped liquid is removed other than through damage to the pump body. Pumps are available in strong engineered plastic, rigid ceramic and stainless steel suitable for most corrosive liquids. Most liquids can be pumped by these materials without significant contamination of the product. The coupling drive and driven components are made of neodymium NdFeb super strong magnets arranged in a circular pattern and encased in stainless steel. This assures that there is no slippage of the drive even when pumping liquids with a high specific gravity.
The CQB type pump is a YONJOU standard pump for all the applications listed.
The CQB type pump can be customized with a heating cavity (heating jacket) on the pump volute for pumping liquids that cannot be pumped in the cold state or that would cool down to below the solidification point when the pump is stopped.
Magnetic Pump Application:
Series CQB magnetic coupling pump is a trouble-free product, the impeller is driven by a magnetic coupling. This allows isolation of the pumped liquid. No seal is required. This makes it ideal in situations where no leakage is permissible, with performance equivalent to a standard centrifugal pump. Series CQB magnetic coupling pump can be used where the requirement is pumping of clean or even corrosive liquids.
• Chemical and petrochemical industries
• Pharmaceutical industry
• Paint industry
• Plastic and rubber industries
• Ferrous and non-ferrous metal industries
• Paper and cellulose industries
• Textile industry
• Food and drink industries
Magnetic Pump Advantages:
• Extremely low risk of leakage for fluid or vapor emissions
• Magnetic drive is stable
• Little maintenance needed
• Long service life (go 10 years)
• Alignment of pump and motor is needless
• Only permit clean liquids free of solids
• Require higher power absorption than conventional pump
• More expensive (will payback from low maintenance)
Magnetic Pump Product Details:
| Magnetic Pump Capacity: | 4 ~ 400 m3/h |
| Magnetic Pump Head: | 20 ~ 125 m |
| Speed at 50 Hz: | 1450 ~2900 RPM |
| Speed at 60 Hz | 1750 ~ 3600 RPM |
| Inlet diameter: | 32 ~ 200 mm |
| Outlet diameter: | 20 ~ 150 mm |
| Power of fitted motor: | 1.1 ~ 132 kW |
| The highest work pressure: | 1.6 Mpa |
| Working Principle: | Magnetic drive Centrifugal Chemical Pump |
| Material: | PVDF-PTFE-FEP-ETFE-PFA-Stainless steel |
| Max Temperature: | 300 Degree |
| Warranty: | 1 Year without Spare Parts |
| Lead time: | 7~13 Days |
| Package: | International Standard Plywood Case |
| Magnetic Pump Application: | * Corrosive, pure and contaminated media in the chemical, pharmaceutics and petrochemical industries, in metal processing, waste water treatment; * When stainless steel is not sufficiently resistant; * An alternative to expensive haste alloy, titanium alloy pumps; * When anti-adhesive surfaces are important. |
Technical Data
| Model | Capacity | Head | NPSH | Speed | Efficiency | Power |
| m3/h | m | m | r/min | % | kw | |
| CQB32-20-125 | 3.2 | 20 | 5 | 2900 | 22 | 1.1 |
| CQB32-20-160 | 32 | 3.5 | 15 | 1.5 | ||
| CQB40-20-105 | 6.3 | 12.5 | 6 | 30 | 1.1 | |
| CQB40-25-125 | 20 | 5 | 27 | 2.2 | ||
| CQB40-25-160 | 32 | 3.5 | 24 | 3 | ||
| CQB40-25-200 | 50 | 3.5 | 17 | 5.5 | ||
| CQB50-40-85 | 12.5 | 8 | 3.5 | 40 | 1.1 | |
| CQB50-32-105 | 12.5 | 38 | 2.2 | |||
| CQB50-32-125 | 20 | 35 | 3 | |||
| CQB50-32-160 | 32 | 31 | 4 | |||
| CQB50-32-200 | 50 | 27 | 7.5 | |||
| CQB50-32-250 | 80 | 21 | 15 | |||
| CQB65-50-125 | 25 | 20 | 4 | 38 | 5.5 | |
| CQB65-50-160 | 32 | 35 | 7.5 | |||
| CQB65-40-200 | 50 | 32 | 15 | |||
| CQB65-40-250 | 80 | 28 | 22 | |||
| CQB80-65-125 | 50 | 20 | 4 | 41 | 7.5 | |
| CQB80-65-160 | 32 | 37 | 15 | |||
| CQB80-50-200 | 50 | 36 | 18.5 | |||
| CQB80-50-250 | 80 | 34 | 30 | |||
| CQB100-80-125 | 100 | 20 | 4 | 48 | 11 | |
| CQB100-80-160 | 32 | 48 | 18.5 | |||
| CQB100-65-200 | 50 | 44 | 30 | |||
| CQB100-65-250 | 80 | 42 | 45 |
FAQ
Q1: Are you a manufacturer or a trading company?
A: We are a manufacturer, providing OEM & ODM service.
Q2. What standards do your products conform to?
A: Our products conform to GB, ISO or API610, etc. to be decided according to your specific requirements.
Q3. What’s the warranty for your products?
A:1 Year Warranty(except Wearing Parts)
Q4. What about after-sale service?
A: Our after-sales engineers will provide technical support within 24 hours after receiving claims or consultation requirements.
