Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001,CE |
| Model Number: | CQB-G |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/Set |
| Packaging Details: | Wooden box |
| Delivery Time: | 5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000Sets Per Months |
| Model: | CQB | Structure: | Horizontal Centrifugal Pump |
|---|---|---|---|
| Origin: | China | HS Code: | 8413709990 |
| Warranty: | 12 Months | Material: | PP/PVDF/PTFE/FEP/PFA Lining |
| Theroy: | Magnetic Drive Pump | Voltage: | AC220V/380V/415V |
| High Light: | acid resistant sealless centrifugal pump,horizontal sealless centrifugal pump,magnetic centrifugal pump sealless |
||

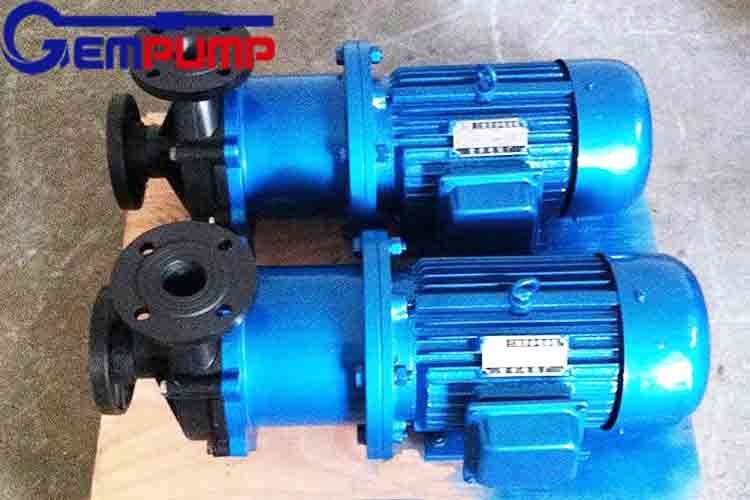

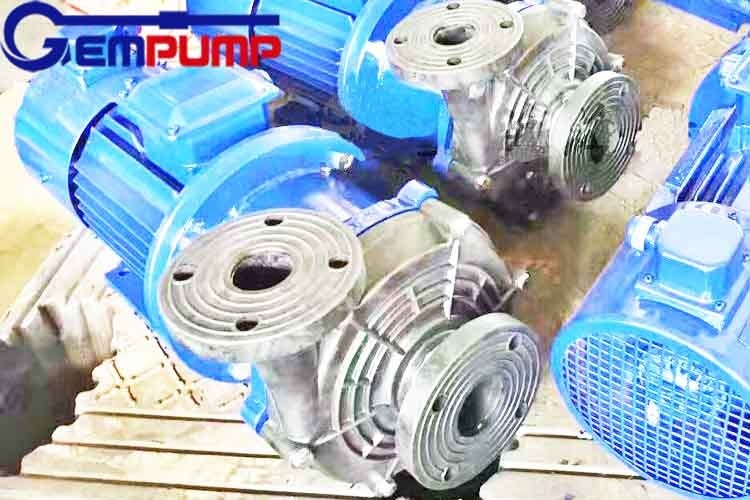

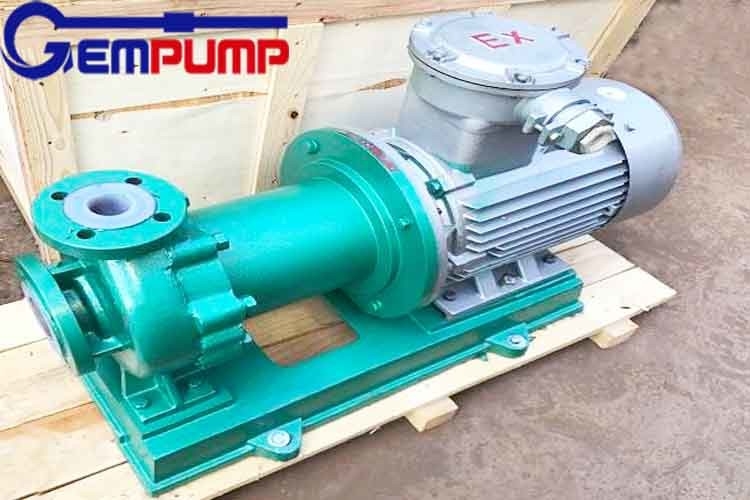

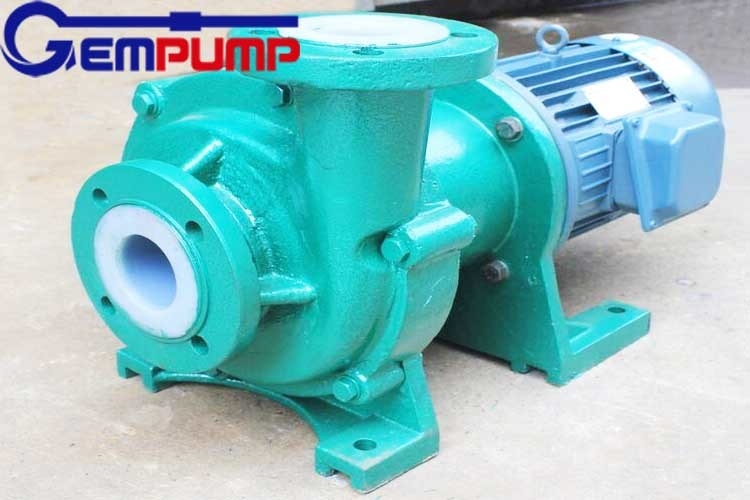

Alcohol Acetic Acid Resistant Flurine Plastic Chemical Horizontal Centrifugal Magnetic Pump
| Product Name | Teflon lined magnetic pump |
| Material | PTFE/FEP/PVDF/PP lining |
| Standard | ISO9001, ASME, ANSI |
| Flow rate | 1~160 m3/h |
| Head | 17~62m |
| Voltage | 220V/380V/415V/460V or as customer required |
| Working temperature | -20ºC to + 120 ºC |
| Design pressure | 1.6Mpa |
| Warranty | 12 months |
Magnetic Pump Model description
CQB 100- 80- 125
CQB--- Fluorine plastic centrifugal pump
100---- Inlet diameter
80 ---- Outlet diameter
125--- Impeller diameter
Design feature
*Non-dripping
Without Shaft seals, magnetic coupling indirect transmission, completely eliminates the drippong phenomenon.
*No magnetic eddy current heat.
Using the latest materials with high strength mechanical properties of sleeve, eliminated the phenomenon of magnetic
eddy current of common magnetic drive pumps.
*Easy remove
Adopting unique back pull pattern structure, it's easy for internal maintenance and parts replacement,
without to remove the pipe.
*Compact structure
Using direct coupling structure, magnetic coupling installed directly on the motor shaft, without loss of rolling bearing,
high efficiency and low noise.
Magnetic Pump Application
The CQB fluorine plastic centrifugal pump can be used to transport sulfuric acid concentration, hydrochloric acid, hydrofluoric acid, nitric acid, aquaregia, alkali, strong oxidizer, organic solvent, reducing agent, such as strong corrosive medium without damage.
And it can be used to transport corrosive media in chemical production, and they can be used in ion-exchange membrane caustic soda project in the waste water treatment, chlorine water wastewater and acid adding process, non-ferrous metals smelting of electrolyte transport, car manufactures in the pickling process, and pharmaceutical, oil, electricity, electroplating, dyes, pesticides, paper, food, textile and many other industries.
Applicable temperature: -20~90ºC
| Model | Flow (m3/h) |
Head (m) |
Speed (r/min) |
η (%) |
NPSH (m) |
Power (kw) |
Inlet (mm) |
Outlet (mm) |
Weight (kg) |
| CQB16-12-50F | 0.5 0.8 |
2 1.5 |
2900 | 10 | 9.0 | 0.025 |
Φ16 |
Φ12 |
5 |
| CQB15-15-65F | 0.8 1 |
3.5 2.8 |
2900 | 17 | 6.0 | 0.18 |
Φ15 |
Φ15 |
7 |
| CQB20-15-75F | 1.6 1.8 |
7 6 |
2900 | 21 | 6.0 | 0.18 |
Φ20 |
Φ15 |
8 |
| CQB25-20-100F | 1 2 |
34 32 |
2900 | 26 | 6.0 | 0.37 |
Φ25 |
Φ20 |
12 |
| CQB25-20-160F | 1 2.5 |
10 11 |
2900 | 22 | 6.0 | 1.1 |
Φ25 |
Φ20 |
40 |
| CQB32-20-110F | 4 5.5 |
13.5 13 |
2900 | 35 | 6.0 | 0.55 |
Φ32 |
Φ20 |
18 |
| CQB32-20-125F | 2.5 3.6 |
21 20 |
2900 | 37 | 6.0 | 0.75 |
Φ32 |
Φ20 |
20 |
| CQB32-20-160F | 2.5 3.6 |
33 32 |
2900 | 38 | 5.0 | 1.5 |
Φ32 |
Φ20 |
50 |
| CQB40-25-120F | 4 6.3 8 |
15.5 15 12 |
2900 | 42 | 5.0 | 0.75 | Φ40 | Φ25 | 35 |
| CQB40-25-125F | 4 6.3 8 |
22 20 16 |
2900 | 45 | 4.0 | 1.1 | Φ40 | Φ25 | 45 |
| CQB40-25-130F | 4 6.3 8 |
24 22 18 |
2900 | 41 | 4.5 | 1.1 | Φ40 | Φ25 | 54 |
| CQB40-25-160F | 4 6.3 8 |
33 32 29 |
2900 | 36 | 5.0 | 2.2 / 3 | Φ40 | Φ25 | 55 |
| CQB40-25-200F | 4 6.3 8 |
51 50 48 |
2900 | 25 | 4.5 | 5.5 | Φ40 | Φ25 | 100 |
| CQB40-40-100F | 4 6.0 8 |
11 11 9 |
2900 | 43 | 6.0 | 0.55 | Φ40 | Φ40 | 20 |
| CQB40-40-125F | 4 6.3 8 |
19 17.5 15 |
2900 | 42 | 3.7 | 1.1 | Φ40 | Φ40 | 40 |
| CQB50-32-125F | 7 12.5 15 |
22 20 19 |
2900 | 42 | 3.5 | 1.5 | Φ50 | Φ32 | 45 |
| CQB50-32-160F | 7 12.5 15 |
33 32 29 |
2900 | 40 | 3.5 | 4 | Φ50 | Φ32 | 80 |
| CQB50-32-160BF | 7 12.5 15 |
33 32 29 |
2900 | 40 | 3.5 | 4 | Φ50 | Φ32 | 110 |
| CQB50-32-200F | 7 12.5 15 |
52 50 45 |
2900 | 32 | 3.5 | 7.5 | Φ50 | Φ32 | 150 |
| CQB65-50-125F | 15 20 25 |
22 20 15 |
2900 | 48 | 4.0 | 4 | Φ65 | Φ50 | 100 |
| CQB65-50-160FB | 15 25 35 |
35 32 28 |
2900 | 50 | 4.0 | 5.5 | Φ65 | Φ50 | 120 |
| CQB65-50-160F | 15 20 25 |
33 32 28 |
2900 | 40 | 4.0 | 5.5 | Φ65 | Φ50 | 120 |
| CQB65-50-160FA | 10 17.5 19 |
35 32 25 |
2900 | 45 | 5.5 | 4 | Φ65 | Φ50 | 90 |
| CQB65-50-180F | 15 20 25 |
40 38 32 |
2900 | 46 | 5.5 | 5.5 | Φ65 | Φ50 | 120 |
| CQB65-40-200F | 15 20 25 |
51 50 45 |
2900 | 48 | 4.0 | 11 | Φ65 | Φ40 | 180 |
| CQB80-65-125F | 35 50 60 |
22 20 15 |
2900 | 51 | 4.0 | 7.5 | Φ80 | Φ65 | 95 |
| CQB80-65-160F | 35 50 60 |
34 32 28 |
2900 | 60 | 4.0 | 11 | Φ80 | Φ65 | 180 |
| CQB80-50-200F | 35 50 60 |
51 50 45 |
2900 | 60 | 4.0 | 18.5 | Φ80 | Φ50 | 195 |
| CQB100-80-125F | 65 100 110 |
22 20 18 |
2900 | 62 | 5.0 | 11 | Φ100 | Φ80 | 195 |
| CQB100-80-160F | 70 100 120 |
34 32 28 |
2900 | 56 | 5.0 | 18.5 | Φ100 | Φ80 | 220 |
FAQ
Q:Can you supply pump qualified with ANSI and ASME standard?
A:Yes, our pump compliant with ISO / ASME/ANSI standard.
Q:How to customize pumps and mechanical seals ?
A:Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight
Q:How long is warranty?
A:1 year for main construction warranty.
Q:How long is production lead time?
A:Normally 5 working days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 3 days.
Q:What is the shipping terms you can provide?
A:Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.
Q:Who is in charge of after-sales?
A:Gempump has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.
Q:Who is in charge of maintenance?
A:Local agent. If pump running has any problem on site, our local agent will arrival the plant within 24 hours
