Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001,CE |
| Model Number: | CQB80-65-160F |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/Set |
| Packaging Details: | Wooden box |
| Delivery Time: | 5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000Sets Per Months |
| Pump Type: | Magnetic Pump | Warranty: | 12 Months |
|---|---|---|---|
| HS Code: | 8413709940 | Usage: | Chemical,Acid,Alkali |
| High Light: | fluorine lined sealless centrifugal pump,magnetic drive sealless centrifugal pump,circulation force magnetic centrifugal pump |
||

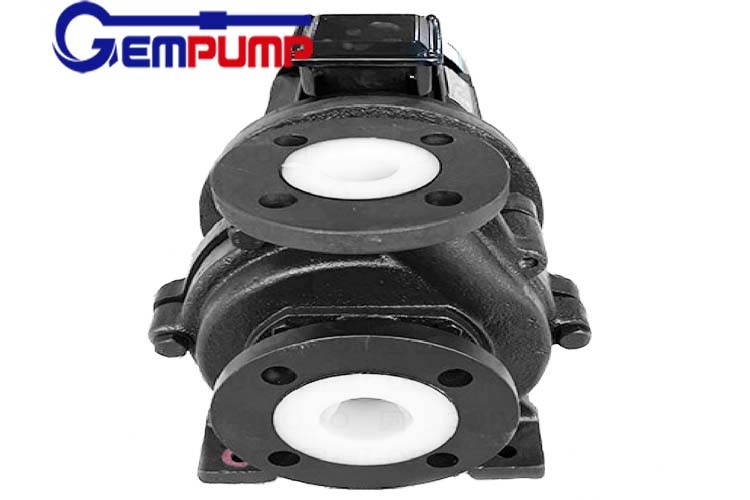

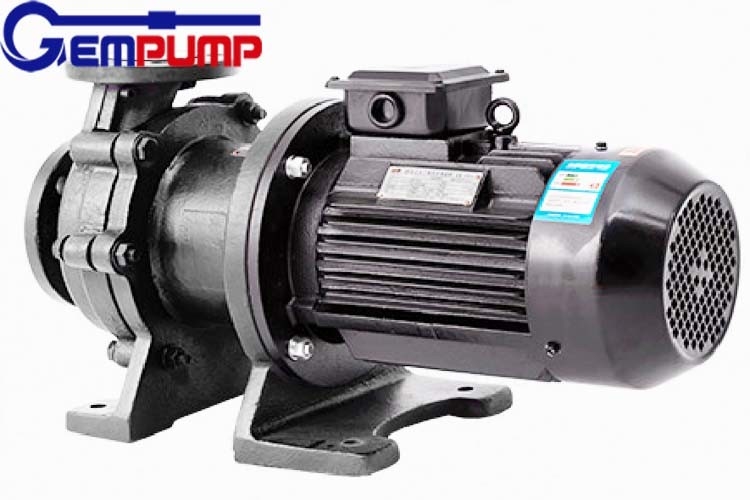

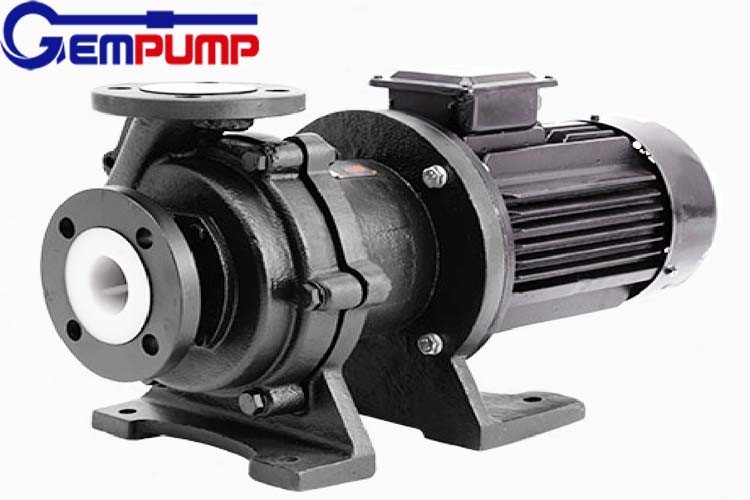

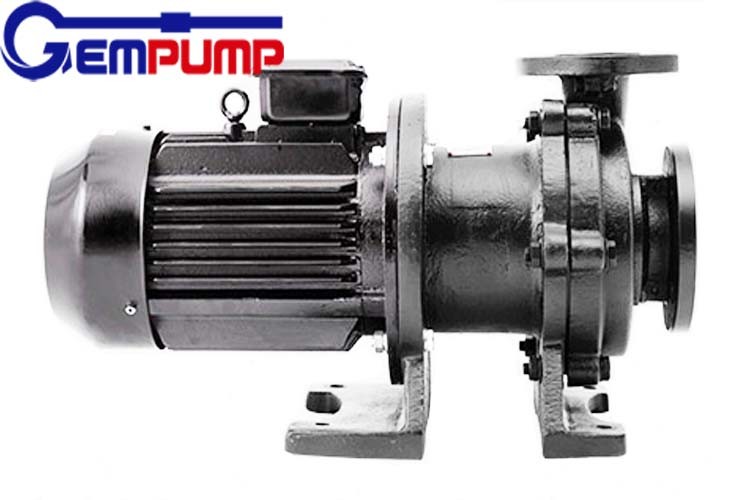

Fluorine Lined Magnetic Driven Circulation Force Centrifugal Sealess Suspension Pump
Magnetic Pump Summarize:
1. CQB stainless steel no-leak chemical liquid pump magnetic drive pump is a new product with the working princ iple of a permanently magnetic clutch applied on a centrifugal pump and features a reasonable design, advanced technologies, full-seal, non-leak and anti-corrosion
2. It uses a static seal instead of a dynamic one so as to have the flow-passing parts in a fully sealed state, completely settling the problems of run-away, pop-up and drop unable to avoid with the mechanical seals of other pumps.
3. The magnetic pump features a compact structure, nice outlook, small volume, low noise, reliable run and easy use and maintenance.
4. It can be used to pump acids, alkali, oils, rare and noble liquids, toxic liquids, volatile liquids and for completing with cycling water equipments and filters in che-mical industry, pharmacy, petroleum, electric plating, food movie and photograph development, scientific research organ, national defense industry etc.
5. Especially for pumping the easily leaking, combustible and explosive liquids, it is more ideal to use this pump.
6. Suitable for transporting the liquid containing no hard grains and fiber and with the suck-in pressure not more than 0.2MPa, the maximum working pressure 1.6MPa, the density not more than 1600Kg/m3 and the graininess not bigger than 30×10-6m2 /S.
Product details:
| Working Principle: | Centrifugal, Magnetic drive |
| Main applications: | Chemical, water, oil |
| Driver: | Electric motor |
| Power Specs: | 220V/380/415 V 3phase; 220/240 V 1phase; 50hz/60hz |
| Max.permissible fluid temperature: | 95°C(203°F) |
| Type of connection: | Flange, Tube. |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Stainless steel 304 / 316 |
| Maximum drive rating: | 30KW(40HP) |
| Maximum caliber: | 150mm(6inch) |
| Maximum discharge-side pressure: | 0.5MPa(5bar) |
| Maximum head: | 50m(164ft) |
| Flow rate range: | 30-3350L/min(7.9-884.4 US.GPM) |
Magnetic Pump Performance Date:
| Model | Caliber (mm) | Flow (m 3 /h) |
Head (m) | Power (kW) |
Voltage (V) |
Material | |
| Inlet | Outlet | ||||||
| 14CQ-5 | 14 | 10 | 1.2 | 5 | 0.18 | 220/380 | 304 316 316L S.S |
| 16CQ-8 | 16 | 12 | 1.8 | 8 | 0.18 | 220/380 | |
| 20CQ-12 | 20 | 12 | 3 | 12 | 0.37 | 220/380 | |
| 25CQ-15 | 25 | 20 | 5.4 | 15 | 1.1 | 380 | |
| 32CQ-15 | 32 | 25 | 6.5 | 15 | 1.1 | 380 | |
| 32CQ-25 | 32 | 25 | 4.8 | 25 | 1.1 | 380 | |
| 40CQ-20 | 40 | 32 | 1 | 20 | 2.2 | 380 | |
| 40CQ-32 | 40 | 32 | 11.5 | 32 | 4 | 380 | |
| 50CQ-25 | 50 | 40 | 14.4 | 25 | 4 | 380 | |
| 50CQ-32 | 50 | 40 | 13.2 | 32 | 4 | 380 | |
| 50CQ-50 | 50 | 32 | 7.8 | 50 | 5.5 | 380 | |
| 65CQ-25 | 65 | 50 | 16.8 | 25 | 5.5 | 380 | |
| 65CQ-32 | 65 | 50 | 25 | 32 | 5.5/7.5 | 380 | |
| 80CQ-32 | 80 | 65 | 50 | 32 | 11 | 380 | |
| 80CQ-50 | 80 | 65 | 50 | 50 | 15 | 380 | |
| 100CQ-35 | 100 | 80 | 60 | 35 | 15 | 380 | |
| 100CQ-50 | 100 | 80 | 60 | 50 | 18.5 | 380 | |
Magnetic Pump Applications:
| Industrial machinery and equipment | Water treatment | Food and cosmetics |
| Inkjet printing/painting | Mask making | Food and Beverage filling |
| Oil transportation | Booster pressure | Filling of perfume cosmetics |
| Sand mill/Grinding | Circulating cooling | Quantitative Transport |
Magnetic Pump Technical Parameter :
| Flow | Up to 100m3/h |
| Head | Up to 80 m |
| Speed | 2900 RPM |
| Power | Up to 55 kW |
| Inner Caliber | Up to 100 mm |
| Outer Caliber | Up to 65 mm |
