Cqg Type Magnetic Centrifugal Pump High Temperature Insulation Chemical Application

small.img.alt
small.img.alt Cqg Type Magnetic Centrifugal Pump High Temperature Insulation Chemical Application Cqg Type Magnetic Centrifugal Pump High Temperature Insulation Chemical Application small.img.alt Cqg Type Magnetic Centrifugal Pump High Temperature Insulation Chemical Application Cqg Type Magnetic Centrifugal Pump High Temperature Insulation Chemical Application small.img.alt Cqg Type Magnetic Centrifugal Pump High Temperature Insulation Chemical Application Cqg Type Magnetic Centrifugal Pump High Temperature Insulation Chemical Application small.img.alt Cqg Type Magnetic Centrifugal Pump High Temperature Insulation Chemical Application Cqg Type Magnetic Centrifugal Pump High Temperature Insulation Chemical Application
Basic Information
Place of Origin: China
Brand Name: Gempump
Certification: ISO9001,CE
Model Number: CQB-G
Minimum Order Quantity: 1 set
Price: 1000 USD/Set
Packaging Details: Wooden box
Delivery Time: 5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000Sets Per Months
Get Best Price Contact Now
Pump Model: CQB-G HS Code: 8413810090
Usage: Anti-Corrosion Pump Warranty: 12 Months
High Light:

high temperature magnetic centrifugal pump

,

insulation magnetic centrifugal pump

,

chemical application mag drive centrifugal pump

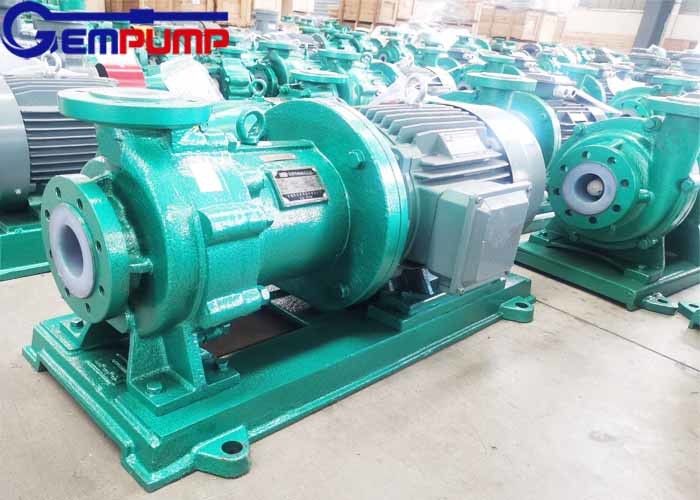

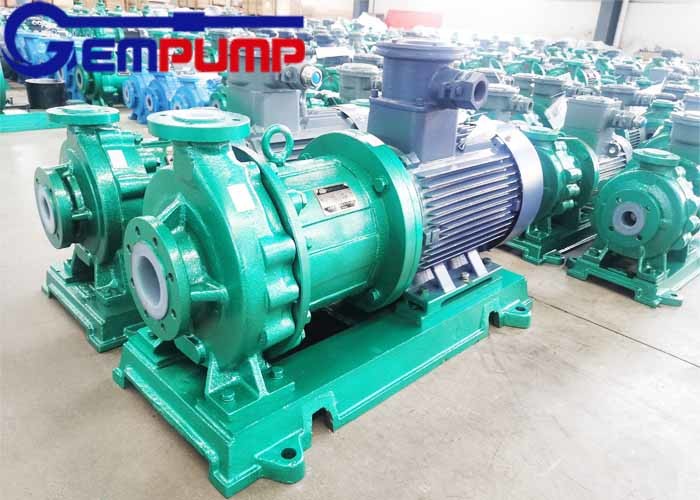

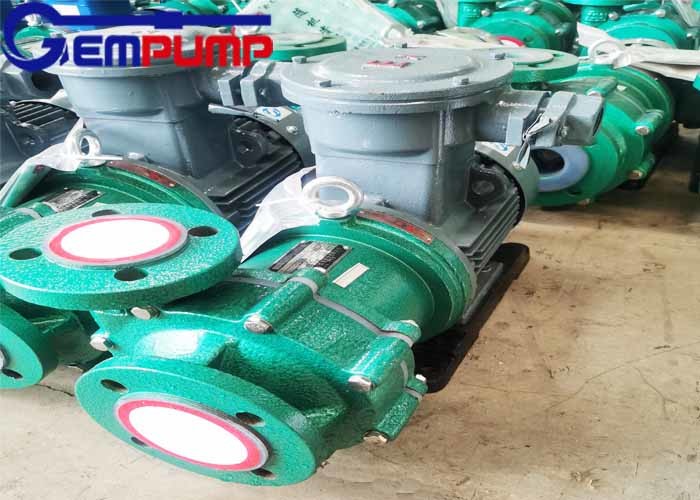

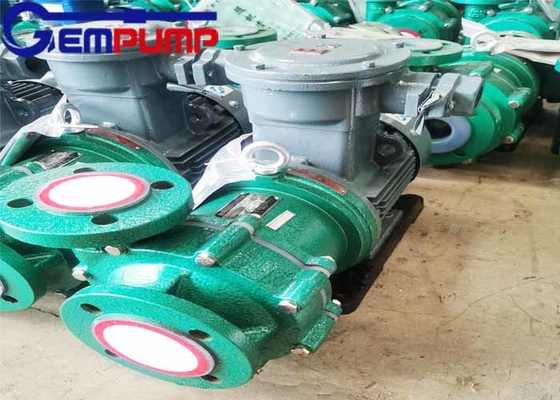

CQG Type High-Temperature Insulation Magnetic Chemical Application Pump

Product Description

CQG type high-temperature insulation magnetic pump:

The CQB-G high-temperature insulation magnetic pump uses a multi-cycle cooling structure to ensure the reliability and stability of the original power and magnetic drive, as well as a column pin coupling Reducing the noise and vibration of the pump, the split, and the column pin coupling are used simultaneously, so that the structure of the pump increases, more conducive to pump cooling. At the same time, it is also very convenient for users to repair or replace parts, in the pump's external rotor part is also designed to cool the air leaves, to ensure the stability of magnetic steel. This series of pumps are suitable for conveying high-temperature media at temperatures ≤ 300 degrees C.

Magnetic Pump FEATURE :

1- no leakage operation, can transport flammable, explosive, highly toxic, and corrosive media;
2- good material, pump body, impeller, isolation sleeve, and other overcurrent components are made of stainless steel;
3- the bushing uses high wear-resistant silicon carbide, tungsten carbide, sliding bearings using carbide M106K, and set up a lubricant tank, effectively ensure the pump;
4- vertical installation, compact structure, small footprint;
5- vibration is small, noise is low, the operation is particularly smooth;
6- the vast majority of pump components and CQB series magnetic pump interchange,

Magnetic Pump Application :

Chemical field, Biological medicine, Petrochemical,Food,Paper making,Electricity,New Materials,Sewage treatment, and other industries.

Technical parameters:
Type Diameter head
m		 flow
L/min		 Motor power
KW		 Rotation
r/min		 voltage
V		 Self-priming
m/3min
inlet
mm		 outlet
mm
20CQG-12-100 20 15 12 50 0.37 2800 380 4
25CQG-20-115 25 20 15 110 1.1 2800 380 4
32CQG-25-115 32 25 15 110 1.1 2800 380 4
32CQG-25-145 32 25 25 80 1.1 2800 380 4
40CQG-32-132 40 32 20 180 2.2 2800 380 4
40CQG-32-160 40 32 40 200 4 2800 380 4
50CQG-40-145 50 40 25 240 4 2800 380 4
50CQG-40-160 50 40 40 220 4 2800 380 4
50CQG-32-200 50 32 50 230 5.5 2800 380 4
65CQG-50-145 65 50 25 280 5.5 2800 380 4
65CQG-50-160 65 50 35 450 7.5 2800 380 4
80CQG-65-160 80 65 35 850 11 2800 380 4
80CQG-50-200 80 50 50 850 15 2800 380 4
100CQG-80-160 100 80 35 1650 18.5 2800 380 4
100CQG-65-200 100 65 50 1650 22 2800 380 4
Pump body material: stainless steel (1Cr18Ni9Ti)



FAQ:
Q1: Are you a reliable company?

A1: Gempump is located in Shijiazhuang,China.We have many years of manufacturing experience,
we can supply all types of magnetic pump products.We have an independent factory and trade office.

Q2: how to deliver the portable diesel water pump?
A2: We can offer our equipment by containers or bulk ship.

Q3: How to pay for the portable Diesel water pump?
A3: We can accept T/T, L/C and soon

Q4: why choose Gempump company?
A4: Low price,and fastest lead time.
