Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001,CE |
| Model Number: | CQB-G |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/Set |
| Packaging Details: | Wooden box |
| Delivery Time: | 5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000Sets Per Months |
| Certificate: | Ce/SGS/ISO9001:2000 | Origin: | China |
|---|---|---|---|
| Driven: | Magnetic | Warranty: | 12 Months |
| HS Code: | 841311000 | Structure: | Horizontal Centrifugal Pump |
| High Light: | industrial magnetically coupled centrifugal pump,pp magnetically coupled centrifugal pump,pvdf magnetic centrifugal pump |
||

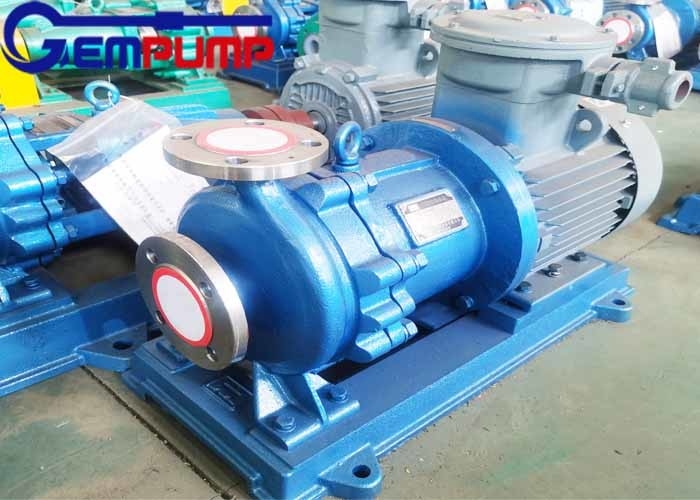

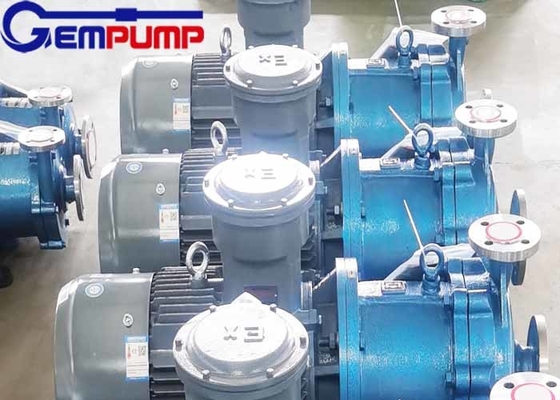

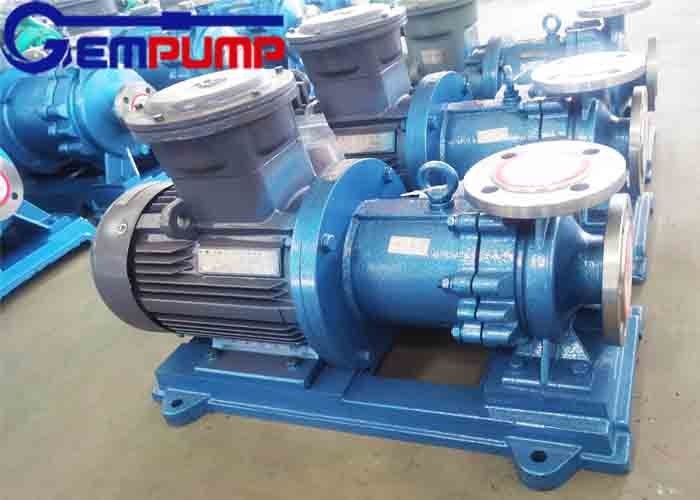

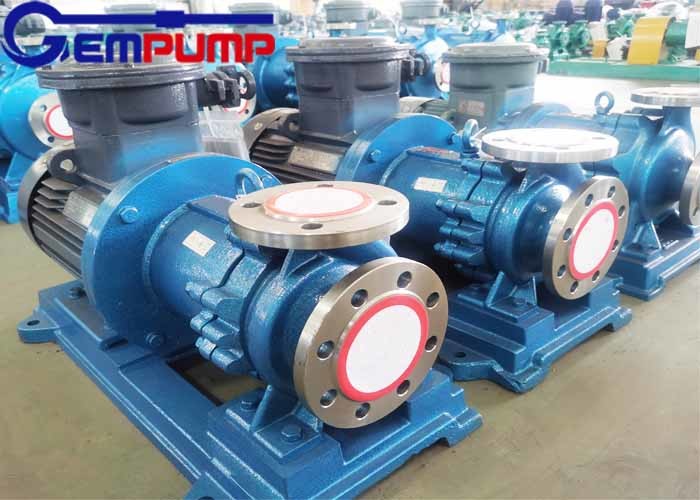

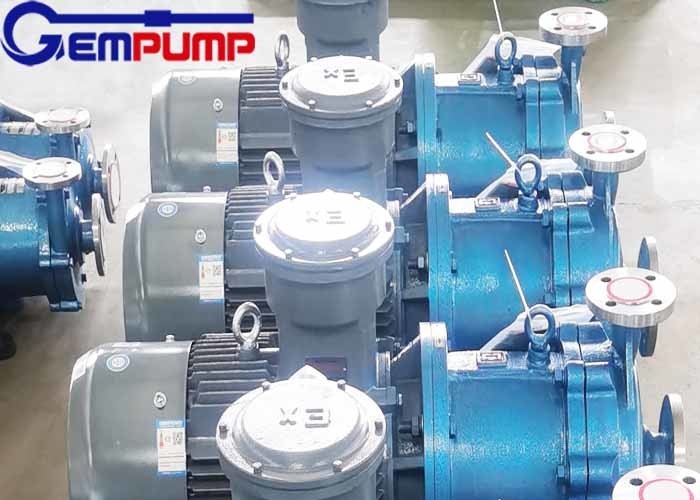

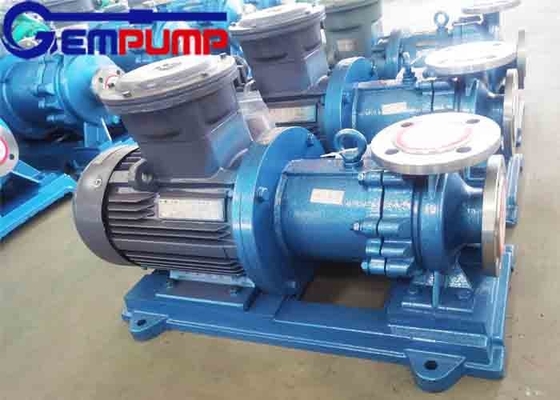

Industrial Magnetic Drive Centrifugal Pumps With Material PP GFRPP PVDF Stainless Steel
Mag Drive Pump Summarize:
1. CQB stainless steel no-leak chemical liquid pump magnetic drive pump is a new product with the working princ iple of a permanently magnetic clutch applied on a centrifugal pump and features a reasonable design, advanced technologies, full-seal, non-leak and anti-corrosion
2. It uses a static seal instead of a dynamic one so as to have the flow-passing parts in a fully sealed state, completely settling the problems of run-away, pop-up and drop unable to avoid with the mechanical seals of other pumps.
3. The magnetic pump features a compact structure, nice outlook, small volume, low noise, reliable run and easy use and maintenance.
4. It can be used to pump acids, alkali, oils, rare and noble liquids, toxic liquids, volatile liquids and for completing with cycling water equipments and filters in che-mical industry, pharmacy, petroleum, electric plating, food movie and photograph development, scientific research organ, national defense industry etc.
5. Especially for pumping the easily leaking, combustible and explosive liquids, it is more ideal to use this pump.
6. Suitable for transporting the liquid containing no hard grains and fiber and with the suck-in pressure not more than 0.2MPa, the maximum working pressure 1.6MPa, the density not more than 1600Kg/m3 and the graininess not bigger than 30×10-6m2 /S.
Magnetic pump details:
| Working Principle: | Centrifugal, Magnetic drive |
| Main applications: | Chemical, water, oil |
| Driver: | Electric motor |
| Power Specs: | 220V/380/415 V 3phase; 220/240 V 1phase; 50hz/60hz |
| Max.permissible fluid temperature: | 95°C(203°F) |
| Type of connection: | Flange, Tube. |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Stainless steel 304 / 316 |
| Maximum drive rating: | 30KW(40HP) |
| Maximum caliber: | 150mm(6inch) |
| Maximum discharge-side pressure: | 0.5MPa(5bar) |
| Maximum head: | 50m(164ft) |
| Flow rate range: | 30-3350L/min(7.9-884.4 US.GPM) |
Pump Performance Data:
| Model | Caliber (mm) | Flow (m 3 /h) |
Head (m) | Power (kW) |
Voltage (V) |
Material | |
| Inlet | Outlet | ||||||
| 14CQB-5 | 14 | 10 | 1.2 | 5 | 0.18 | 220/380 | 304 316 316L S.S |
| 16CQB-8 | 16 | 12 | 1.8 | 8 | 0.18 | 220/380 | |
| 20CQB-12 | 20 | 12 | 3 | 12 | 0.37 | 220/380 | |
| 25CQB-15 | 25 | 20 | 5.4 | 15 | 1.1 | 380 | |
| 32CQB-15 | 32 | 25 | 6.5 | 15 | 1.1 | 380 | |
| 32CQB-25 | 32 | 25 | 4.8 | 25 | 1.1 | 380 | |
| 40CQB-20 | 40 | 32 | 1 | 20 | 2.2 | 380 | |
| 40CQB-32 | 40 | 32 | 11.5 | 32 | 4 | 380 | |
| 50CQB-25 | 50 | 40 | 14.4 | 25 | 4 | 380 | |
| 50CQB-32 | 50 | 40 | 13.2 | 32 | 4 | 380 | |
| 50CQB-50 | 50 | 32 | 7.8 | 50 | 5.5 | 380 | |
| 65CQB-25 | 65 | 50 | 16.8 | 25 | 5.5 | 380 | |
| 65CQB-32 | 65 | 50 | 25 | 32 | 5.5/7.5 | 380 | |
| 80CQB-32 | 80 | 65 | 50 | 32 | 11 | 380 | |
| 80CQB-50 | 80 | 65 | 50 | 50 | 15 | 380 | |
| 100CQB-35 | 100 | 80 | 60 | 35 | 15 | 380 | |
| 100CQB-50 | 100 | 80 | 60 | 50 | 18.5 | 380 |
|
Horizontal Non-metallic Centrifugal Chemical Magnetic Drive Pump
Design feature
Leak-proof design,No shaft seal.
Utilize magnetic coupling indirect driving, which free you from leak problem and will not contaminate the site.
Because the pump's liquid carrying part is made of fluoroplastic alloy, it can be continually carry acid, base, or strong oxidizer at any concentration without any damage.
Operating principe
In the driving device the initiative magnet junction box is directly installed onto the motor shaft. The pump chamber is totally sealed,
and is propelled to rotate by the magnetic impeller on the magnetic coupling indirect driving pump shaft, its structure tight,safe and energy-saving.
Strong and sturdy pump housing
Though the liquid-touching part is made of fluoroplastics, the pump enclosure is made of metal, so the pump can sustain the pipe's weight and mechanical shock.
FAQ
Q:Can you supply pump qualified with ANSI and ASME standard?
A:Yes, our pump compliant with ISO / ASME/ANSI standard.
Q:How to customize pumps and mechanical seals ?
A:Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight
Q:How long is warranty?
A:1 year for main construction warranty.
Q:How long is production lead time?
A:Normally 5 working days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 2 days.
Q:What is the shipping terms you can provide?
A:Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.
Q:Who is in charge of after-sales?
A:Gempump has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.
Q:Who is in charge of maintenance?
A:Local agent. If pump running has any problem on site, our local agent will arrival the plant within 24 hours
