Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9000,CE |
| Model Number: | CQB25-15 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/Set |
| Packaging Details: | Plywooden box |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 sets per month |
| Max.Head: | 50m | Max.Capacity: | 120m3/h |
|---|---|---|---|
| Drive Type: | Electric Motor | Pump Structure: | Horizontal Pump |
| Usage: | Acid, Alkali, Salt Solution | Material: | PP/PVDF/PTFE |
| Bearing: | NSK, SKF | Warranty: | 12 Months |
| HS Code: | 8413502090 | Theroy: | Magnetic Chemical Pump |
| High Light: | chemical handling transfer magnetic centrifugal pump,50m magnetic centrifugal pump,chemical handling transfer centrifugal magnetic pump |
||

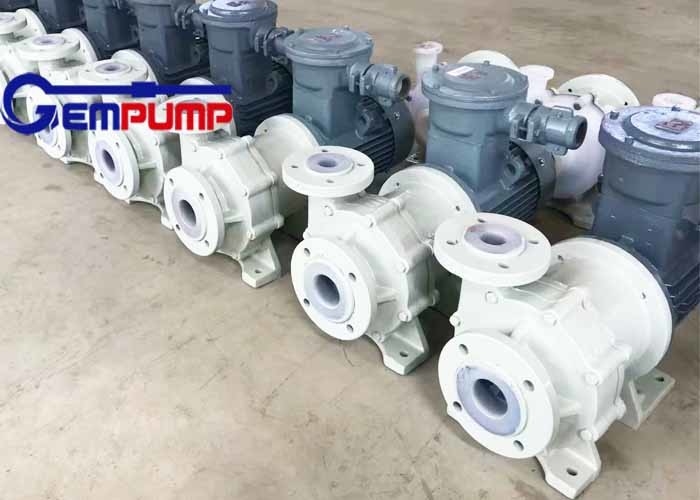

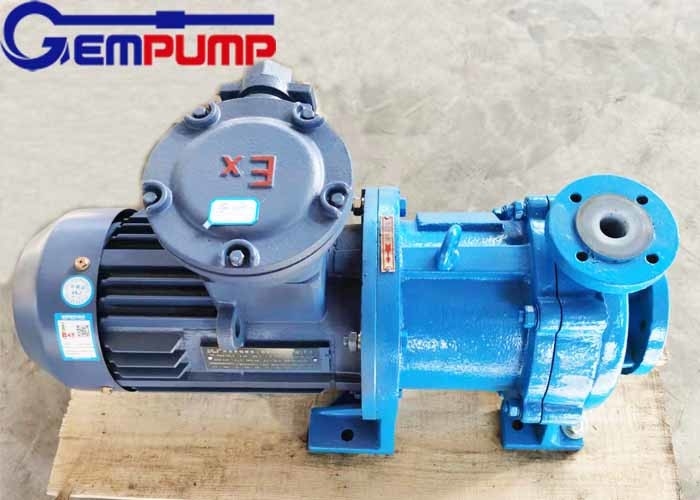

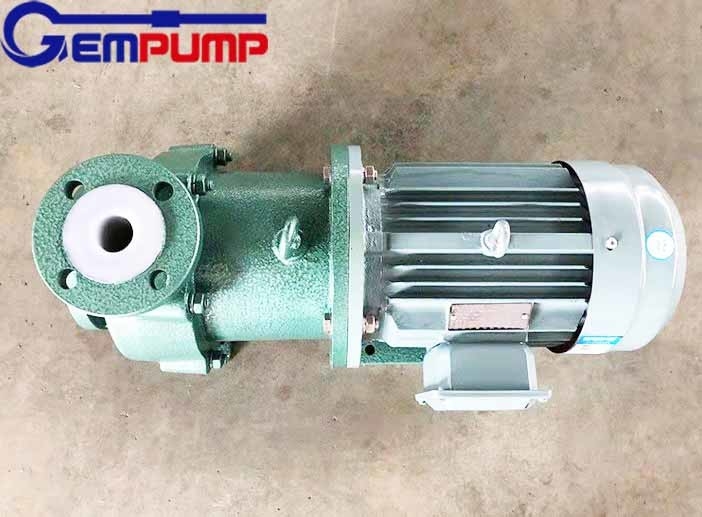

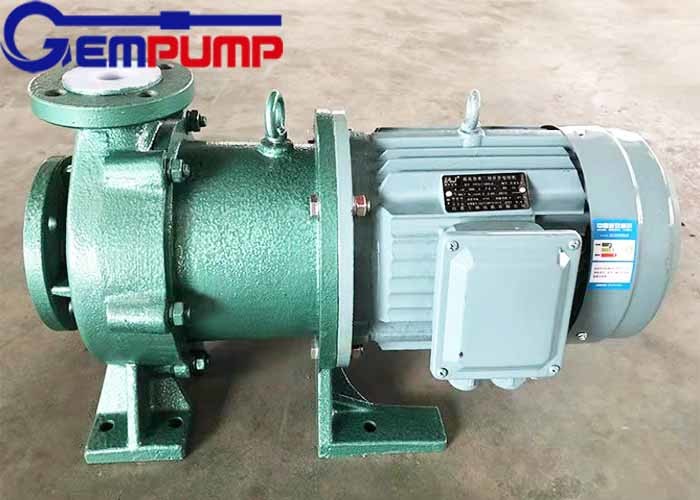

The Series CQB magnetic pumps (magnetic driven pumps) are made of corrosion-resistant engineering plastics, alumina ceramic and stainless steel. With reliable static seals replacing dynamic seals, all parts in the flowing path of magnetic pumps are fully sealed, ensuring the product non-leaking, anti-corrosive, small in size, less noisy, easy to operate and maintain. The magnetic pumps are widely used for transporting acids, bases, oils and other fluids, which are either toxic and volatile or easy to leak, flammable and explosive.
Main Features
The Gempump China magnetic pump cancels the mechanical seal and completely eliminates the inevitable disadvantages of running, emitting, dripping and leakage of the mechanical seal centrifugal pump. It is a priority for the leak free factory. Because the flow passage parts of the pump are made of stainless steel, the purpose of corrosion resistance is achieved. The magnetic coupling of the pump is integrated with the pump body, so it has the advantages of compact structure, convenient maintenance, safety and energy saving. The magnetic coupling of the pump can protect the transmission motor from overload.
Product Application
Magnetic pump is an ideal pump to eliminate running, emitting, dripping and leakage in chemical process, eliminate environmental pollution, create "leak free workshop" and "leak free factory", and realize safe and civilized production. It is widely used in the production process of petroleum, chemical, pharmaceutical, printing and dyeing, electroplating, food, environmental protection and other enterprises to transport corrosive liquids without iron filings, especially for the transportation of flammable, explosive, volatile, toxic and precious liquids.
Performance Parameters
|
Mode |
Diameter |
Flow |
Water-Lift |
Power |
Voltage (V) |
Material |
|
|
Inlet(mm) |
Outlet(mm) |
||||||
|
14CQB-5 |
14 |
10 |
1.2 |
5 |
0.12 |
220/380 |
Staineless |
|
16CQB-8 |
16 |
12 |
1.8 |
8 |
0.18 |
220/380 |
|
|
20CQB-12 |
20 |
12 |
3 |
12 |
0.37 |
220/380 |
|
|
25CQB-15 |
25 |
20 |
5.4 |
15 |
1.1 |
380 |
|
|
32CQB-15 |
32 |
25 |
6.5 |
15 |
1.1 |
380 |
|
|
32CQB-25 |
32 |
25 |
4.8 |
25 |
1.1 |
380 |
|
|
40CQB-20 |
40 |
32 |
10 |
20 |
2.2 |
380 |
|
|
40CQB-32 |
40 |
32 |
11.5 |
32 |
4 |
380 |
|
|
50CQB-25 |
50 |
40 |
14.4 |
25 |
4 |
380 |
|
|
50CQB-32 |
50 |
40 |
13.2 |
32 |
4 |
380 |
|
|
50CQB-50 |
50 |
32 |
7.8 |
50 |
5.5 |
380 |
|
|
65CQB-25 |
65 |
50 |
16.8 |
25 |
5.5 |
380 |
|
|
65CQB-32 |
65 |
50 |
25 |
32 |
7.5 |
380 |
|
|
80CQB-32 |
80 |
65 |
50 |
32 |
11 |
380 |
|
|
50CQB-50 |
80 |
65 |
50 |
50 |
15 |
380 |
|
|
100CQB-32 |
100 |
80 |
60 |
32 |
15 |
380 |
|
|
100CQB-50 |
100 |
80 |
60 |
50 |
18.5 |
380 |
|
|
Please note:16CQB-8---100CQB-50 can use explosion proof motor. |
|||||||
